758/752 подшипник конический роликовый размер подшипника

Описание и отзывы

Характеристики

758/752 Bearing Tapered roller bearing 758/752 Bearing Size 85.725X161.925X47.625

Application

Tapered roller bearings are more and more widely applied to electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, equipment, robots, tools, machinery, cnc machine , automotive and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry being.



Taper roller bearing are generally used to supportcombined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.

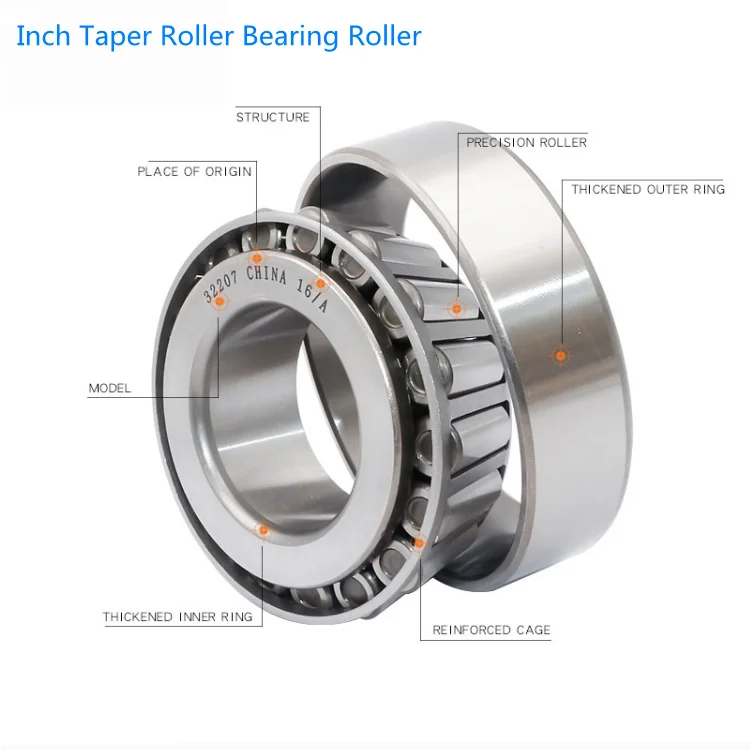

Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.

Taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.



Specification	Boundary dimensions(mm)			Mass(kg)
	d	D	B
LM300849/LM300811	41.000	68.000	17.500	0.2420
33275/33462	69.850	117.475	30.162	1.2720
33281/33462	71.438	117.475	30.162	1.2310
33 8 89/33821	50.800	95.250	27.783	0.8680
33287/33462	73.025	117.475	30.162	1.1880
368A/362A	50.800	88.900	20.638	0.5040
368/362	50.800	90.000	20.000	0.5620
3780/3720	50.800	93.254	30.162	0.8560
3782/3720	44.450	93.264	30.162	0.9700
387A/382A	57.150	96.838	21.000	0.5990
39585/39520	63.500	112.712	30.162	1.2580
2580/2523	31.750	69.850	23.812	0.4510
28985/28921	60.325	100.00	25.400	0.7700
47686/47620	82.550	133.350	33.338	1.7570
47687/47620	82.550	133.350	33.338	1.7370
387A/362S	57.150	96.838	25.400	0.6690
387A/382	57.150	98.425	21.000	0.6460
3982/3920	63.500	112.712	30.162	1.2430
3984/3920	66.675	112.712	30.162	1.1660
462/453X	57.150	104.775	30.162	1.0700
L44643/L44610	25.400	50.292	14.224	0.1290
L4469/L44610	26.988	50.292	14.224	0.1200
L45449/L45410	29.000	50.292	14.224	0.1150
LM48548/LM48510	34.925	65.088	18.034	0.2590
LM501349/LM501210	41.275	73.431	19.558	0.3340
LM501349/LM501314	41.275	73.431	21.430	0.3550

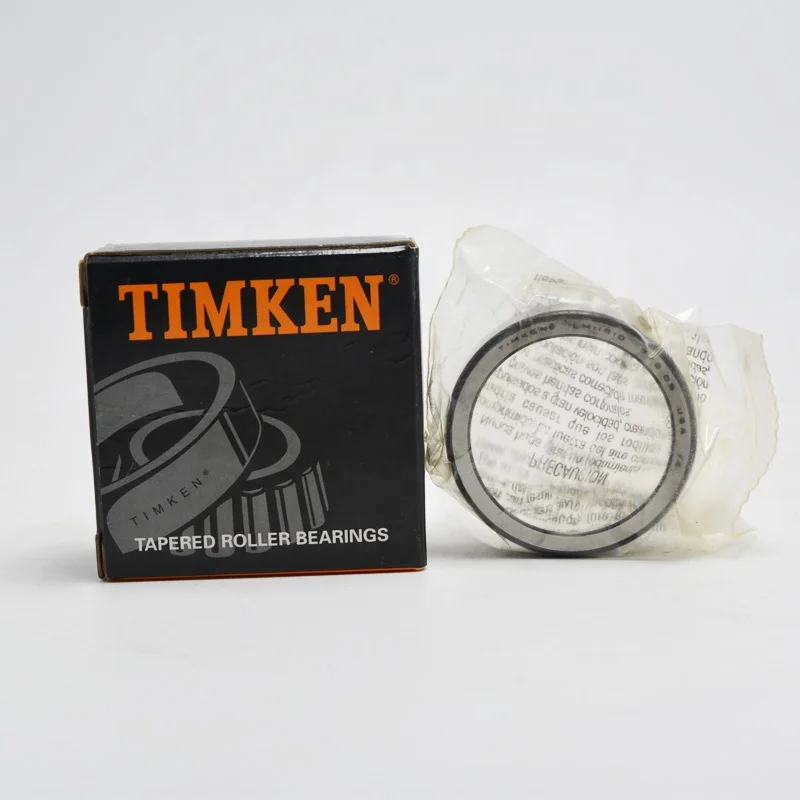

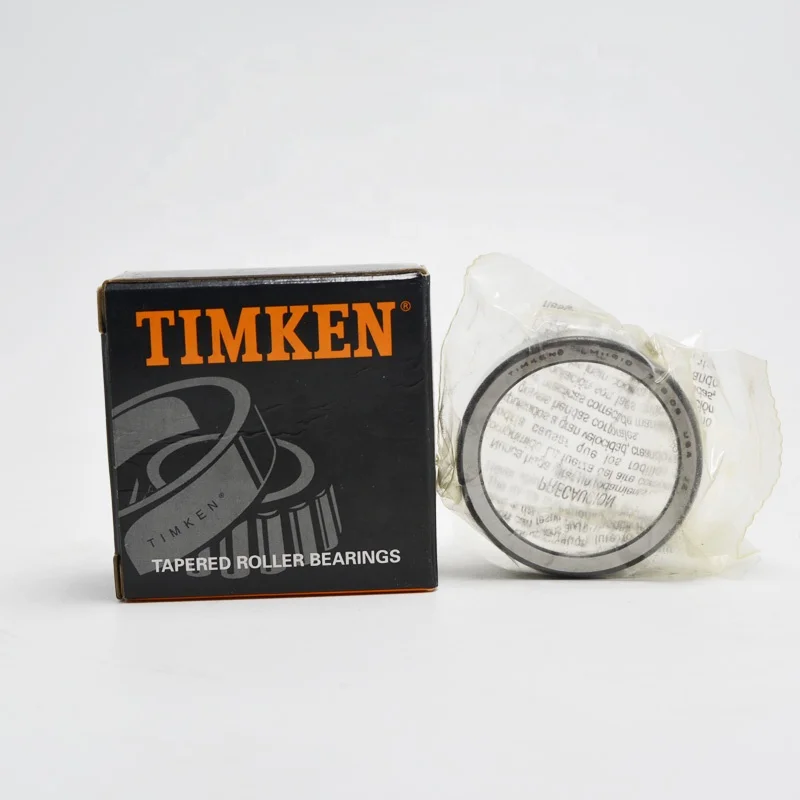

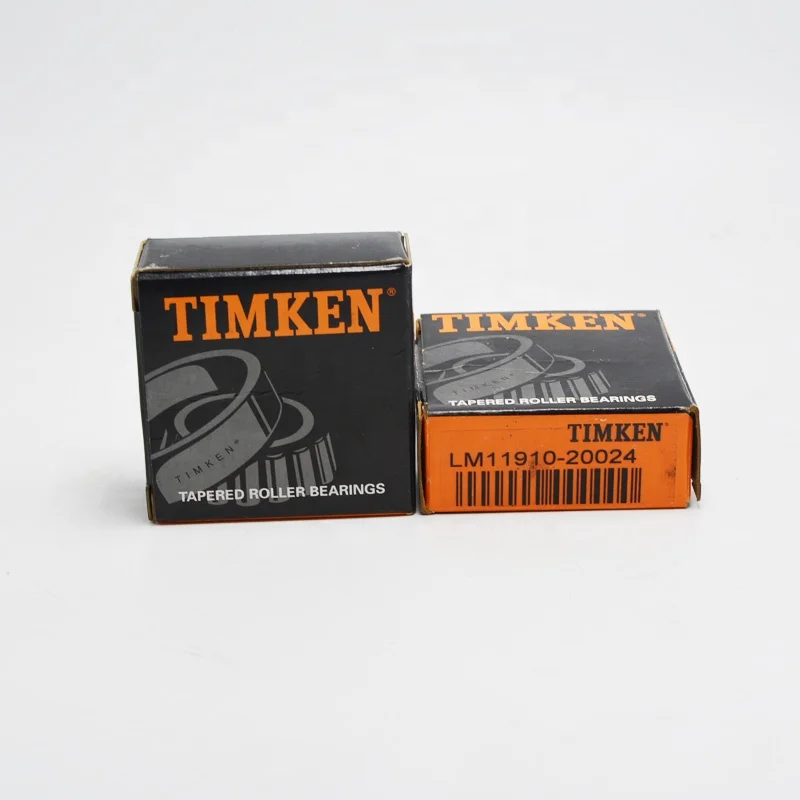

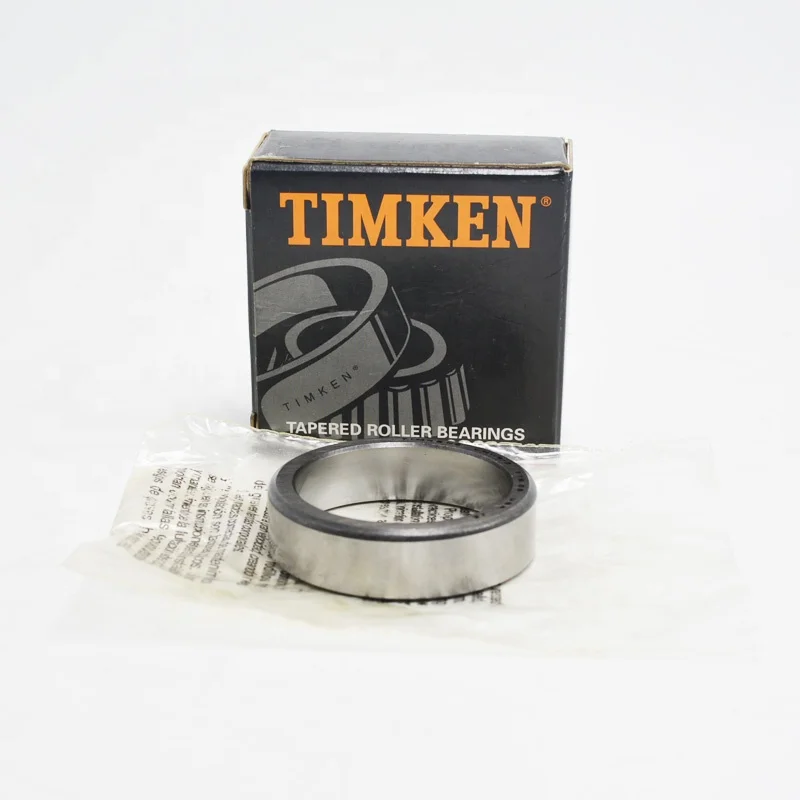

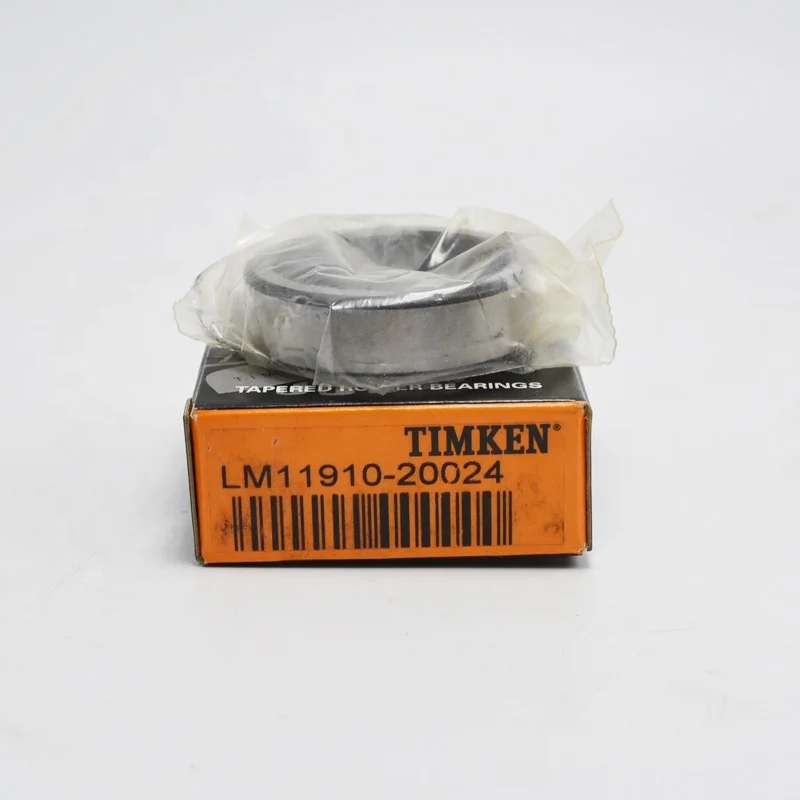

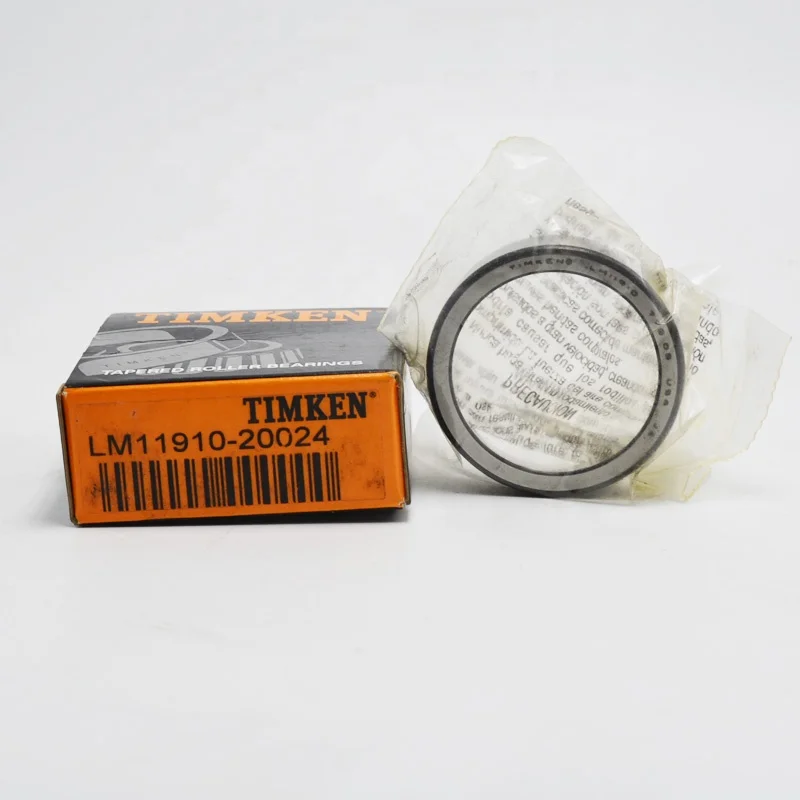

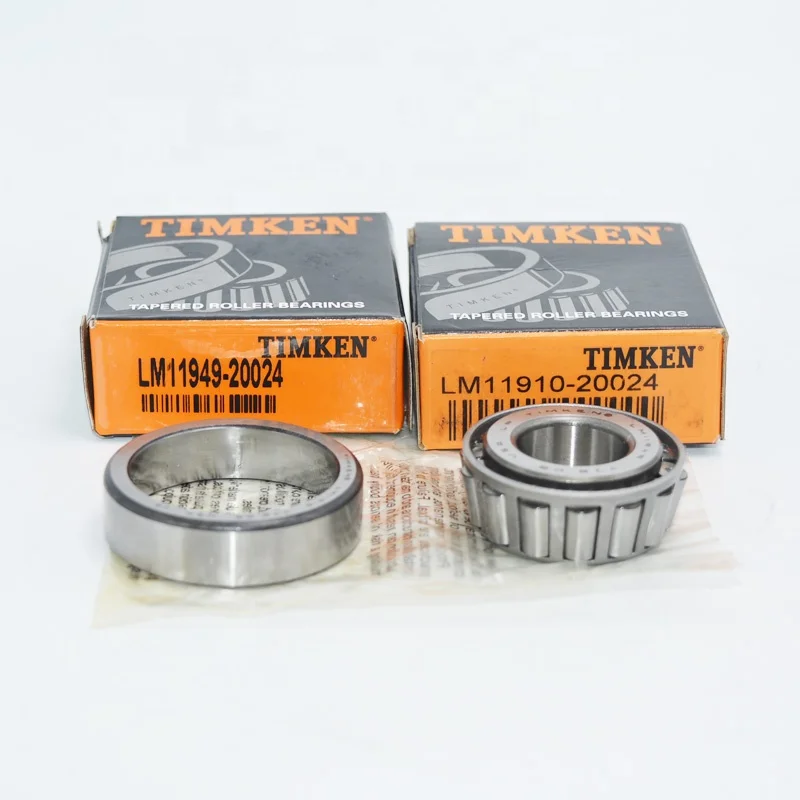

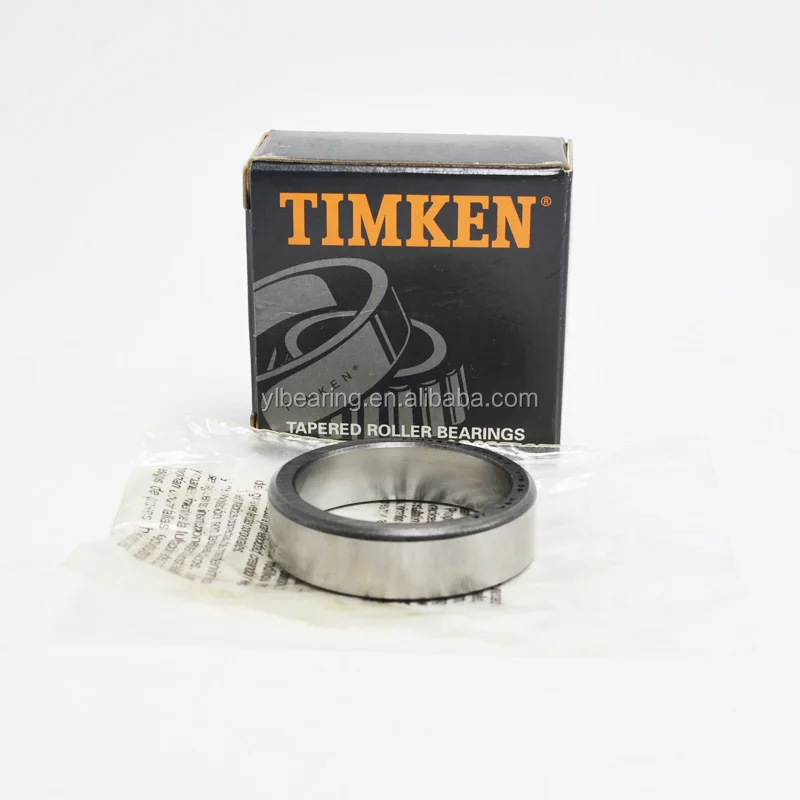

Please see the real photos below :



Why choose LBR bearing?

1.We are a manufacturer producing high quality bearings with competitive prices, More than ten years of experience in product , More than 15 years of experience in foreign trade export;

2.The Most advanced machinery and a strict quality control team .

3.On-time delivery service.

4.Accept non-standard production according to customers' requirement.

5.High level of performance, quality, of all equipment and service.

6.Promptness in technical support pre- and after sales.

7.Do OEM for our customers.

LBR Bearing Groupis biggest manufacturer located in Shandong Province . It's specialized in manufacturing tapered roller bearings, deep groove ball bearings, cylindrical roller bearings,Tensioner roller bearing,and other non-stand bearings.

Our products have already sold 12 years in the CIS countries, we produce bearings spetsialnoye by type GAZVAZ  ZIL KAMAZMAZ UAZURAL MOSKVICHNivaDT-75 / MTZ / T-40 / T-130/T-150 / T-170 and And other automotive bearings .

With an experienced and professional team ,  advance produce equipment and the precision inspection equipment , Assure the bearing quality as the ISO stand. we have exported our products to many countries and regions all over the world , especiallyRussia,  Brazil, American, Ukraineand so on.

Our products  enjoy a good reputation among our customers . we welcome customers , business associations and friends from all pats of the world to contact us and seek cooperation for mutual benefits.

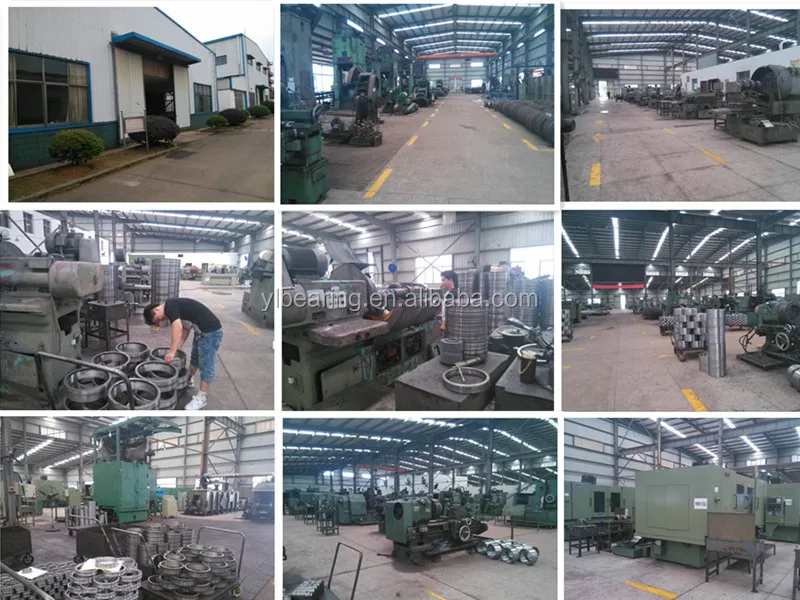

1.LBR   Factory:

2.LBR   Quality control:

Our company inspecter will check the products one by one before we sent it out, and we can also follow customers' special requests to control the quality. We have got little feedback of quality issue from customers these years. So please rest assure.

3.ISO9001:2008 CERTIFICATE

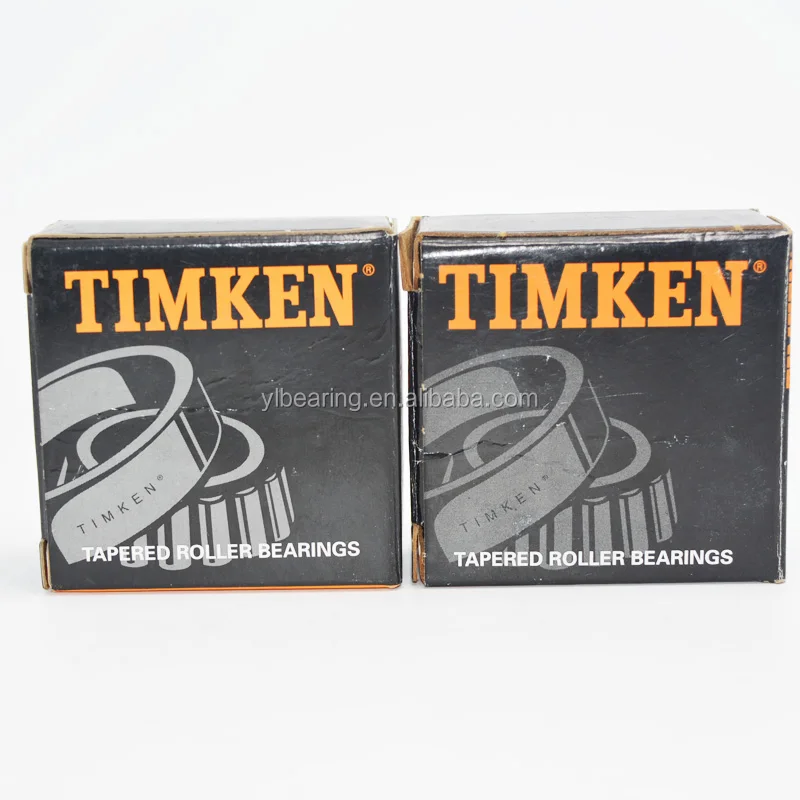

4.LBR Bearing Packaging Details

1.Industry package: Plastic paper+Kraft paper,10pcs or 5pcs/roll+Carton+Pallet

2.Plastic tube: 10pcs/tube or 5pcs/tube+Carton+Pallet

3.Single box: plastic bag+single box, supply+Carton+Pallet

4.Package as your requirement

5.Special Services and Strength help you with below:

we can send the goods to any city in Russia, it is not necessary to pay a high fee, quickly and profitably.

we can send via Malaysia bearings , All documents will be Malaysian .

6.LBR  service:

1).After sales service and technical assistance

We promise that we will return and change the bearings for free if you are not satisfied with the quality. And we did so in fact.

The company provides after sales service and technical assistance to satisfy every customers requirement and need.

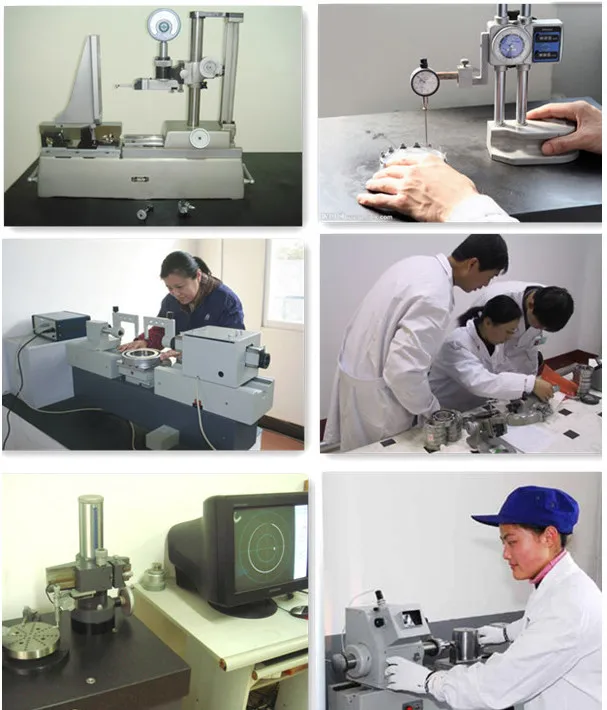

2).The most professional bearing test center in whole China:

We spent lots of money to buy the most professional bearing testing equipment . And we will test the quality before we deliver

it to our customers . Once it is under quality, we will change it for our customers good.

3).Non standard bearing:

any requirement for nonstandard bearing is easily fulfilled by LBR due to its vast knowledge and links in the industry.We have

experience more than 10 years .We can change the bearings for big Cr N .

4).Genuine products with excellent quality: company has always proved the 100% quality products

5).Quick Delivery:

The company provides just-in-time delivery with its streamlined supply chain.
