Медицинский эндоскоп с одной
- Категории: Medical Gas Equipments >>>
- Поставщик: Jiangsu,Sinowise,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Detailed Technical Parameter
1. apply in operating room ,endoscope room ,anesthesia room and hospital wards so on
2. is available in single and double arm configurations .Each joint has a rotation range up to ≤350 degree.
3. ceiling mounted and wall mounted type.
4. pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.
5. one arm,can rotation, rotation angle≤350 degree.
6. high-strength aluminium alloy,wear-well reduce your cost
7. pendant color blue ,red and so on
8.customization is available.
9.German / British /America/Japanese/ French /Chinese standard gas outlet optional.
10.can horizontal rotation,cannot lift vertical.
2. is available in single and double arm configurations .Each joint has a rotation range up to ≤350 degree.
3. ceiling mounted and wall mounted type.
4. pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.
5. one arm,can rotation, rotation angle≤350 degree.
6. high-strength aluminium alloy,wear-well reduce your cost
7. pendant color blue ,red and so on
8.customization is available.
9.German / British /America/Japanese/ French /Chinese standard gas outlet optional.
10.can horizontal rotation,cannot lift vertical.
Specification | ||||||
Model | EX-50-E Single Arm | |||||
Material | used high-strength aluminum alloy ,modular design ,surface electrostatic powder painting,prevent corrosive ,easy to clean | |||||
Brake way | damping friction brake,to make sure without drifting and easy to stop,insure safe | |||||
rotary arm length | 1000mm(standard configuration) | |||||
rotary radius | ≥650mm | |||||
Head service | column ,standard height 800mm | |||||
loading | ≥180kg | |||||
shelf loading | ≥60kg | |||||
degrees rotation | ≤350 º | |||||
Standard Configuration | ||||||
Model | EX-50E Single Arm | |||||
Shelf | 2 pcs | |||||
Drawer | 1 pcs | |||||
I.V Pole | 1 pcs | |||||
Extension arm | 1 pcs | |||||
Pendant Type | Surgical Pendant | Anesthesia Pendant | Endoscopy Pendant | |||
Gas outlets | O2*1,Vac*1,Air*1 | O2*1,Vac*1,Air*1 N2O*1,AGSS*1 | O2*1,Vac*1,Air*1 CO2*1 | |||
Electrical socket | 6pcs (220V 10 A) | |||||
Other Configuration optional | ||||||
RJ 45 | Quantity is according to hospital need | |||||
Video Socket | Quantity is according to hospital need | |||||
Grounding socket | Quantity is according to hospital need | |||||
Monitor bracket | Quantity is according to hospital need | |||||

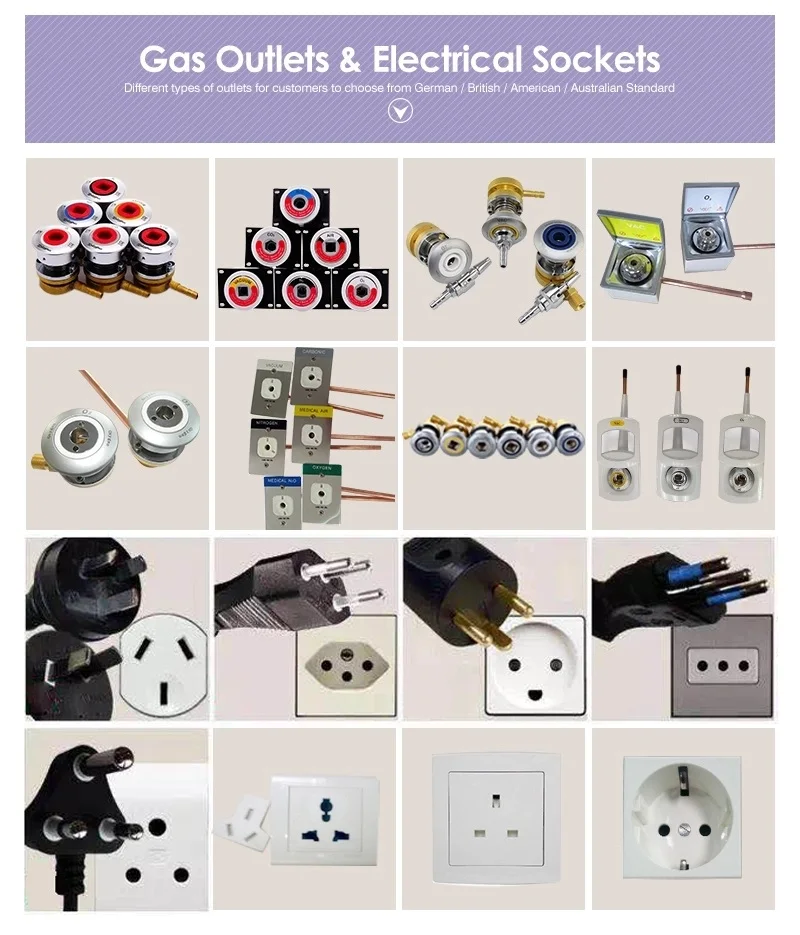

Electrical socket and gas outlets u can choose different standards,quantity is according to hospital need | ||||||

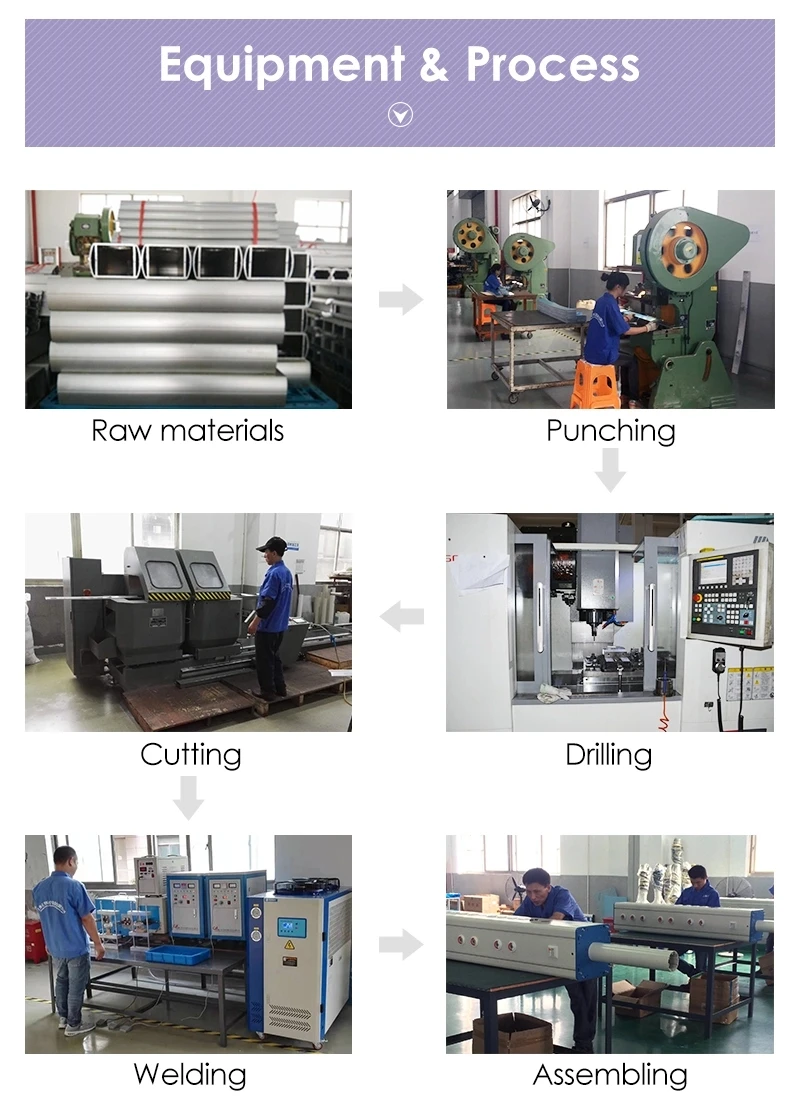

Production Process
