Высококачественный фрезерный станок с ЧПУ модульные тиски MVN200 точные для
- Категории: Vise >>>
- Поставщик: Jinan,HC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

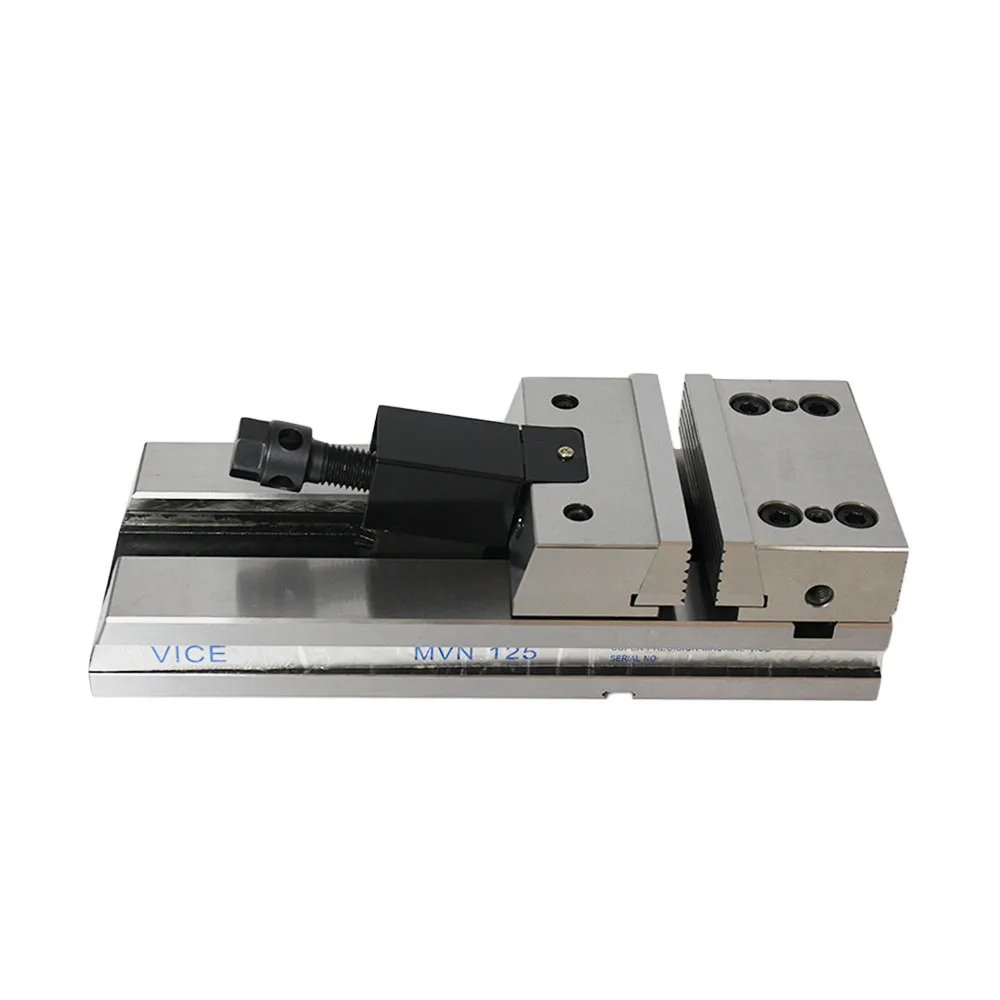

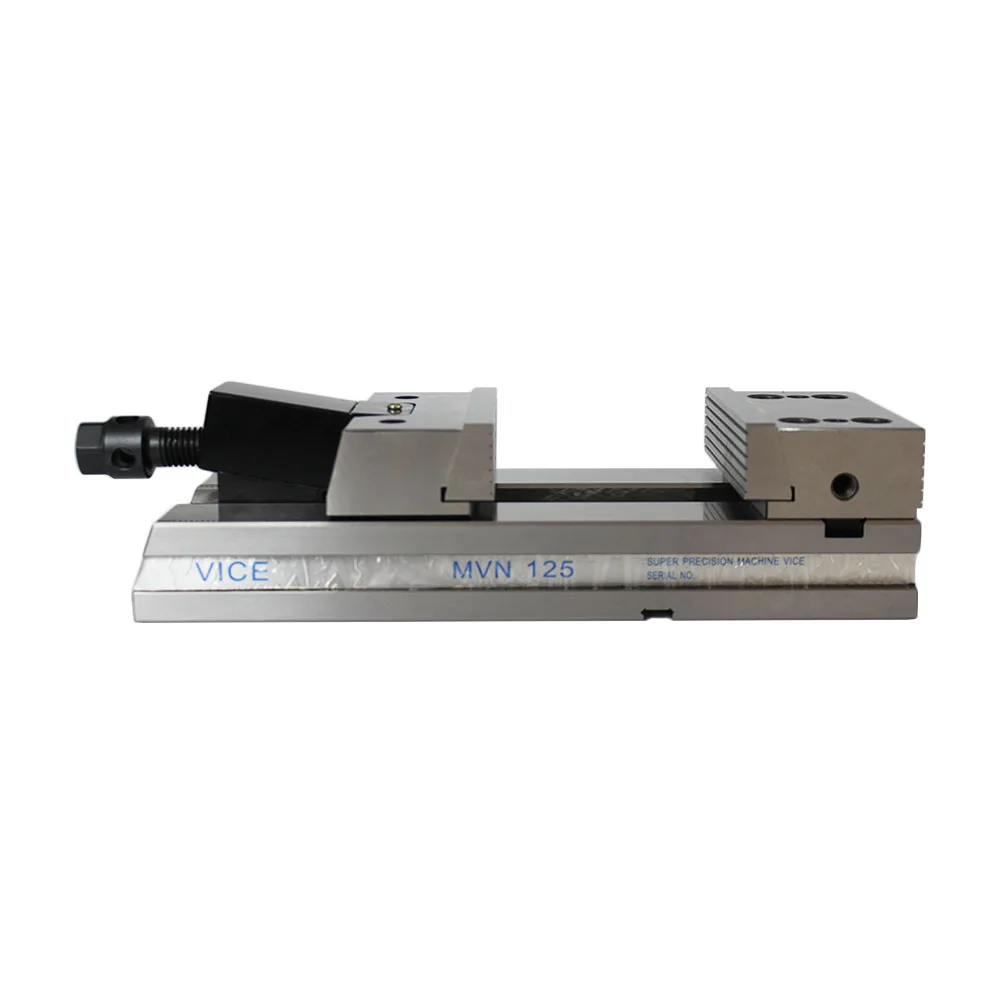

MVN 125 PRECISION MACHINE VISE
Product Description
Product Parameter

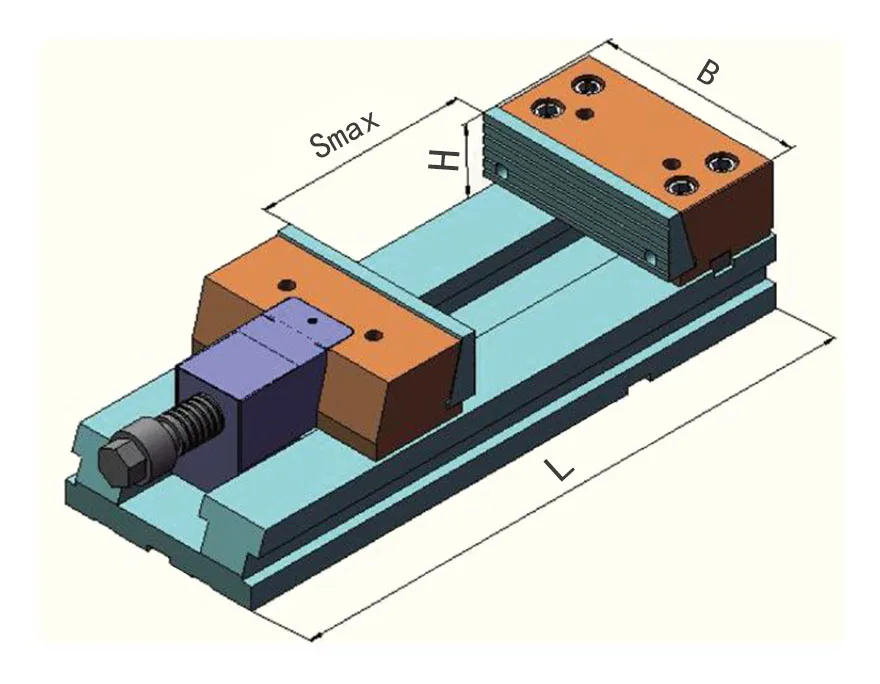

Model No (MM) | B (MM) | H (MM) | Smax (MM) | L (MM) |
MVN125 | 124 | 40 | 140 | 323 |
MVN150 | 149 | 52 | 210 | 423 |
MVN175 | 174 | 58 | 240 | 470 |
MVN200 | 199 | 66 | 270 | 520 |
MVN250 | 249 | 74 | 340 | 600 |
Show Details
1. High quality alloy by special treatment,the working surface hardness up to HRC58-62,to ensure high wear resistance and high
tension.
2. Parallelism0.005mm/100mm,
Squareness 0.005mm
3. The positioning pin can adjust its position on the clamp body according to the size of the workpiece to achieve fast clamping.
4. Can be used for surface grinder,machining center,CNC milling machine and other precision machine.
2. Parallelism0.005mm/100mm,
Squareness 0.005mm
3. The positioning pin can adjust its position on the clamp body according to the size of the workpiece to achieve fast clamping.
4. Can be used for surface grinder,machining center,CNC milling machine and other precision machine.
