PH EC DO TU TEMP Multiparameter Water Quality Meter for Industrial Process

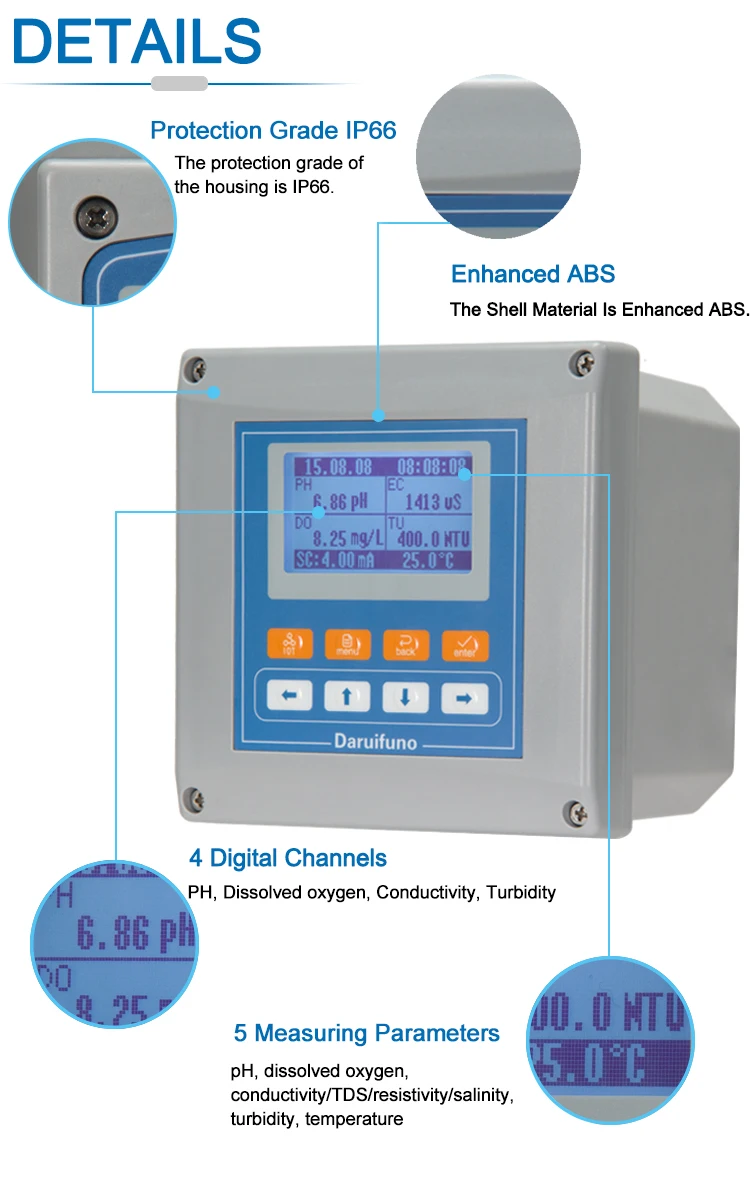

Features Of Multi-parameter Analyzer
Customized multi-parameter analyzer
Daruifuno MCC100 analyzer has 4 digital channels: PH, dissolved oxygen, conductivity and turbidity. It can measure up to 5 parameters(temperature).
Different measurement range
The MCC100 controller can be connected with different electrodes to realize the measurement. The measuring range is determined by different sensors.
Communication and control
The MCC100 multi-parameter water quality analyzer has RS485 interface and the communication protocol is Modbus RTU. The water tester has 2 SPST relays and two 0/4~20mA analog current outputs.
Various installation methods

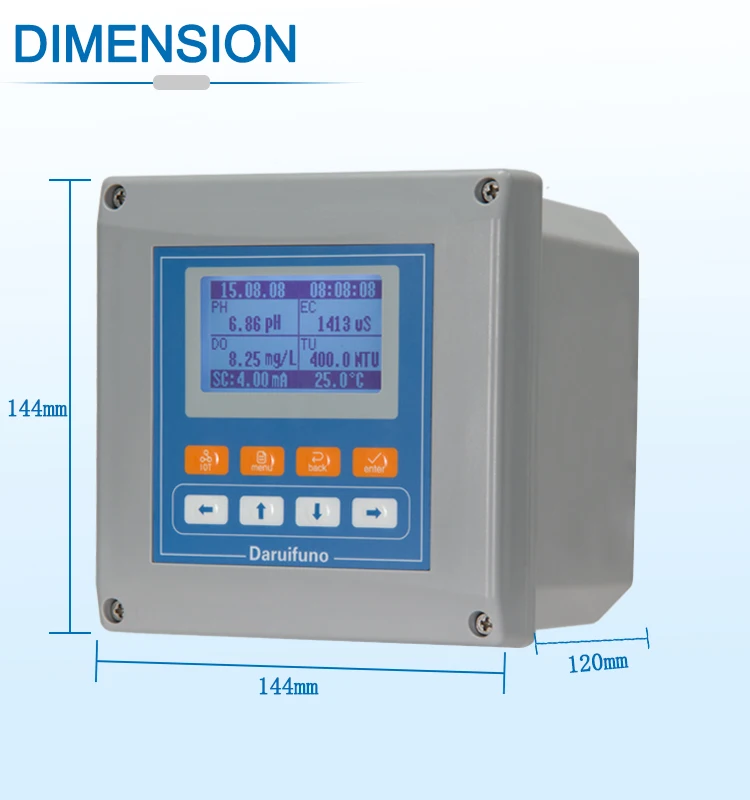

The dimension of the controller is 144*144*120mm, support wall mount, pipe clamping, panel.
Specification Of Multi-parameter Analyzer
Product Name | Multi-parameter Water Quality Meter |
Product Model | MCC100 |
Brand Name | Daruifuno |
Software Version | Daruifuno multi-parameter analysis software V1.0 |
Detection Object | PH,Temp, conductivity, dissolved oxygen, turbidity |
pH Sensor | principle: glass electrode method range: 0~14pH, 0~50℃ accuracy: 0.01pH |
Conductivity Sensor | principle: 2-electrode or 4-electrode range: 0~10mS/cm automatic switching, 0~50℃ accuracy: 1% of the measuring range |
Dissolved Oxygen Sensor | principle: fluorescence method range: 0~20mg/L, 0~50℃ accuracy: ±0.1mg/L |
Turbidity Sensor | principle: infrared 850nm 90° scattered light method range: 0~1000NTU, 0~4000NTU accuracy: <±1% of the measuring range |
OTA | optional |
Configuration Information | Power failure protection, indefinite retention of parameters |
TEMP Sensor Input | PT1000 or NTC10K |
Temperature Compensation | Automatic or manual |
Operating Temperature | 0~60℃ RH<95% |
Storage Temperature | -20~70℃ RH<55% |
Relay Output | Two SPST relays max. load 3A/250VAC |
Analog Output | Two 0/4~20mA current outputs |
Communication Method | RS485 interface |
Communication Protocol | Modbus RTU, support JSON text |
Time/Data Logging | Accurate to the second, record 5000 historical data Recording interval can be set between 1 and 999 minutes |
Maintain Records | Last 100 times |
Display | 3.2 inch 128*64 LCD screen |
Protection Grade | IP66 |
Material | Enhanced ABS |
Dimensions | 144*144*120mm |
Mounting | wall mounting, pipe clamp, panel mounting (open hole size 138*138mm) |
Power Supply | AC: 100~240V, 50/60Hz |
Power Consumption | <25W |
Weight | 800g |
Application
FAQ
1. What data can be measured by your multi-parameter analyzer and can it be customized?
A: Our MCC100 model multi-parameter analyzer has 4 digital channels, it can connect with pH, conductivity, dissolved oxygen, turbidity sensors. The temperature will display at the same time. If you want to change one or more parameters, you can contact us, we will customized for you.
2. Do you have any sensors for this multi-parameter controller?
A: Certainly. We have different measuring range sensors designed for this controller. They are high quality digital sensors. Our company has pH, ORP, conductivity, dissolved oxygen, turbidity, chlorine, COD, BGA, etc. sensors.
3. Can your instrument achieve data output?
A: The multi-parameter water quality meter has a two-wire RS485 interface, the communication protocol is standard MODBUS RTU, and it can support JavaScript Object Notation text data format.
Transportation
