Роскошная лодка для яхты 11 6 м алюминиевая кабина пассажирская морской
- Категории: >>>
- Поставщик: Shandong,Allsea,Boats,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCTS STANDARDS AND SPECS
◆ 4-6mm marine grade 5083 aluminum plate hull structure
◆ Full depth girders no more than 300mm apart,making them very strong in comparison to other methods of construction.
◆ The floor is self draining through sides and middle transom scuppers.
◆ There are separate chambers for fuel and storage.
◆ Stylishly rounded corners throughout the vessel to ensure safety to passengers.Full depth girders no more than 300mm apart, making them very strong in comparison to other methods of construction.
◆ The floor is self draining through sides and middle transom scuppers.
◆ There are separate chambers for fuel and storage.
◆ Stylishly rounded corners throughout the vessel to ensure safety to passengers.
◆ Full depth girders no more than 300mm apart,making them very strong in comparison to other methods of construction.
◆ The floor is self draining through sides and middle transom scuppers.
◆ There are separate chambers for fuel and storage.
◆ Stylishly rounded corners throughout the vessel to ensure safety to passengers.Full depth girders no more than 300mm apart, making them very strong in comparison to other methods of construction.
◆ The floor is self draining through sides and middle transom scuppers.
◆ There are separate chambers for fuel and storage.
◆ Stylishly rounded corners throughout the vessel to ensure safety to passengers.

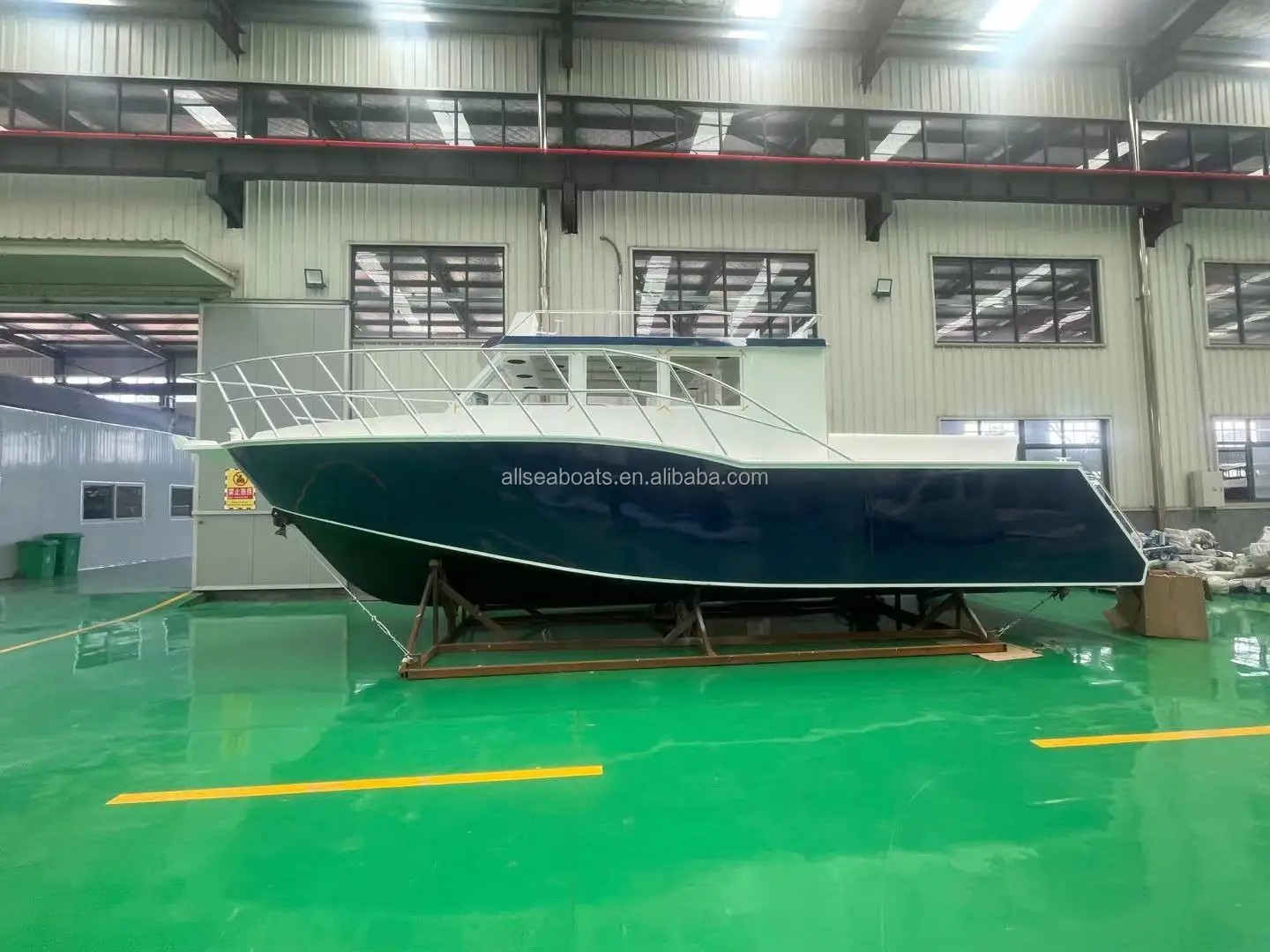

Product Name | 11.6m Lifestyle Aluminum Fishing Boat | Engine Type | Yamaha Petrol Fuel Type Outboard Motors |
Boat Model | ASL1160 | Engine Power | 400hp ~ 800hp |
Material | Marine Grade Aluminium Alloy 5083 | Transom Height | Twin Engine 25'' |
Dimension | Length 11.6m, Beam 3.3m, Depth 1.9m | Certificate | CE Certificate |
Thickness | Bottom 5mm, Transom 6mm, Topsides 5mm | Port of Loading | Qingdao Port |
Boat Weight | 3090kgs | Loading Plan | Flat Rack Shipping |
Number of People | 12 | HS Code | Custom Code 8903009900 |

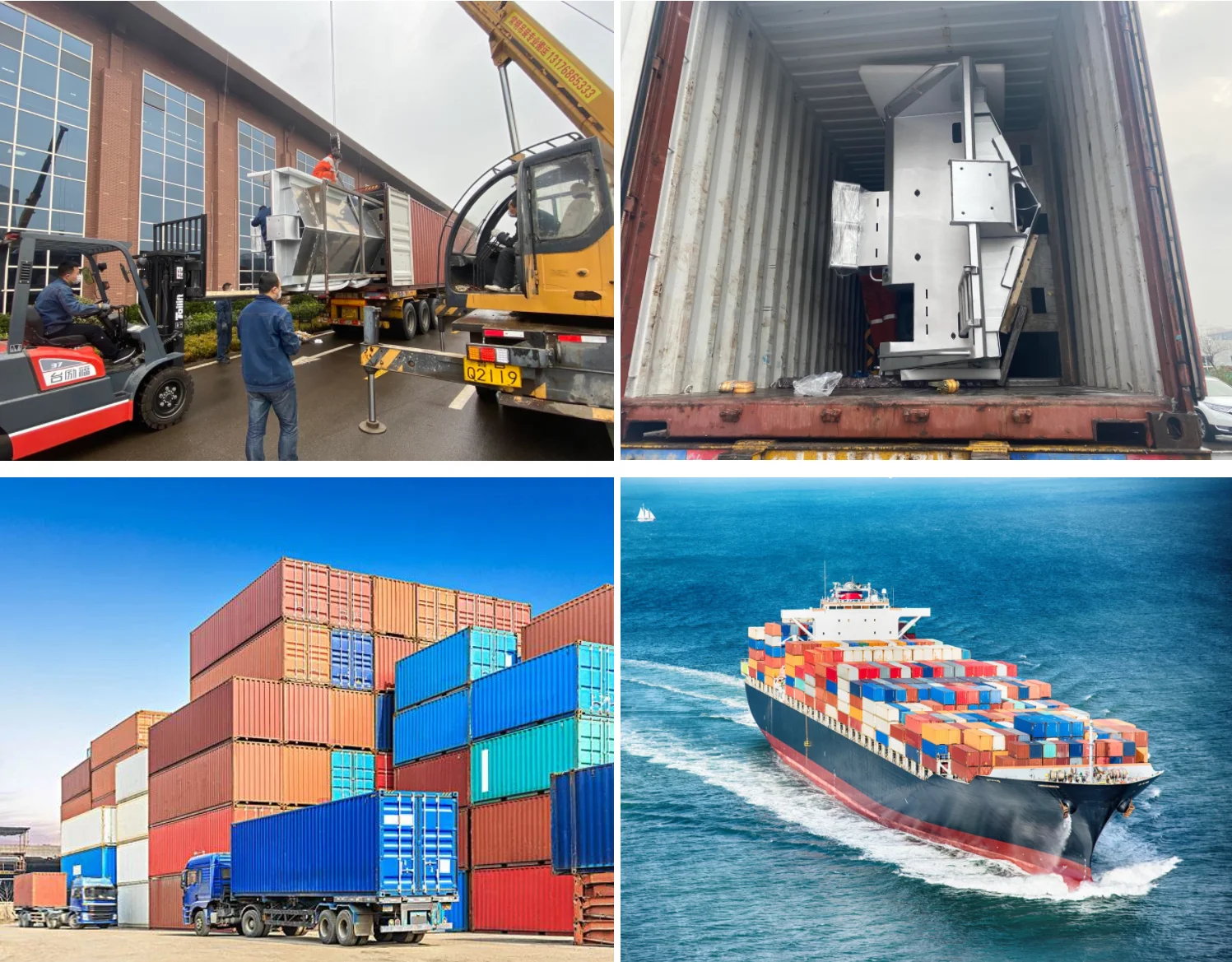

PACKAGE AND SHIPPING

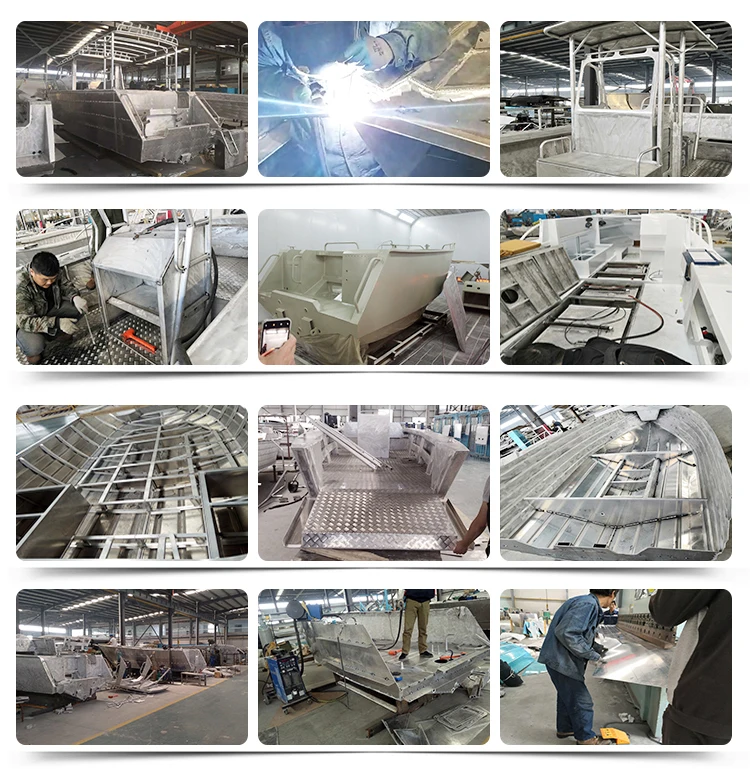

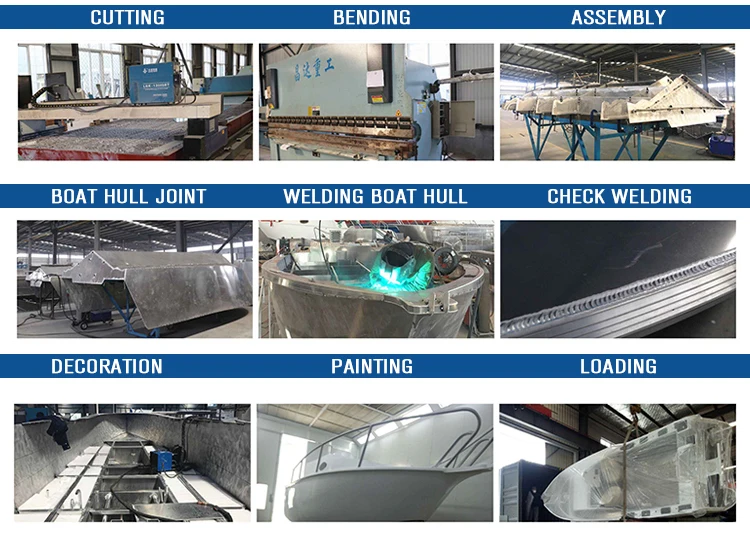

Manufacturing Technique
Quality
A: ALLSEA Boats are superior structures, built at our factory to European CE Certifications standards.
B: The material used is marine grade alloy certified, with a 5 mm plate hull throughout, and 4 mm plates on structural components.
C: Our boats have fully welded sealed alloy decks, and have fully welded frames and girders, ensuring that structural members are not left floating and unfixed as in all other brands.
D: All welders and fabricators at our factory are certified marine specialists.
E: To ensure the utmost quality, full on site chemical, physical and weight testing is undertaken of all raw materials.
F: All designs are prepared by naval architects on CAD software.
G: All plate aluminium cutting is computerised allowing for the perfect fit.
H: Every hull is personally inspected over and over and welds are tested for defects, fuel and water tanks are baffled and pressure tested.
I: Additionally, every boat is personally thoroughly inspected before it leaves the factory.
1.All of our fishing & working boat are made of Marine-grade aluminum 5083-h116 with China Ship Classification society ( CCS )
2.Welding Specification :
2.Welding Specification :
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place .
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders .
4) The bottom is double bottom system and constructed on the longitudinal system of framing .
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm ."
3.The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses .
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place .
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders .
4) The bottom is double bottom system and constructed on the longitudinal system of framing .
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm ."
3.The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses .
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe
Related Products
CUSTOMERS FEEDBACK
Certifications
FAQ
Q: Why do we choose allsea?
A: Top craftsmanship ensure high quality of boats; Unparalleled comfort when standing, walking, or leaning on boat surfaces; Well-developed after-sale service
Q: I want to see the rowing boats in person, where can I find them?
A: Kindly send the inquiry to get the contact way of our AU agent, also we'd like to organize factory tours for you to visit our
factory in Shandong.

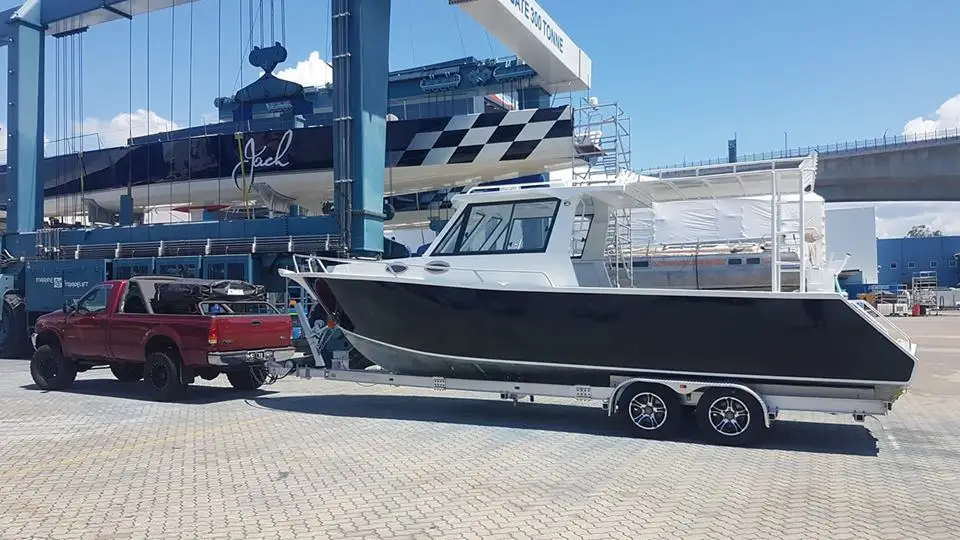

Q: Could you provide boat trailer?
A: Yes, we have boat trailers specially designed for our aluminum boat hull according to Australia standard.
Q: What boat building standards do your products adhere to?
A: We following the Australian standard 1799, as well as ISO/CE/RCD rules.
A: Top craftsmanship ensure high quality of boats; Unparalleled comfort when standing, walking, or leaning on boat surfaces; Well-developed after-sale service
Q: I want to see the rowing boats in person, where can I find them?
A: Kindly send the inquiry to get the contact way of our AU agent, also we'd like to organize factory tours for you to visit our
factory in Shandong.
Q: Could you provide boat trailer?
A: Yes, we have boat trailers specially designed for our aluminum boat hull according to Australia standard.
Q: What boat building standards do your products adhere to?
A: We following the Australian standard 1799, as well as ISO/CE/RCD rules.
