450/750V 3Cores 25,35,50,70mm2 Welding Submersible Cable Rubber Black Jacket Yellow Red White Cross Copper






Product Description












Application








Tauchflex-FL is a special cable for use as a connecting and control cable for submersible motor pumps, underwater floodlights, floating switch and has proven its worth for constant use in waste water or water for general use up to the depth of immersion of 500 m (50 bar) and under temperatures of up to +70°C/+158°F.
Tauchflex-FL can also be installed for use in dry, damp and humid areas as well as in the open air.






















Cable Construction



  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5

  • Foil as separator

  • EPR conductor insulation, compound type 3GI3 to DIN VDE 0207 part 20

  • Color code according to DIN VDE 0293

  • Conductors laying parallel

  • EPR outer jacket, blue, compound type 5GM3 adapted to DIN VDE 0207 part 21




















Technical DataEuropean



  • Special cables corresponding to DIN VDE 0250 and 0282 part 810

  • Temperature Range
    -40°C to +80°C (-40°F to +176°F)
    (max. temperature for the outer surface)

  • Permissible Operating Temperature
    at conductor +90°C/+176°F

  • Nominal Voltage U0/U 450/750 V

  • Operating Voltage for alternating and
    three-phase currents U0/U 413/825 V
    For direct currents U0/U 619/1238 V

  • Current Rating to DIN 57100 part 523/ VDE 0100 part 523

  • Test Voltage 15 min 2.5 kV

  • Max. permitted Tensile Stress
    per mm² conductor 15 N



































































































































































Description & No. Conductors x cross-sec. mm2Outer
Diameter
mm		Cop. weight
kg/km		Weight
ca. kg/km		AWG
TAUCHFLEX-FL 3X1.57.0 - 13.043.0125.016
TAUCHFLEX-FL 3X2.58.0 - 16.072.0185.014
TAUCHFLEX-FL 3X49.0 - 19.0115.0290.012
TAUCHFLEX-FL 3X610.0 - 23.0173.0400.010
TAUCHFLEX-FL 3X1012.0 - 28.0288.0615.08
TAUCHFLEX-FL 3X1614.0 - 31.0461.0890.06
TAUCHFLEX-FL 3X2517.0 - 37.0720.01155.04
TAUCHFLEX-FL 3X3517.0 - 38.01008.01540.02
TAUCHFLEX-FL 3X5020.0 - 45.01440.02190.01
TAUCHFLEX-FL 3X7022.0 - 52.02016.02890.02/0
TAUCHFLEX-FL 3X9525.0 - 58.02736.03800.03/0
TAUCHFLEX-FL 3X12027.0 - 64.03456.04700.04/0
TAUCHFLEX-FL 4G1.57.0 - 17.058.0160.016
TAUCHFLEX-FL 4G2.58.0 - 20.096.0245.014
TAUCHFLEX-FL 4G49.0 - 24.0154.0330.012
TAUCHFLEX-FL 4G610.0 - 26.0230.0450.010
TAUCHFLEX-FL 4G1011.0 - 31.0384.0850.08
TAUCHFLEX-FL 4G1613.0 - 36.0614.01200.06
TAUCHFLEX-FL 4G2515.0 - 45.0960.01590.04
TAUCHFLEX-FL 4G3517.0 - 48.01344.02085.02
TAUCHFLEX-FL 4G5020.0 - 59.01920.02890.01

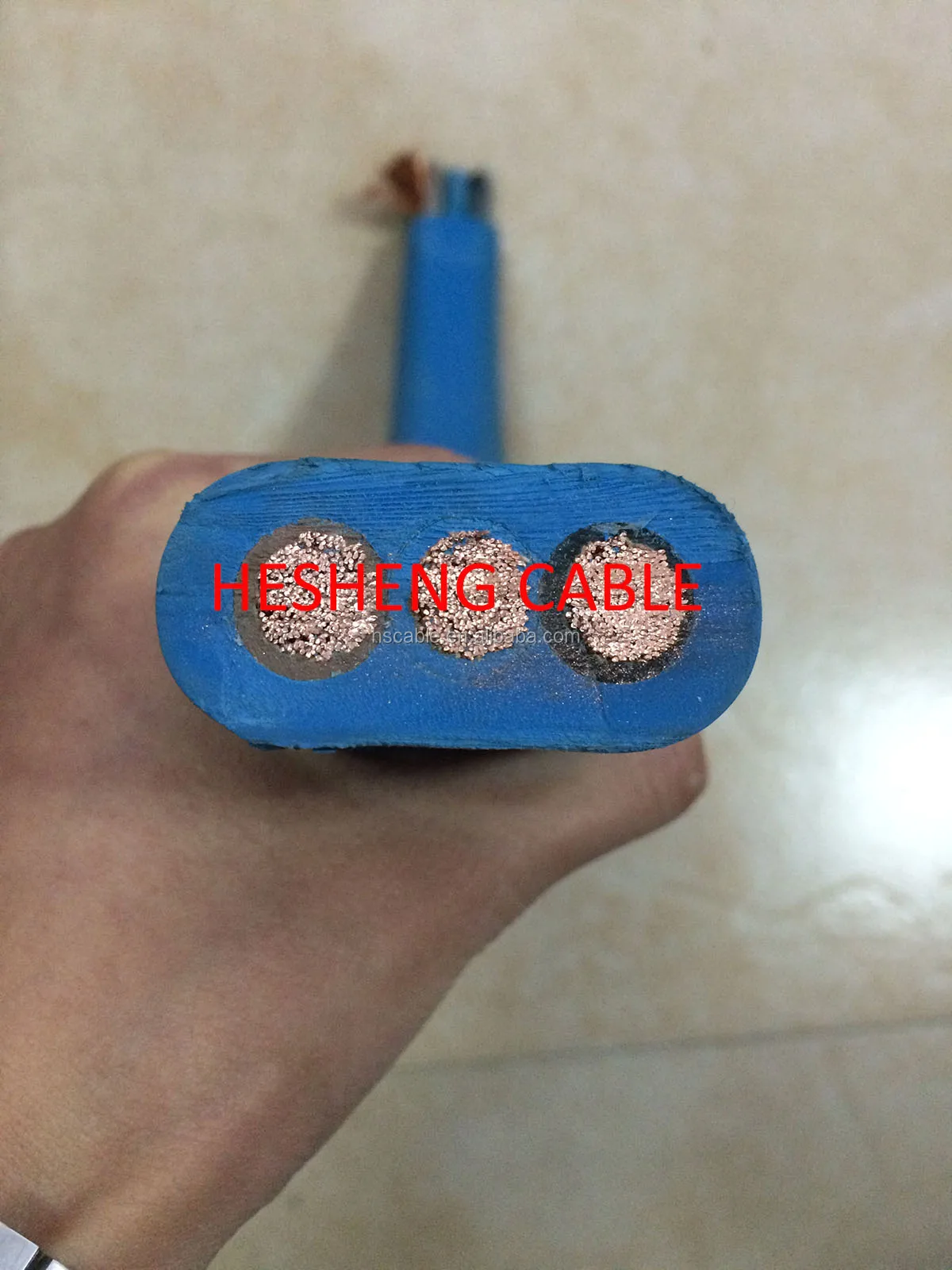

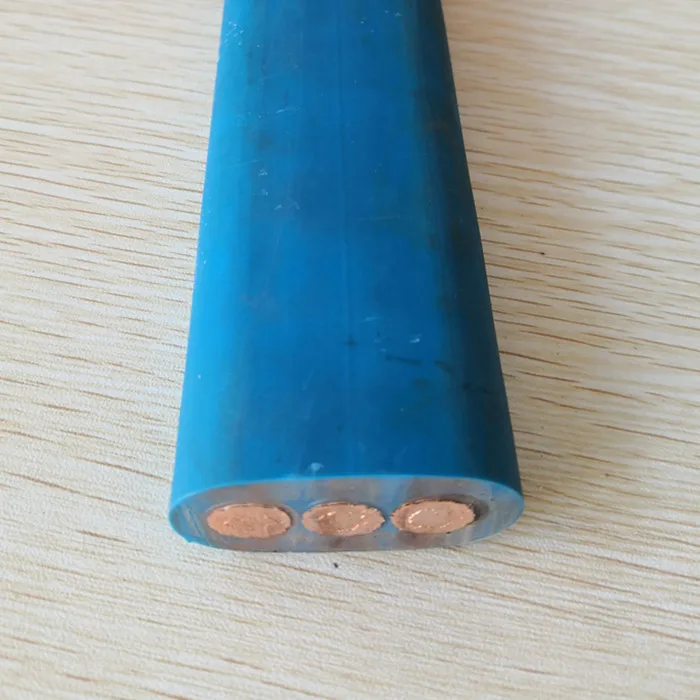

Pump Cable.jpg


IMG_1291a



Why choose us


1. Advanced process equipment


2. Competitive price and high quality


3. Excellent after-sale service


4. Attractive design and various styles


5. Powerful technology R&D team


6. Strict quality assurance system and perfect testing means


7. Advanced process equipment


8. Delivery on time


9. Have a good reputation in the domestic and overseas.
