Надежная винтовая пескомойка 120-150 т/ч LSX с сертификатом ISO

Описание и отзывы

Характеристики

120-150t/h sand washing line list:

Sand washer: 2LSX-920

Sand recycling machine:LZ12-55



LSX sand washing equipment

LSX Series Screw Sand Washing Machine is tilted by 15°, with the sedimentation tank is developed by tri-side weir plate’s surrounding around the water tank. The screw is rotating driven by the reducer with its head immersing intothe tank and the clean water is fed through the porous plate. This equipment has three advantages of cleaning,

dehydrating and classifying, which is widely used in building, gravel plants and hydropower station, glass manufacturing and concrete damsite.

 LSX sand washer:2LSX-920

(1)Number of spiral:2

(2)Spiral diameter:920mm

(3)Tank length:7585mm

(4)Max feed size:10mm

(5)Capacity:200t/h

(6)Rev of spiral:21rpm

(7)Required motor:11x2kw

(8)Water consumption20-160t/h

(9)Overall dimension:8420*3970*3960mm

LSX sand washer 2LSX-920





Sand recycling machine

In last three years, we successfully make LZ series sand recycling system machine as our LZZG brand, improve core technical, select new processing methods and absorb different sites working situation, we supply No.6 sand recycling machine which also called as “de-watering type sand recycling machine”.

Sand recycling machine LZ12-55

(1) Slurry pump power:12-22kw

(2) Slurry pump material: Cr26

(3) Whirl cone size:550mm

(4) Polyurethane screen size:1.25*2.5m

(5) Polyurethane screen square meter:3.1

(6) Polyurethane screen power:2*2.2kw

(7) Capacity:100-200t/h

(8)Weight:3750kg

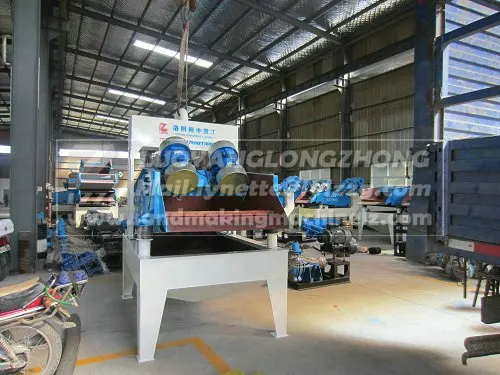

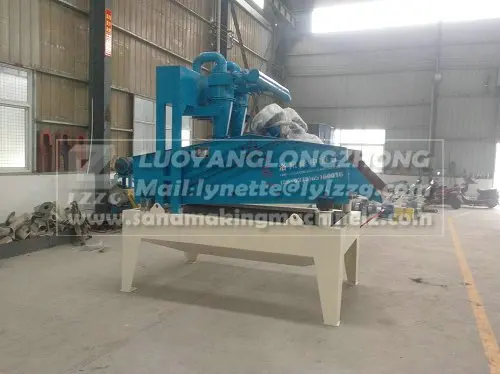

Sand recycling machine:LZ12-55

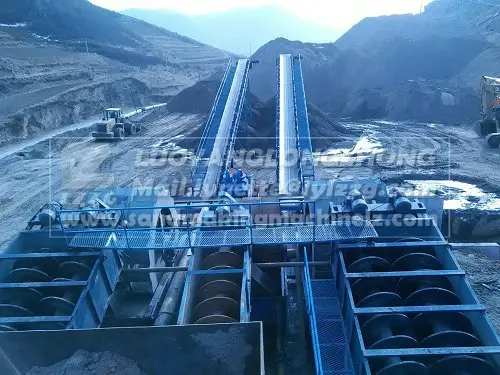

120-150t/h sand washing line--flowing chart
