LZZG SX Trommel Type Sand Washer Is The Best Machine In China !
The First Brand Of Sand Washer In China —— LZZG !
Products Description
SX Trommel Type Sand Washer
Trommel type sand washer is designed to classifying, washing and removing impurities from sand, gravel, mineral, frac sand, coal, metal mine tailings, ceramic, piling mud, river dredging and construction waste, thereby improving the products quality. Trommel type sand washers are mainly divided into two parts, one part is the drum screen for grading, the other part is the sand washer machine, separator, dewatering screen for sand cleaning, dehydrating and recovering.

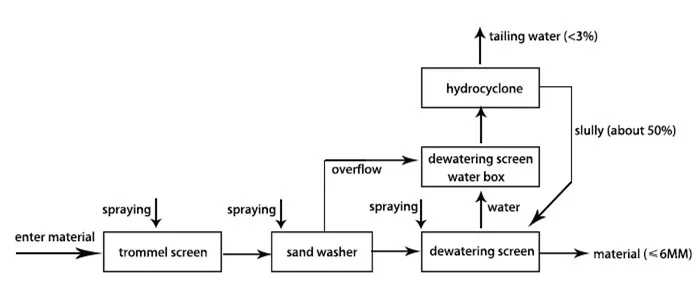

Working Principle
*Screening: The Trommel Screen is also called rotary screen or drum screen, which screening the material into different size.
*Washing: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.
*Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.

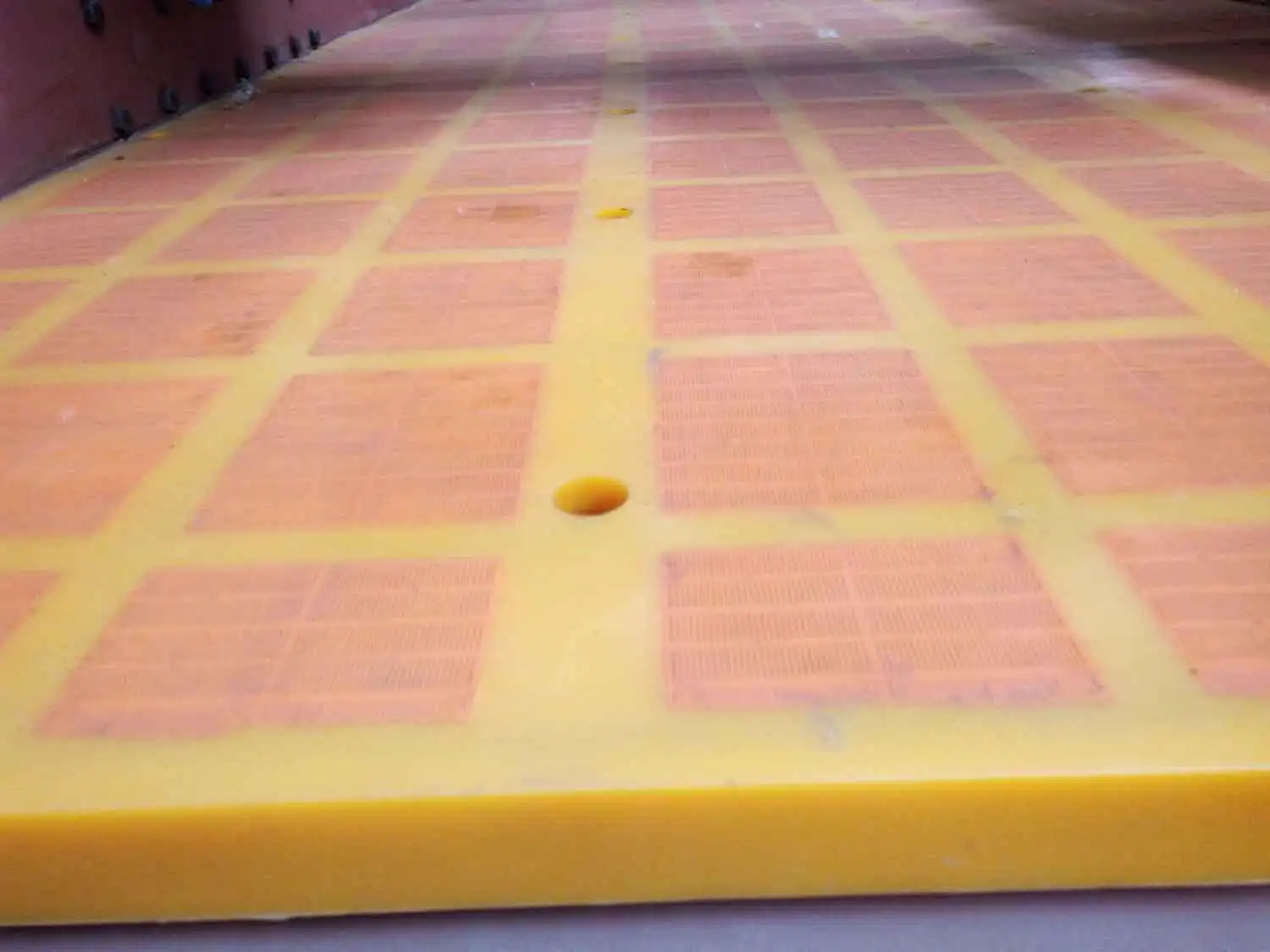

*Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.
*Washing: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.
*Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.
*Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.
Technical Parameters
Model | Capacity (t/h) | Roller Size (mm) | Impeller Size (mm) | Hydro-cyclone (mm) | Screen Panel (mm) | Power (kw) | Weight (kg) | Overall Size (mm) |
SX10-18-55-1224 | 20-40 | φ1000 | 1800*800 | 250*2 | 1200*2400 | 32.4 | 7200 | 6800*4980*2950 |
SX10-26-65-1530 | 30-60 | φ1000 | 2600*1200 | 300*2 | 1500*3000 | 43 | 9600 | 7450*5600*3050 |
SX12-30-75-1842 | 40-80 | φ1200 | 3000*1600 | 350*2 | 1800*4200 | 59 | 14600 | 4800*5800*3300 |
SX12-30-75-1842J | 60-100 | φ1200 | 3000*1600 | 350*2 | 1800*4200 | 63 | 16850 | 4800*5800*3300 |
SX12-30-120-2442J | 80-120 | φ1200 | 3000*1600 | 300*2 | 2400*4200 | 93 | 18600 | 4800*6200*3300 |
SX15-36-120-2442J | 100-150 | φ1500 | 3600*2000 | 300*4 | 2400*4200 | 100.5 | 22600 | 5800*6200*4000 |
SX18-36-140-3048J | 120-200 | φ1800 | 3600*2400 | 350*4 | 3000*4800 | 130 | 25720 | 6700*7200*4600 |
SX24-42-180-3660J | 160-250 | φ2400 | 4200*3000 | 300*6 | 3600*6000 | 171 | 34300 | 6700*7200*4600 |
Features & Benefits
1. Reasonable structure. The drum screen and wheel sand washer are combined with the vibrating screen to form an integral structure. The multi-stage screening and cleaning can better perform screening and cleaning, and promote the development of the screen washing industry.
2. Large processing capacity, high efficiency, easy to produce and process, short production cycle, small floor space.
3. The dual slurry pump and double cyclone are connected together to form two groups of structures, which are circulating water flow and save water consumption.
4. High degree of integration, can realize mobile operation.
2. Large processing capacity, high efficiency, easy to produce and process, short production cycle, small floor space.
3. The dual slurry pump and double cyclone are connected together to form two groups of structures, which are circulating water flow and save water consumption.
4. High degree of integration, can realize mobile operation.
Packing & Delivery

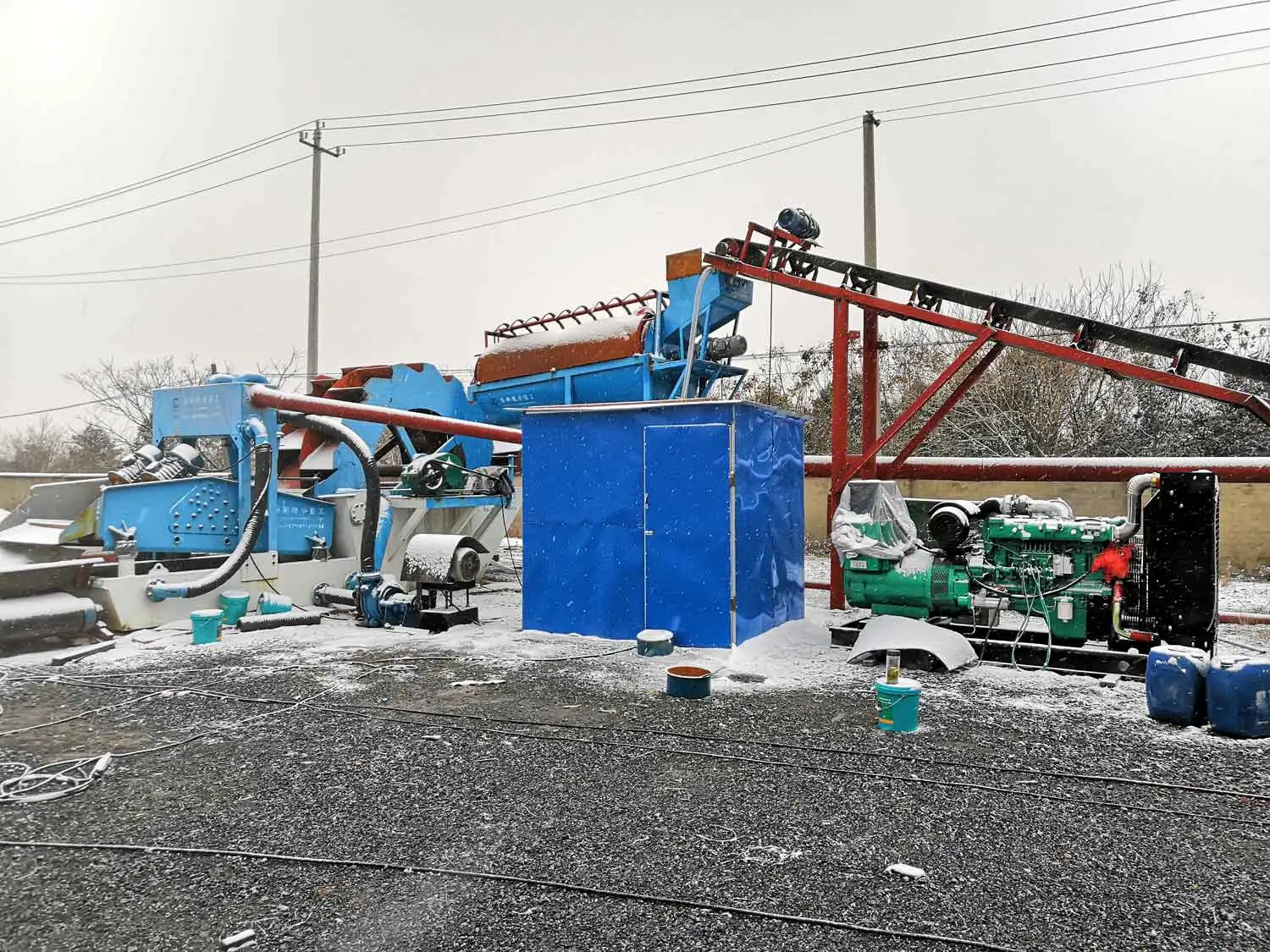

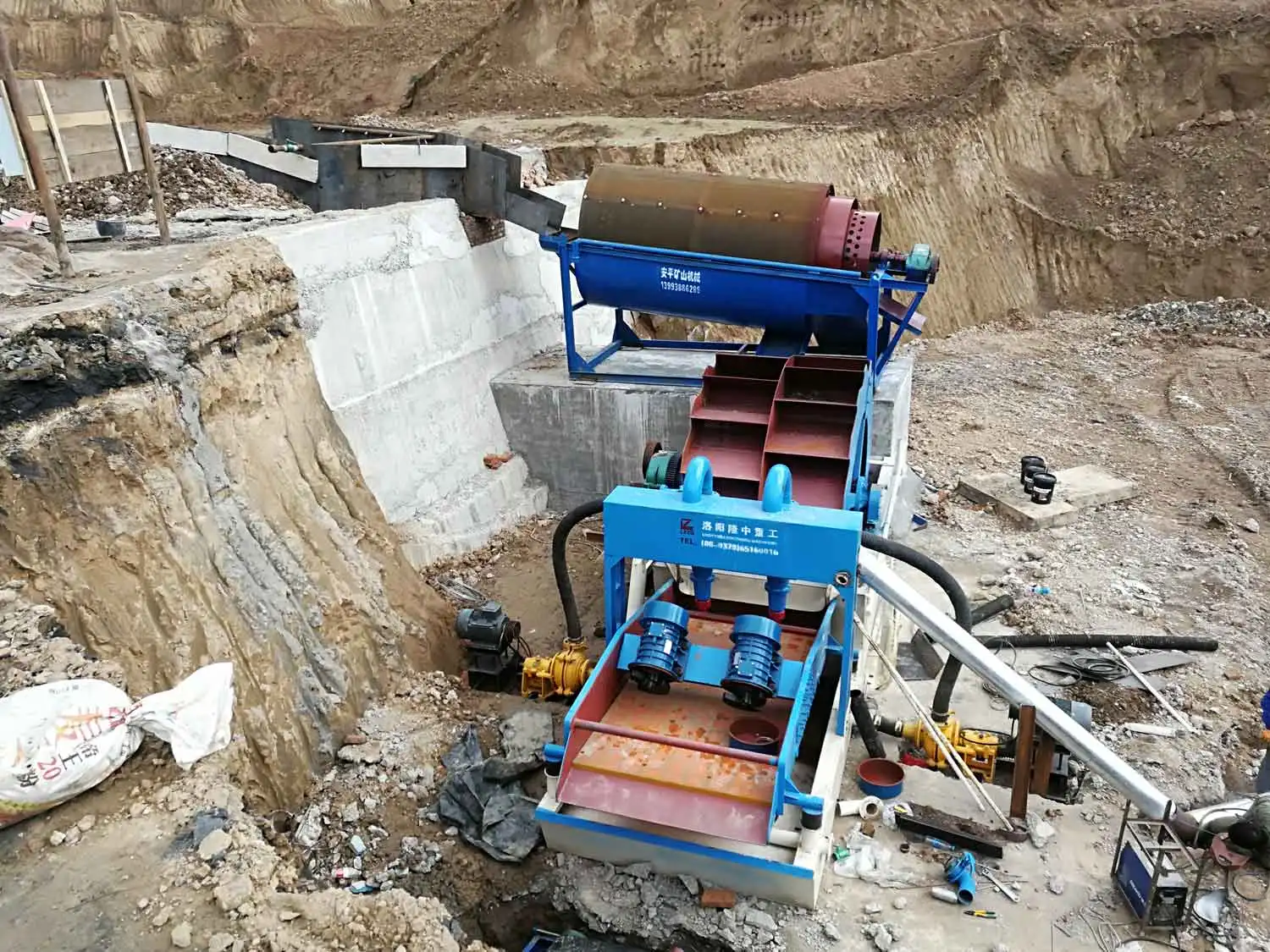

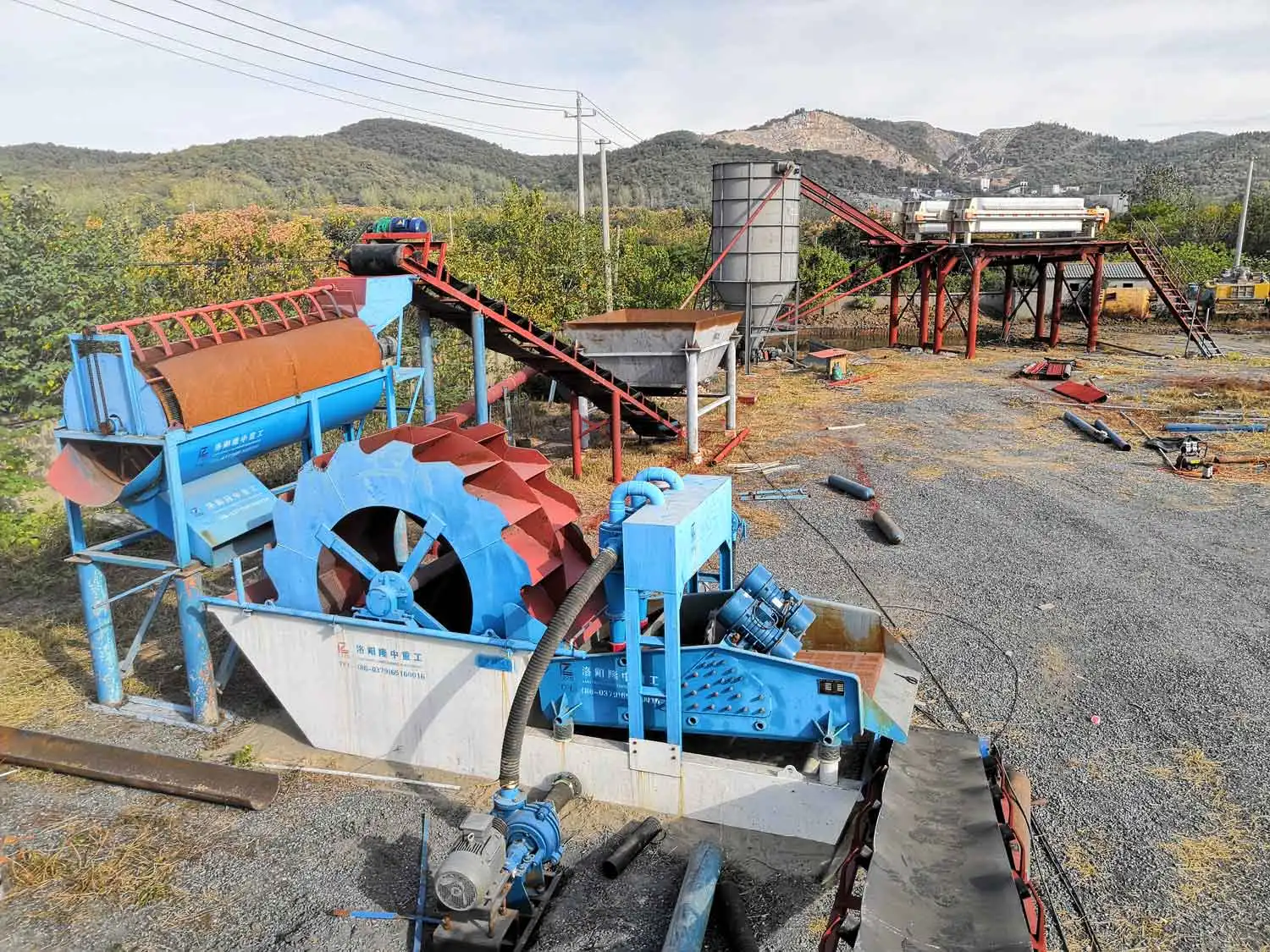

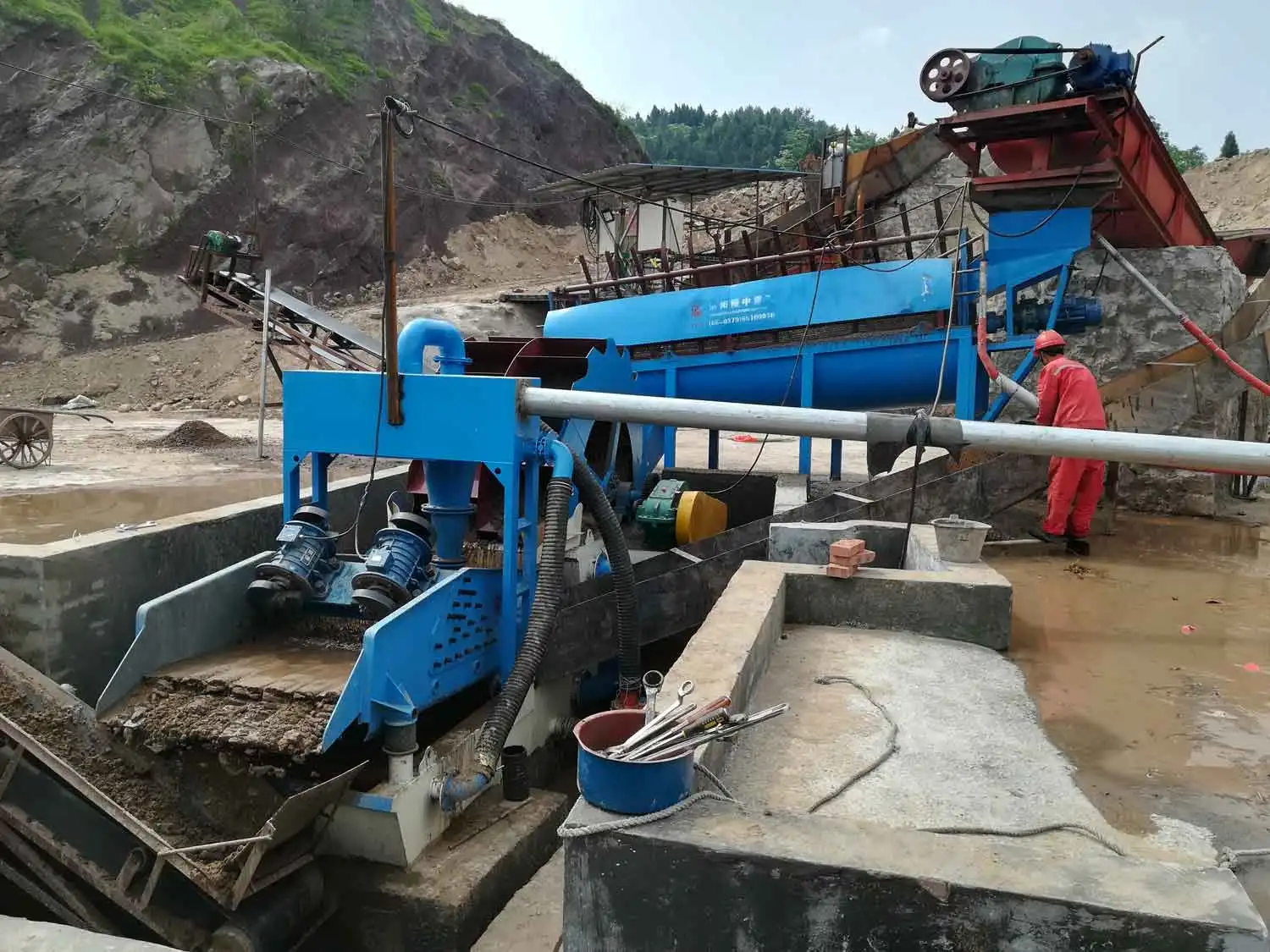

Product Display

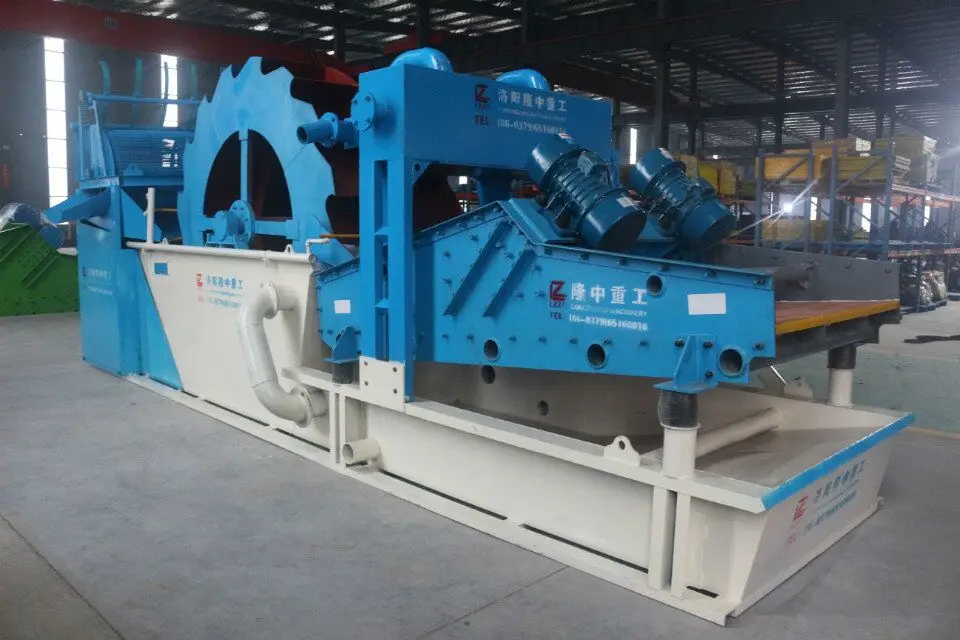

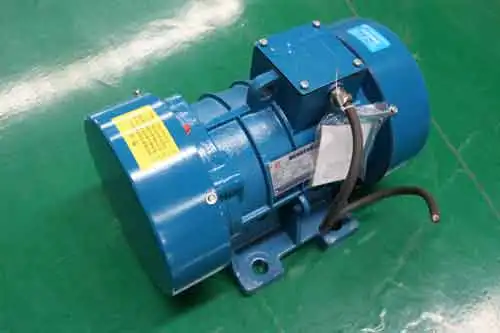

Details Images
Company Profile
LZZG has a proud history of serving the sandstone and aggregates equipment industries since 2010. We provide a wide range of rugged and reliable washing, screening, dewatering, recycling & waste management equipment along with all kinds of mobile, fixed, and compact sand plants. We aims to improve our equipment quality, designs and solutions with the latest technologies. We strive to utilize our experience help our customers be more efficient and profitable.
Certifications
Our Team
Our Service
Pre-sale Service:
1. Choice of model
2. Designing and manufacturing product according to customer's special requirement
3. Company will arrange engineer to customer's site,designing site and discussing project
On service:
1. Product inspection
2. Help customer to formulate the construction plan
After-sale Service:
1. Assign special after sale service team to site guiding customer to install and adjust machines
2. Training operator on site
1. Choice of model
2. Designing and manufacturing product according to customer's special requirement
3. Company will arrange engineer to customer's site,designing site and discussing project
On service:
1. Product inspection
2. Help customer to formulate the construction plan
After-sale Service:
1. Assign special after sale service team to site guiding customer to install and adjust machines
2. Training operator on site
Exhibition
FAQ
1.Does your product in stock?
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintenance and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintenance and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
