Industrial Grade 2 порта RS485 Modbus-RTU/ASCII для Modbus-TCP сервер шлюз Ethernet последовательный преобразователь протокола

Описание и отзывы

Характеристики

Functional Characteristics

• 9-36V wide voltage input, anti-reverse connection protection. DC-DC isolated power supply, 3000V isolation voltage.


• 2KV network port isolation protection, 10M/100Mbps rate adaptive, automatic MDI/MDIX flip.


• Small size, only 30mm thickness, saving installation space.


• Support address mapping mode to realize fast response to TCP client request.


• Support up to 5 TCP client access.


• The mapping mode supports function codes: 0x01,0x02,0x03,0x04,0x05,0x06,0x0F,0x10.


• The transparent transmission mode supports all public function codes and custom function codes.


• 6KB large data buffer area, larger data transfer volume.


• RS485 dual serial port refreshes in real time, with short scanning period and strong load capacity.


• The master and slave modes of RTU and ASCII are optional, which is highly adaptable.


• The watchdog can be enabled and the watchdog time can be set.


• Support IAP download, it supports for updating the firmware program in the product through the network port.


• RS485 with surge protection, built-in bias circuit, strong stability. An external terminal resistor is required.


• The data packet sending interval can be adjusted freely, making it more flexible to use.


• The device comes with a powerful diagnostic function to monitor the communication status in real time.


• Support one-key reset function to restore factory settings.


• 35mm standard rail installation.


• EMC complies with EN 55022:2010 & EN55024:2010 international standards.

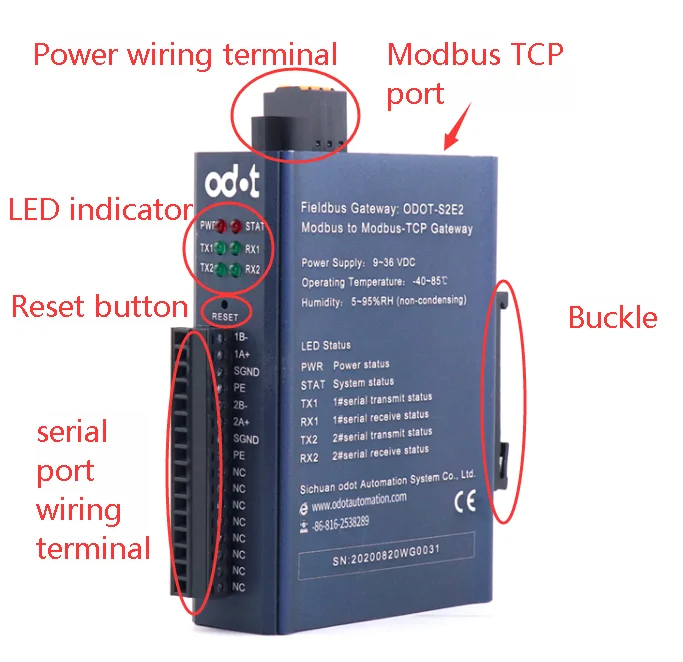

Product appearance
