Products Description
Small Fresh Food Freezer Vehicle Ice Cream Meat Transport Reefer Van Refrigerated Trucks in ghana for Sale
Refrigerator truck (also called reefer truck,refrigerated van,refrigerator wagon,refrigerated truck, refrigerated boxcar,vaccine delivery truck, refrigerated vans,food refrigerated truck,Medical waste refrigerated truck,freezer vehicle, freezer wagon, freezer box truck,refrigerator cooling van,temperature controlled truck, refrigerator car, preservation vehicle) is used to carry perishable stuff at special temperatures,such as frozen foods, seafood,fresh fruit and vegetables, vaccine medicine, medical waste and so on.
Refrigeration truck includes truck chassis,insulated heat preservation box body (polyurethane material, fiber glass, color plate,stainless steel plate,etc), refrigeration units, cabin temperature controller and so on. For special required trucks such as meat hook refrigeration truck, there can also add meat hooks,guide rail, aluminium alloy guide, Fixed cargo slot,ventilating slot,2-compartment (one fresh and another frozen box),and so on.
Famous chassis such as 1SUZU ELF 600P 700P FTR FVR FVZ GIGA, Dongfeng DOLLICAR KINGRUN KINLAND, Foton,FORLAND,FAW, JAC, JMC, Sino truk HOWO,Shacman,etc.
Refrigeration Truck Insulated box body: "sandwich" type structure Fiberglass+PU+fiberglass (FRP+PU+FRP),All the double surface sandwich polyurethane panel and door are 85-100mm thickness, the Fiber glass plate is for the outer and inner skins;The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.The polyurethane foam density is 45-50kg/m 3. (All is the best material in China and have excellent insulation performance) . The hardware (door frame, hinge, lock, handle) are made of 304 stainless steel, and wrap angle are aluminum alloy.Sandwich panel thickness can be changed according to customers' requirements：60mm, 80mm, and 100mm.
Refrigeration units:famous refrigeration units,Thermo King&Carrier,K series,KAILI,HANXUE,etc.Independent type refrigeration units and dependent type refrigeration units( two types of power driving ways-one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit).
Shenbai Group can supply reefer van trucks wih capacity from 1Ton,2Ton, 3.2Ton, 4Ton,5Ton,6.3Ton,8Ton,10Ton,12Ton,14Ton,16Ton,25Ton. Temperature range from +7°C,+5°C,+2°C, -10°C, -15°C,-18°C, -20°C,-25°C.
Our frigerator truck also have side-door,Straight line guide rail,Butt joint guiderail,5-sided ventilation slot,etc.
Refrigeration truck includes truck chassis,insulated heat preservation box body (polyurethane material, fiber glass, color plate,stainless steel plate,etc), refrigeration units, cabin temperature controller and so on. For special required trucks such as meat hook refrigeration truck, there can also add meat hooks,guide rail, aluminium alloy guide, Fixed cargo slot,ventilating slot,2-compartment (one fresh and another frozen box),and so on.
Famous chassis such as 1SUZU ELF 600P 700P FTR FVR FVZ GIGA, Dongfeng DOLLICAR KINGRUN KINLAND, Foton,FORLAND,FAW, JAC, JMC, Sino truk HOWO,Shacman,etc.
Refrigeration Truck Insulated box body: "sandwich" type structure Fiberglass+PU+fiberglass (FRP+PU+FRP),All the double surface sandwich polyurethane panel and door are 85-100mm thickness, the Fiber glass plate is for the outer and inner skins;The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.The polyurethane foam density is 45-50kg/m 3. (All is the best material in China and have excellent insulation performance) . The hardware (door frame, hinge, lock, handle) are made of 304 stainless steel, and wrap angle are aluminum alloy.Sandwich panel thickness can be changed according to customers' requirements：60mm, 80mm, and 100mm.
Refrigeration units:famous refrigeration units,Thermo King&Carrier,K series,KAILI,HANXUE,etc.Independent type refrigeration units and dependent type refrigeration units( two types of power driving ways-one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit).
Shenbai Group can supply reefer van trucks wih capacity from 1Ton,2Ton, 3.2Ton, 4Ton,5Ton,6.3Ton,8Ton,10Ton,12Ton,14Ton,16Ton,25Ton. Temperature range from +7°C,+5°C,+2°C, -10°C, -15°C,-18°C, -20°C,-25°C.
Our frigerator truck also have side-door,Straight line guide rail,Butt joint guiderail,5-sided ventilation slot,etc.
General information

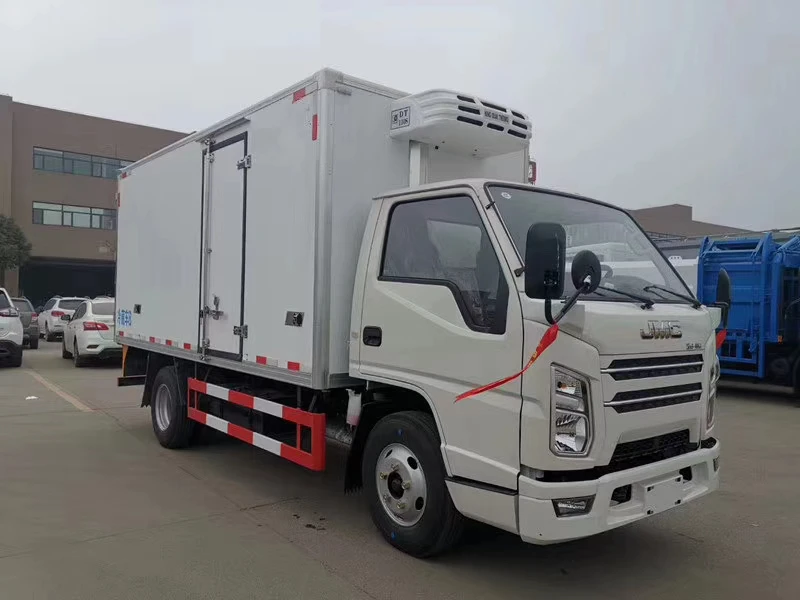

JMC 4.2m 13-18cbm REFRIGERATED VAN
-5 degree, for vegetables, fish, eggs, fresh meat tranportion
-15degree for frozen food, fish, meat transportation
-25 degree, for frozen food, fish, meat transportation and storation
Key features
* Hazardous chassis (with front plate, speed limit, ABS, front exhaust and fire cap).
* Double-layer closed structure
* Inside stainless steel plate
* Ultraviolet disinfection and sterilization function
* Refrigeration Function,temperature adjustable
* SS304 internal wall-panel
Truck Brands avaliable: Dongfeng, SINOTRUCK HOWO, ISUZU, FAW, JAC, JMC, SHACMAN
Key features
* Hazardous chassis (with front plate, speed limit, ABS, front exhaust and fire cap).
* Double-layer closed structure
* Inside stainless steel plate
* Ultraviolet disinfection and sterilization function
* Refrigeration Function,temperature adjustable
* SS304 internal wall-panel
Truck Brands avaliable: Dongfeng, SINOTRUCK HOWO, ISUZU, FAW, JAC, JMC, SHACMAN
Product Pictures
Specifications
General | Vehicle Name | 4x2 YUEJIN S70 Refrigerator Truck | Truck/Chassis Optional: FAW,Shacman,ISUZU,DONGFENG,SINOTRUK HOWO,FOTON | |
Chassis Brand | YUEJIN | |||
Overall Dimension(mm) | 5150X1705X2640 | |||
van/box dimensions (mm) | 3260/3550*1550/1650*1680 | |||
GVW(kg) | 3275 | |||
Payload(KG) | 1-3T | |||
Cab | Cab Seat | 2 | ||
Air Conditioner | Yes | |||
Engine | Fuel Type | Gasoline | ||
Engie Model | Wuling LJ4A15Q6 | |||
Engine Brand | wuling | |||
Power(KW) | 112hp | |||
Emmission Standard | Euro 3,4,5 ,EURO 6 | |||
Chassis | Drive Type | 4X2 | ||
Transmission | 5-speed gearbox, Manual | |||
Wheelbase(mm) | 2650 | |||
Tyre Specification | 185R15LT | |||
Tyre No.(pcs) | 6+1 | |||
Max Speed(km/h) | 85 | |||
Paint / color | as your required | |||
ABS | Yes | |||
Superstructure | Refrigeration Unit Brand | Thermo King&Carrier,K series, KAILI,HANXUE,etc | ||
Temperature | +7°C， +2°C， -10°C， -15°C， -20°C， -25°C | |||
Volume | 18m3 | |||
Structure / material | 2.5mm Fiberglass+8mmPolyurethane+2.5mmfiberglass (FRP+PU+FRP) | |||
SS304 Stainless steel lock,door and hinge | ||||
Rear double door | ||||
Body thickness | Roof/floor panel:105mm thickness | |||
Rear door type | Full Size Double Opening Rear Door, Right Hand Rear Door Open First | |||
Side door | Optional,Single/double opening option,Quantity optional, | |||
Size can be customized | ||||
Optional functions | Fixed partition compartment, | |||
movable partition compartment, | ||||
Multi-temperature system, | ||||
Heater, | ||||
Ventilation slot,meat hook,guiderail,etc | ||||
Other | Temperature and humidity recorder | |||
Adjustment and display of temperature | ||||
PRODUCT CONFIGURATIONS
Optional Devices
Company Profile / About Us
Hubei Shenbai Special Automobile Co., Ltd. was established in 2013 and is located in Suizhou City, Hubei Province. It is a core enterprise of Shenbai Group and a strategic partner of Sany Palfinger. The group focuses on the research, development and manufacturing of cranes, and other special purpose vehicle, like:truck mounted crane, flat bed tow trucks, refrigerated truck,garbage trucks and other special trucks. Shenbai now has an annual production scale of 8,000 special vehicles, and has passed IS9001-2000 international quality system certification and national 3C certification.
Our products have been shipped to many different countries and areas in Asia, Africa and South-America, we're looking for more and more longterm partnership all over the world!
Our products have been shipped to many different countries and areas in Asia, Africa and South-America, we're looking for more and more longterm partnership all over the world!
FAQ
1.Are you factory or trading Company?
Yes, we are factory. Our factory located in Suizhou City, which is the city of Special Purpose Vehicle of China.
Yes, we are factory. Our factory located in Suizhou City, which is the city of Special Purpose Vehicle of China.
2.About customized requiremtns?
Yes. Including materials, parts within allowed scope, Truck color and any other specifications customers need.
3. About certification.
We provide various certifications associate with truck, like testing reports. And ISO9001 certificate as well.
We provide various certifications associate with truck, like testing reports. And ISO9001 certificate as well.
4.About Payment.
Generally 30%-50% deposit after ordered/PI confirmed, Remaining payment after production finished before shipping.
5. About delivery.
Generally delivery within 20-30 days after deposit received.
Generally delivery within 20-30 days after deposit received.
6. About after-sale service?
We provide the vedio and on-line technical support to guide customers or users to check and fix. And we will also offer original spare part.
We provide the vedio and on-line technical support to guide customers or users to check and fix. And we will also offer original spare part.
Our service:
1.We offer the full-series products with high level standard, of truck mounted cranes, garbage trucks, flatbed tow trucks, refrigerator trucks;
2. We can give the professional advice of products and shipping solutions.
3, We follow the whole order from offer to shipping and after-sale!
2. We can give the professional advice of products and shipping solutions.
3, We follow the whole order from offer to shipping and after-sale!
4, Technical support: online/video guide, and spare parts!
All your inruiy will be replied quickly!
