Product Description
MH electric single beam gantry crane

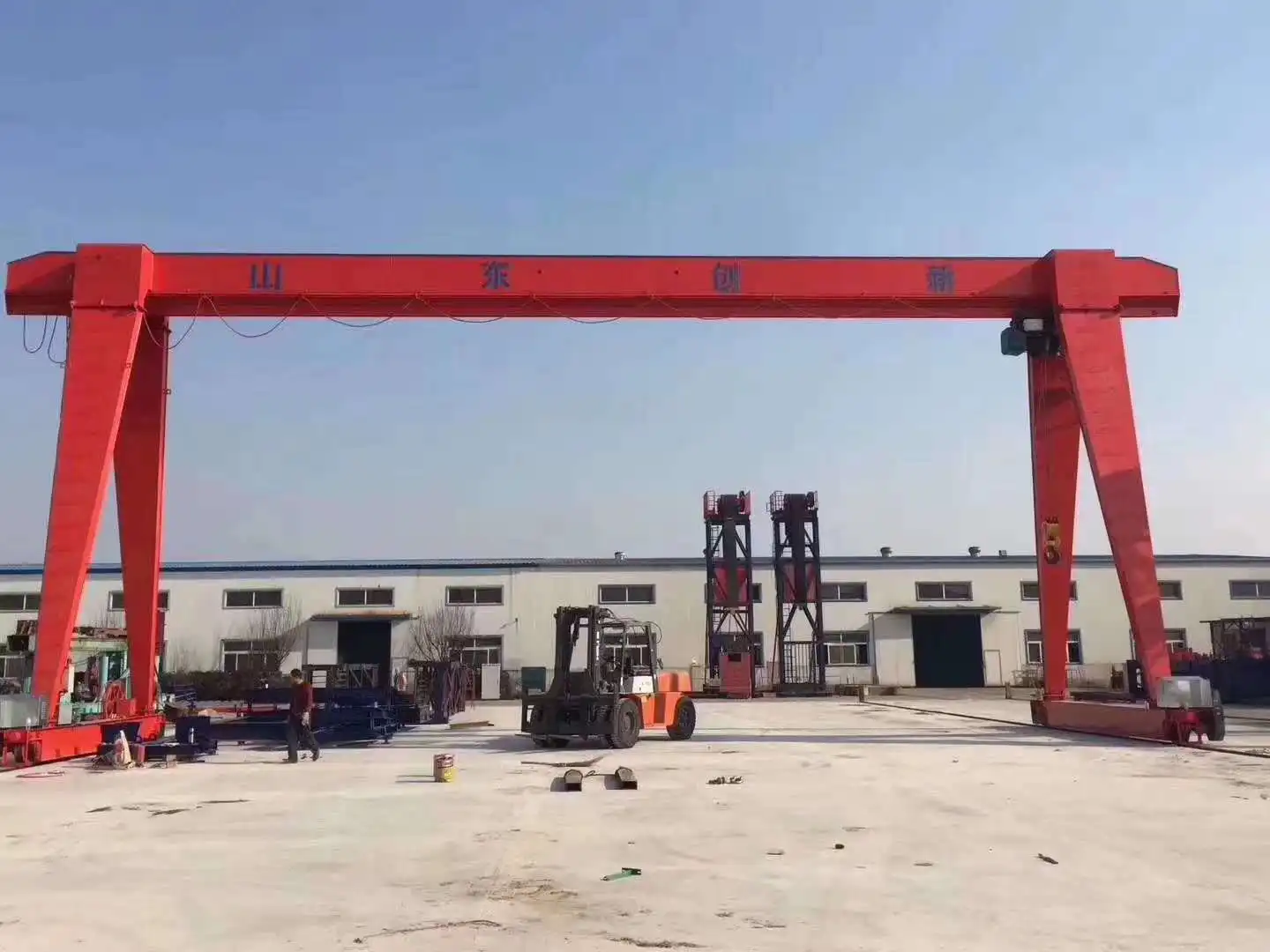

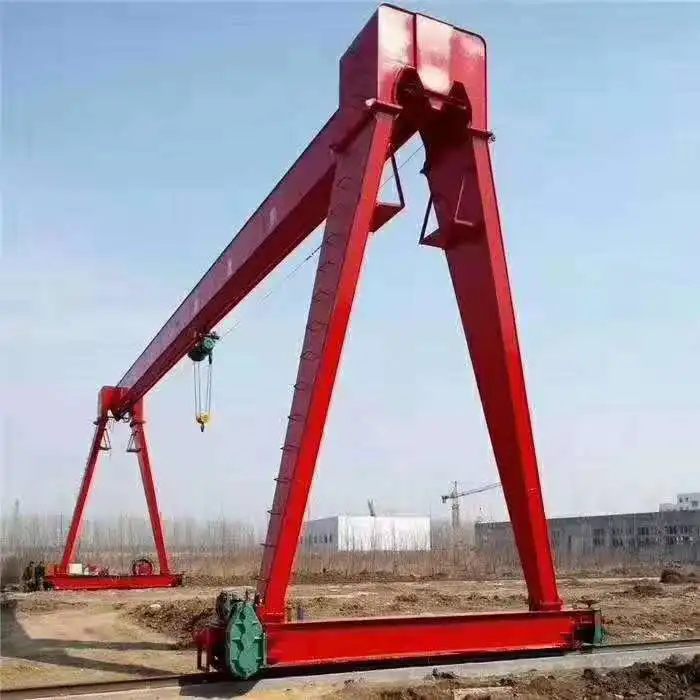

MH electric hoist single beam gantry crane 16 ton is a kind of track travelling light type crane, can be used where overhead runways are not practical, or in open areas where columns cannot be accommodated. The top main girder is mounted on two A shape columns which are further resting on wheel mounted end carriages.
MH electric hoist single beam gantry crane 16 ton is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.
It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.
It could be special design and customize by clients’ requirement.

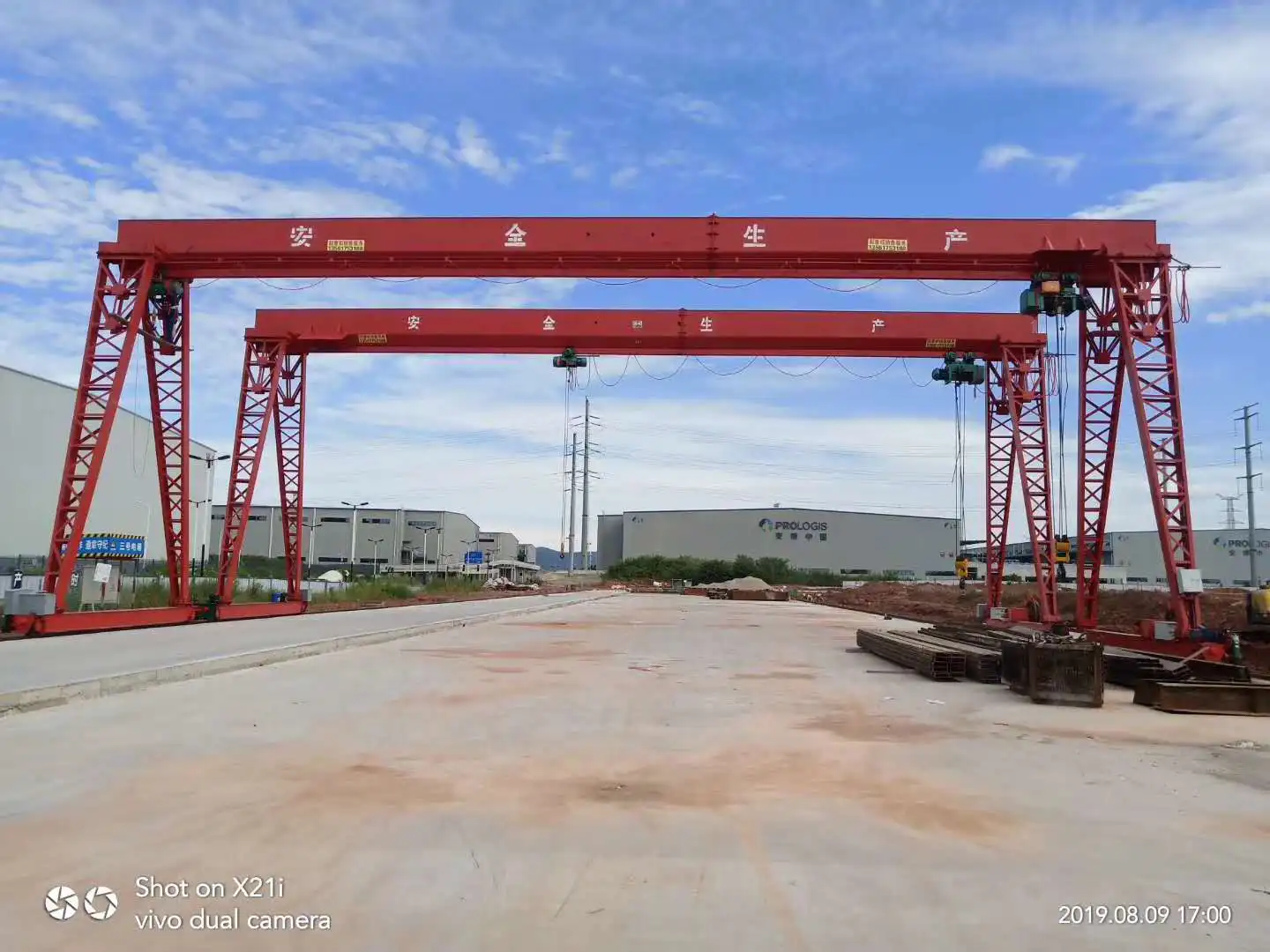

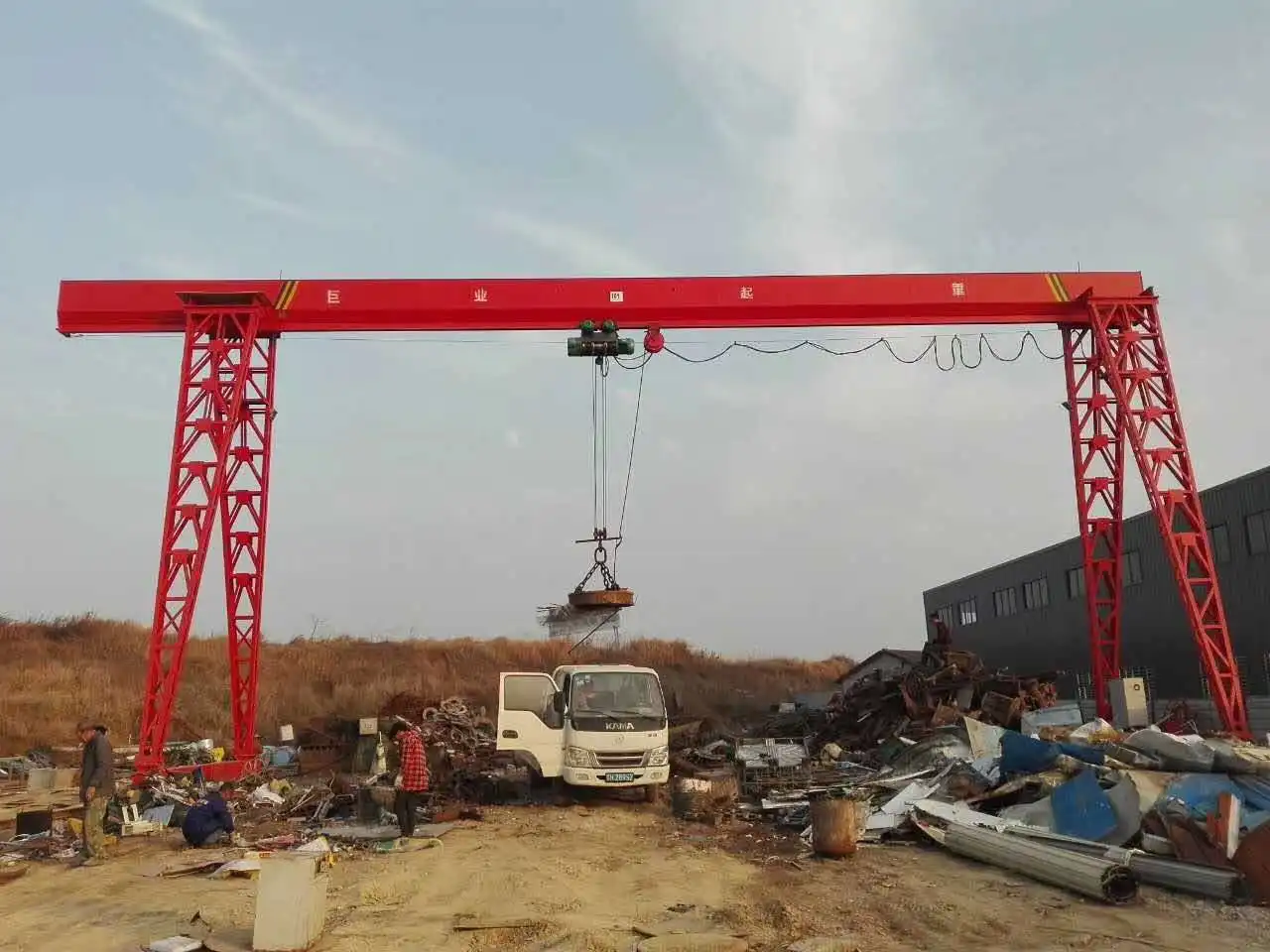

MH electric hoist single beam gantry crane 16 ton consists of 5 main parts, namely, the bridge structure, A-frame support legs,the traveling mechanism, the trolley and the electric equipment. It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity; trussed type has characteristic of small windward surface, small deadweight and strong lifting capacity.
The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.
MH electric hoist single beam gantry crane 16 ton is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.
It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.
It could be special design and customize by clients’ requirement.
MH electric hoist single beam gantry crane 16 ton consists of 5 main parts, namely, the bridge structure, A-frame support legs,the traveling mechanism, the trolley and the electric equipment. It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity; trussed type has characteristic of small windward surface, small deadweight and strong lifting capacity.
The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.
Rated load/ton | 5 | 10 | 16 | 20 | 32 |
Span/m | 10-40 | ||||
Lifting height/m | 30 | ||||
Working class | A3/1bM | ||||
Lifting speed/m/min | 8 | 7 | 3.5 | 3.5 | 3 |
Trolley running speed/m/min | 20 | 20 | 20 | 20 | 20 |
Crane running speed/m/min | 20 | 20 | 20 | 20 | 20 |
Dead weight/t | 10.5~37.5 | 16.8~52 | 18.9~65 | 24.5~77 | 27.5~98 |
Number of wheel | 4 | 4 | 4 | 4 | 4/8 |
Max. wheel pressure/KN | 52.5~12.1 | 95~183 | 131~242 | 167~298 | 238~41.5 |
Steel track recommended | P24 | P38 | P43 | P43 | P43 |
Power supply | 3AC 220~480V 50/60Hz | ||||
Packaging & Shipping
Main Products
Company Information
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time. Q5: What's your payment terms? A: We receive Escrow, T/T, West Union, Cash and etc.
