Product Description
Sand Washer
Sand Washer is used for cleaning and removing the dirt and contamination mixed in sandstones. It features of novel sealing structure, adjustable overflow weir and reliable transmission system, which ensures washing and dehydrating efficiently. It has been widely used in roads, water conservancy, construction, etc.
Features
Novel sealing structureAdjustable overflow weir
Reliable transmission system
Specification

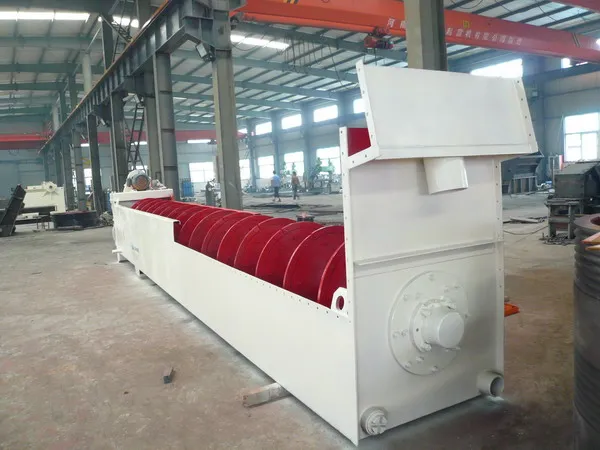

LSX Screw Type Sand Washer
Model | LSX-920 | 2 LSX -920 | LSX -1120 | 2 LSX -1120 |
Number of Screw(pcs) | 1 | 2 | 1 | 2 |
Screw Diameter(mm) | 915 | 915 | 1115 | 1115 |
Tub Length(mm) | 7585 | 7585 | 9750 | 9750 |
Max. Feeding Size(mm) | ≦10 | ≦10 | ≦10 | ≦10 |
Capacity(t/h) | 100 | 200 | 175 | 350 |
Screw Speed(rpm) | 21 | 21 | 17 | 17 |
Motor Power(kw) | 11 | 11×2 | 15 | 15×2 |
Water Consumption (t/h) | 10-80 | 20-160 | 20-150 | 40-300 |
Weight(t) | 6.2 | 11.5 | 10.9 | 17.8 |
Overall Dimension(mm) | 8420×2950×1930 | 8420×3765×2030 | 10970×3945×4720 | 10970×5250×4720 |

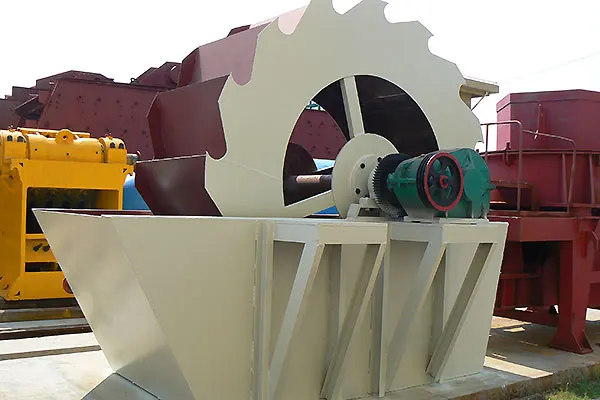

XSD Wheel Type Sand Washer
Model | XSD-2610 | XSD-2816 | XSD-3016 | XSD-3620 |
Diameter（mm） | 2600 | 2800 | 3000 | 3600 |
Max. Feeding Size(mm) | ≦10 | ≦10 | ≦10 | ≦10 |
Capacity (t/h) | 20-50 | 30-60 | 70-120 | 80-150 |
Power (kw) | 7.5 | 11 | 15 | 18.5 |
Overall Dimension(mm) | 3254*2060*2622 | 3810*2820*2883 | 3800*2686*2800 | 4456*2479*3688 |
Water requirement (t/h) | 10-30 | 15-40 | 15-60 | 20-100 |

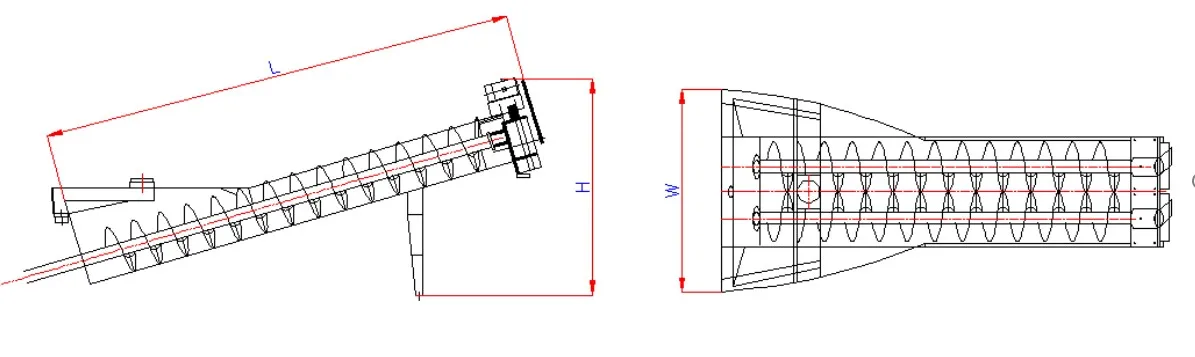

Structural Sketch

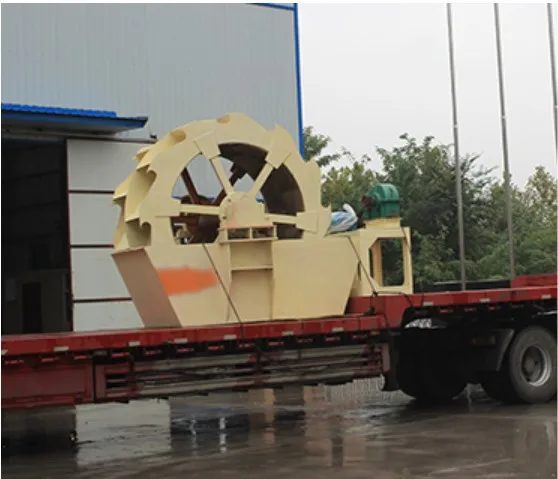

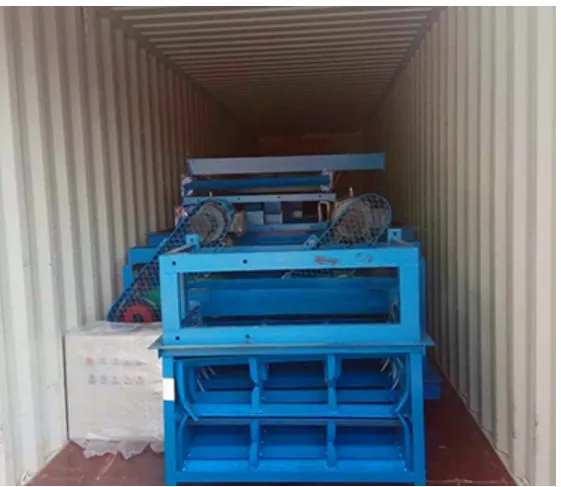

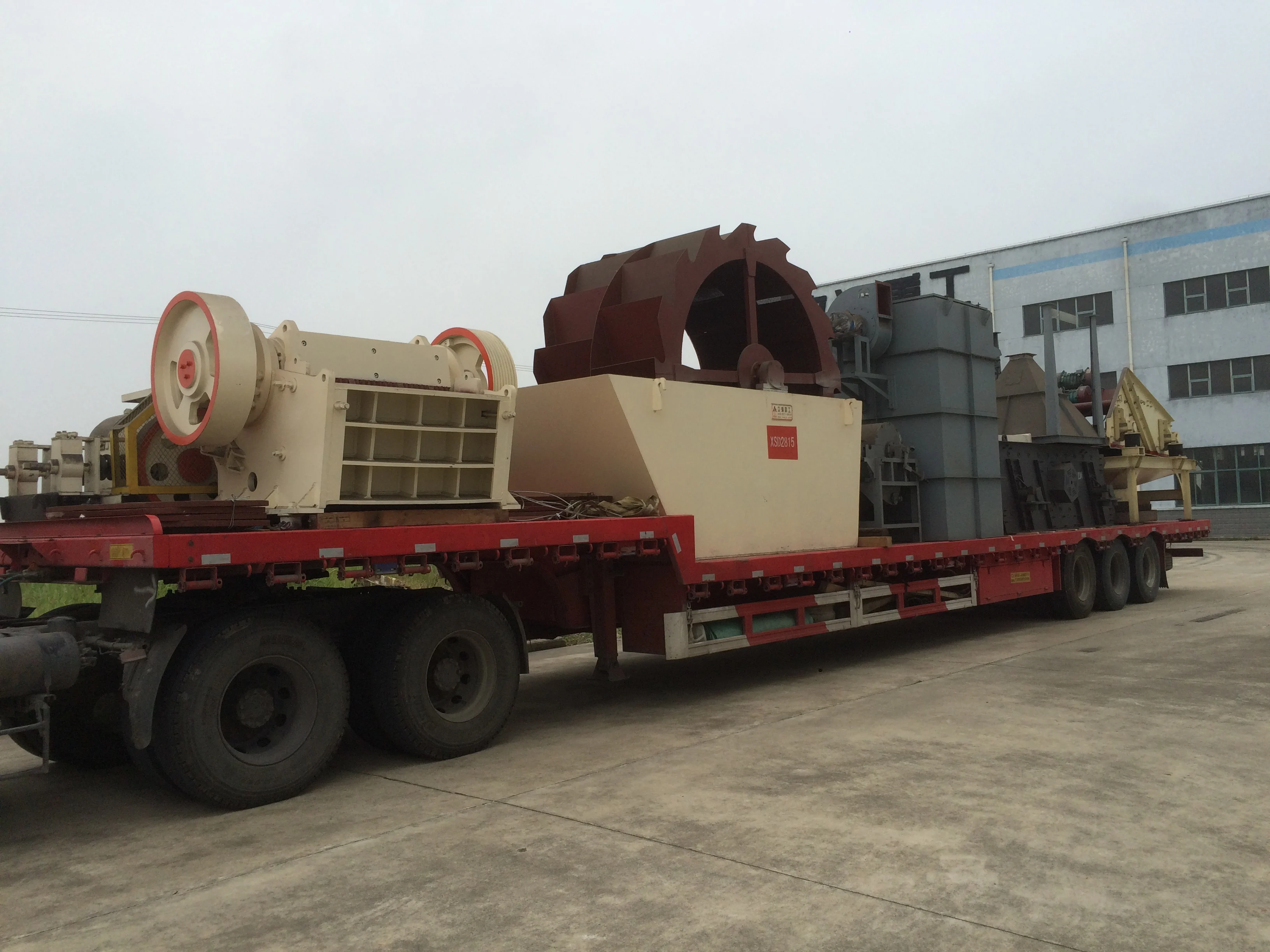

Packing & Delivery

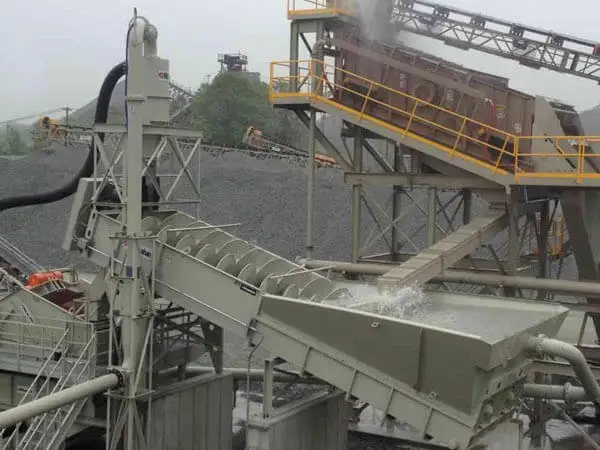

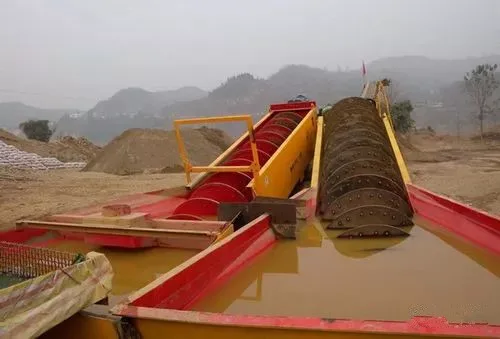

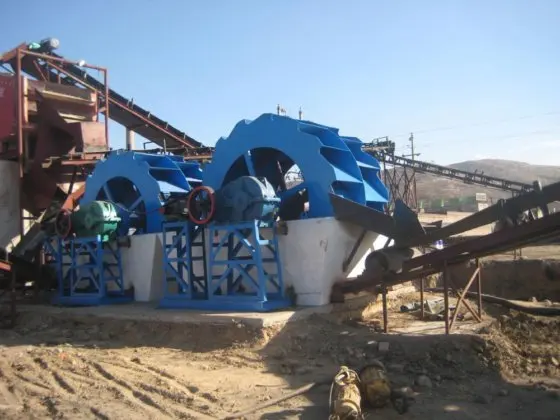

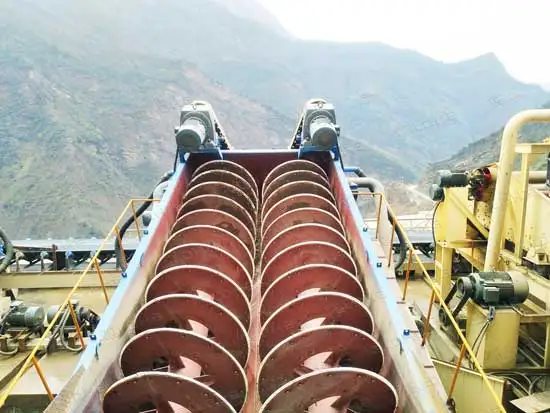

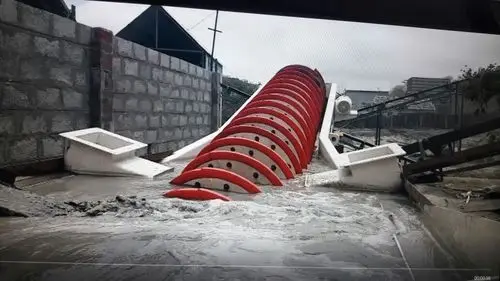

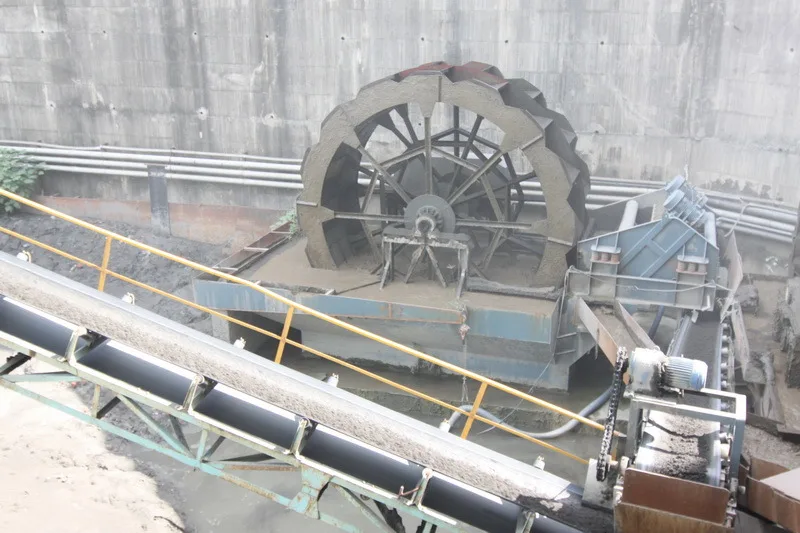

Successful Cases
Company Profile
