SWT-NSGM1 1400W геомембранный сварочный аппарат ПВХ пэвп
- Категории: Geomembranes >>>
- Поставщик: Hebei,Boda,Plastic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Company Name
Porduct Feature
SWT - NSGM1 customized geomembrane welding machine geomembrane hot wedge welder climbing welder
Geomenbrane hot wedge welder/geomenbrane welding machine/HDPE sheet welding machine
Brief Introduction
SWT - GM1 adopts advanced hot wedge structure.With its high power, high speed and pressure, it welds 0.2mm-2.0mm thickness hot
melting materials such as HDPE,LDPE,PVC,EVA,ECB,PP and others.This machine is specially designed for water conservancy,
aquaculture, landfills, chemical mining, sewage treatment, roof constructions and other waterproofing projects.
Tips:
1. For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.
2. For welding membrane with thickness above 1.0mm, the steel pressure roller is the best choice.
3. Any customized demands, you can ask us directly. We have professional technicians team.
Geomenbrane hot wedge welder/geomenbrane welding machine/HDPE sheet welding machine
Brief Introduction
SWT - GM1 adopts advanced hot wedge structure.With its high power, high speed and pressure, it welds 0.2mm-2.0mm thickness hot
melting materials such as HDPE,LDPE,PVC,EVA,ECB,PP and others.This machine is specially designed for water conservancy,
aquaculture, landfills, chemical mining, sewage treatment, roof constructions and other waterproofing projects.
Tips:
1. For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.
2. For welding membrane with thickness above 1.0mm, the steel pressure roller is the best choice.
3. Any customized demands, you can ask us directly. We have professional technicians team.
Technical Parameters
Item no.: | SWT-NSGM1 |
Voltage: | 220V |
Frequency: | 50/60HZ |
power | 1200W |
Welding Speed | 0.5-8 m/min |
Thickness of material | 0.2-2.0 mm |
Welding width | 15 mm *2, interior cavity 20 mm |
Overlap width | 120 mm |
Seam Strength | ≥85% base material ( tensile resistant in shear direction) |
Products Pictures

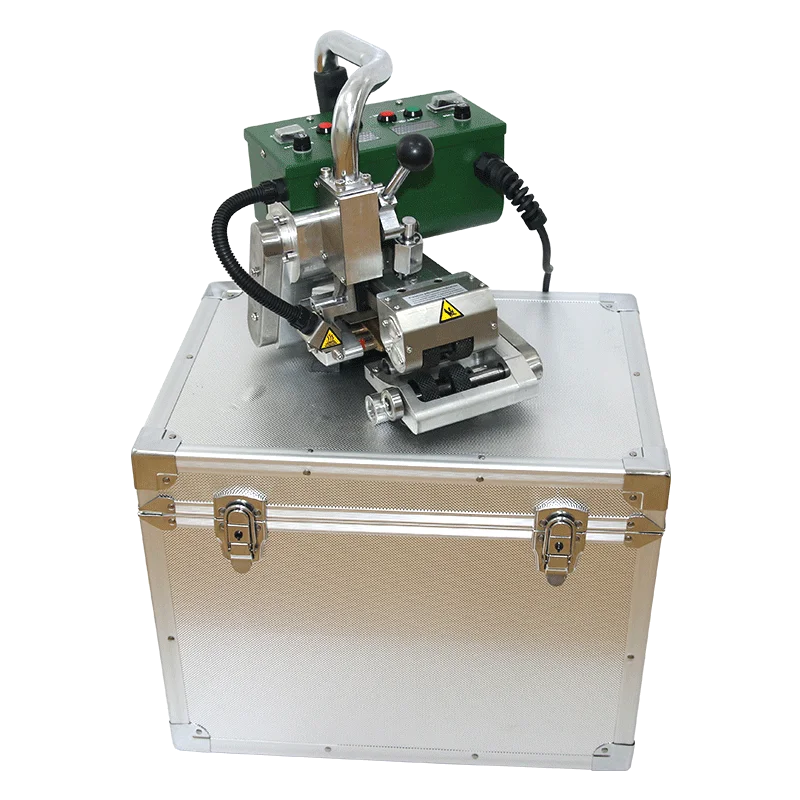

Packing & Delivery

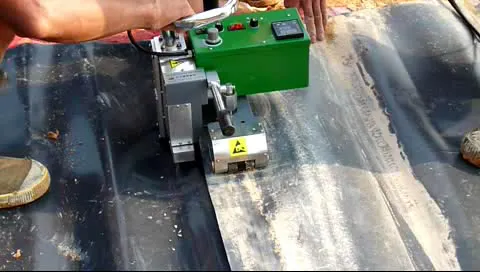

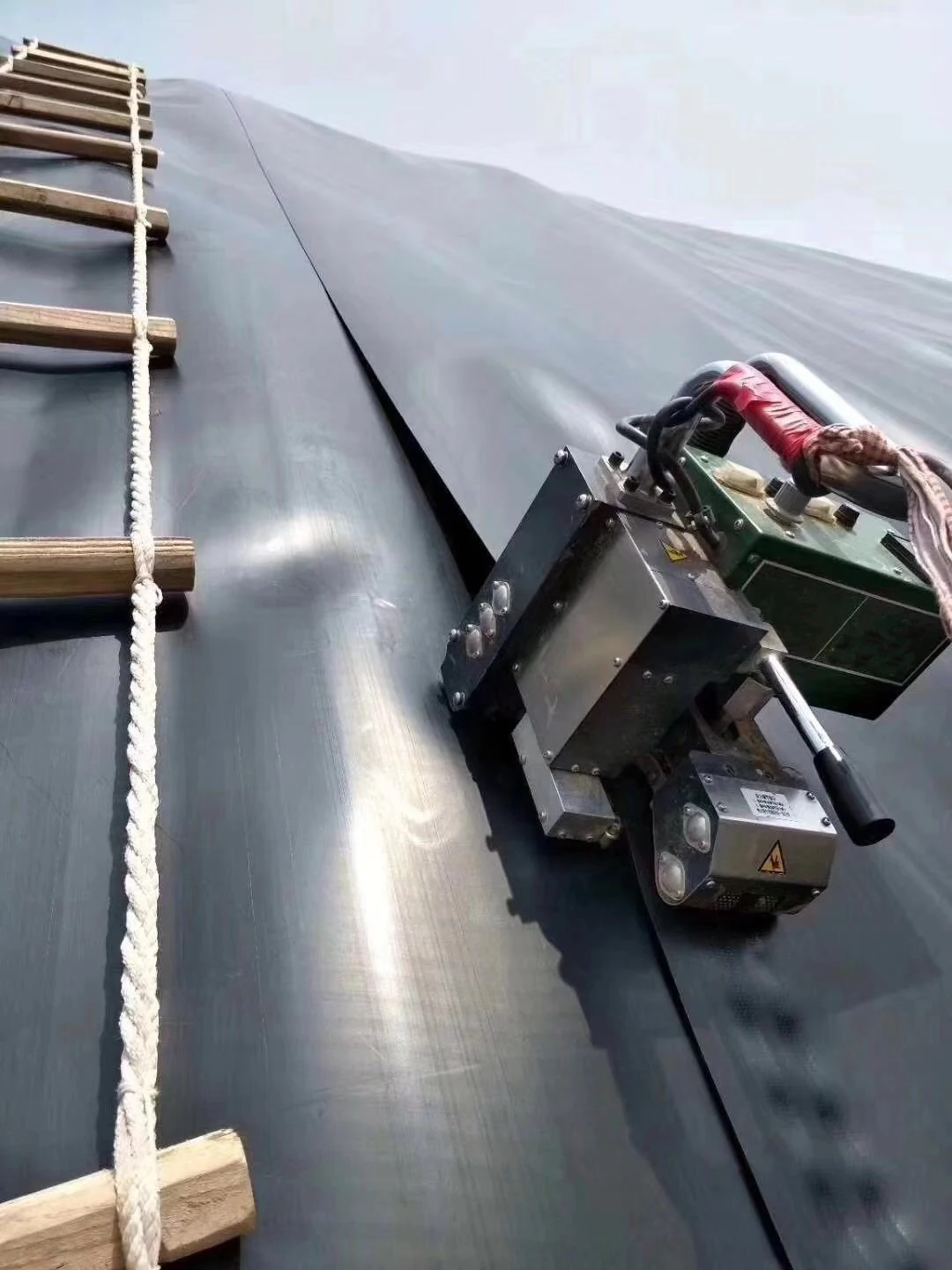

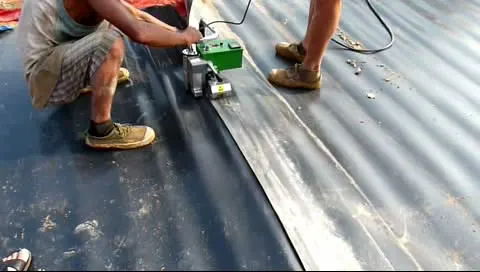

Application of Hot Wedge Welding Machine:
Geomembrane Welding Machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused
material such as PE,PVDF,LDPE, PVC, HDPE, EVA, PP and HDPE,EVA,PP.
Geomembrane Welding equipments are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof
construction, and other waterproofing projects.
Geomembrane Welding Machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused
material such as PE,PVDF,LDPE, PVC, HDPE, EVA, PP and HDPE,EVA,PP.
Geomembrane Welding equipments are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof
construction, and other waterproofing projects.
International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.
Any parts broken or does not work under normal operating,we are free to provide.
Customer Photos
