Вертикальный обрабатывающий центр с ЧПУ Vmc 850 650 металлический фрезерный станок из нержавеющей стали алюминия железа
- Категории: Machine Centre >>>
- Поставщик: Jinan,Camel,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Vmc 850 650 Vertical cnc machining center metal milling stainless steel aluminum iron milling engraving cnc machine
Product Description
Brief Introduction:
This product is a X, Y, Z three-axis servo direct control semi-closed-loop vertical machining center. The three axes are steel ball rolling linear guides. The guide rails have a large load, wide span and high accuracy. The three axes are 35MM linear guides. And the size is compact and reasonable. The main shaft is a servo motor driven by a synchronous belt, which can realize the complex clamping of various disks, plates, housings, cams, molds and other complex parts at one time. , Rigid tapping and other processes, suitable for the production of multi-variety, small and medium batch products, and can meet the processing of complex and high-precision parts. Can be equipped with a fourth rotation axis to meet the processing requirements of special parts.
Main Configuration:
♦ Working area:x axis-600mm,Y axis-400mm,Z axis-500mm
♦ Working table size:800x400mm(max load:500KG)
♦ Taiwan BT40 8000RMP spindle
♦ Beijing KND 1000 control system
♦ Beijing KND servo system
♦ 16 pcs auto tool changer magazine
♦ Automatic oil lubrication system
Review

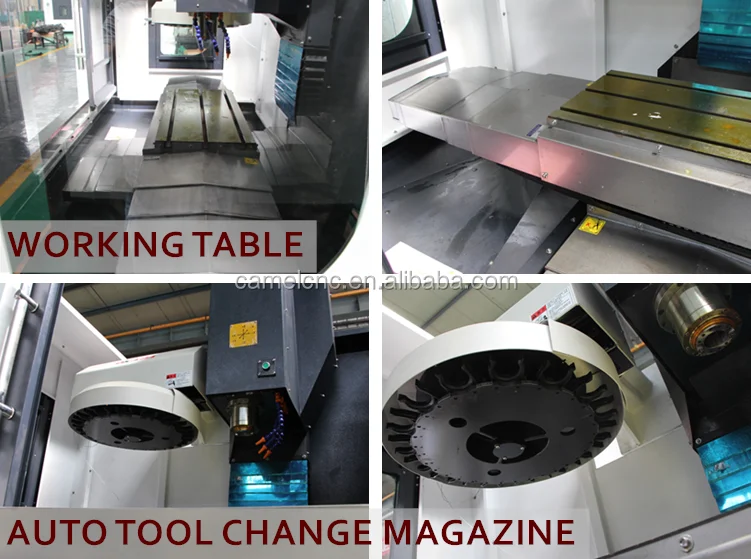

Details Show:
Application
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

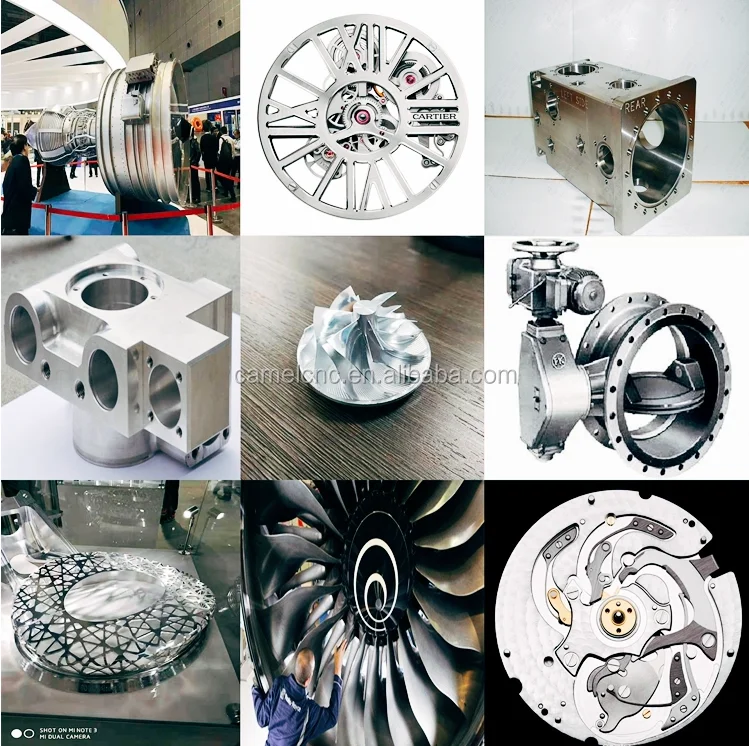

Samples:
Parameter
Technical Parameter:
Specifications | Units | VMC650 |
Table size | mm | 800x400 |
X axis travel | mm | 650 |
Y axis travel | mm | 400 |
Z axis travel | mm | 500 |
Max. worktable load | kg | 400 |
T slot(number-width-pitch) | 3-18x125 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) |
Spindle taper | mm | BT40 |
Main motor power | kw | 5.5 |
X/Y/Z rapid traverse speed | m/min | 24/24/20 (Optional:48/48/36 ) |
Cutting feed speed | mm/min | 1-10000 |
Guide rail type | Linear rail | |
Distance from spindle axis to column surface | mm | 469 |
Distance between spindle nose and worktable surface | mm | 100-600 |
Positioning accuracy | mm | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 |
Tool magazine | 16 Armless/(Optional: Arm 24 ) | |
Max. tool diameter | mm | φ90 |
Max.tool weight | kg | 8 |
Machine weight | kg | 4000 |
Overall dimension | mm | 2400x2000x2550 |
Machine Testing:

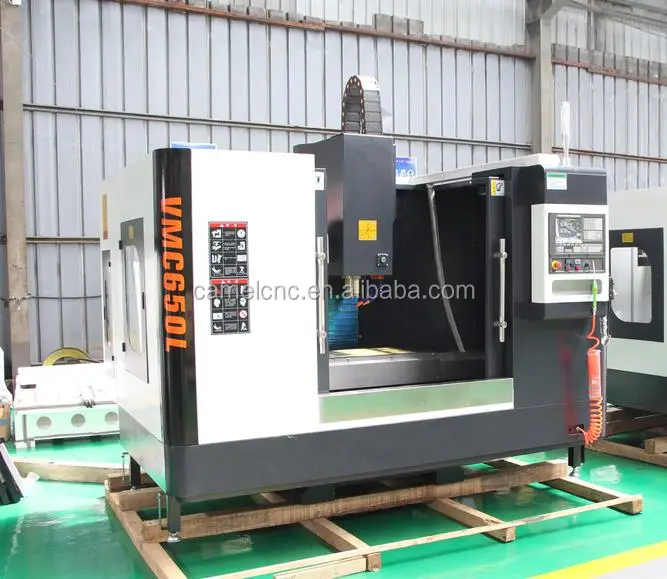

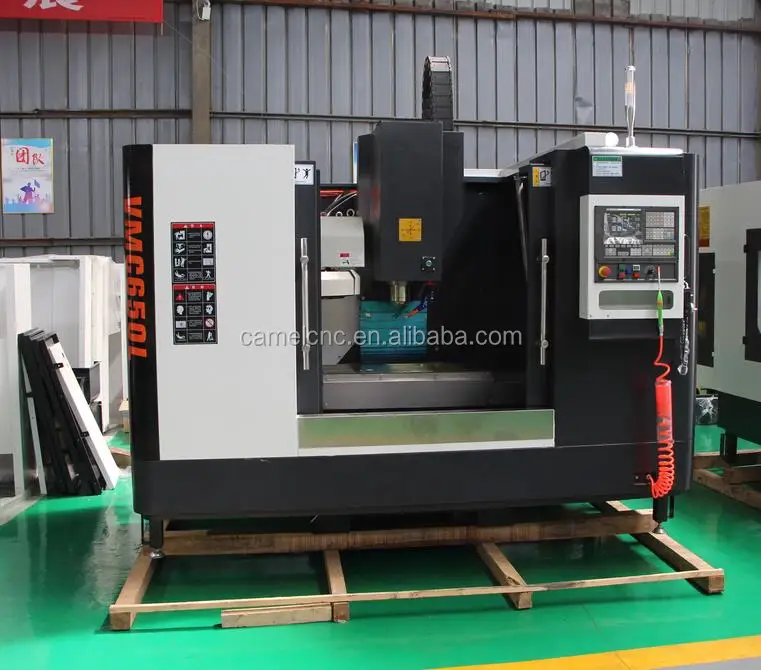

Machine Pictures:

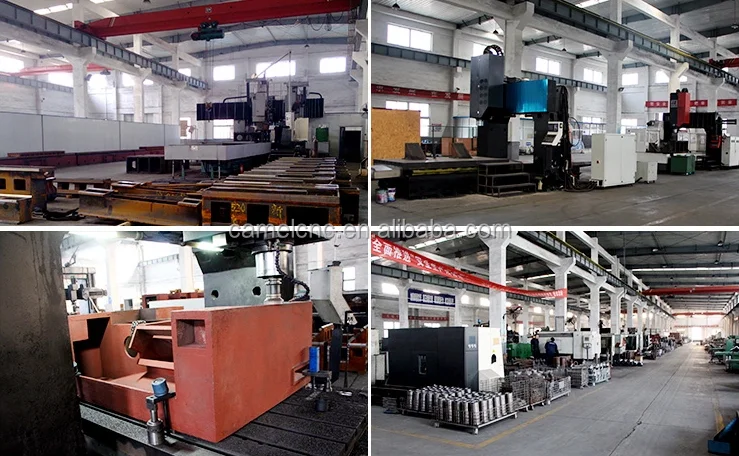

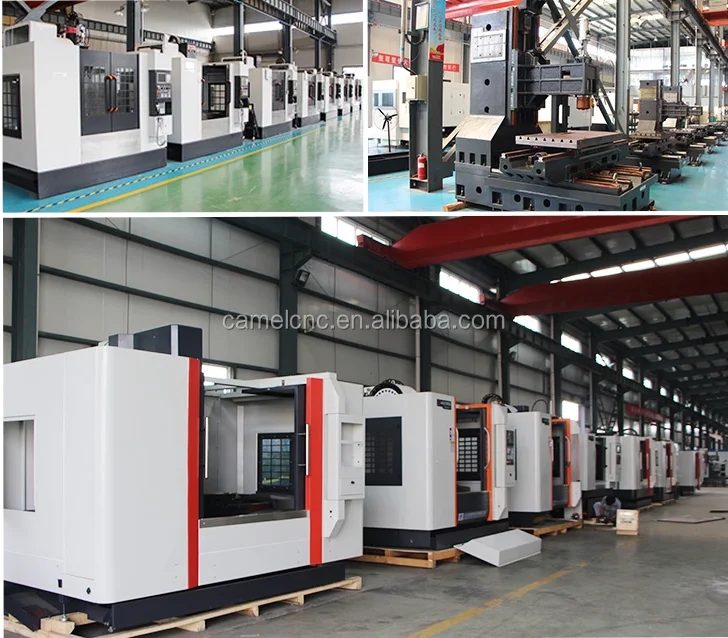

Company Information
Jinan Camel CNC Machinery CO.,LTD is the leading enterprise specializing in manufacturing, marketing and R&D of CNC Machining Center,CNC Milling Machine,CNC router, laser, plasma cutting machine, fiber laser cutting machine Panel furniture production line, CNC working center, CNC wood turning lathe, CNC spare parts and other CNC machines.
Packaging & Shipping
Packing & Delivery:
Contact
Contact us:
Olivia Chen Sales manager
olivia(@)camelcnc.com
www.camelcnc.com
Inquiry now,get good offer!!!
