SUNSHINE бренд автоматический шиномонтажный станок сменный для шин

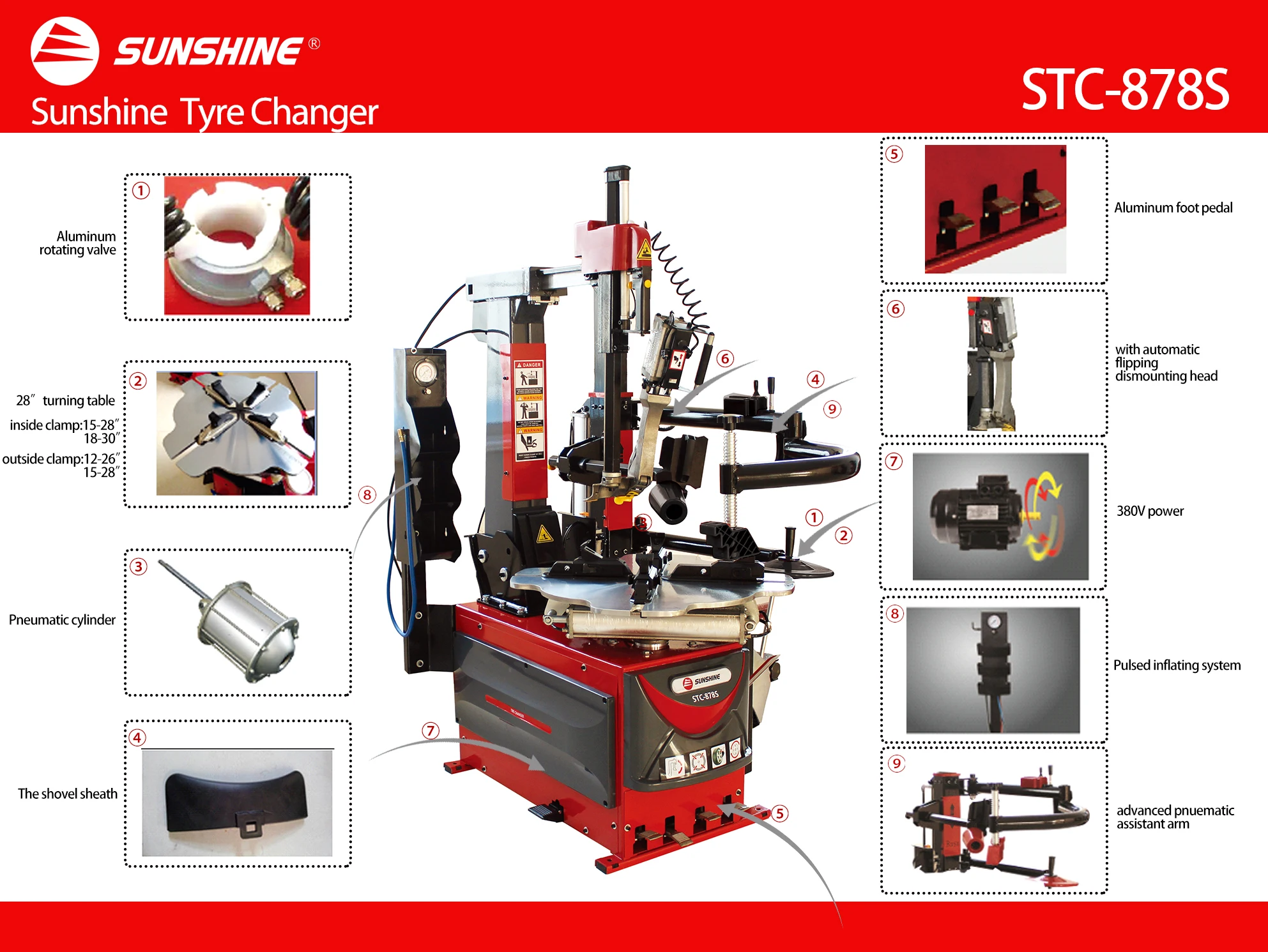

Pneumatic back arm, s41 bold hexagonal bar, pneumatic control hexagonal bar, square column, column reinforcement base, automatic flip bird head, fancy plate, right assistant arm, universal shovel, adjustable jaw Max30 inch, Pulse and independent pedal, aluminum pedal, standard single-intake large shovel cylinder, standard two-speed motor

Working pressure 8-10bar, dismount wheel width 3-14′′, motor power 1.1kw/0.75kw, maximum wheel diameter 1180mm, voltage 110V/220V/380V, working temperature 0°C~+45°C, Turntable speed 6r/min, Bead breaker running speed 3S, inside clamp size 15"~28"/18"~30", outside clamp size 12"~26"/15"~28", package size 1150 *920*1060, assistant arm package size 1120*360*300, net weight/gross weight 336/365kg, assistant arm weight 60kg

Aid arm uses powerful Φ100mm cylinder.

Optional tire inflator QS260Aor QS220;

features:
