Автоматическая машина для трафаретной печати автоматическое оборудование с
- Категории: Screen Printers >>>
- Поставщик: Zhejiang,Taoxing,Intelligent,Equipment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Print the host | ||||||||
Model | TX-5080ST | Printing Thickness Printing Thickness | ≤30mm | |||||
Max printing area | 500*800MM | Printing pressure | 4.0～6.0 kfg/c㎡ | |||||
Table size Size of printing table | 600*900MM | Voltage/power | 380V/50HZ /3.2KW | |||||
Max mesh frame max size of screen frame | 800*1200MM | Dimension Size of package carton | 1460*1150*1650MM | |||||
Max printing speed | 1000（PCS/H） | Gross weight | 522(KG) | |||||
printing machine of Main performance
①Vertical structure, frequency conversion electric drive is used for vertical lifting of screen plate, and frequency conversion electric drive is used for left and right action of printing head.
② Single chip microcomputer control circuit, printing and screen lifting using independent drive source.
③ Pneumatic control printing tool carrier lifting, photoelectric eye control stroke, independent adjustment.
④ Set up manual/semi-automatic/automatic three modes, printing indirect time digital control.
⑤ Independently designed head lifting device, scraper/return knife, screen loading and unloading and screen cleaning is convenient.
⑥ Double guide post left and right net clip arm, and installation of plate distance adjustment device, easy to adjust.
⑦With a thimble cylinder, with the manipulator to take material.
①Vertical structure, frequency conversion electric drive is used for vertical lifting of screen plate, and frequency conversion electric drive is used for left and right action of printing head.
② Single chip microcomputer control circuit, printing and screen lifting using independent drive source.
③ Pneumatic control printing tool carrier lifting, photoelectric eye control stroke, independent adjustment.
④ Set up manual/semi-automatic/automatic three modes, printing indirect time digital control.
⑤ Independently designed head lifting device, scraper/return knife, screen loading and unloading and screen cleaning is convenient.
⑥ Double guide post left and right net clip arm, and installation of plate distance adjustment device, easy to adjust.
⑦With a thimble cylinder, with the manipulator to take material.

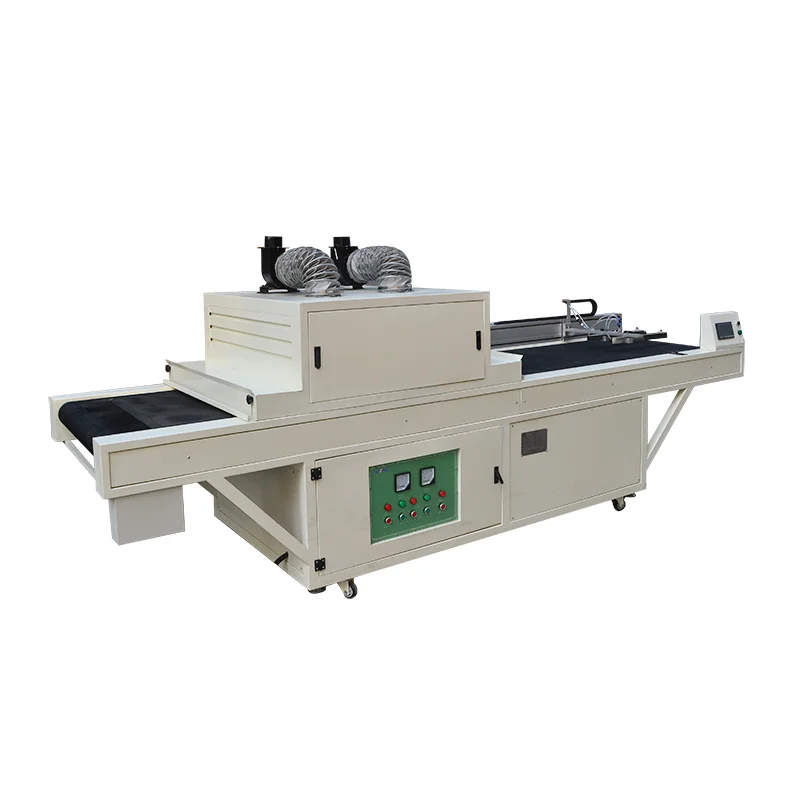

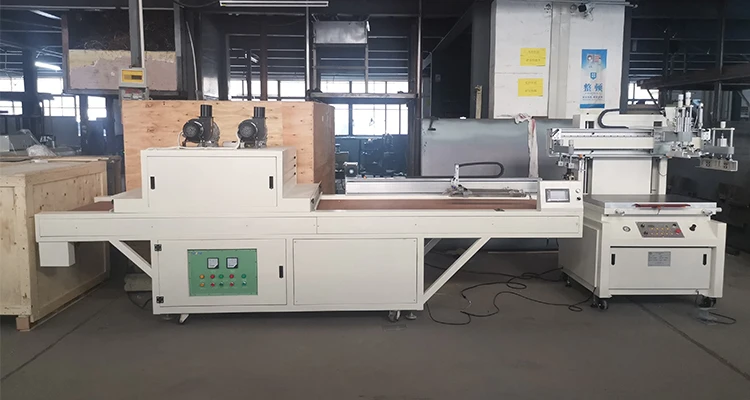

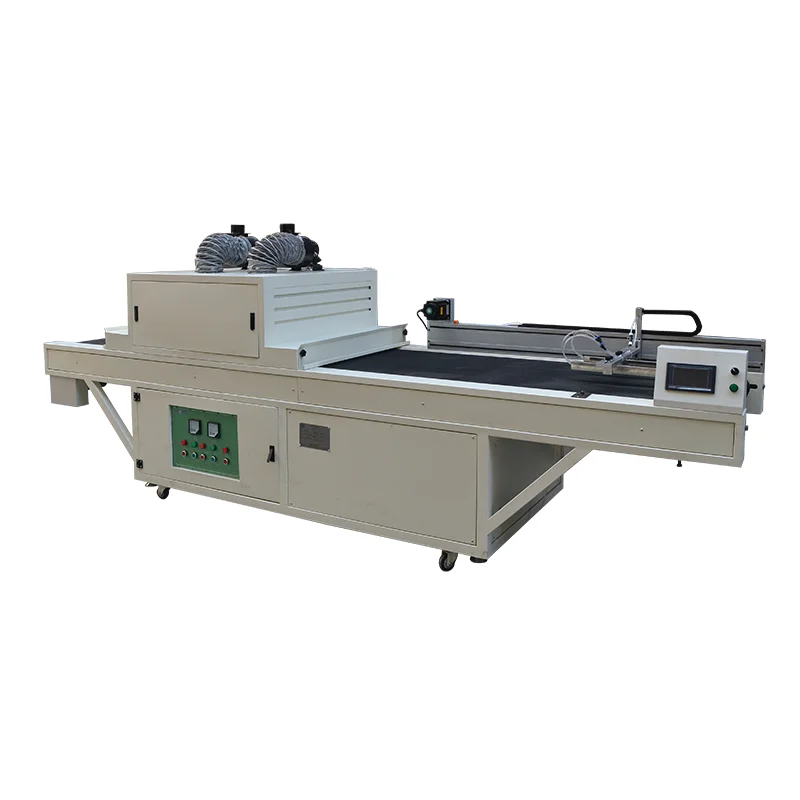

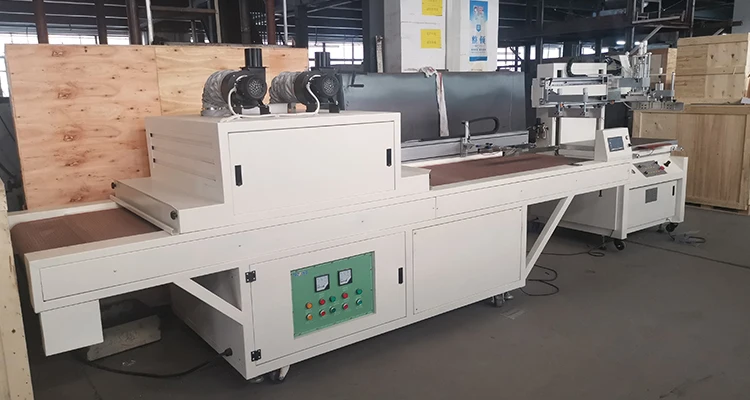

Integration of UV manipulator | ||
Model | TX-UV600（800） | |
Power/optical power | 380V/3KW*2PCS LAMPS（5.6kw，LAMP） | |
Mesh belt width | 600mm（800mm） | |
Input speed | 5-25m/min | |
Manipulator length | 1.8M | |
Weight | 325kg | |
Machine length | 4M | |
Integration of UV manipulator Main performance
①Equipped with 2 sets of UV light source system, according to the production needs to open the number of lamps.
②Imported Teflon conveyor belt, Seiko production, smooth operation without noise
③Speed regulating motor and governor, conveyor belt stepless speed regulation, according to the production of speed regulation.
④Concentrating type design, imported high focusing reflective lampshade, instantaneous drying, speed is express.
⑤The illumination height of UV lampshade can be adjusted.

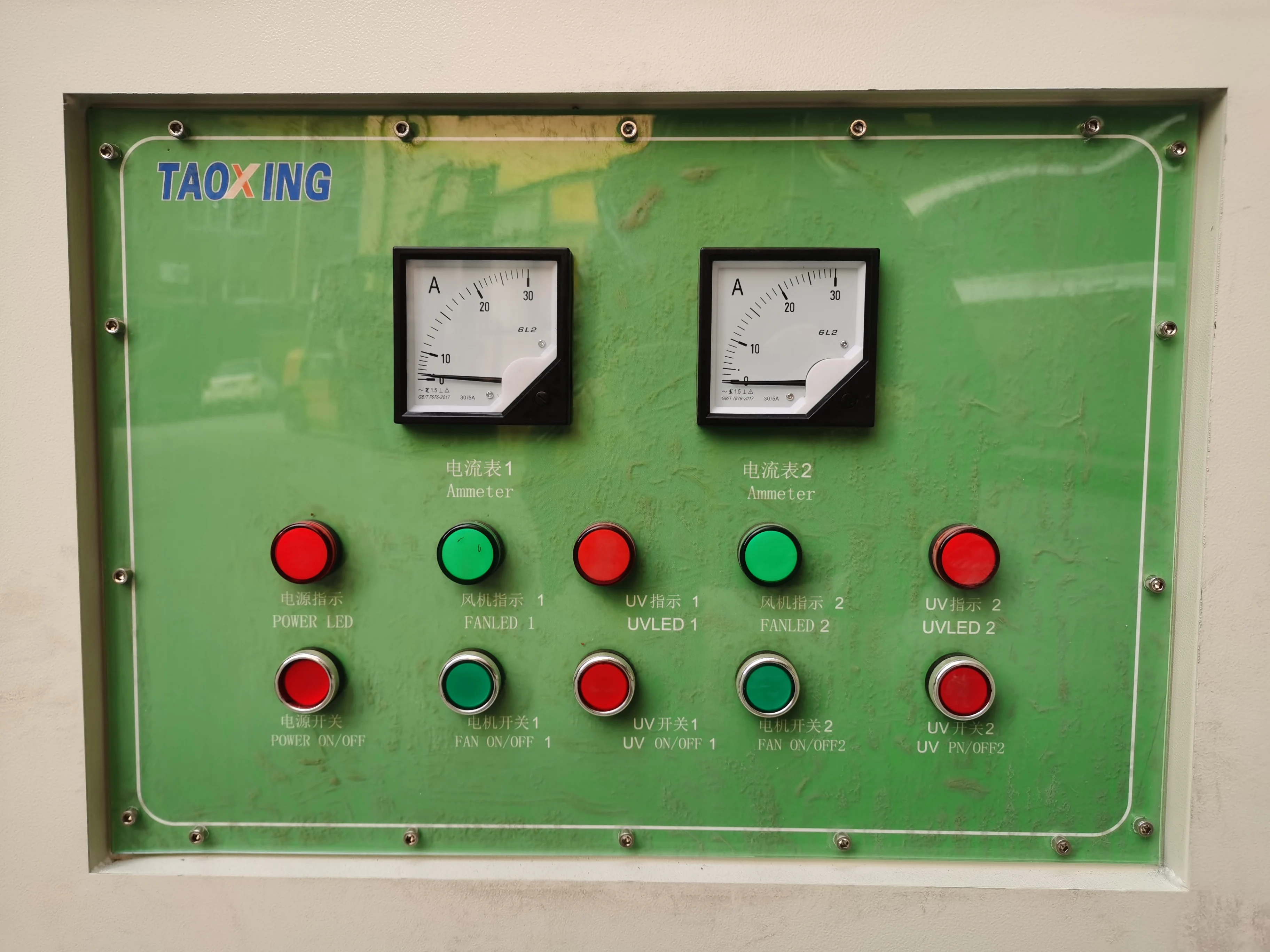

⑥The working current of the UV lamp tube can be displayed through the external indicator needle to effectively grasp the working state of the UV system.
⑦The heat can be discharged outdoors through the exhaust heat system, which effectively protects the production and working environment.

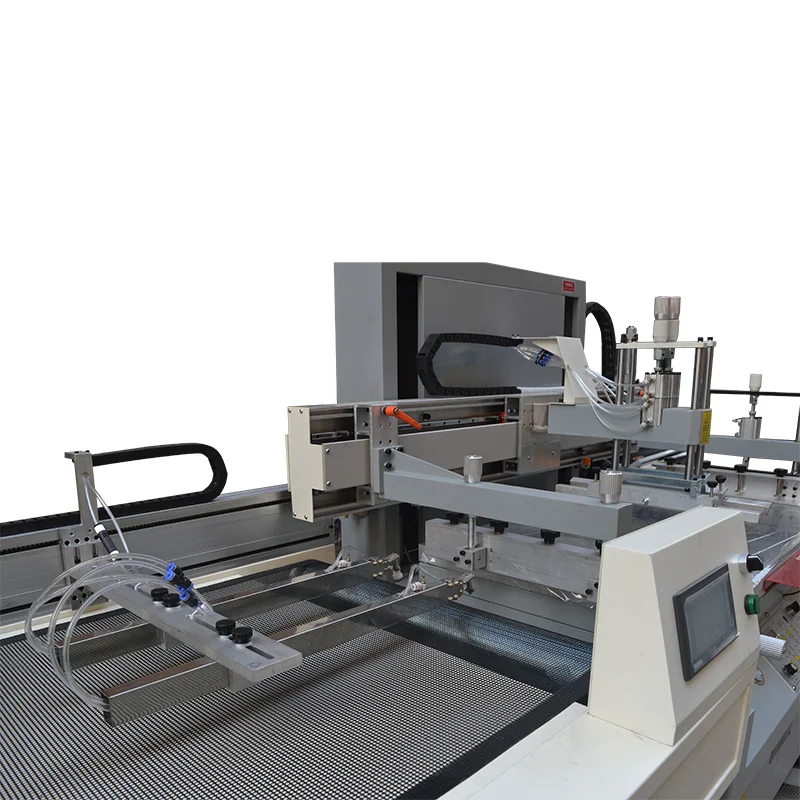

Integration of UV manipulator Manipulator：
①PLC control each function operation, simple and convenient operation
②Stepper motor with linear guide rail, fast and stable
③Machine structure is made of high quality aluminum alloy, light and strong
①Equipped with 2 sets of UV light source system, according to the production needs to open the number of lamps.
②Imported Teflon conveyor belt, Seiko production, smooth operation without noise
③Speed regulating motor and governor, conveyor belt stepless speed regulation, according to the production of speed regulation.
④Concentrating type design, imported high focusing reflective lampshade, instantaneous drying, speed is express.
⑤The illumination height of UV lampshade can be adjusted.
⑥The working current of the UV lamp tube can be displayed through the external indicator needle to effectively grasp the working state of the UV system.
⑦The heat can be discharged outdoors through the exhaust heat system, which effectively protects the production and working environment.
Integration of UV manipulator Manipulator：
①PLC control each function operation, simple and convenient operation
②Stepper motor with linear guide rail, fast and stable
③Machine structure is made of high quality aluminum alloy, light and strong
Detail Images
Printing sample
Company Profile
Zhejiang Taoxing Intelligent Equipment Technology Co., Ltd. Established in 2008 and have a team of experienced engineers and sales and after-sales service teams. We have our own factory in Haining,Zhejiang,where manufacture full series of high-quality screen printing machines,Drying Tunnel,book binding machine,mask machine and other machine.
Foreign Cooperative Partners
Photo of Factory
our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*custom contact us
* Sample testing support.
* View our Factory.
*custom contact us
After-Sales Service
*1 year warranty
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Team
Exhibition
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2017,sell to Domestic Market(40.00%),Southeast Asia(20.00%),Western Europe(10.00%),Eastern Europe(8.00%),Mid East(8.00%),Africa(5.00%),Eastern Asia(5.00%),South America(4.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Printing Machine,Paper Cutter,Glue Binding Machine,Pad Printer,UV Curing Machine
4. why should you buy from us not from other suppliers?
Established in 2008 and have a team of experienced engineers and sales and after-sales service teams. We have our own factory in Haining,Zhejiang,where manufacture full series of high-quality screen printing machines,Drying Tunnel,book binding machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Zhejiang, China, start from 2017,sell to Domestic Market(40.00%),Southeast Asia(20.00%),Western Europe(10.00%),Eastern Europe(8.00%),Mid East(8.00%),Africa(5.00%),Eastern Asia(5.00%),South America(4.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Printing Machine,Paper Cutter,Glue Binding Machine,Pad Printer,UV Curing Machine
4. why should you buy from us not from other suppliers?
Established in 2008 and have a team of experienced engineers and sales and after-sales service teams. We have our own factory in Haining,Zhejiang,where manufacture full series of high-quality screen printing machines,Drying Tunnel,book binding machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
