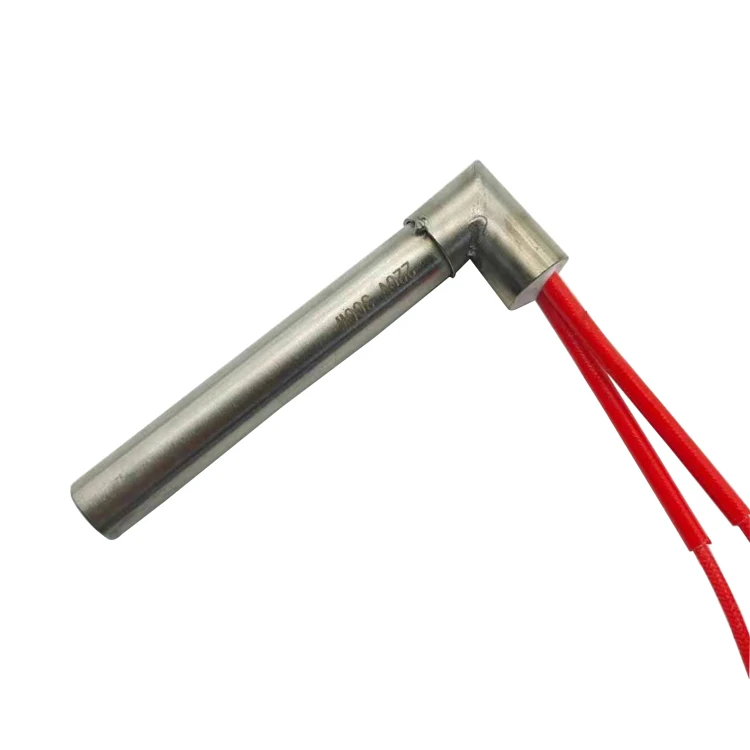

L-образный 6x40 мм 110 в 100 Вт Электрический промышленный нагревательный элемент из нержавеющей стали картридж
- Категории: Heating Equipment >>>
- Поставщик: Yancheng,Lan,Chuang,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

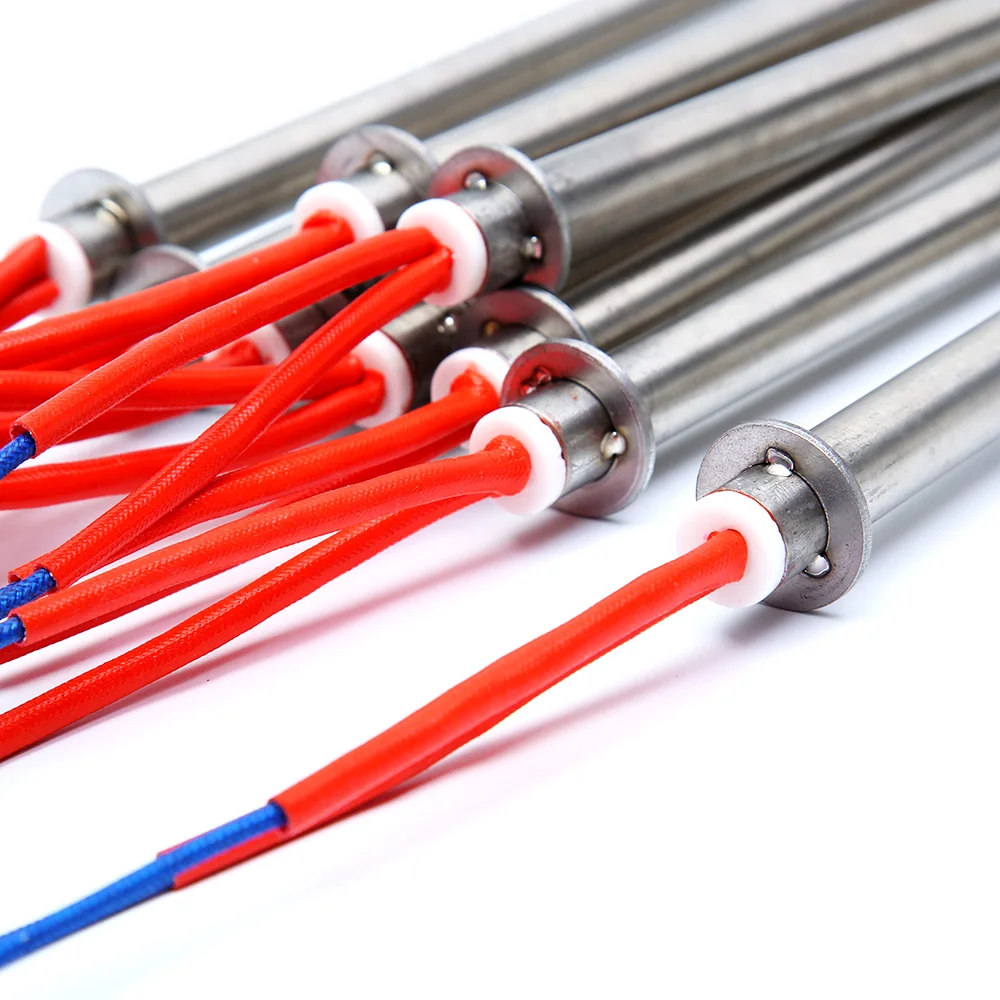

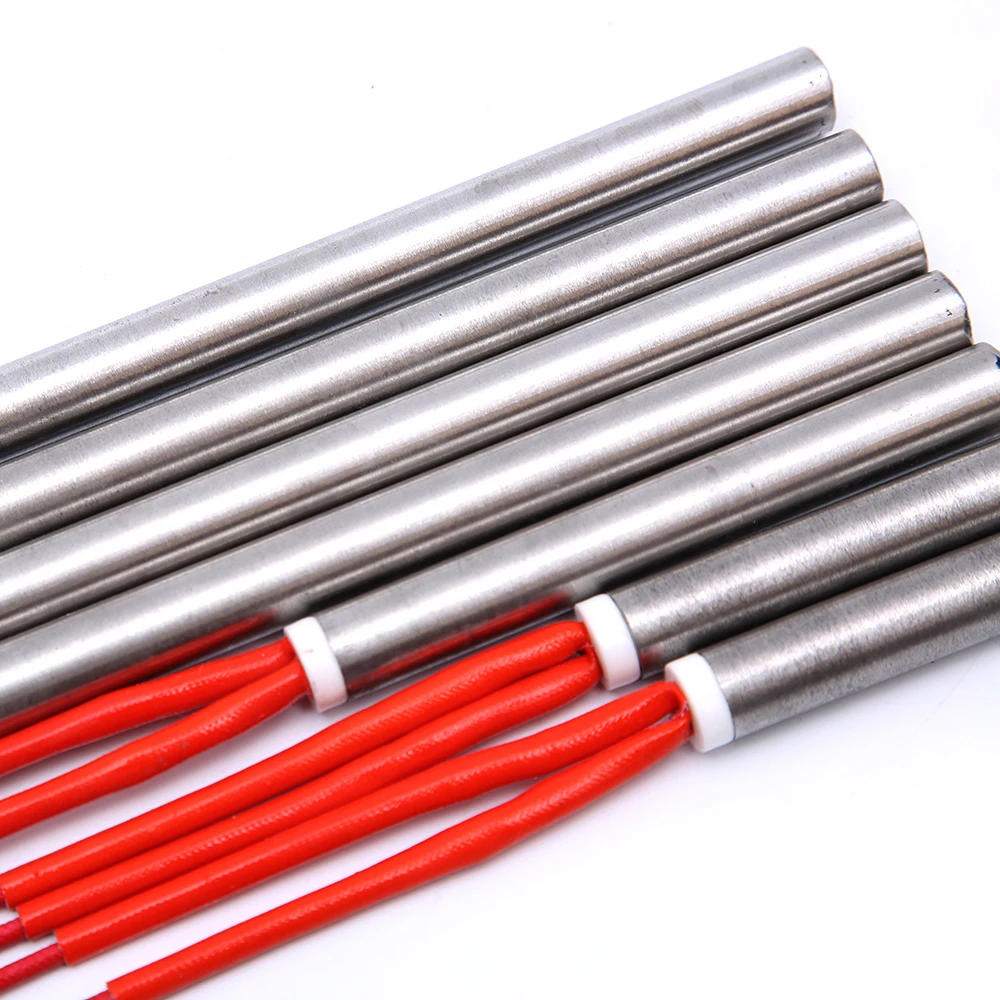

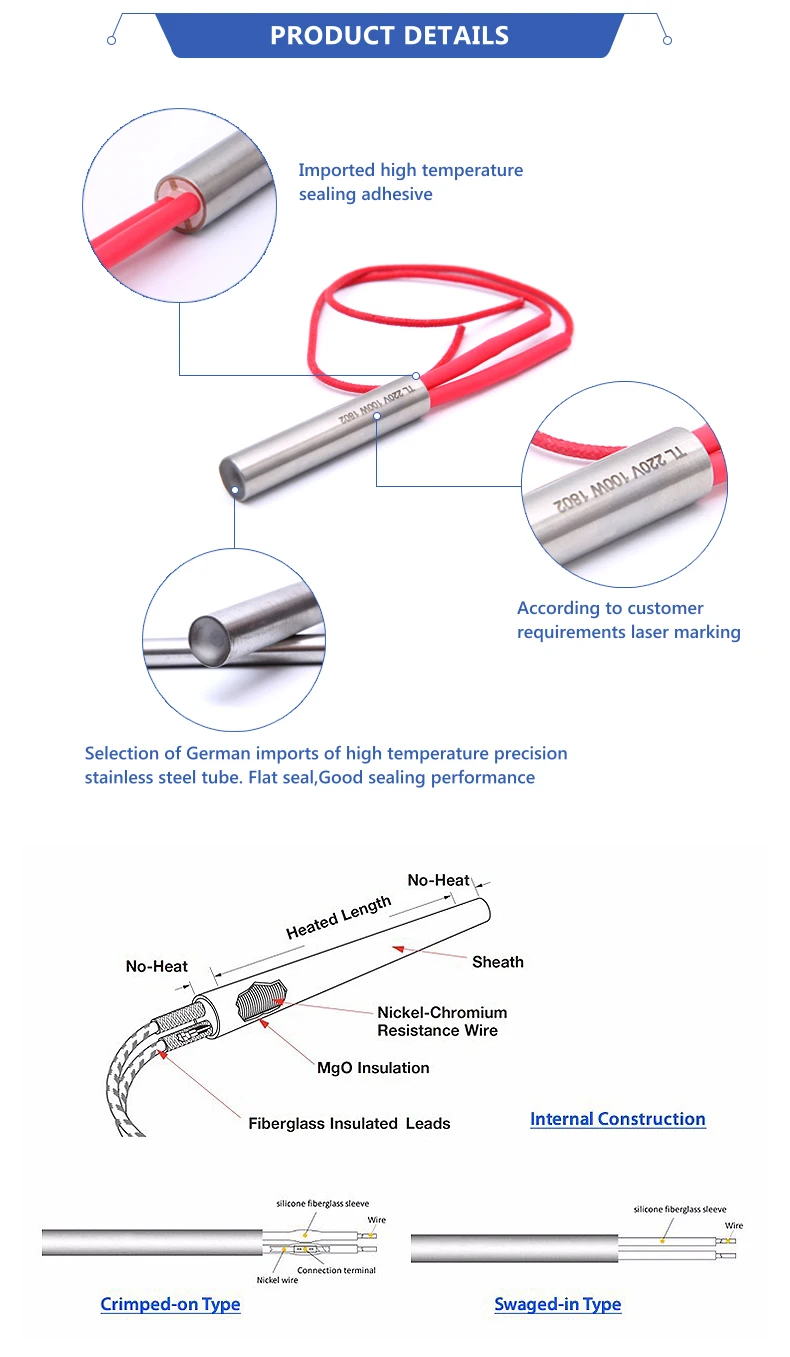

Description of Cartridge Heating Element
Classical structure of cartridge heater (Popular structure) is same to heating tube,Generally consists of five parts:Insulator,
sealing material,leading rods, filling material, electric wire, metal protective tube, terminal.Coil electric wire and leading rod
are set in the metal protective tube.
manufacturing process : put coil heating wires through the seamless steel pipe, copper or aluminum tube, Using filling machine more to fill insulation and thermal oxidation object evenly in the gaps,such as Crystal magnesium oxide powder (alumina or clean quartz sand are all available) etc.,And then use shrink tube machine contract pipe diameter, make oxide medium dense(make density achieves above 3.3 g/cm3),Ensure the heating wire cut off from the air, the center position touch pipe wall and don’t offset.It can increase heating power more than ten times per unit area.the using life can be improved to more than 10 years,Comparing with large heating power electric element ,tubular heaters can save 5% material,Thermal efficiency can reach above 90%.
Classical structure of cartridge heater (Popular structure) is same to heating tube,Generally consists of five parts:Insulator,
sealing material,leading rods, filling material, electric wire, metal protective tube, terminal.Coil electric wire and leading rod
are set in the metal protective tube.
manufacturing process : put coil heating wires through the seamless steel pipe, copper or aluminum tube, Using filling machine more to fill insulation and thermal oxidation object evenly in the gaps,such as Crystal magnesium oxide powder (alumina or clean quartz sand are all available) etc.,And then use shrink tube machine contract pipe diameter, make oxide medium dense(make density achieves above 3.3 g/cm3),Ensure the heating wire cut off from the air, the center position touch pipe wall and don’t offset.It can increase heating power more than ten times per unit area.the using life can be improved to more than 10 years,Comparing with large heating power electric element ,tubular heaters can save 5% material,Thermal efficiency can reach above 90%.
Specification

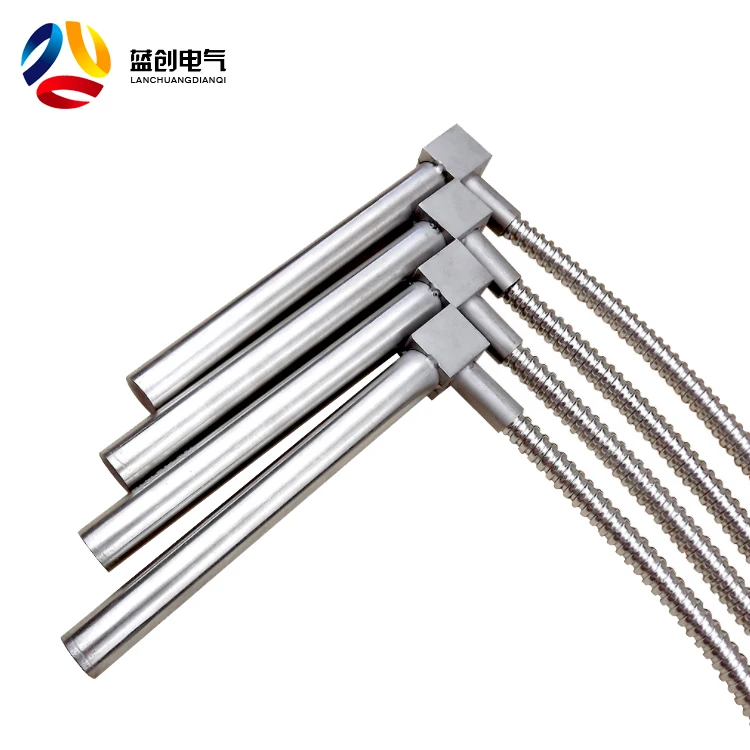

Industrial Heater | L shape cartridge heater |
Resistance Heating Wire | NiCr2080 |
Sheath | SS304/316/321/Incoloy 800 /840 |
Max.Temp | 800 Degree Celsius |
Wattage Tolerance | +5%, -10% |
Resistance Tolerance | +10%,-5% |
Voltage Avialable | 380V,240V,220V,110V,36V,24V or 12V |

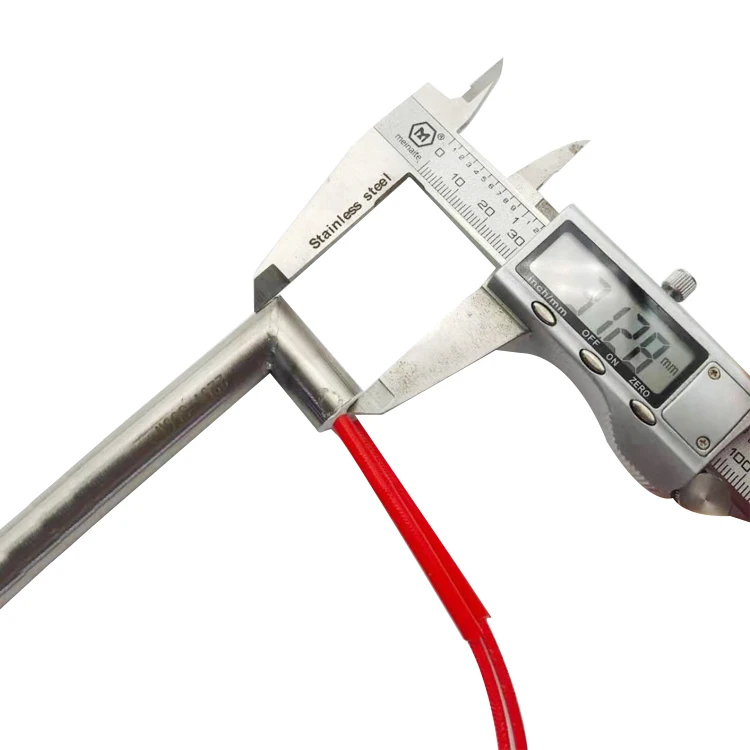

Length Tolerance | ±1mm |
Diameter Tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Insulation Resistance （cold） | ≥500MΩ |
Max.Leakage Current (cold) | ≤0.5mA |
Thermocouple | Type K, Type J |
Related Products
Packing & Delivery
Certifications

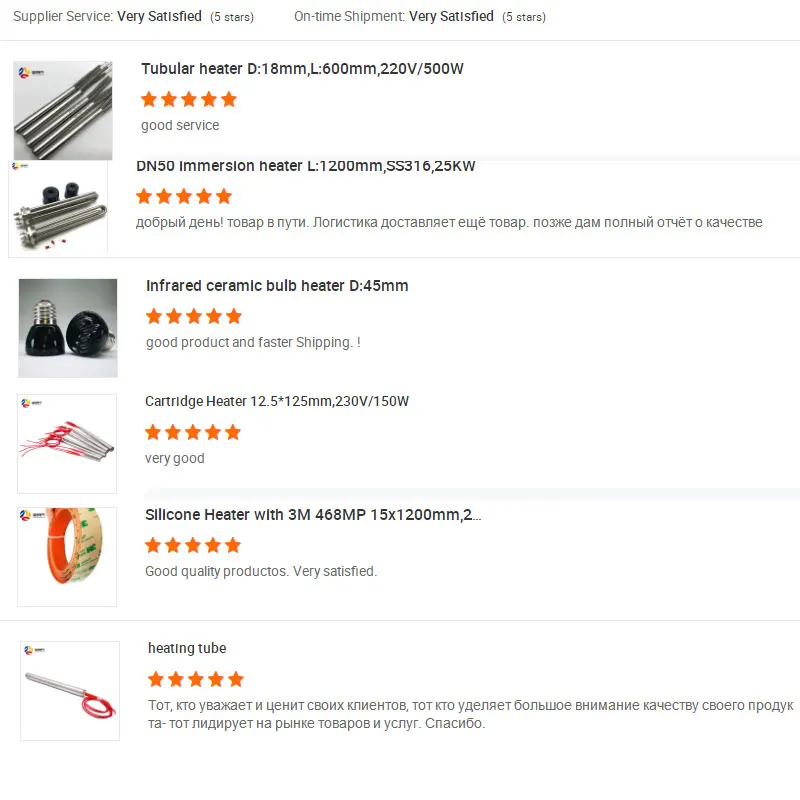

Feedback
Company Profile
Yancheng Lan Chuang Electric Technology Co.,Ltd is located in Yancheng city,Jiangsu province.We are the professional manufacturer of all kinds of heating elements.We have focused on management and quality control according to ISO 9001 standard to supply the quality products with competitive price for the plastic industry,the heat treatment,the petrochemical industry,the motor industry and so on from it founded.With product development,machine improved and technological innovation,we have improved OEM capacity Both of our technology level and economic strength are the leader of heating industry.We introduce professional machines to support our production, including automatic powder filling machine,polishing machine,shrink tube machine,punching machine, automatic reeling machine and so on.Our main products are Rod heaters,band heater, infrared heaters,temperature sensors and various heating alloys.Our products have got CE,ROHS certification. Yancheng Lan Chuang follows the philosophy of "technology is power,quality is fundamental",we are focus on technology research and development,strict with quality control,to satisfy all of our customers.
Welcome all friends from anywhere of the world to visit and negotiate business with our company.
Welcome all friends from anywhere of the world to visit and negotiate business with our company.
