Products Description

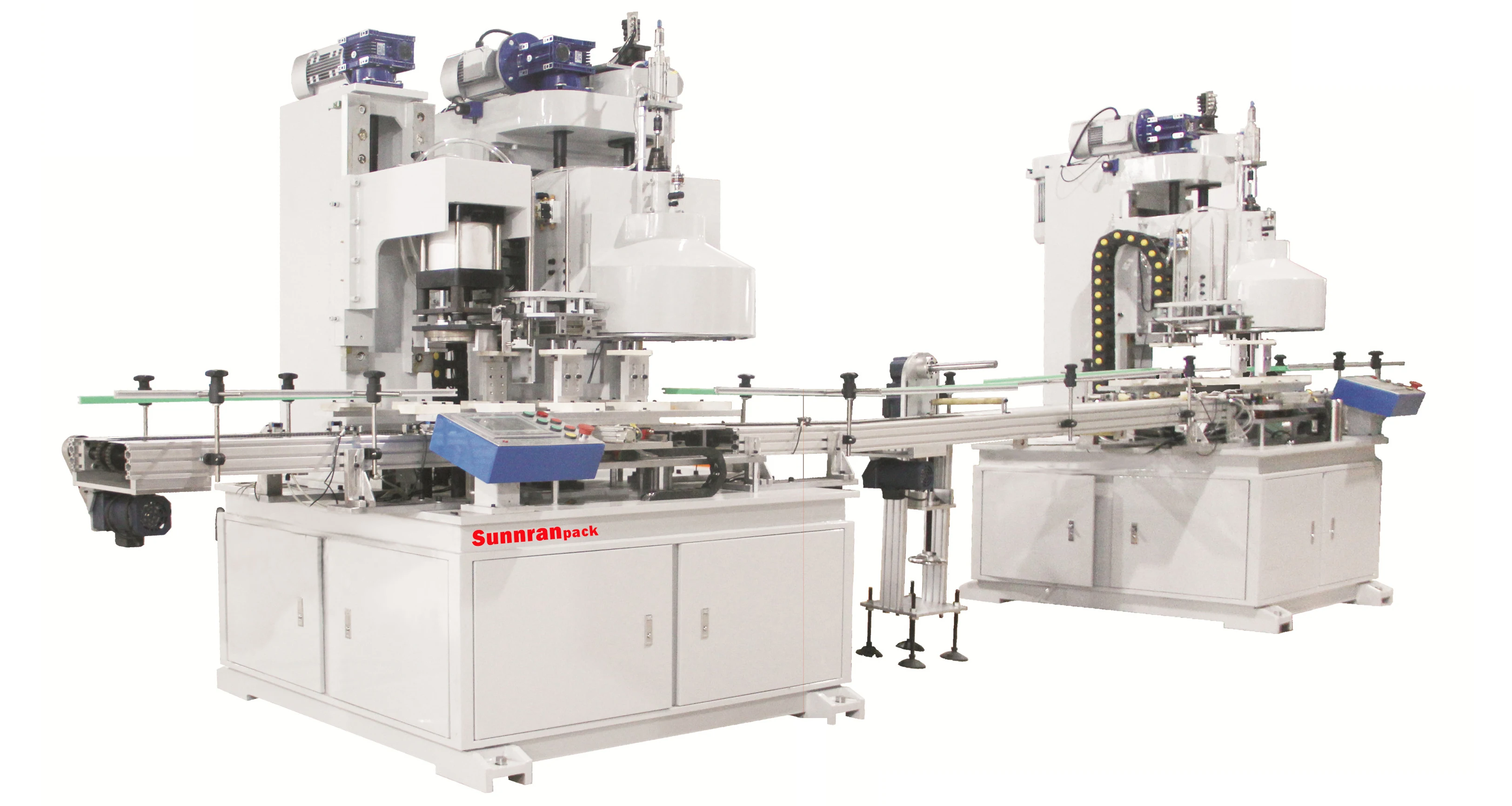

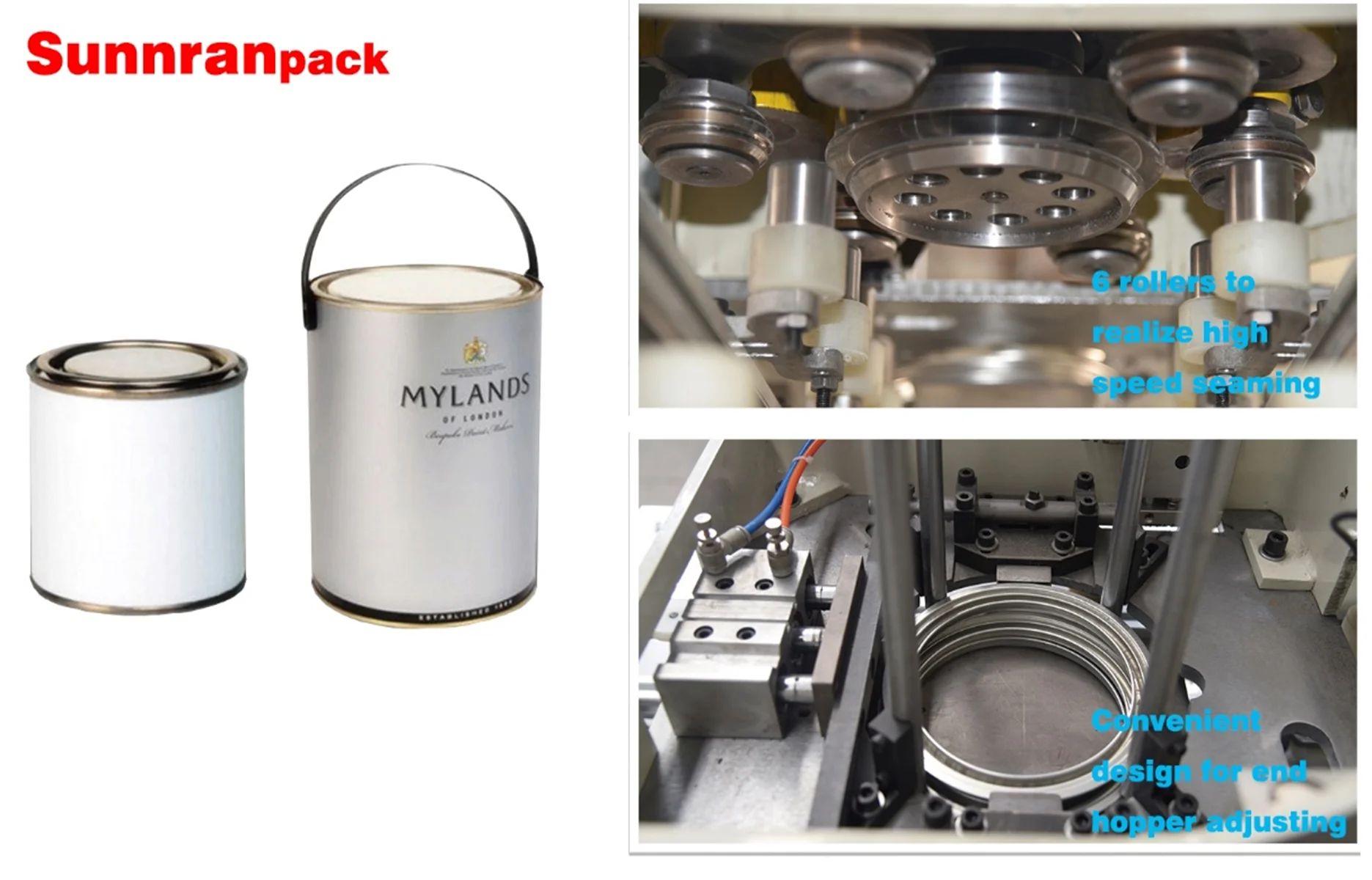

Paint can making machine




This paint can making line is developed according to customer’s requirements. It is simple but functional. 1-5L cans can be fabricated on this line. The procedures to change the tooling is easy. Speed of this line can reach stable speed 55-60CPM.

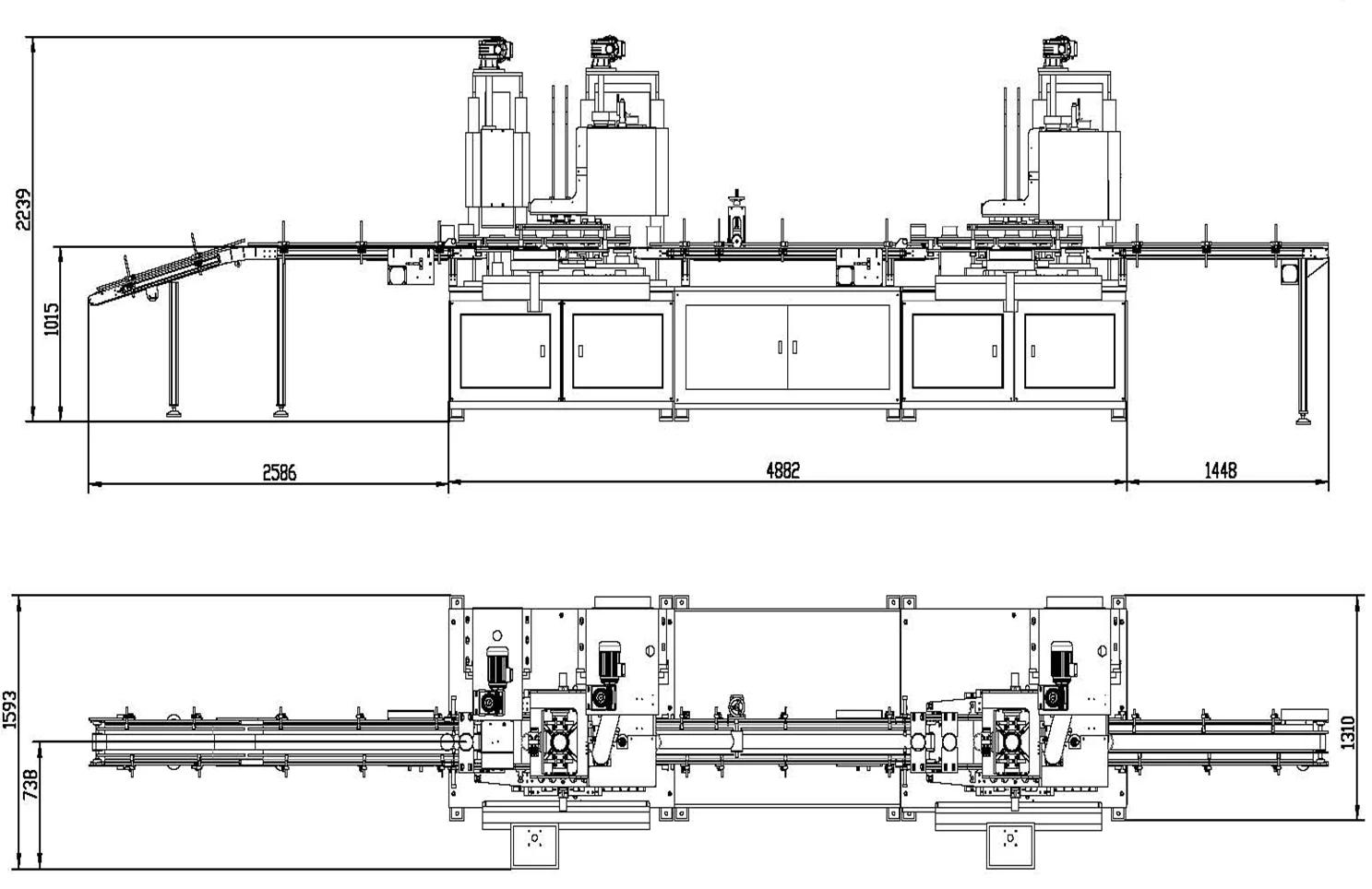

layLayout of the paint can making machine

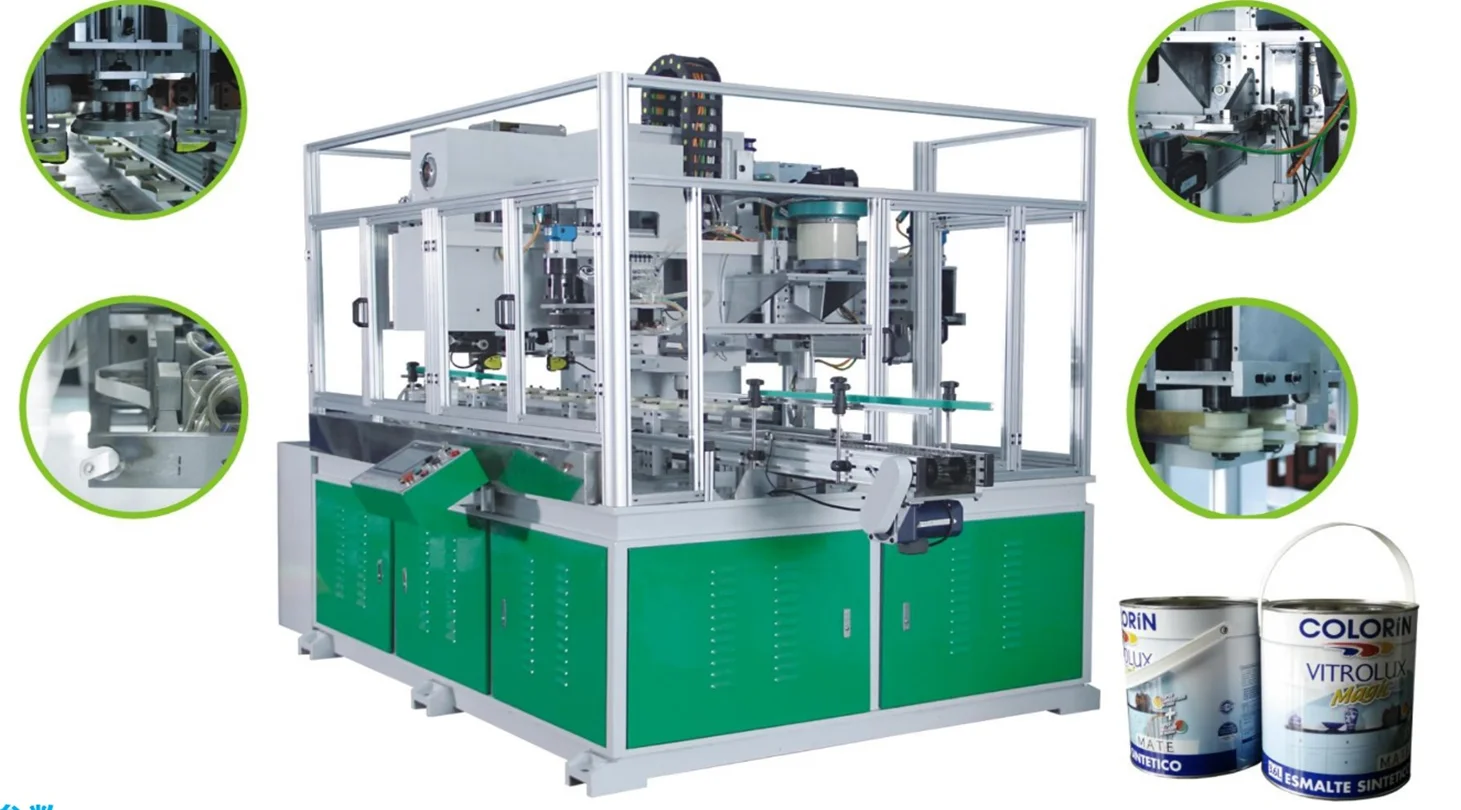

Plastic handle rivet welder




This machine is combined plastic stripe cutting, rivet hole punching, rivet inserting and welding. It adopts cam drive, cam transmission to transfer the can body, uses electric cylinder to feed the plastic stripe.Advanced Siemens motion system is adopted to make the movement of this whole machine more precisely. Thus, high speed , high
stability are the strong points of this machine.


Applicable can size
Tinplate round can
Output
55-60CPM
Applicable height
155-300mm
Dia. scope
155-180mm
Distance from top to rivet center
33-40mm(Adjustable)
Rivet thickness
Above 0.32mm
Body thickness
0.23-0.3mm
Transformer secondary current
App.5000A
Total power
70Kw
Air pressure
Above 0.6Mpa
Connection height
1000±20mm
Weight
App.4.2T
