 Dongfeng refitted road washing and street cleaning truck on sale

Product introduction

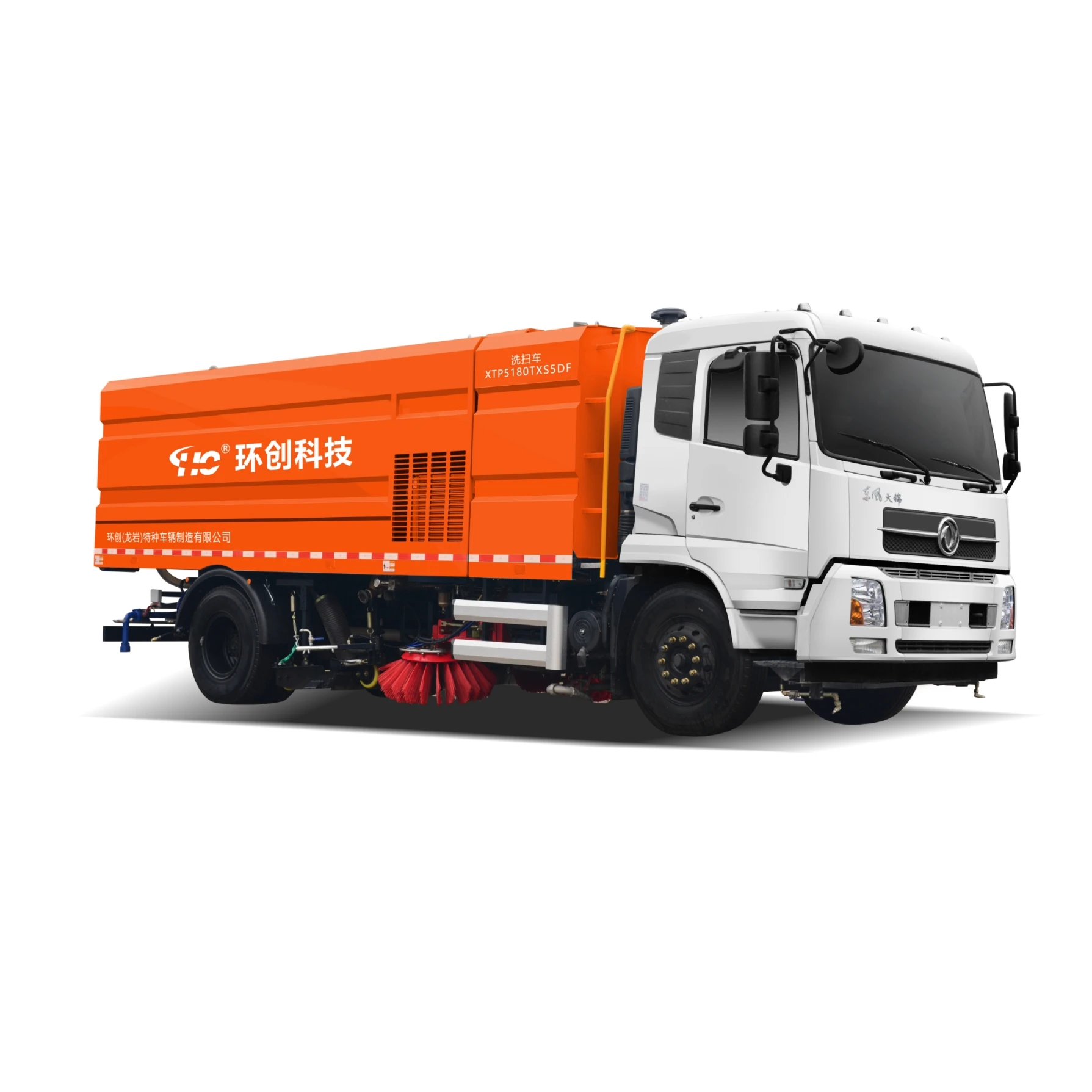

This model is refitted by adding special device on the basis of DFH1180EX8 chassis produced by Dongfeng Commercial Vehicle Co., Ltd. It is mainly composed of class II chassis, cleaning system, hydraulic system, electrical intelligent control system, etc. It is suitable for urban and rural road cleaning, urban squares, road pavement and roadside cleaning, cleaning, washing and other general cleaning operations. The main assembly parts are made by domestic and foreign high-quality suppliers, of which the core high-pressure water pump and other precision parts are imported parts, which are carried out in strict accordance with the requirements of ISO quality management system.

Product advantages

· It has the combined function of low-pressure sprinkler, cleaning vehicle and high-pressure cleaning vehicle. It has many functions, such as road washing, washing along the road and along the road surface, spraying dust, low pressure washing and high pressure washing.

· Configuration high. The high-pressure water pump adopts German pf36, and the electrical control components adopt high-quality brands at home and abroad.

· Auxiliary engine. Dongfeng Cummins qsb5.9-c160-30 diesel engine is standard.

Product specification

Item	Parameter	Item	Parameter
Outline dimensions (L*W*H)(mm)	8790 X 2490 X3200	Auxiliary engine	Standard configuration	Dongfeng Cummins qsb5.9-c160-30 diesel engine
Maximum total mass(kg)	18000			119KW/2200r/min
Curb weight of complete vehicle(kg)	11950	High pressure water pump	Model	Pinfu PF36
Maximum speed(km/h)	89		Rated pressure(MPa)	10(Design use:9.5MPa)
Maximum speed minimum turning diameter(m)	19		Rated flow (L/min)	142 L/min/1450rpm
Maximum climbing gradient (%)	30		Sweep width (m)	3.6
Chassis Model	DFH1180EX8		Operation speed(km/h)	3~20
Chassis engine	Dongfeng Cummins d6.7ns6b230 diesel generator (National VI emission)		Maximum operating capacity (m2/h)	90000
	169KW
