20crmnti корабль Коническое зубчатое колесо QGG63 Precision фрезерный инструмент
20crmnti корабль Коническое зубчатое колесо QGG63 Precision фрезерный инструмент
20crmnti корабль Коническое зубчатое колесо QGG63 Precision фрезерный инструмент
20crmnti корабль Коническое зубчатое колесо QGG63 Precision фрезерный инструмент
20crmnti корабль Коническое зубчатое колесо QGG63 Precision фрезерный инструмент
20crmnti корабль Коническое зубчатое колесо QGG63 Precision фрезерный инструмент
20crmnti корабль Коническое зубчатое колесо QGG63 Precision фрезерный инструмент

20crmnti корабль Коническое зубчатое колесо QGG63 Precision фрезерный инструмент


Поделиться:

Цена:39,00 $ - 45,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



QGG QKG Precision Milling Tool Vise for Milling Machine


Product Description


Horizontal Vertical Workholding QGG63 Precision Tool Maker Vise

Pingyuan Zhenghao Machinery Co., ltd was founded in 1998. Professional Produce and export Precision Vise for machine. Also supply: Collects, Adapters and other Accessories.


OUR ADVANTAGE
We are factory, professionally produce and export machine vise.
We have nearly 20 years production experience and strick quality control system and after-sales system.
We have nearly 10 years export experiences, customers from more than 40 countries and regions.
We have very good international trade sales team.




Horizontal Vertical Workholding QGG50 Precision Tool Maker Vise

Order No.
B
H
Smax
L
mm
mm
mm
mm
QGG50
50
25
65
155
QGG63
63
32
85
190
QGG73
73
35
100
210
QGG80
80
40
100
220
QGG88
88
40
125
250
QGG100
100
45
125
260
QGG125
125
50
160
300
QGG125A
125
50
210
350
QGG150
150
50
175
315


QKG Precision Tool Vises
Order No.
B
H
Smax
L
mm
mm
mm
mm
QKG25
26
9.15
22
65.4
QKG36
36
20
40
100
QKG38
38
20
44
105
QKG50
50
25
65
140
QKG63
63
32
85
175
QKG73
73
35
100
190
QKG80
80
40
100
200
QKG88
88
40
125
235
QKG100
100
45
125
245
QKG125
125
50
160
285
QKG150
150
50
200
330
QKG150A
150
50
250
380
QKG150B
150
50
300
430




Horizontal Vertical Workholding QGG50 Precision Tool Maker Vise  Main Features

1) Used for precision measurement and inspection precision grinding, EDM and wire-cutting machine.
2) Made of high quality alloy steel 20CiMoTi
3) Carburized to surface harness HRC58-62
4) Quick to clamp and easy to operate.
5) Different sizes for your choice.

6) Parallelism 0.995mm/100mm, squareness 0.005mm.

7) Guarantee high accuracy in any position.



Detailed Images

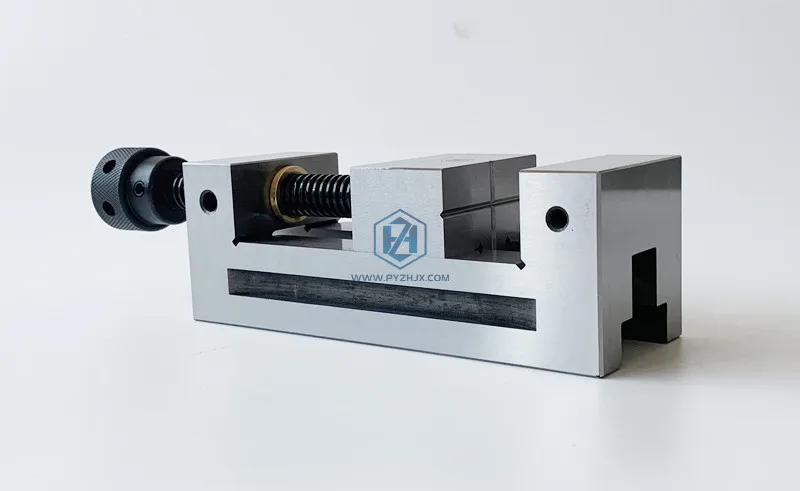

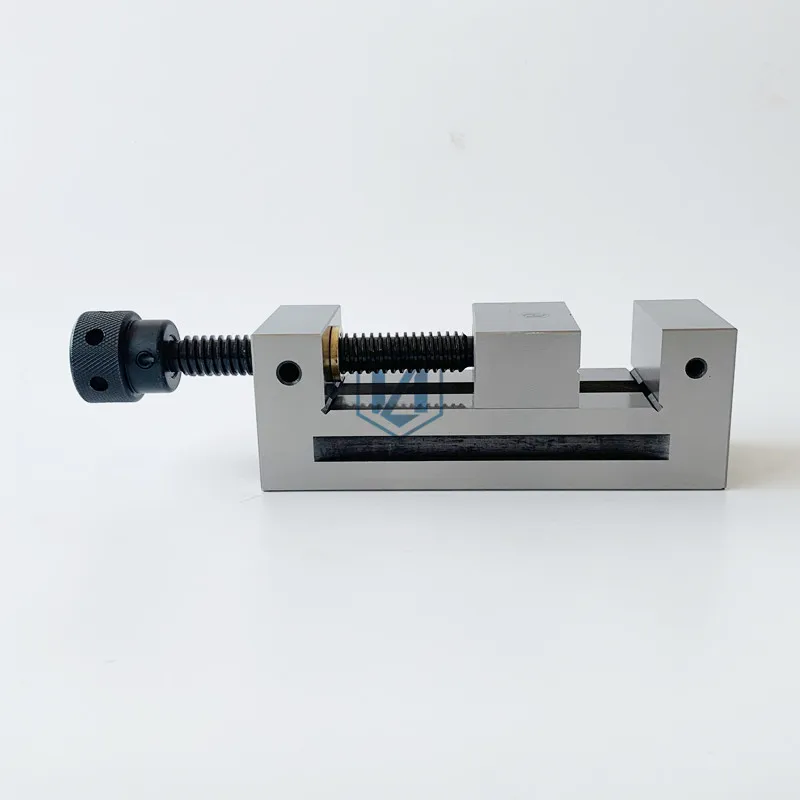

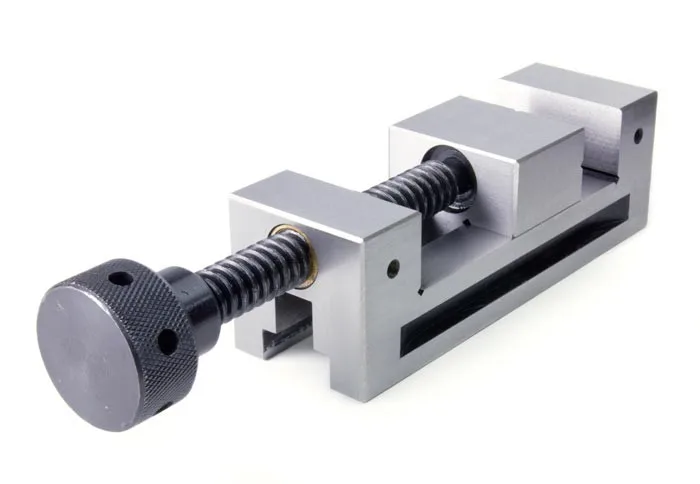

Horizontal Vertical Workholding QGG50 Precision Tool Maker Vise

QGG Precision Tool Vice/vise
Material:20CrMnTi Alloy steel
Hardness:HRC58~62
Parallelism:0.005/100mm
Spuareness:0.005mm
Usage:CNC Milling Grinding machine, precision measurement and inspection
Drive mode:manual

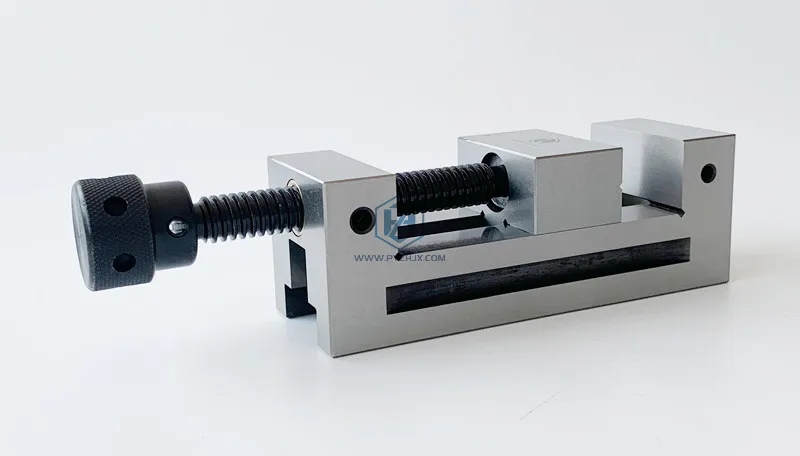

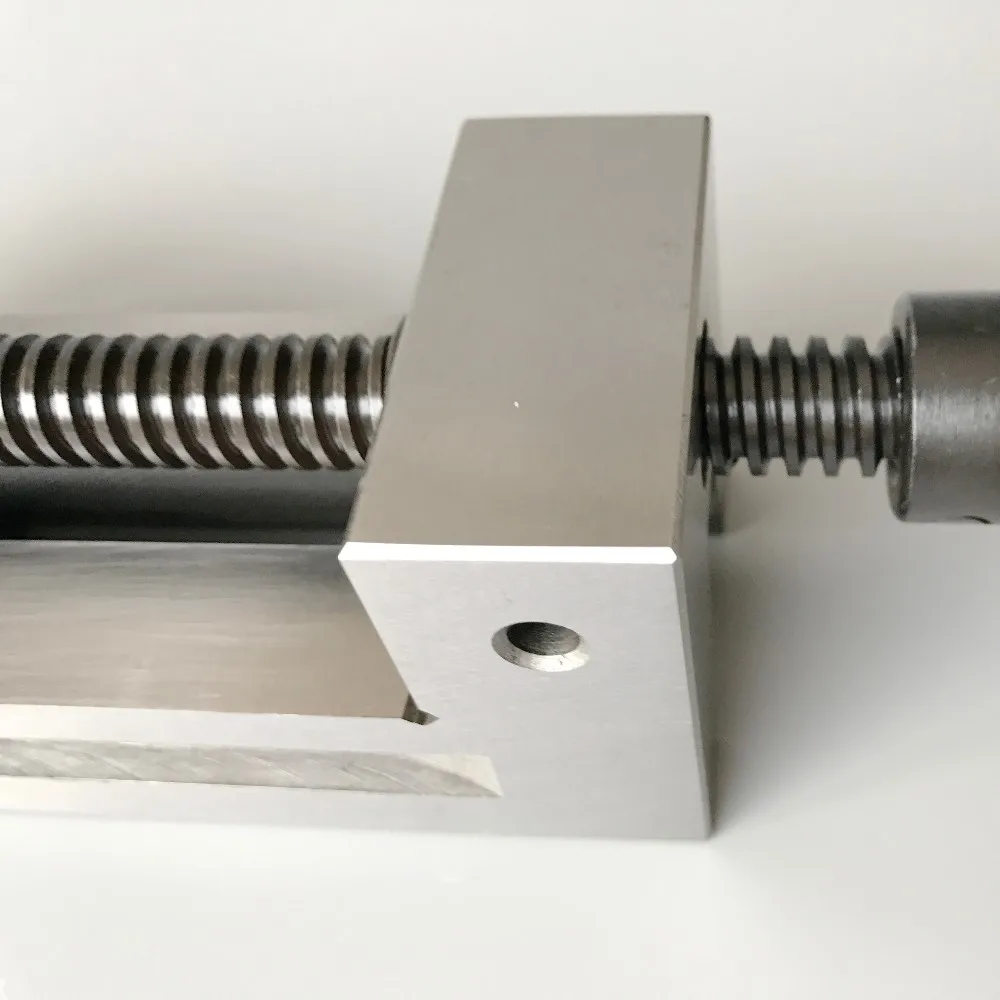

CNC Milling and EDM QGG50 Precision Tool Vises

QGG Precision Tool Vice/vise
Material:20CrMnTi Alloy steel
Hardness:HRC58~62
Parallelism:0.005/100mm
Spuareness:0.005mm
Usage:CNC Milling Grinding machine
Drive mode:manual



CNC Milling and EDM QGG50 Precision Tool Vises Factory

Producing by advanced Vertical Machining Center. We also have Dynamic Balancing Device to test tool holder accuracy.

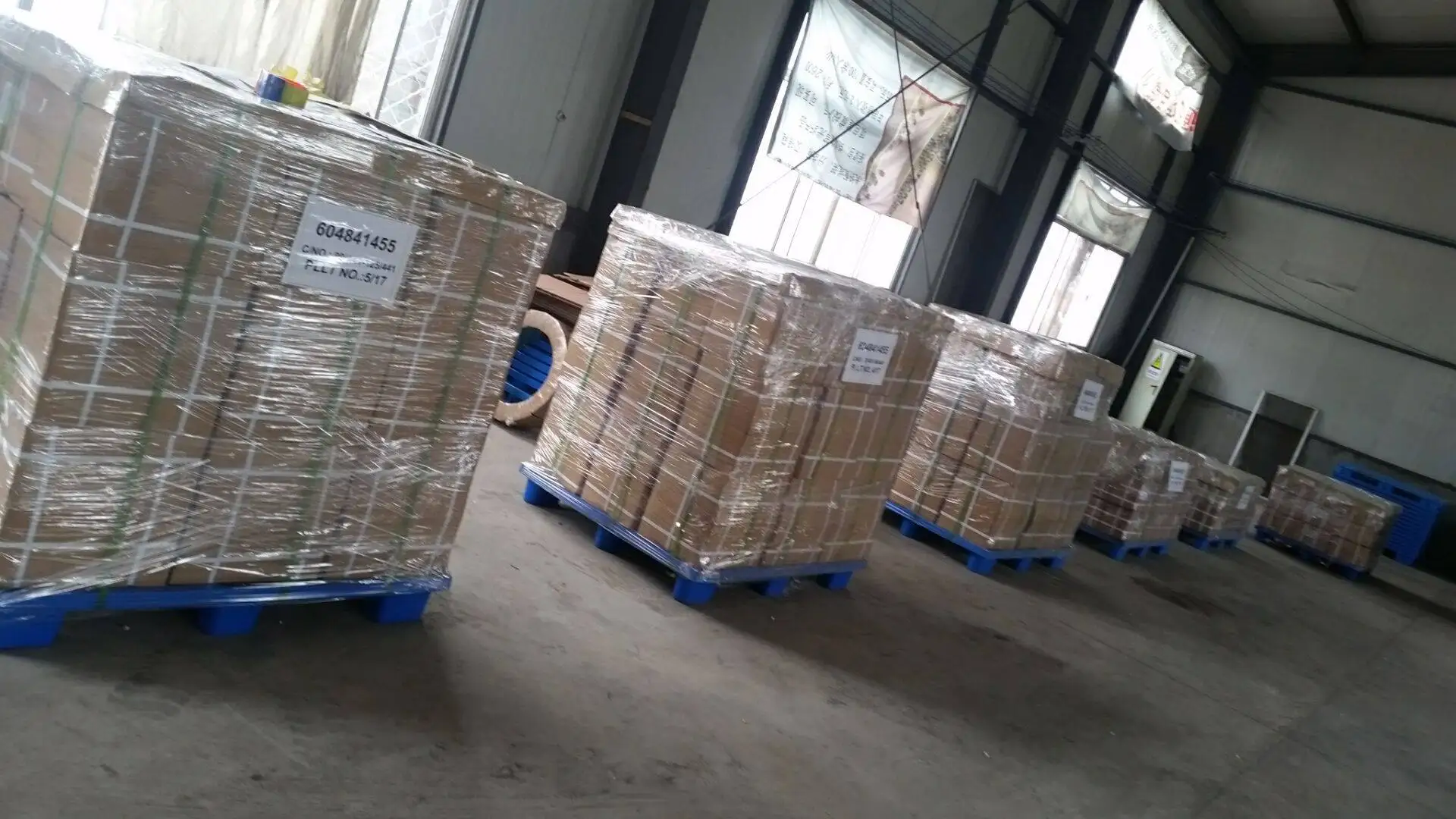

Packing & Delivery


We use carton boxes and plastic bags inside to keep the stability of the high precision vises. It is suit for shipping by sea and delivery by air.

Horizontal Vertical Workholding QGG50 Precision Tool Maker Vise Package





FAQ


1. We XZH are factory since 1998, also do trading.
2. We have customers in different places of the world: USA, Australia, Switland, French, South Africa, Argetina...
3. We manufacture precision vises of GT series, QGG series, QKG series, and others could be customized as per need.
4. For products with less weight and in emergency, we will quote to you with delivery by air, for heavy and batch products, we quote to you based on shipping by sea.
5. We also provide customized products and OEM service, if you need, welcome to contacts.
6. We will reply to your inquiry within 12 hours, you could send inquiry by leaving message here or email to me.

7. Horizontal Vertical Workholding QGG50 Precision Tool Maker Vise
