Honggang четырехколонный автоматический отступающий гидравлический луч обуви кликер пресс

Описание и отзывы

Характеристики

four post hydraulic beam manual clicker press



Applicable Materials



Used for die cutting shoes,bags,automotive interiors,toys,paper,leather,cloth,acrylic,rubber,plastic,crystal, and other non-metallic materials.





Technicial parameter



Product Type	receding head cutting machine
Model	HG-P40T
Cutting area	610*1600mm or customization
Motor power	5kw
Cutting Force	40 Tons,50~100Tons
Machine Dimension	2260*1550*1650 mm
Stroke	50-200mm
Cutting speed	0-30000mm/min
Oil cylinder	Hydraulic
power	220V/380V/415V,50-60HZ

four post hydraulic beam clicker press, hydraulic beam clicker press , beam clicker press

Advantage



1.Special receding head cutting structure, allows no need for moving material and feeding table after every stroke to save time and confirm the cutting precision.
2.Motor drive controlled moving head runs faster, more precise, saving labor.
3.Easy to put on cutting die in large space after head receding.
4.Auto-balance structure of double-cylinder, four-column and self- balance connecting rod, makes sure equal pressure in any working area.
5.Suitable for rolls or sheets materials.

four post hydraulic beam clicker press, hydraulic beam clicker press , beam clicker press

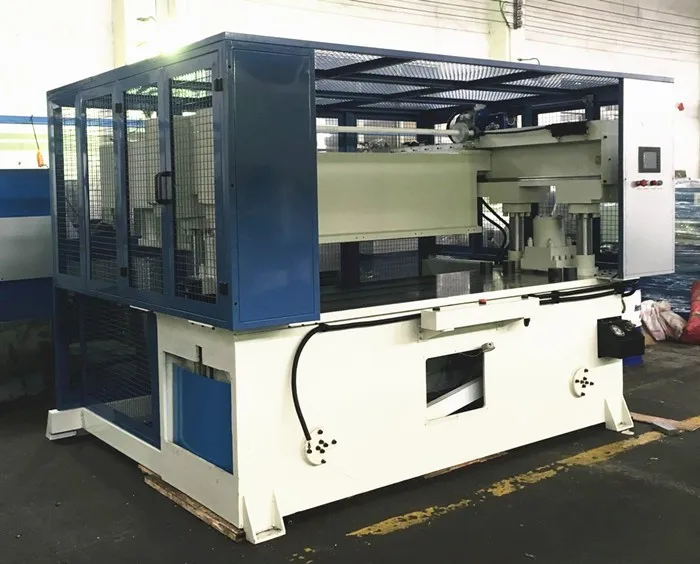

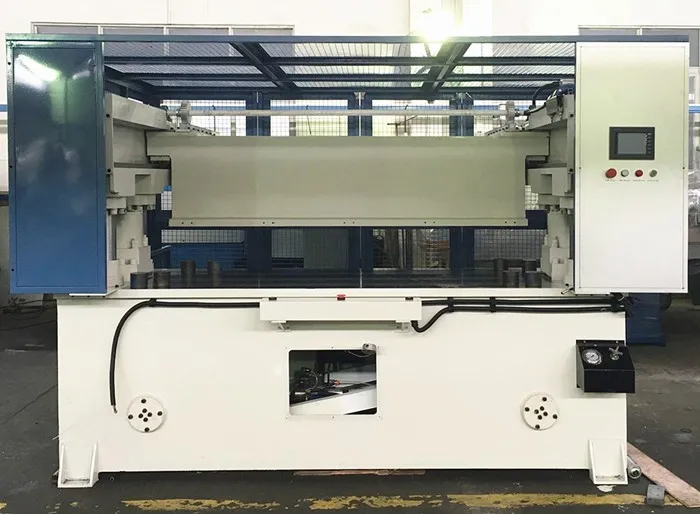

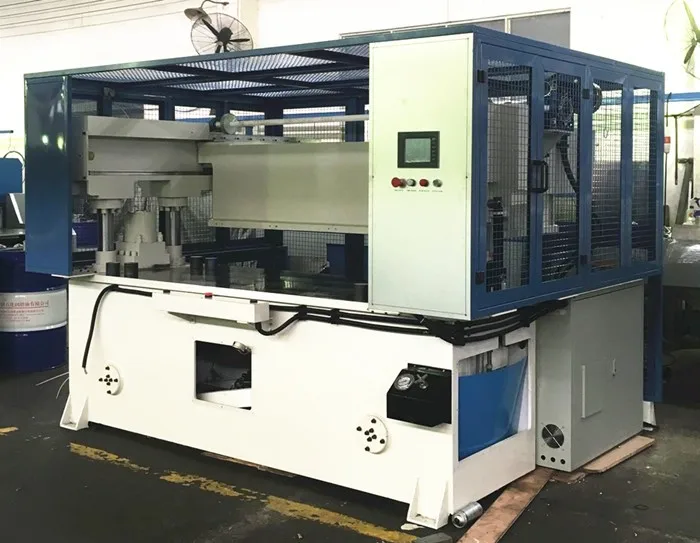

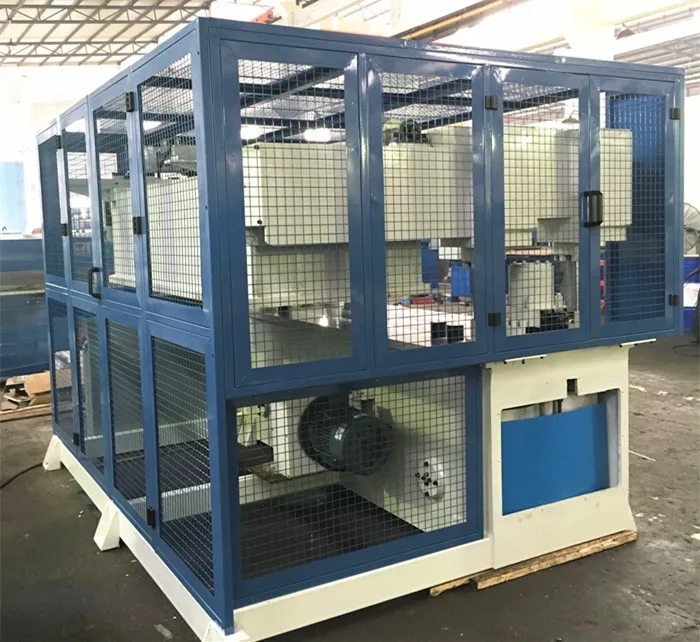

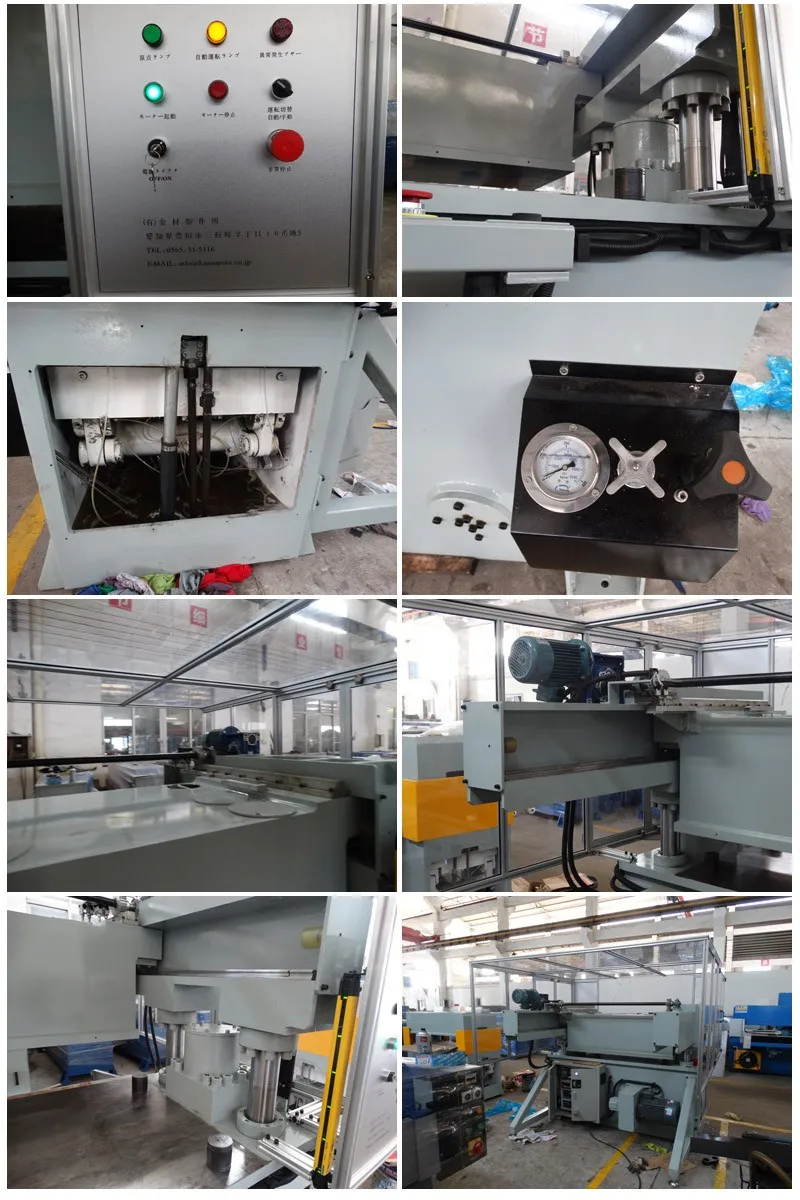

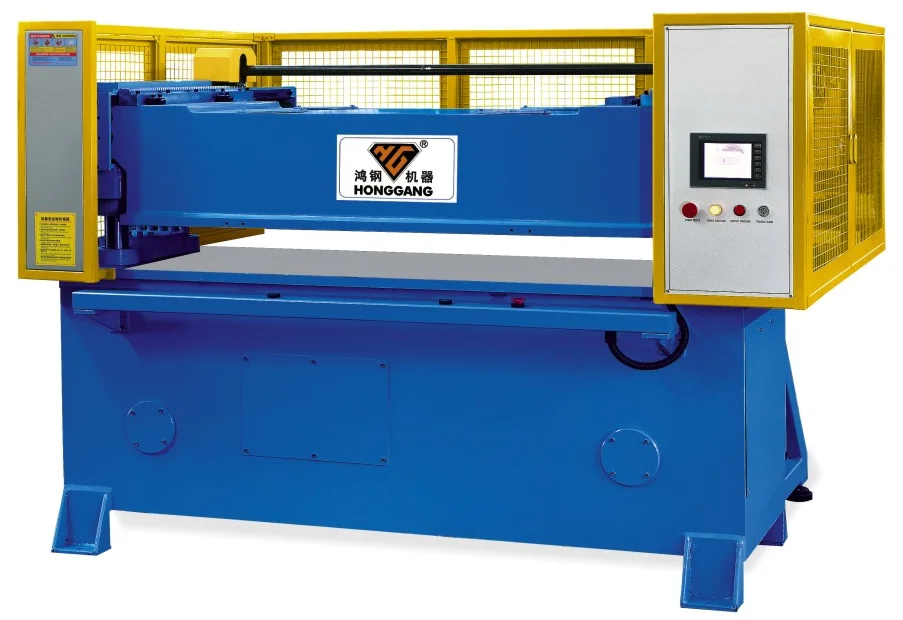

Product Images













Head Cutting Machine, Head Die Cutting Machine, Traveling Head Cutting Machine
