Product Description
Introduction

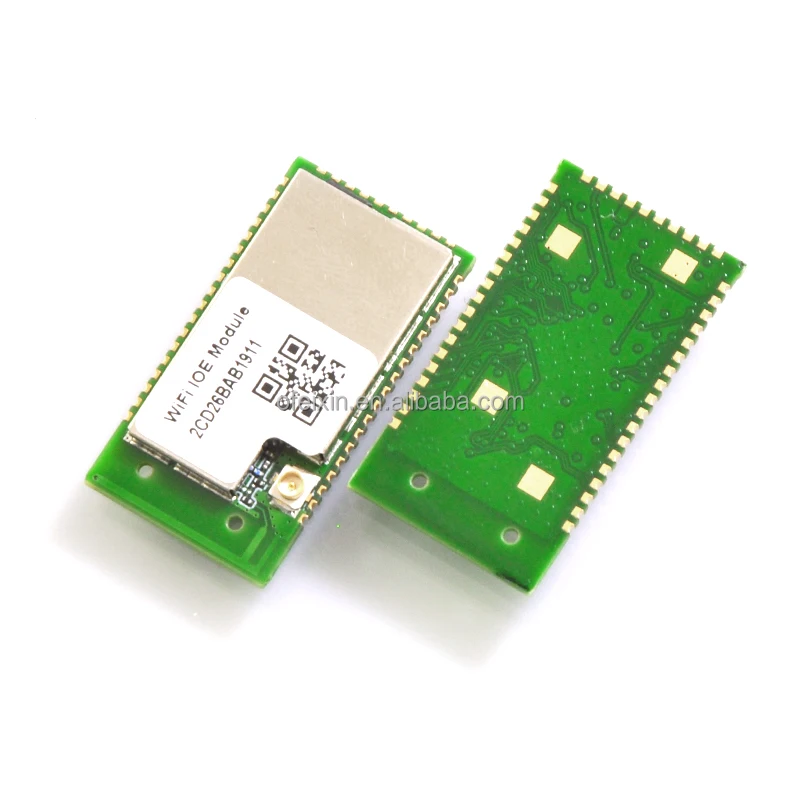

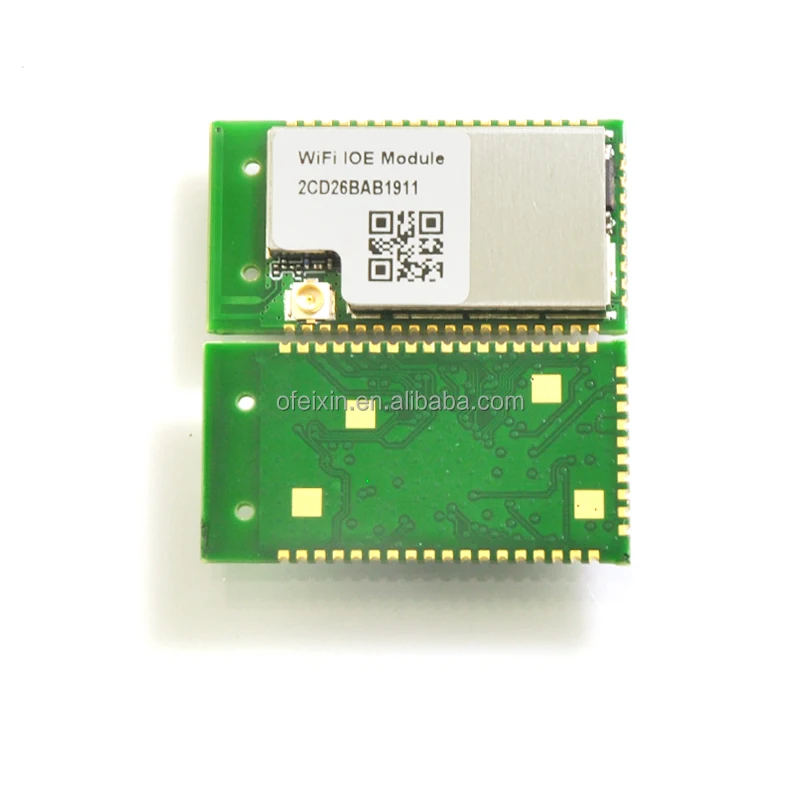

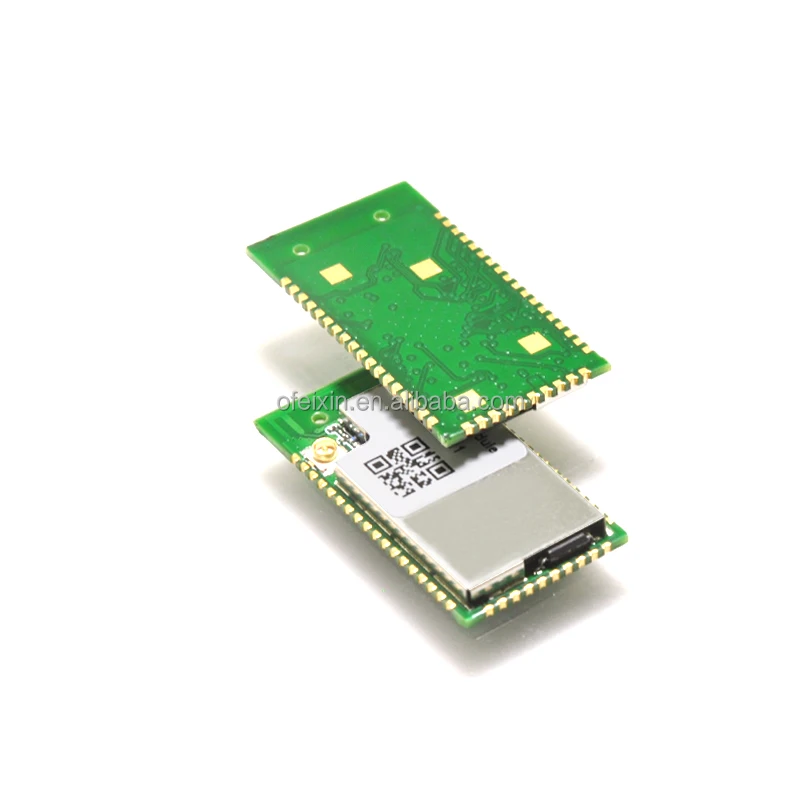

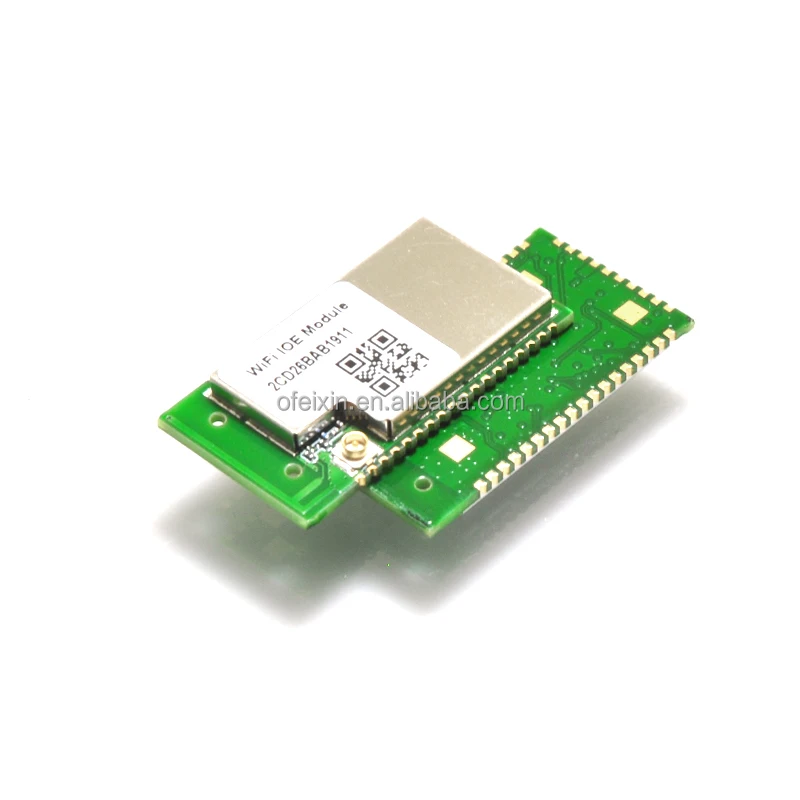

8110N-UR Wi-Fi module provides a highly-integrated and flexible platform for developing and evaluating products and applications
based on the QCA4010 SoC.
8110N-UR module includes the following
components:
■ QCA4010 chip
■ An integrated Balun to save cost and size, minimize tuning and tolerance ■ A printed antenna
■ Apple MFI (optional)
■ 2MB SPI Flash memory and etc.
The QCA4010 is a single band 1x1 802.11 b/g/n device optimized for low-power embedded applications with single-stream capability for both Tx and Rx. It has an integrated network processor with a large set of TCP/IP with IPv4/IPv6-based services. These services can be accessed via a serial SPI link or by a UART link connected to an external host CPU.
Features
■ IEEE 802.11 b/g/n, single stream 1x1
■ Single-band 2.4 GHz
■ Integrated PA and LNA;
■ Green Tx power saving mode
■ Low power listen mode
■ Four-layer PCB design
■ Data rates up to 150 Mbps
■ Full security support: WPS,WEP, TKIP,WPA (personal),WPA2 (personal)
■ Single-band 2.4 GHz
■ Integrated PA and LNA;
■ Green Tx power saving mode
■ Low power listen mode
■ Four-layer PCB design
■ Data rates up to 150 Mbps
■ Full security support: WPS,WEP, TKIP,WPA (personal),WPA2 (personal)
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Detailed Parameters
Model No | 8110N-UR | Main Chipset | QCA4010 |
WIFI Interface | ADC,SPI,PCIE,SPI,UART,I2C,PWM,USB,I2S,GPIO | WIFI Standards | IEEE802.11 b/g/n |
Date Rates | 150 Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Support | Android /Linux/Windows |
Operating Frequency | 2.4GHz | Operating Voltage | 3.3V |
Dimensions | 30x 16 x3.6mm | RF Chains | 1T1R |
Operating Temperature | 0°C to 85°C | Storage Temperature | -45°C to 125°C |
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download form the official website or sales.
