Интеллектуальная зарядная станция для электромобилей Hiconics 22 кВт 32 А уровень 2 с OCPP RFID и 4G LTE EV зарядной
- Категории: Charging Stations >>>
- Поставщик: Wuhan,Hiconics,Intelligent,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

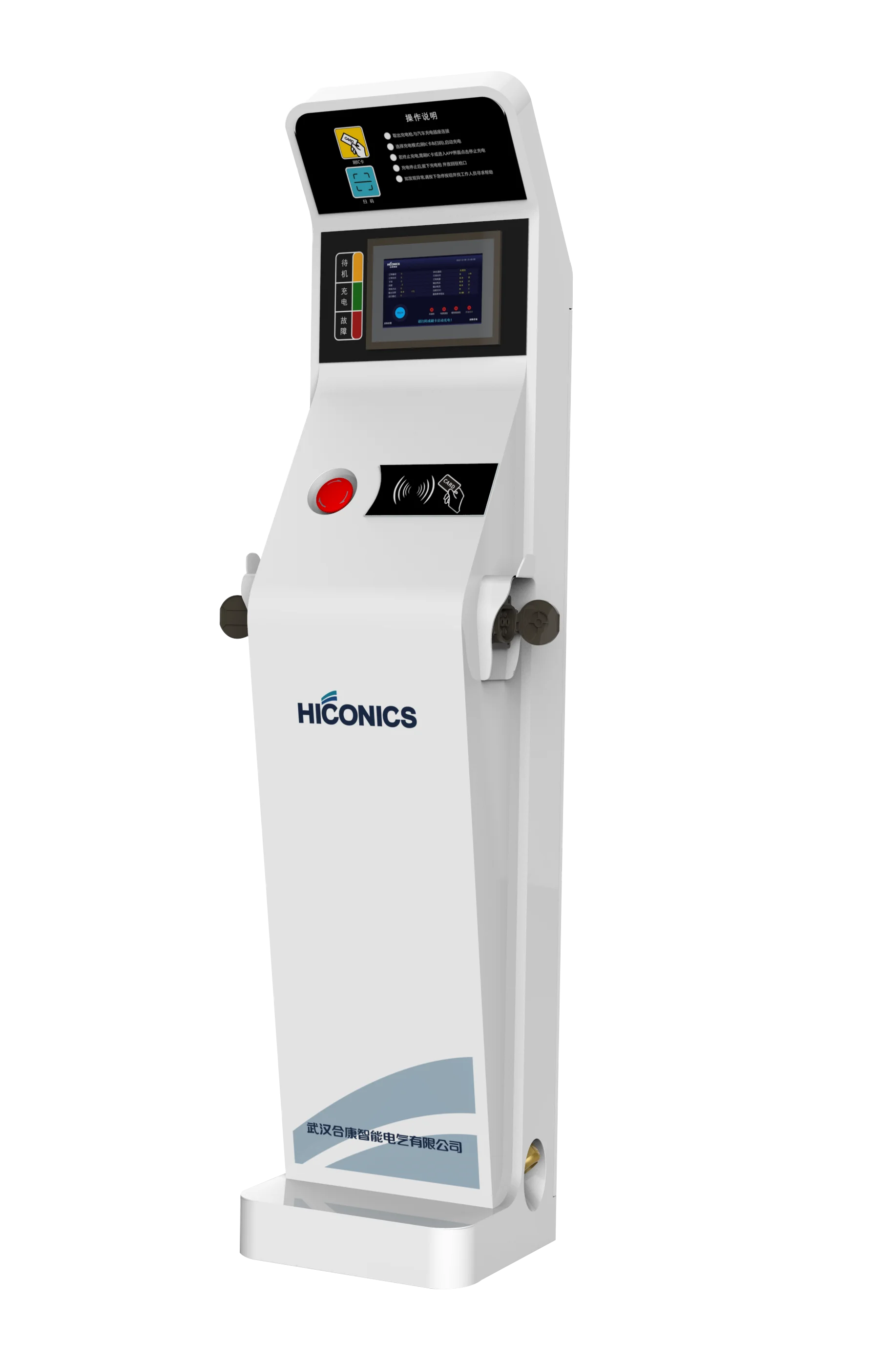

Floor-mounted type AC charger
1. Meet IEC62196 standard type 2
2. With power up to 43kw plug no. could be selected freely
3. Ergonomic design and have been awarded.
4.Strict control pilot and multiple charging modes of plug & charge, by APP, by IC card.
4.Robust protection methods to avoid personnel injuries.
Item | Technical Requirements | ||||
Input Features | Nominal Voltage | 400 VAC Three phase | |||
Rated Input Current | 32A 22kW/63A 43kW | ||||
AC Input Frequency Range | 45~65Hz | ||||
AC Input Mode | 3P+N+PE | ||||
Output Features | Rated Output Power | 22 kW/43kW Three phase | |||
Rated Output Voltage | 400 VAC Three phase | ||||
Rated Output Current | 32A 22 kW/63A 43kW | ||||
AC Output Frequency Range | 45~65 Hz | ||||
AC Output Mode | 22kW/43kW (3P+N+PE) | ||||
Protection Features | Robust Protection | Protecting Functions: Input/output Overvoltage Protection, Output Overcurrent Protection, Short Circuit Protection, Emergency Stop Protection, RCD Protection, Earthing Protection, Self-checking after startup Protection | |||
Other Features | Charging Mode | Plug & Charge, RFID, Mobile APP, Back Office System | |||
Communication Protocol | OCPP 1.6 (JSON) could be extended to 2.0 Optional | ||||
Display | 7 inch display | ||||
AC Output Charging Interface | IEC 62196-2-2011 | ||||
Internet/network | 4G, Ethernet/ LAN | ||||
IP Class | IP54 | ||||
Cable Length | 5M Could be customized | ||||
Noise | ≤65dB | ||||
Environmental Protection | Meet 2011/65/EU | ||||

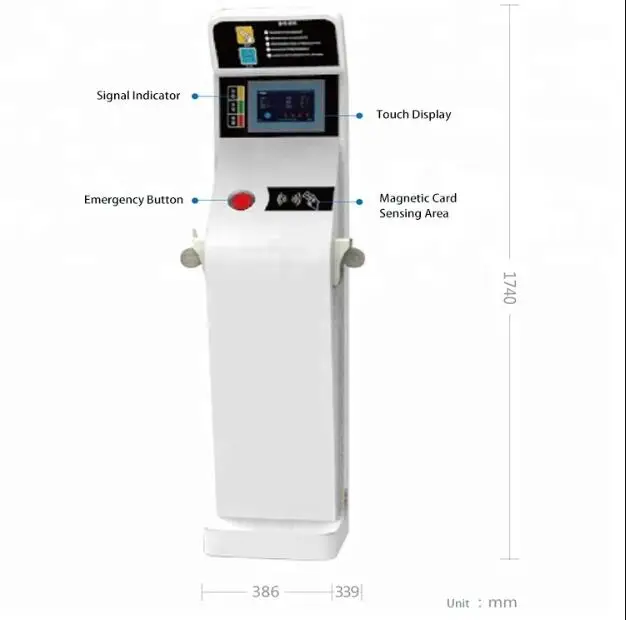

Product Paramenters

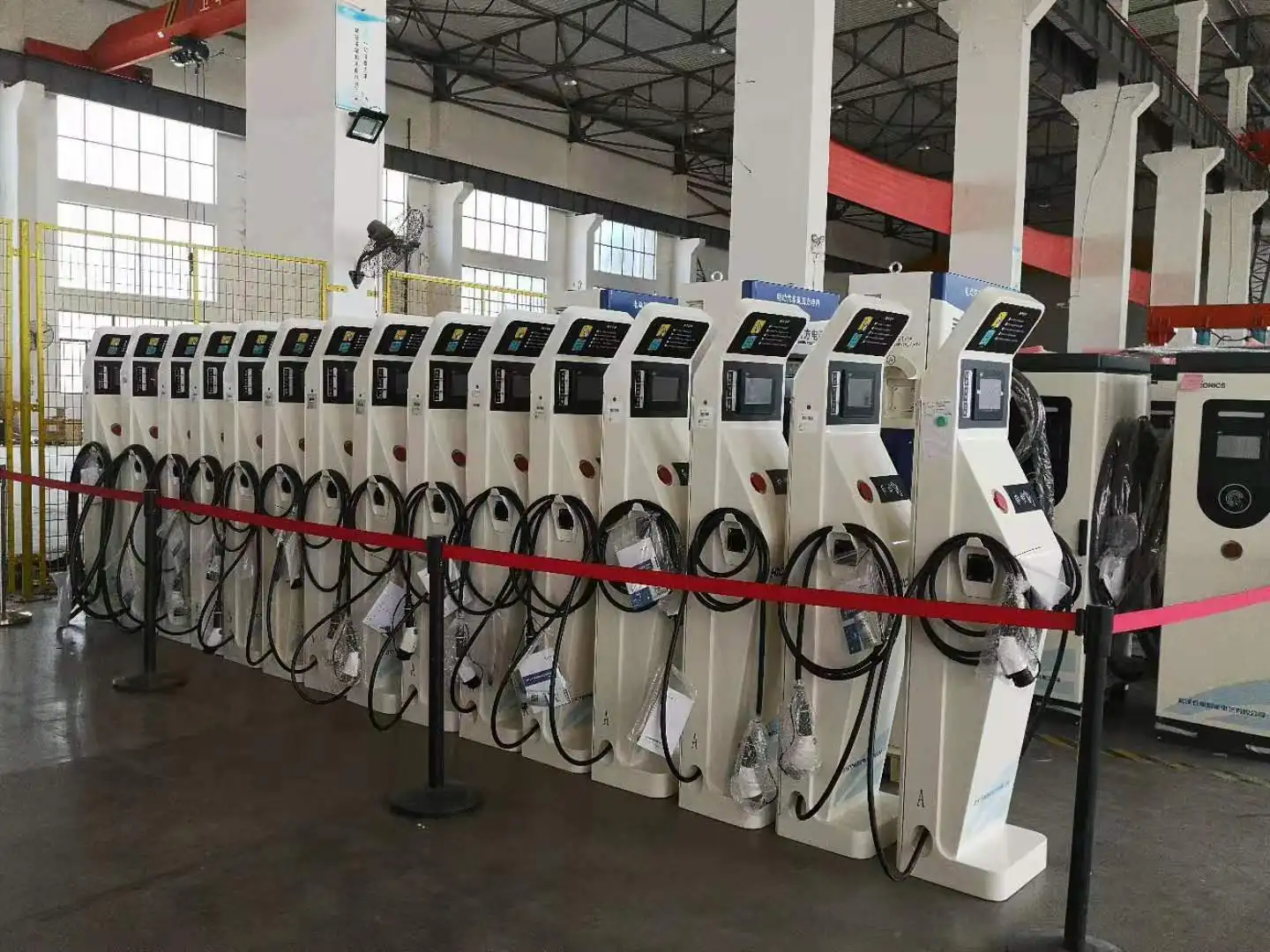

Hiconics charging piles have been widely applied in more than 200 cities in China. The specially developed European Standard Charging Pile has passed strict test procedure of TUV SUD and been awarded with CE and Dakks certificates. Hiconics products have been exported to more than 10 countries and regions such as England, France, Bulgaria, Australia and Singapore, etc.
Certifications
Exhibition
FAQ
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A1: We keep good quality and competitive price to ensure our customers benefit ;
A2: We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
