Product Description

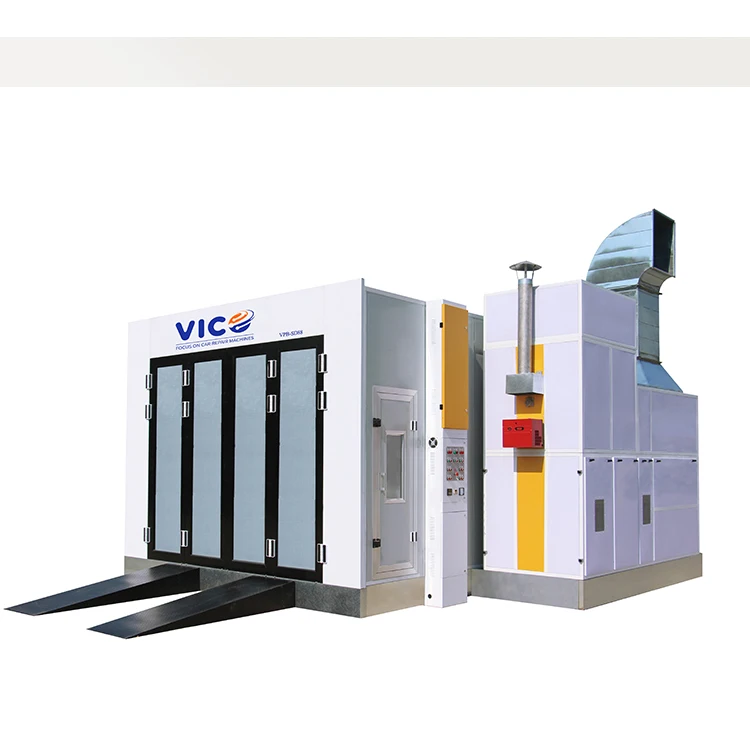

Vico professional auto spray booth Glass front door baking oven VPB-SD88 from factory outlet
Glass front door spray booth
Painting booth Baking oven
Painting booth Baking oven
Specification
Outside Dimension (mm) | 7000×5350×3400 | Inside Dimension(mm) | 6900×3900×2650 | ||
Front Door(mm) | 3000×2600(W*H) | Service door(mm) | 800×2000(W*H) | ||
Total Power | 17kw | ||||
Cabin system | Front door | Sheet metal door, double side with PU insulated | |||
Wall panel | 50mm rockwool sandwich panel, steel sheet thickness: 0.426mm | ||||
Ceiling panel | 0.8mm galvanized steel sheet | ||||
Basement | 300mm depth construction galvanized basement, full galvanized grids | ||||
Ramps | Two pieces 2000*750mm ramps | ||||
Door glass | 5mm tempered glass | ||||
Air make-up system | Air inlet fan system | 1 set 7.5kw turbo fan, fan model:DDF-630B, with one manual damper | |||
Exhausted fan system | 1 set 7.5kw turbo fan, fan model: DDF-630B, with one manual damper | ||||
Air inlet capacity | 30000m3/h | ||||
Exhausted capacity | 30000m3/h | ||||
Exhausted ducting | six meters straight galvanized ducting and two 135 degrees elbows | ||||
Purification system | Pre-filter | G3 grade | |||
Ceiling filter | 600G filter EU5 / F5 | ||||
Floor filter | Fiber glass filter | ||||
Exhausted filter | Fiber glass and carbon filter | ||||
Heating system | Heat Exchanger | SUS 304 200KW stainless heating exchanger | |||
Heating burner | Riello G20 diesel oil burner (gas burner is for option) | ||||
Heating productivity | 20000Kcal/hour | ||||
Spray to baking switch | Pneumatic damper | ||||
Chimney ducting | 4 meters chimney ducting and one chimney elbow | ||||
heating temperature | Maximum 80℃ | ||||
fuel consumption | 6-8L/vehicle | ||||
Lighting system | Ceiling lighting | 8 Units, each 4 * 16.5W LED lamps. | |||
Side lighting | 8 Units, each 4 * 16.5W LED lamps. | ||||
Illumination | 1200LUX | ||||
Control system | Switch controlling system | Spraying & baking switch, lighting switch, timer, temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge | |||
