Product Description

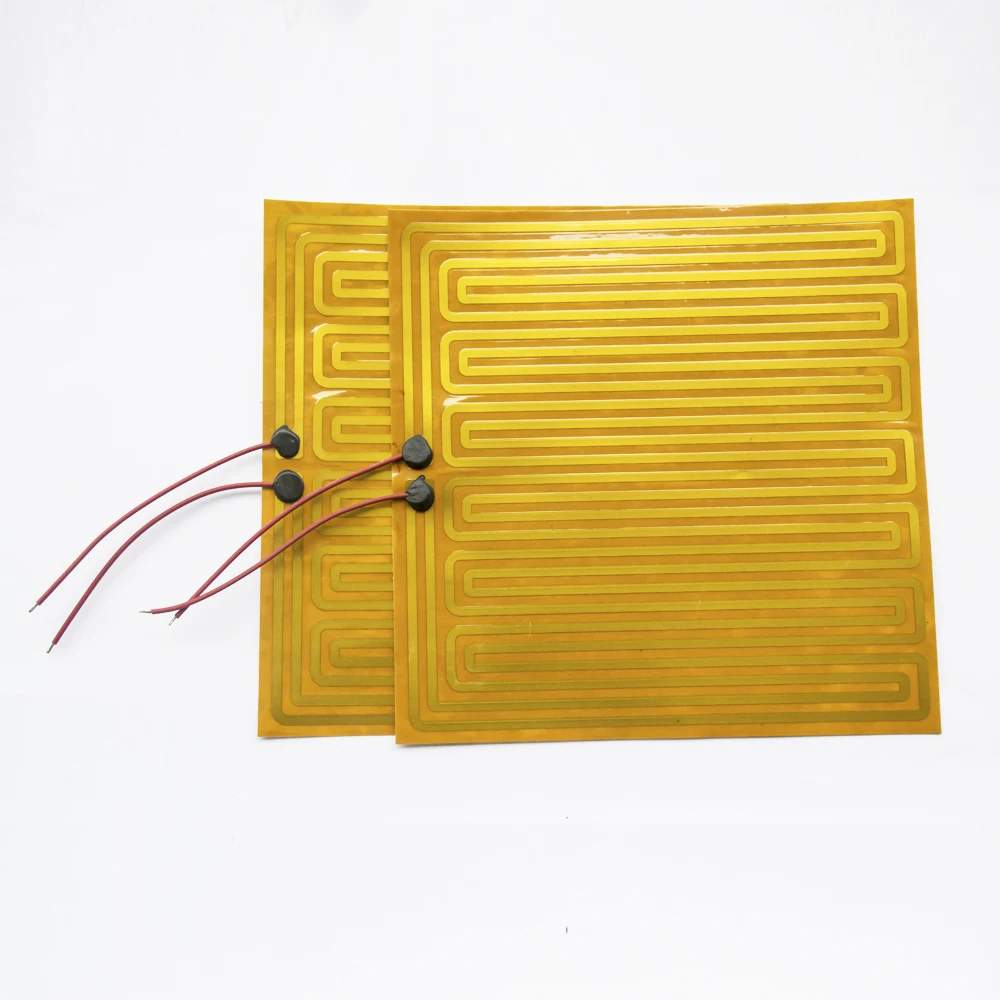

Polyimide heater (Kapton heater) is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. The process for making flexible heating film is similar to that of Etched Foil Silicone heaters. It is a high temperature flexible heating element with excellent dielectric properties capable of operating environments between -185 degree celsius to 180 degree Celsius.
Customize 12V,24V,36V 3D printer flexible heating film. This is very thin, the thickness is about 0.2mm, it is very light, so it
is widely used on 3D printer.
Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
Customize 12V,24V,36V 3D printer flexible heating film. This is very thin, the thickness is about 0.2mm, it is very light, so it
is widely used on 3D printer.
Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
Product Name | Polyimide heater |
Voltage Range | 1.5v~400v |
Power density range | 0.03w/cm2~1.5w/cm2 |
Heater size | 10mm~500mm |
Insulation Material | Polyimide Film |
Thickness of Heaters | 0.15mm~0.3mm |
Heating Material | Etched metal foil |
Using temperature range | -185℃--180℃ |
Lead wire | Silicone insulated leads |
Heater Features
(1)Heater thin and light so you can just position on the need for heating without heating part being avoided.
(2)Etched foil heating technology provides fast and efficient heat transfer and uniform heating surface, the temperature
difference is minimal.
(3)Customization options (for example: SMT components, flex cable and connectors) can provide the perfect complete solution that can significantly reduce assembly time and increase productivity.
(4)Custom configured to provide balanced heating output performance to improve process yield and productivity, in accordance with requirements of additional temperature control device and temperature sensing devices.
(5)There FEP adhesive can be 200 ° C (392 ° F)
(6)Suitable for vacuum environments (NASA-RP-1061)
(7)Resistant to most chemicals: acids and alkaline solvents erosion
(8)If you are using polyimide insulated wires (custom option) can resist 106 rads of radiation, PSA adhesive stickers can be installed or epoxy adhesive, silicone adhesive installation.
(9)Providing a variety of complex shapes design, and different power designs. Membrane in the same piece electrically heated heating circuit can be designed and holding circuit
(10)Providing a liquid immersion design (non-standard)
(1)Heater thin and light so you can just position on the need for heating without heating part being avoided.
(2)Etched foil heating technology provides fast and efficient heat transfer and uniform heating surface, the temperature
difference is minimal.
(3)Customization options (for example: SMT components, flex cable and connectors) can provide the perfect complete solution that can significantly reduce assembly time and increase productivity.
(4)Custom configured to provide balanced heating output performance to improve process yield and productivity, in accordance with requirements of additional temperature control device and temperature sensing devices.
(5)There FEP adhesive can be 200 ° C (392 ° F)
(6)Suitable for vacuum environments (NASA-RP-1061)
(7)Resistant to most chemicals: acids and alkaline solvents erosion
(8)If you are using polyimide insulated wires (custom option) can resist 106 rads of radiation, PSA adhesive stickers can be installed or epoxy adhesive, silicone adhesive installation.
(9)Providing a variety of complex shapes design, and different power designs. Membrane in the same piece electrically heated heating circuit can be designed and holding circuit
(10)Providing a liquid immersion design (non-standard)
Product Paramenters

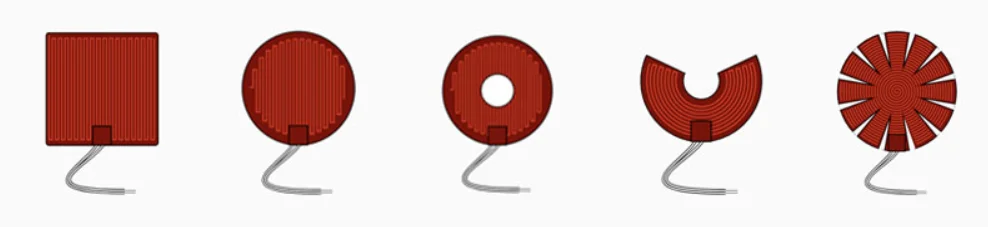

The polyimide heater can be customized, it can be made any shape as following:
Details Images
Adhesive
Temperature sensor
Other connection
Soldering connection
Rivet connection
Packing & Delivery
Company Profile
Suzhou Qitian Technology Co., is a professional company of heating elements. We have professional design team.
We offer customzied silicone heaters, PVC heating pad and heating cable, polyimide heaters, sensors, and controls for sale as components. We provide high quality heaters and professional services. Our wealth of knowledge based on empirical data that can be an asset to your company immediately. At present, the products have exported to European, American and many other countries and areas.They are applied in many places like industry, chemical & medical areas and etc.
We offer customzied silicone heaters, PVC heating pad and heating cable, polyimide heaters, sensors, and controls for sale as components. We provide high quality heaters and professional services. Our wealth of knowledge based on empirical data that can be an asset to your company immediately. At present, the products have exported to European, American and many other countries and areas.They are applied in many places like industry, chemical & medical areas and etc.
FAQ
(1)Are you a trading company?
We are factory and exporter, own ISO9001 and research & development & QC department.
(2)What type of payment do you have available?
We accept paypal, T/T and western union.
(3)How can I get some samples?
We are honored to provide free sample, but pls take the freight for the sample.
(4)Do you accept customized?
Yes, the products in the website are only the common type or the previous types from other customers, we can supply the new products according to your requirements and drawings.
(5)Why choose us?
Lowest default rate/One to two-year warranty/Best and on time after sale service
(6)How is your shipping?
We can send according to your requirement.If your side not have shipping,we will help ypu choose fast and best shipping ways.
We are factory and exporter, own ISO9001 and research & development & QC department.
(2)What type of payment do you have available?
We accept paypal, T/T and western union.
(3)How can I get some samples?
We are honored to provide free sample, but pls take the freight for the sample.
(4)Do you accept customized?
Yes, the products in the website are only the common type or the previous types from other customers, we can supply the new products according to your requirements and drawings.
(5)Why choose us?
Lowest default rate/One to two-year warranty/Best and on time after sale service
(6)How is your shipping?
We can send according to your requirement.If your side not have shipping,we will help ypu choose fast and best shipping ways.
