Product Overview

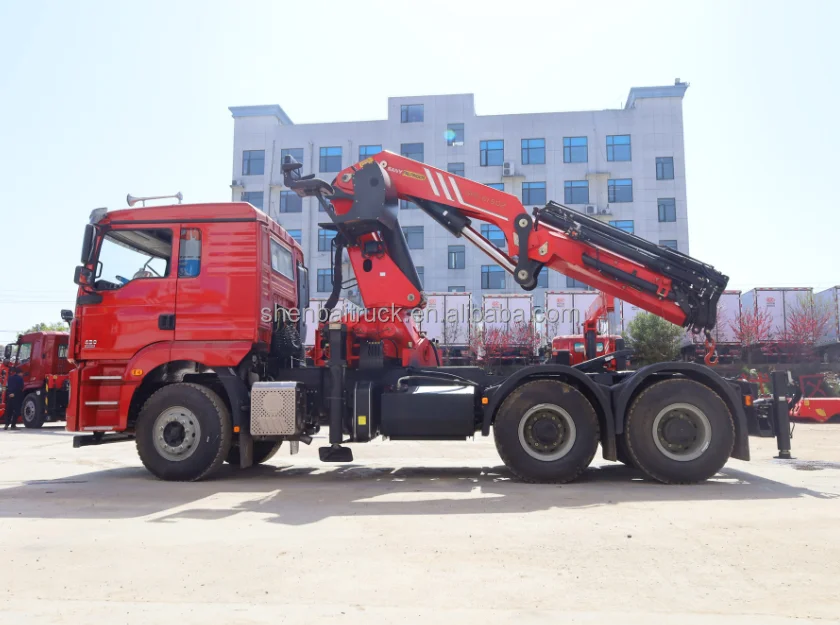

Brand New Palfinger Tractor Truck mounted Crane 20 25 30 Ton Knuckle Boom Foldable arm hydraulic Good Sale
Chassis Brand:Shacman
Boom Type:Folding Boom Crane
Max lifting weight:20 ton/25 ton/30 ton
Max lifting height:15.9m/17.1m/18m
Max working radius:14m/14.5m/14.9m
Max lifting weight:20 ton/25 ton/30 ton
Max lifting height:15.9m/17.1m/18m
Max working radius:14m/14.5m/14.9m
The truck mounted crane also calls boom truck,crane truck,unic crane, crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane,boom crane, boom crane truck, articulated crane truck,is a kind of equipment that realizes the lifting, turning, and lifting
of goods through a hydraulic lifting and telescopic system. It is usually assembled on a truck. It is generally composed of truck chassis, cargo compartment, power take-off and crane.It is designed for multiple work applications,
of goods through a hydraulic lifting and telescopic system. It is usually assembled on a truck. It is generally composed of truck chassis, cargo compartment, power take-off and crane.It is designed for multiple work applications,
such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses . General materials lifting of various size and load with standard hook arrangement for construction sites, mines, projects, logistics requirements.. Our truck with crane also install Remote control, Brick clamping apparatus, different kinds of grab bucket, work basket, etc.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton,25Ton.
Knuckle Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton, 20Ton, 25Ton, 27Ton, 30Ton, 32Ton,35Ton.
The cranes can be of famous brands as Palfinger, Unic, Tadano, X-CMG, Zoom-lion,ChangXing, etc.
For truck, DONGFENG,ISUZU,Foton,Sinotruk Howo,FAW,Shacman for your choice.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton,25Ton.
Knuckle Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton, 20Ton, 25Ton, 27Ton, 30Ton, 32Ton,35Ton.
The cranes can be of famous brands as Palfinger, Unic, Tadano, X-CMG, Zoom-lion,ChangXing, etc.
For truck, DONGFENG,ISUZU,Foton,Sinotruk Howo,FAW,Shacman for your choice.
General | Vehicle Name | Shacman 6x4 tractor with 20 25 30 ton palfinger folding boom crane |
Chassis Brand | Shacman | |
Overall Dimension(mm) | 7800*2550*3650 | |
GVW(kg) | 25000 | |
Payload(KG) | 15000 | |
Cab | Cab Seat | 3 |
Air Conditioner | Yes | |
Engine | Fuel Type | Diesel |
Engie Model | YC4EG350-60 | |
Engine Brand | weichai | |
Power(KW) | 430HP | |
Emmission Standard | Euro 2/3/4/5/6 | |
Chassis | Drive Type | 6x4 LHD/RHD |
Transmission | 10-speed gearbox, Manual | |
Wheelbase(mm) | 3975+1400mm | |
Tyre Specification | 11.00R20 | |
Tyre No.(pcs) | 10+1 | |
Max Speed(km/h) | 110 | |
Paint | as your required | |
ABS | Yes | |
Superstructure | Crane | 20T 25T 30T Crane |
Box material | Bottom 4 sides 3 | |
Crane type | Straight Telescopic or folding arm | |
box size | 7800,8100x2300x600mm | |
Optional function | 1. knuckle boom crane. | |
2. Hydraulic tipper box. | ||
3. Box thickness according to requirement.4. Box height could be nominated | ||
5. Brick clamping apparatus | ||
6. Remote control operation | ||
7. Grab bucket | ||
8. Aerial work basket | ||
9. Drill | ||
10.Double row cab |
PRODUCT CONFIGURATION
Hydraulic Engine
Hydraulic cylinder
Radiator
.
Multiple Valve
slewing bearing
Winch
Lifting arms
Remote controller
Span hydraulic cylinder
1. Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2. End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4. Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5. Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2. End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4. Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5. Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
Product Advantage
Certifications
Our Advantages
1. Single cylinder synchronization guy cable technology make work efficiency more higher than before.
2. Advanced development means make sure that the design is reliable.
3. The more symmetrical center design of pentagon hexagon boom make it has bigger anti-bending capacity.
4. Compact hinge point design take up smaller space.
5. The work is more safety after fitted with overwind alarm equipment.
6. The integer lifting winch improved the working efficiency greatly and prolonged work life of hydraulic system.
7. Float three-point bridge structure can lower the accessional stress on the chassis when driving.
8. Self-designed and developed slewing machine with greater driving force can meet various requirements of working situation.
9. Anti-slewing impulse equipment that make vehicle running safety..
2. Advanced development means make sure that the design is reliable.
3. The more symmetrical center design of pentagon hexagon boom make it has bigger anti-bending capacity.
4. Compact hinge point design take up smaller space.
5. The work is more safety after fitted with overwind alarm equipment.
6. The integer lifting winch improved the working efficiency greatly and prolonged work life of hydraulic system.
7. Float three-point bridge structure can lower the accessional stress on the chassis when driving.
8. Self-designed and developed slewing machine with greater driving force can meet various requirements of working situation.
9. Anti-slewing impulse equipment that make vehicle running safety..
Products List： Crane Truck Series
Optional chassis brand: ISUZU, DONGFENG , FAW, JAC, Shancman , JMC, HOWO, BeiBen...
Optional cranes brand:XCMG,SANY PLAFINGER,ChangXing,ShiMei...
Optional crane type: scalable Straight boom/folding arm
Optional crane tonnage: 2 ton 4ton 5ton 6.3ton 7ton 8ton 10ton 12ton 14 ton 16ton 20ton 25ton 30ton ...
Optional cranes brand:XCMG,SANY PLAFINGER,ChangXing,ShiMei...
Optional crane type: scalable Straight boom/folding arm
Optional crane tonnage: 2 ton 4ton 5ton 6.3ton 7ton 8ton 10ton 12ton 14 ton 16ton 20ton 25ton 30ton ...
