Product Description


* Please contact our sales representative for the latest price. The final price will subject to customer option on the machine configurations and functions. Thank you.
Name
Automatic Roll to Roll Screen Printing Machine
Model
LTA-50120
Print Area
530*1250mm
Print Speed
0-2500t/h
Screen Frame Area
800*1600mm
Max. Paper Width
520mm
Inspection Table  Max. Size
950*600mm
Air Source
0.4-0.6mpa
Power
1P 220V 3KW/3P 380V 3KW(Customizable)
Printing Material Thickness
0.05-0.5mm
Weight
2300kg
Machine Size
L3960*W1160*H1865mm
1. Our machine adopts the best CNC built-in computer control system, running stability high precision, long life, high speed responsibility, high torque.
2. Magic eye imported from Germany. The sensor precision is adjustable and it is good for color match and accurate register of printing.
3. Frequency converter & adjusting device adopts Mitsubishi brand (Japan) regulate speed electrically, which is featured by easy operation, steady rotation, safety and correctness.
4. The electronic counter can preciously control the carton quantity.
5. Photo sensor auto-detection system for no films.
6. The machine is easy to operate because it has QC lamps.
7. The suction air can be adjusted at discretion and intermittently. The machine adopts a suction ventilator and avoids any scratch on the printing surface and keeps the constant tensile force.
8. Both sides of squeegee can be used, and extend the useful time.
9. Work table adopts stainless steel, never rust, anti dumping design, safety and reasonable.
10. The machine adopts electrostatic painting and stove varnish and solvent-resistance on the surface.
11. High quality fitting, ensure the printing precision and stable running.
12. By using wheels on the screen printing machine, it is easy to move and other human designs.
13. Suit for printing large impressions, fine words, mesh points, the products are clear, bright and don’t fade in color.
14. Ink good adhesion, ink layer thickness, don’t fade in color, no fade, and design stereo feeling good, bright in color.

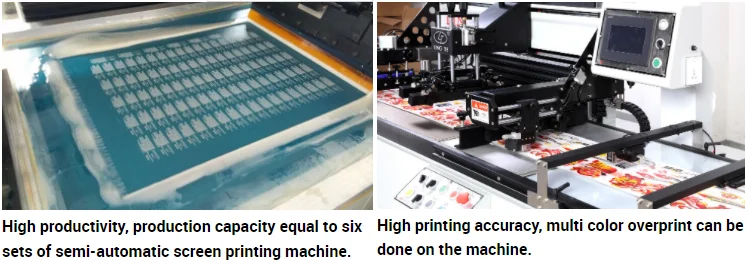

15. High printing speed, replacing the traditional manual, semiautomatic operation modes, improves the production efficiency more than six times. Only one person needs to operate.
16. This machine can be connected to UV drier, die-cutting machine, slitting machine, rewinder etc.






Application:

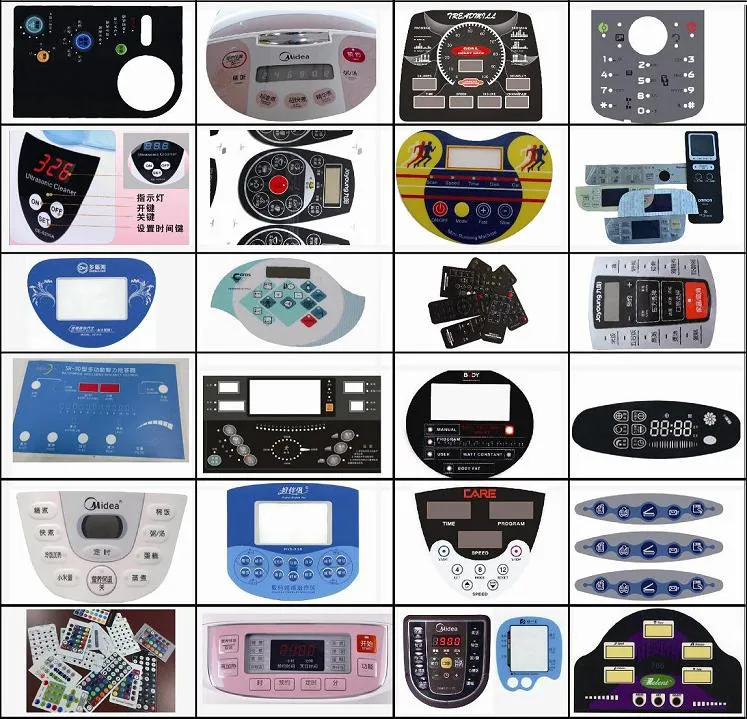

This machine is suitable for printing laptop keyboard circuit board, soft circuit board, air conditioner panel, refrigerator panel, graphene/heating film, adhesive stickers, coloured car stickers, and all kinds of fishing rods, ski poles, clubs, water transfer printing and other large area products.


Three components:

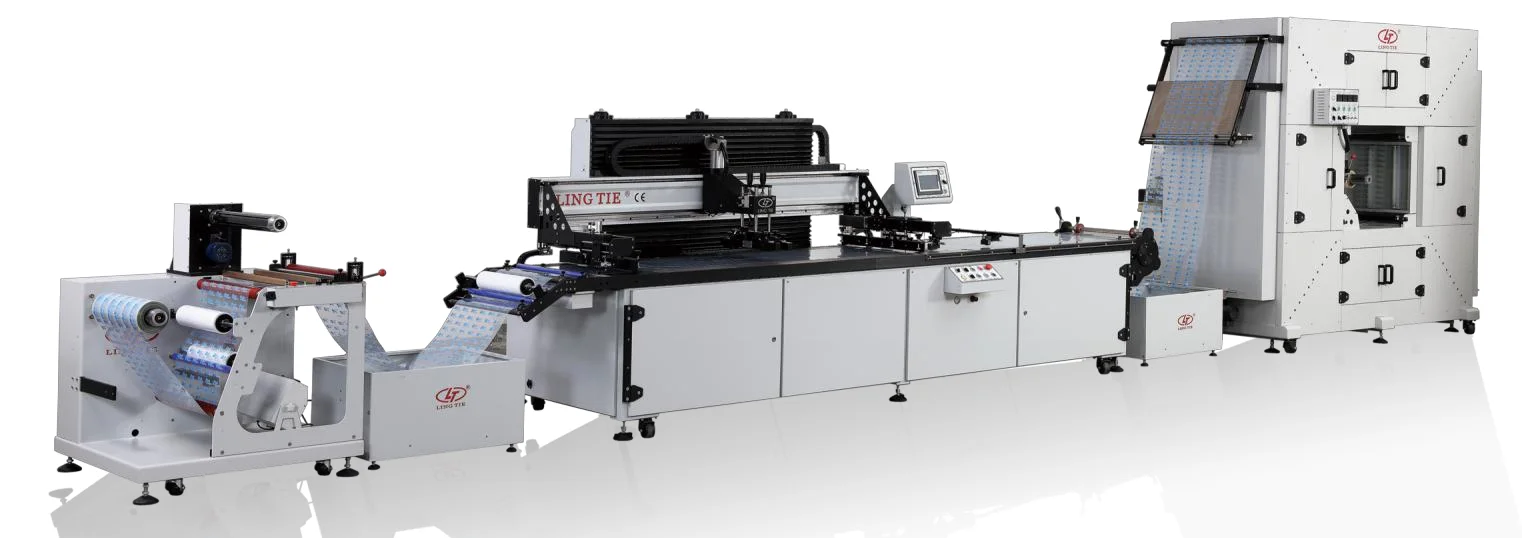

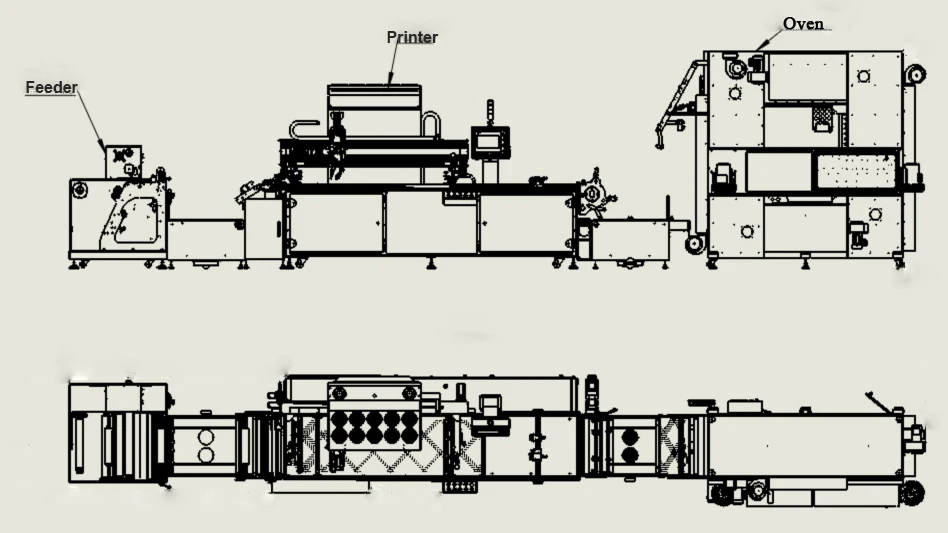

The LTA-50120 screen printing machine is composed of an automatic feeding machine, an automatic screen printing machine, and a hot air dryer.


Detailed Images

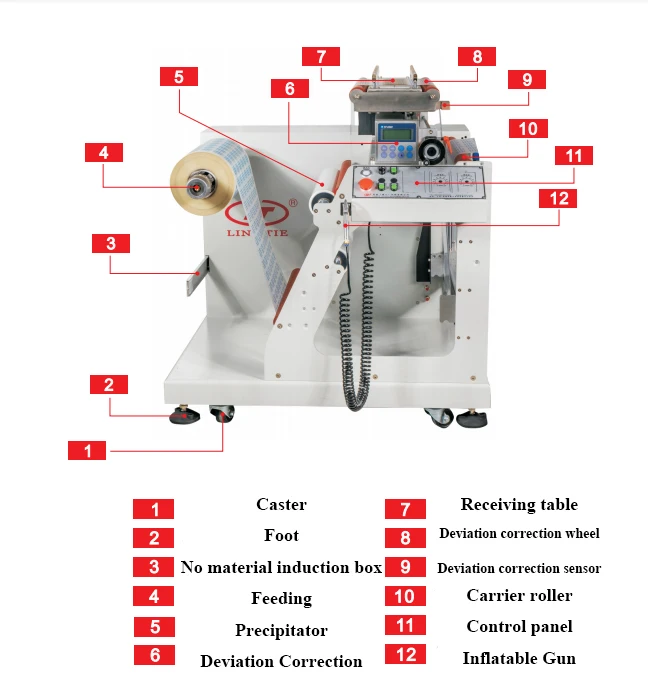

1-Automatic feeder
1. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
2. The feeding machine adopts imported photoelectric switch control, avoid scratching material, and can automatically adjust the feeding length.
3. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
Functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device






2-Automatic printer
1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. Equipped with a man-machine system.
Functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device




Other models for relatively small area products
Technical Parameters




Name
Automatic Roll to Roll Screen Printing Machine



Model
LTA-3040
LTA-4050
LTA-5070
LTA-6080
Print Area
330*450mm
430*550mm
530*750mm
630*850mm
Print Speed
0-6000t/h
0-6000t/h
0-2500t/h
0-2500t/h
Screen Frame Area
600*800mm
700*900mm
800*1100mm
900*1200mm
Max. Paper Width
320mm
420mm
520mm
620mm
Inspection Table Max. Size
400*400mm
500*500mm
600*600mm
700*800mm
Air Source
0.4-0.6mpa
Power
1P 220V 3KW/3P 380V 3KW(Customizable)
Printing Material Thickness
0.02-0.5mm
Weight
1200kg
1500kg
1700kg
2000kg
Machine Size
L2560*W980*H1865mm
L2620*W1100*H1865mm
L2950*W1160*H1865mm
L3150*W1260*H1865mm


3-Oven
1. Adopts uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.
2. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
3. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device




Humanization Design














Related Products




Our Services & Strength

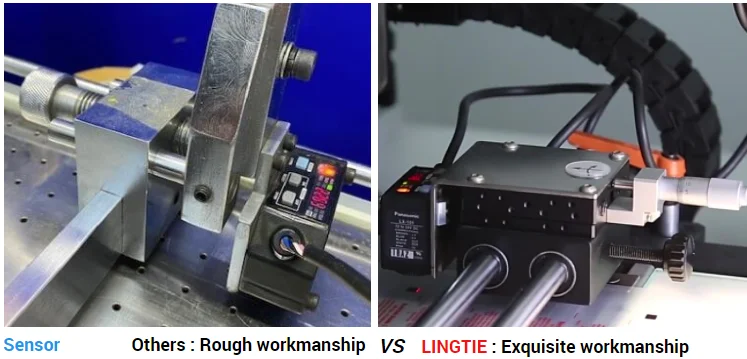

Our Details Compared to Others
