Product Feature





RicherLink gigabit L2 managed switch RL-S7210GF provides 8 10/100/1000Mbps ports and 2 gigabit SFP slots.


The switch provides security performance, quality of services, flexibly


layer 2 management features. Moreover,with 2 gigabit SFP slots expands your network flexibly.





RL-S7210GF supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring,


Storm Control, STP/RSTP, Link Aggregation Control and 802.3x Flow Control function. Any more, the switch provides


advanced features for network maintenance. Such as Self-Loop Back Detection, IGMP Snooping . IGMP snooping


ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering


restrict each subscriber on a port level to prevent unauthorized multicast access. Self-Loop Back Detection detect two


ports direct link or the network loops on single port, Self-loop and RSTP function provide a secure and stable network


environment, to achieve complete loop-free network .





RL-S7210GF is easy to use and manage. It supports various user-friendly standard management features,such as


intuitive web-based Graphical User Interface(GUI) or Command Line Interface(CLI). SNMP (v1/2c) and RMON support


enables the switch to be polled for valuable status information and send traps on abnormal events.


Another important feature is RL-S7210GF supports RPS power function.and the adapter power can charge for the


redundancy battery power.








More details about product

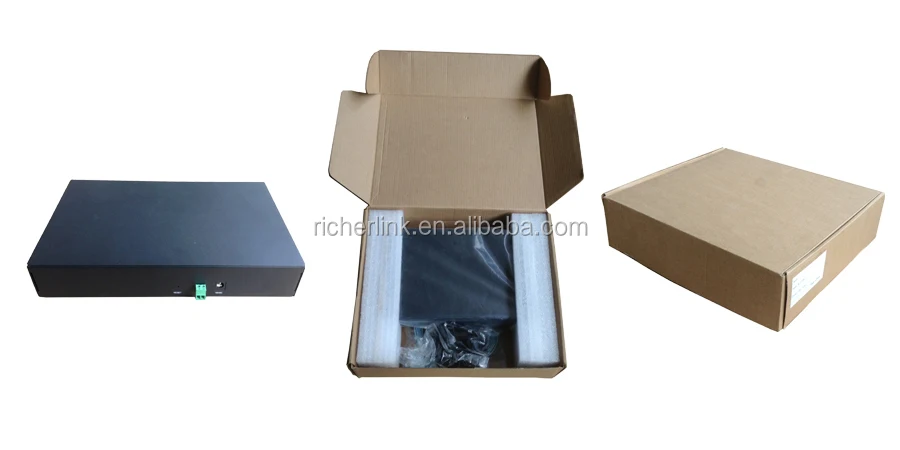

S7210GF packing.jpg








Product Specification

















































































ITEM



Description



Interface



8 10/100/1000Mbps RJ45 Ports(Auto Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots
1 Console Port



Bandwidth/Backplane



20Gbps



MAC Address Table



8K



Packet Forwarding Rate



14.9Mpps(64-byte packets)



Jumbo Frame



9k Bytes



QoS



Support 802.1p CoS/DSCP priority
Support 8 priority queues per port
Queue scheduling: strict priority(SP), deficit weighted round-robin scheduling(DWRR)


Full-duplex flow control (IEEE 802.3X) and half-duplex backpressure



STP



Standard Spanning Tree 802.1d(STP)


Rapid Sanning Tree 802.1w(RSTP)



VLAN



Supports up to 16 VLANs simultaneously (out of 4K VLAN IDs)
802.1Q tag-based VLAN


Port-based VLAN


Port Isolation
Management VLAN configuration



IGMP Snooping



Support IGMP Snooping V1/V2 for multicast groups



Port mirror



Per-port ingress and egress mirroring



Trunking






Static trunk (Link Aggregation)


Up to 5 groups


 and Up to 10 ports per group



Broadcast Storm


 Control






Generic storm controllers for flooded broadcast, flooded multicast, and flooded


unicast traffic



Loop detection






Support the loop detection for easy maintenance method to solve network failure


problem.






Management



Web-based GUI and CLI management
SNMP v1/v2
RMON (1, 2, 3, 9 groups)
Firmware Upgrade: TFTP & Web


Dual Image



Power



9-15V /1A



RPS Power



12V battery



Environment



Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
