Painting booth description

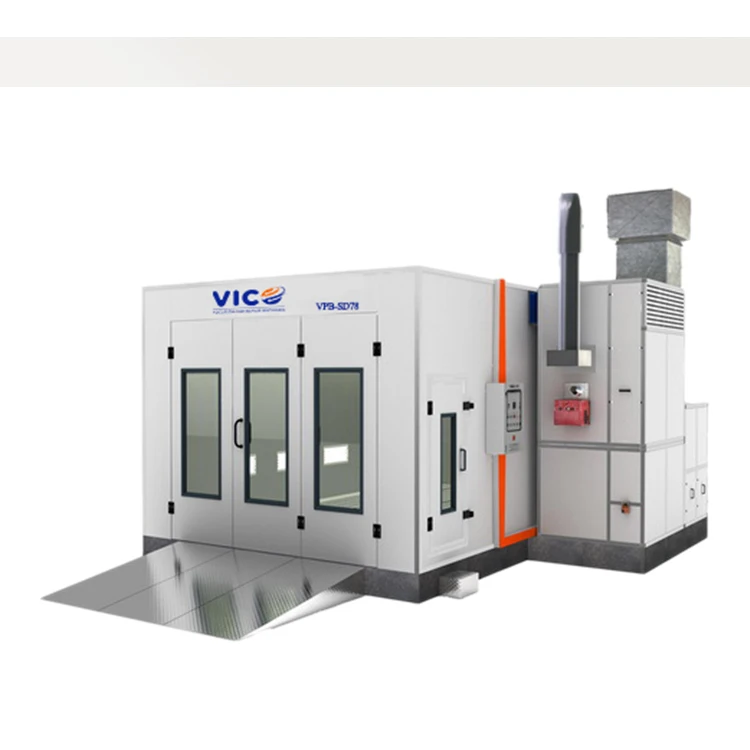

Hot sale Export Diesel Type Car Spray Painting Booth #VPB-SD78

Outer dimension:(mm)

7000*5350*3400mm

Inner dimension:(mm)

6900*3900*2650mm

Door size:

3000mm(W)*2600mm(H), side small door 700mm*2000mm

Appearance color

Red/ Blue / White grey/ Orange

Booth Frame system

Frame retardant polystyrene insulation board: 50mm thickness, 0.426mm thickness steel,galvanized steel assembled roof. Aluminum alloy front door frame and galvanized steel fixed room frame. The floor is assembly formed by corrosion-resistant rectangular tube with 2 rows of grids and 3 rows of checkered plates. Bottom with glass filters. 3 units drive on ramps，each size 750*2000mm(W*L)

Air circulation system

Exhaust

1*5.5 KW centrifugal fan, model YDW 5.5KW, blower capacity 15000 m3/h.

Filter system

High-efficiency imported glue-spreading cotton (VF-600) ceiling filter
Basement bottom grills bottom with glass filters system.

Heating system

RIELLO G20 burner, Max. Calorific value:180,000kcal/h.
Exchanger Argon arc welded SUS304 stainless steel
Max. Temperature :80℃；
Diesel consumption 5-8L/h;
Temperature rise rate:5-8min(20-60℃)；

Lighting system

Ceiling with two lines of lighting box, each line 4 units.total with 24pcs of 36w LED lamps. Illuminance: 800Lux. Side lights:8 groups*2 pc=16 pcs 36W LED lights.

E-controlling system

Adopt superior electronic components, main circuit has multi-protection.
Function:Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch,emergency stop, pressure gauge, all motors reduced-voltage starting.

Total power

16KW

Electric power supply

3PH, 220V/380V/415V, 50Hz/60Hz
