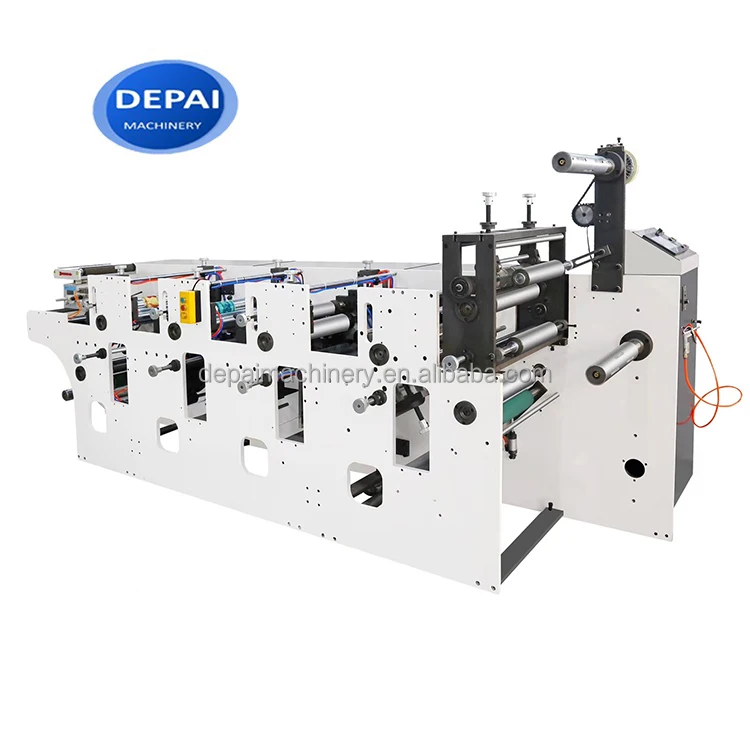

High quality sticker label used high speed modular 4 colors flexo printing machine
Product Overview
Description
The printing unit has the same structure, simple and reliable transmission, simple operation and maintenance, wide adaptability, convenient color group combination, easy online post-printing process, high overprint accuracy, suitable for short-run printing,and the running route of the material belt is changed by the guide roller. It can realize double-sided printing at one time.
1.From the discharge to the receipt of the short distance.
2.The ceramic stick is equipped with a scraper,which is printed and moist,and had a clear color.
3.Repeatedly printing the circumference of 190.5-635mm,filling the blank of the cascading flexographic printing machine,the slanting trademark printing machine,the petal printing machine and the printing length.
4.The use of gear color to solve the 360 degree coloring device gap,assembly,wear,etc,affecting the color accuracy and printing instability.
5.From left to right:coil feeding,printing,automatic infrared drying winding a coherent completion.
6.Water-based ink (UV ink)printing,pollution-free,environmentally friendly,printing speed caries according to the network cable,the speed is also different,the fastest speed of printing labels is 90 meters per minute.
7.Printing bills,labels,cardboard,high-grade stickers,clothing tags,etc.
8.Printing materials:paper 20-250gsm self adhesive soft coil and other materials.
PRODUCT SPECIFICATIONS
Model | DP-HPM4-210 | DP-HPM4-320 |
Printed Form | Flexo | Flexo |
Printing Speed | 10-80m/min | 10-80m/min |
Mechanical Speed | 10-100m/min | 10-100m/min |
Maximum Width of Substrate | 230mm | 340mm |
Printing Width | 50-210mm | 50-320mm |
Printing Circumference | 190.5-635mm | 190.5-635mm |
Plate Thickness | 1.7/2.28mm | 1.7/2.28mm |
Anilox Roller Specifications | Φ85*250*4 | Φ85*350*4 |
Aluminum Guide Roller Specifications | Φ70*250 | Φ70*350 |
Printing Bottom Roller | Φ85*250 | Φ85*350 |
Unwinding Maximum Diameter | Φ500mm | Φ500mm |
Maximum Winding Diameter | Φ500mm | Φ500mm |
Oven Maximum Temperature | 80℃ | 80℃ |
Substrate Core Diameter | 74mm | 74mm |
Total Power | 8.5KW | 10 KW |
Drying Heat Source | Electric heating | Electric heating |
Machine Weight | 2000kg | 2500kg |
Dimensions | 2900*900*1200mm | 3500*900*1200mm |
Body Color | White (Customized) | White (Customized) |
Standard Configuration
Unwinding
Rewinding
Automatic Web Guiding System
Tension Control
Printing Unit
IR Drying
Control Panel
Electric Box
Optional parts
Lamination Unit
Die Cutting Unit
Slitting Unit
UV Dryer
LED UV
Video Monitor
Corona
Turnbar
Finished Product
Suitable Material:All kinds of sticker labels, paper,aluminum foils,plastic film (PVC,PET,OPP......)
Certification
OUR FACTORY
Hangzhou Depai Machinery Co., Ltd has several production lines in different workshops from printing machines,bag making machine,label sticker die cutting & slitting machines, paper /PP/PLA straw machines,disposable products making machines ,to different plastic&paper and packaging machines.
We have a professional after-sales service team to provide you with high quality service. Engineers who can speak English can come to your factories or workshop to help you debug your machine and provide free training by video call .Our factory also cooperated with some famous French and German companies.Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study.By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China.
Our Advantages
Raw Material Machining Center
Our Sales Team

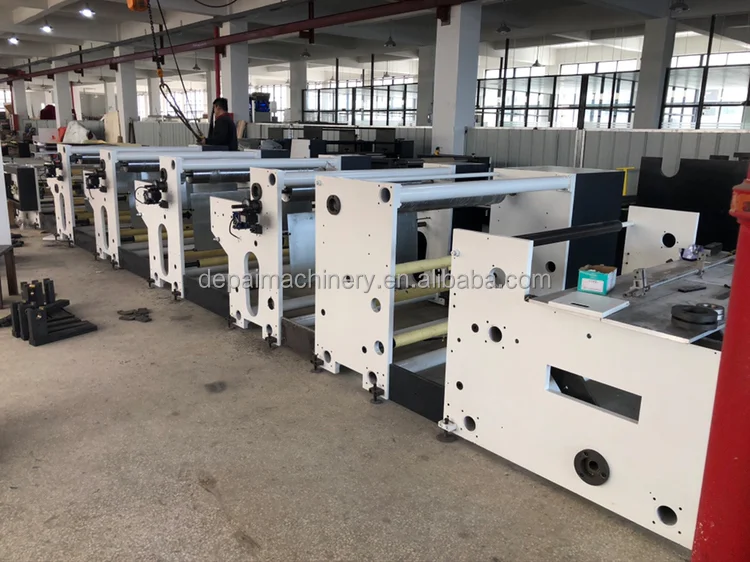

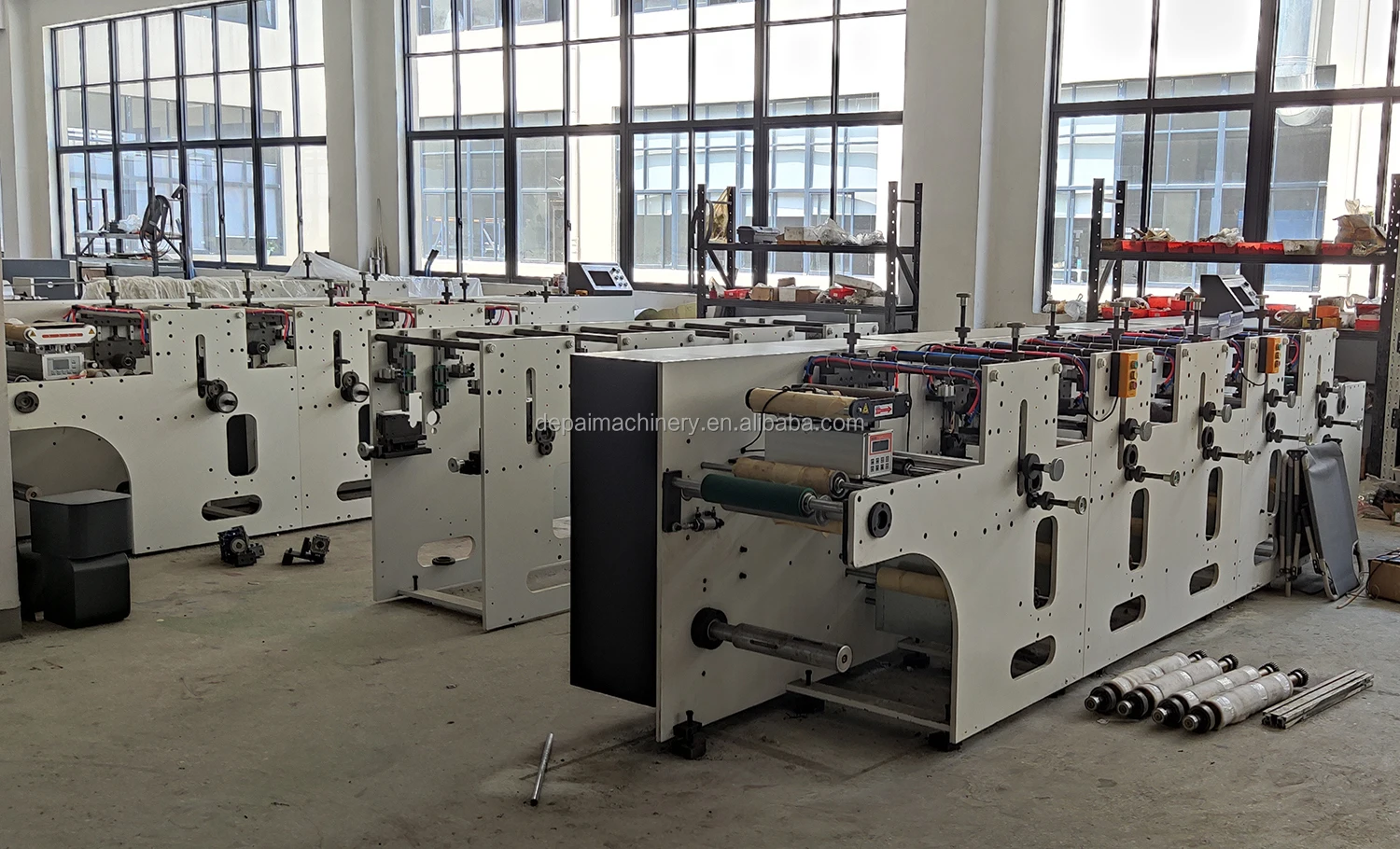

Our Workshops
Packing

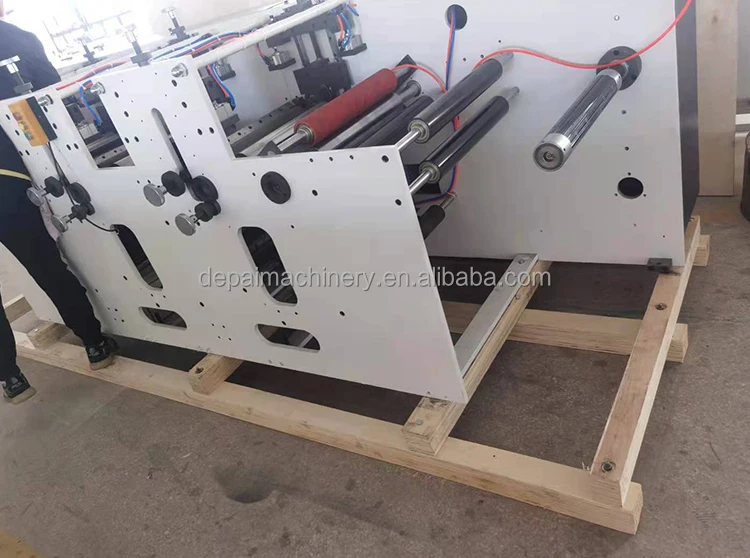

Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
