Станок для резки отверстий в стальной трубе HongLi сверлильного станка 1 1/4-8
- Категории: Metal Cutting Machinery >>>
- Поставщик: Hangzhou,Hongli,Pipe,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

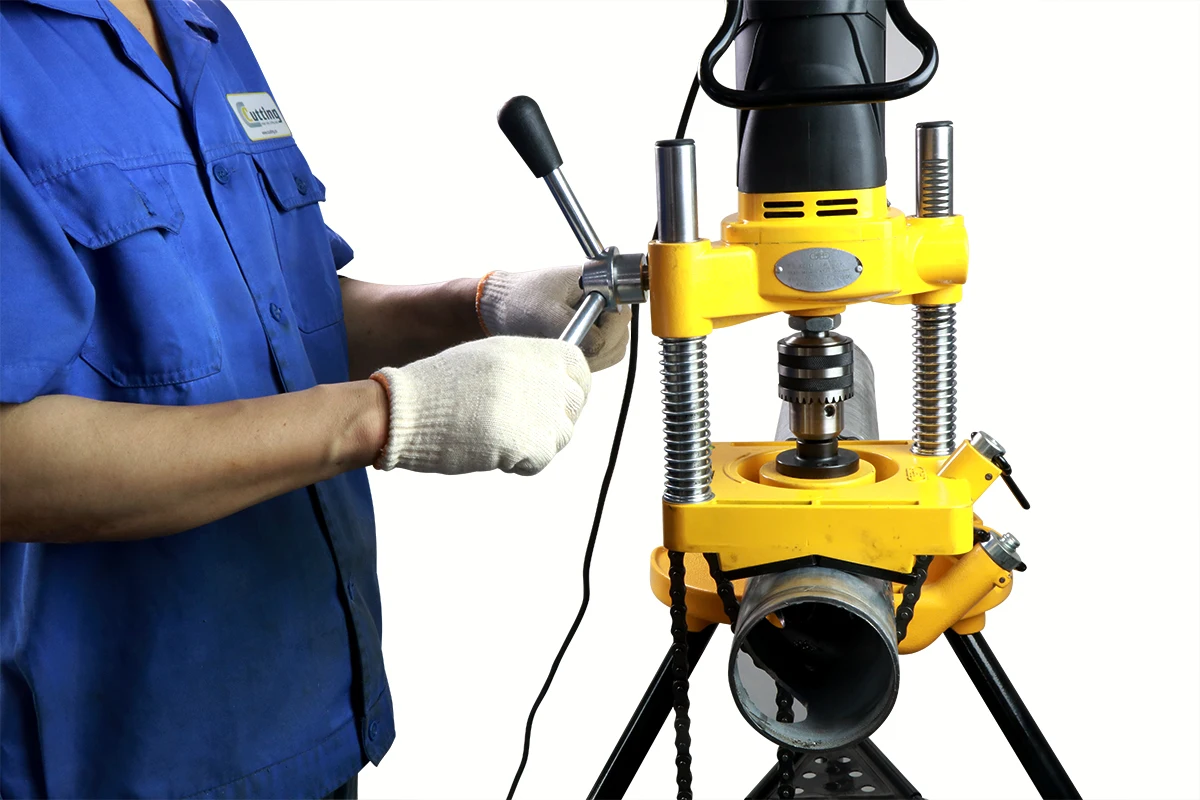

Hongli Pipe Hole Cutter Up To 4" (114mm) (KC114)

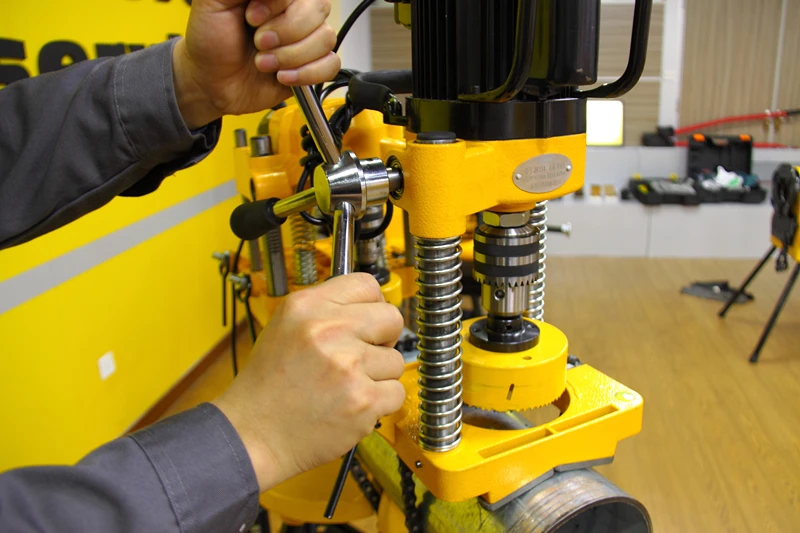

Model KC114 pipe hole cutting machine is designed to cut holes up to 114mm into steel pipe. The multiple hole sizes allow the use of fittings for branching unpressurized pipe lines.The KC114 has 5/8" (16mm) capacity drill chuck to accommodate all size of hole saws and hole saw arbors. An integral motor and gear reduction optimizes performance of large diameter hole saws. The new button handle allows the operator to use the pipe hole cutting machine from either the left or right side.
1. Light weight, portable design.
2. Ideal for the hole cutting in small size.
3. 1500W high efficiency working performance.

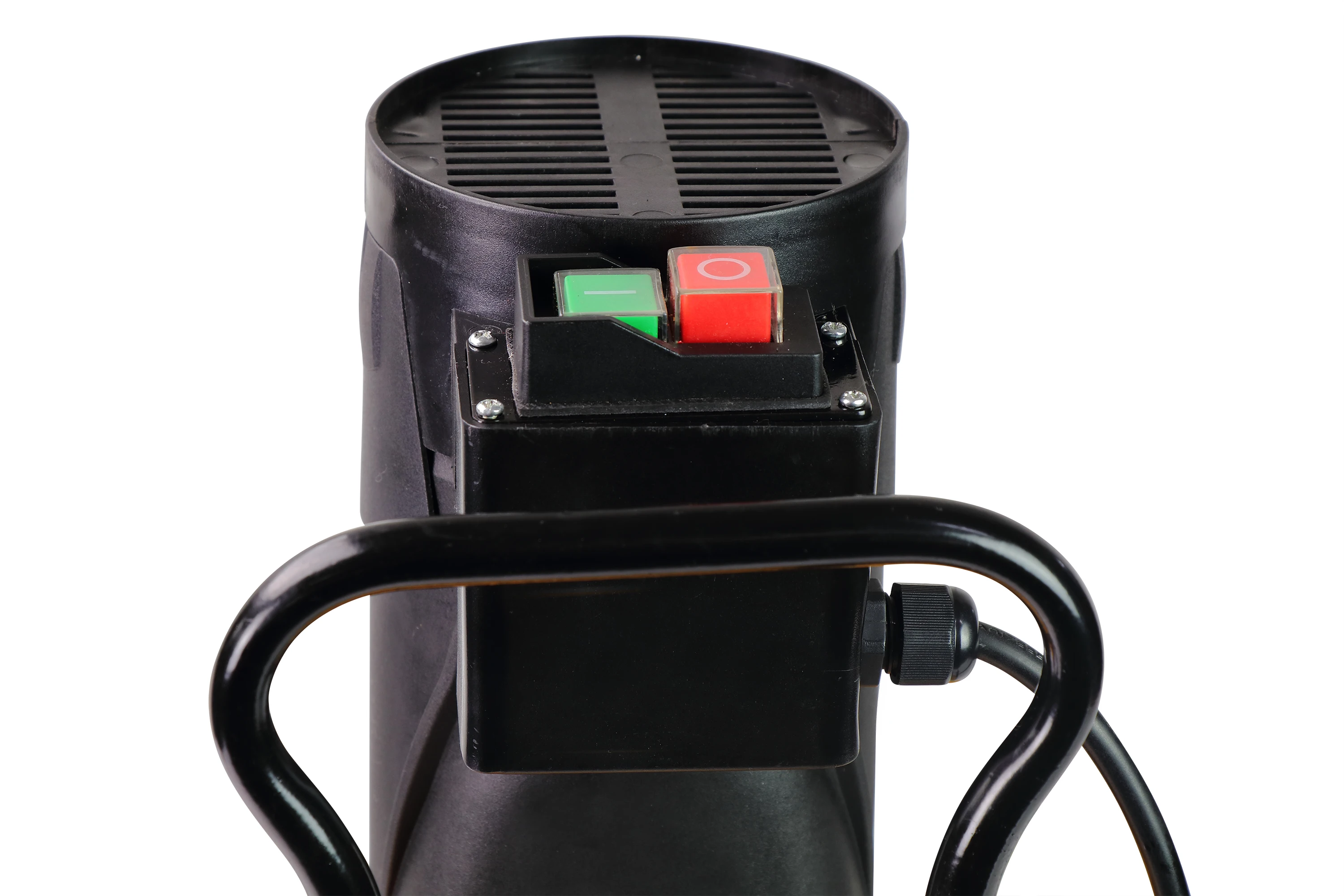

4. Button handle to stay safe.
4. Button handle to stay safe.
5. Suitable for narrow workplace

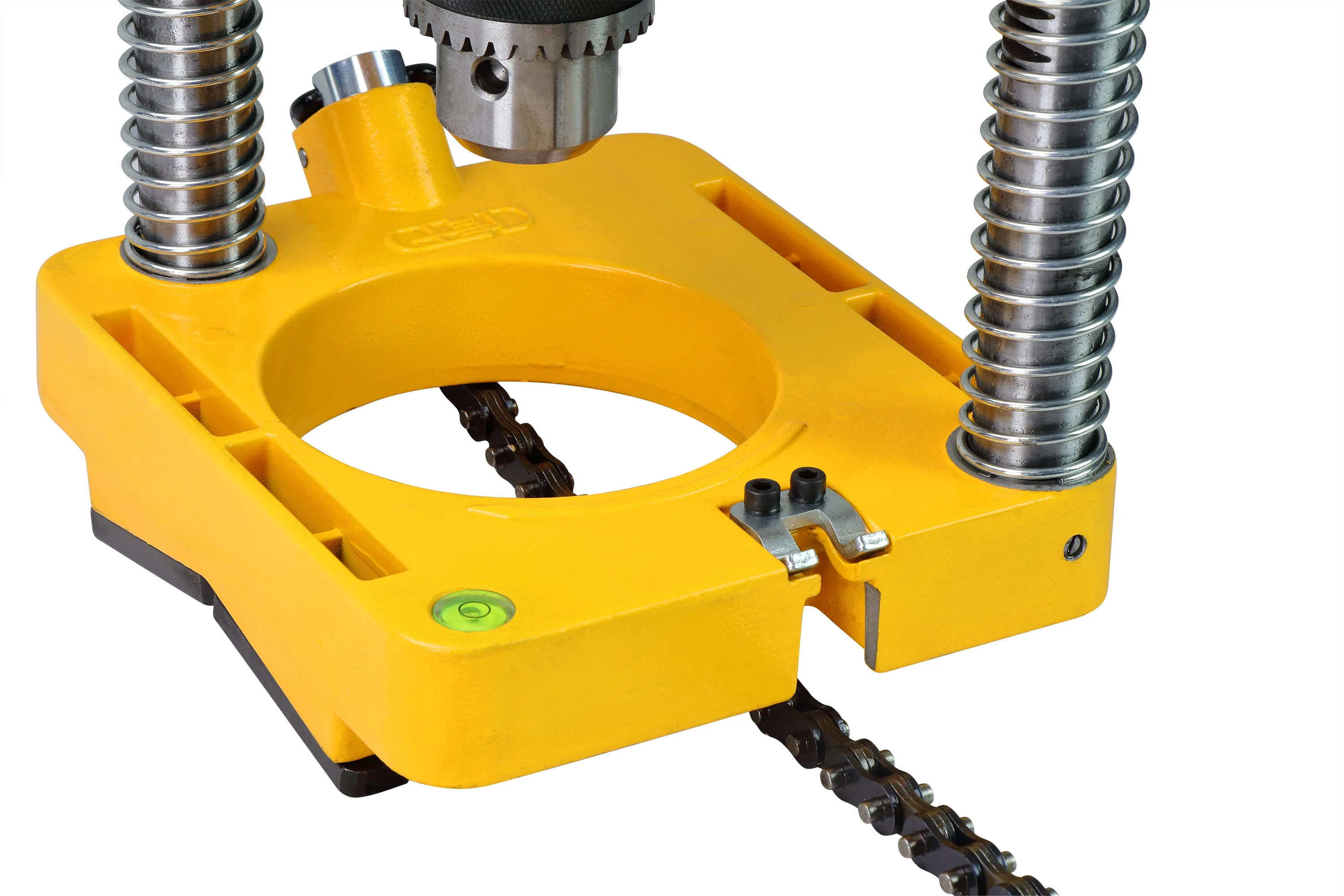

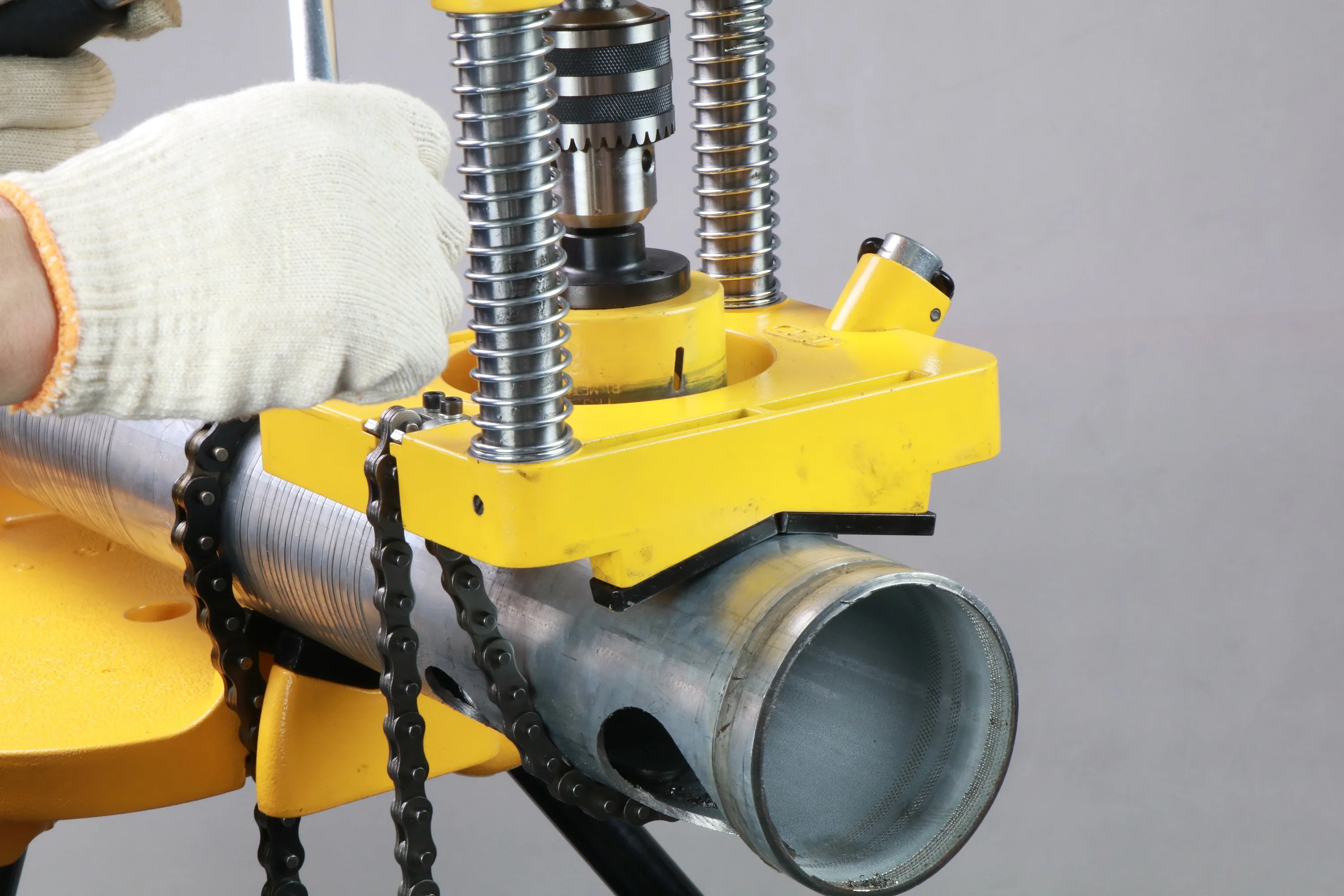

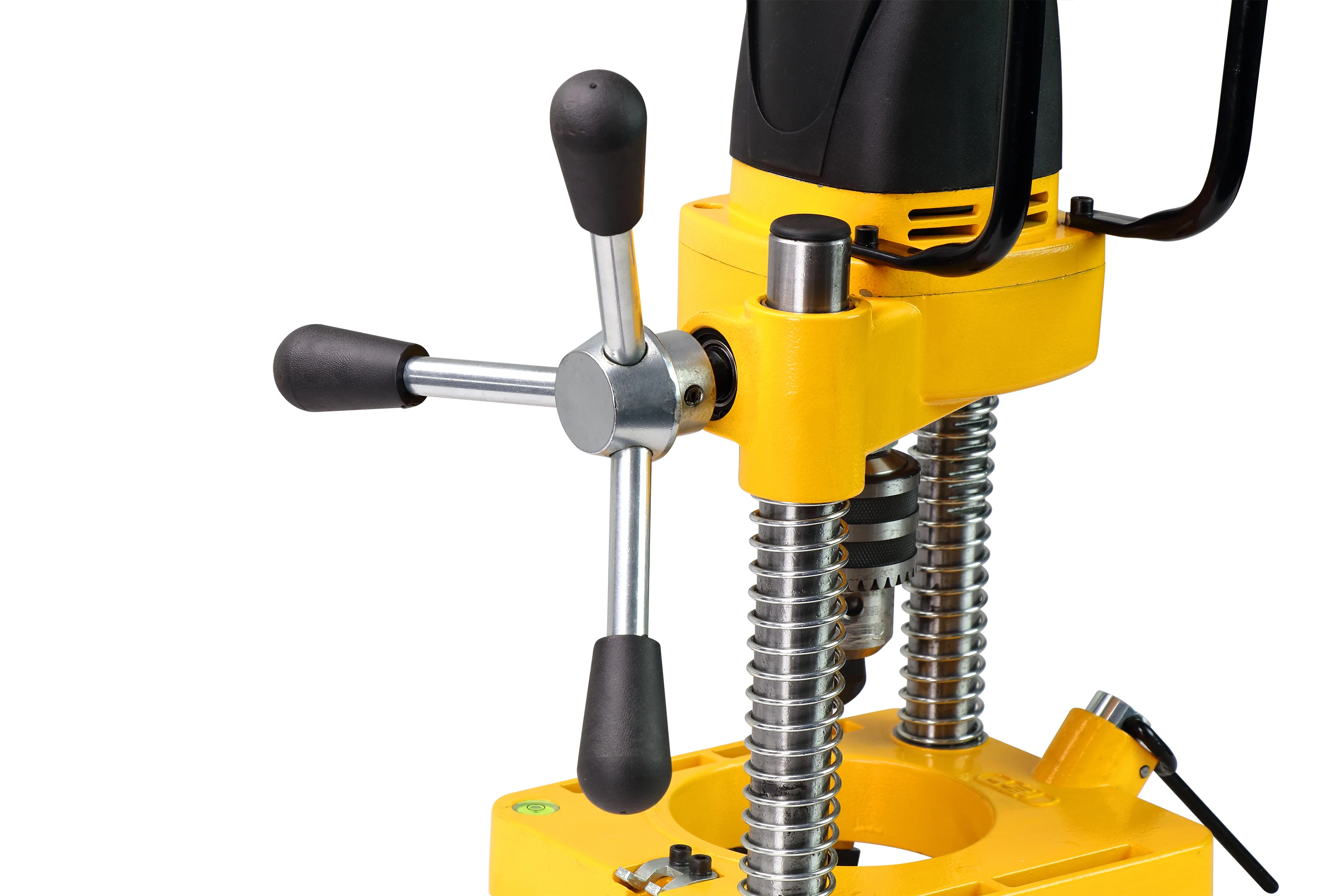

6. More reasonable structure: 2 guide rods + 1 chain assembly
7. Two-ended cutting
8. Approved by CE standards.
9. Warranty: 1 Year
10. HS Code of Pipe hole cutting machine : 8462490000
Technical Specifications | ||||||
Motor : | 1500W universal, 50/60Hz. | Switch : | ON/OFF heavy duty switch | |||
Drill Chuck Speed: | 240 RPM. | Cutting Capacity: | up to 4" (14mm - 114mm) | |||
Drill Chuck Capacity: | 3-16mm | Pipe Mounting Capacity: | 1 1/4"-8" (OD:42mm-219mm) | |||

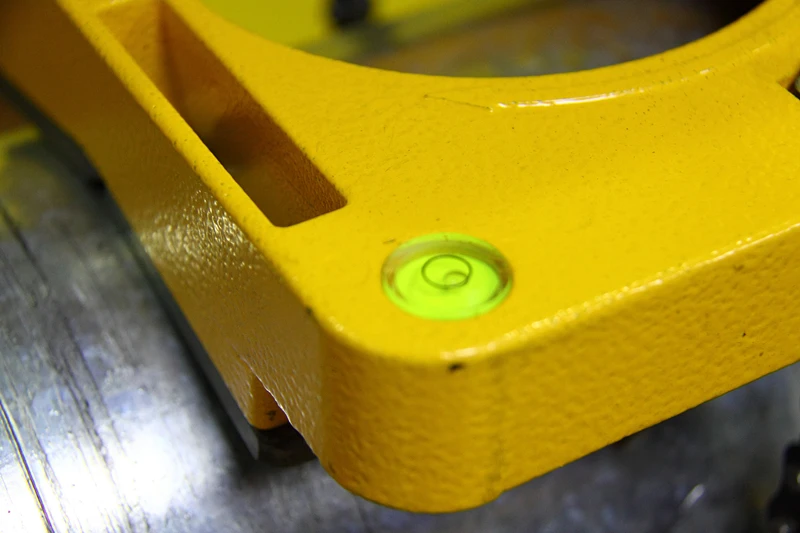

Detailed Images

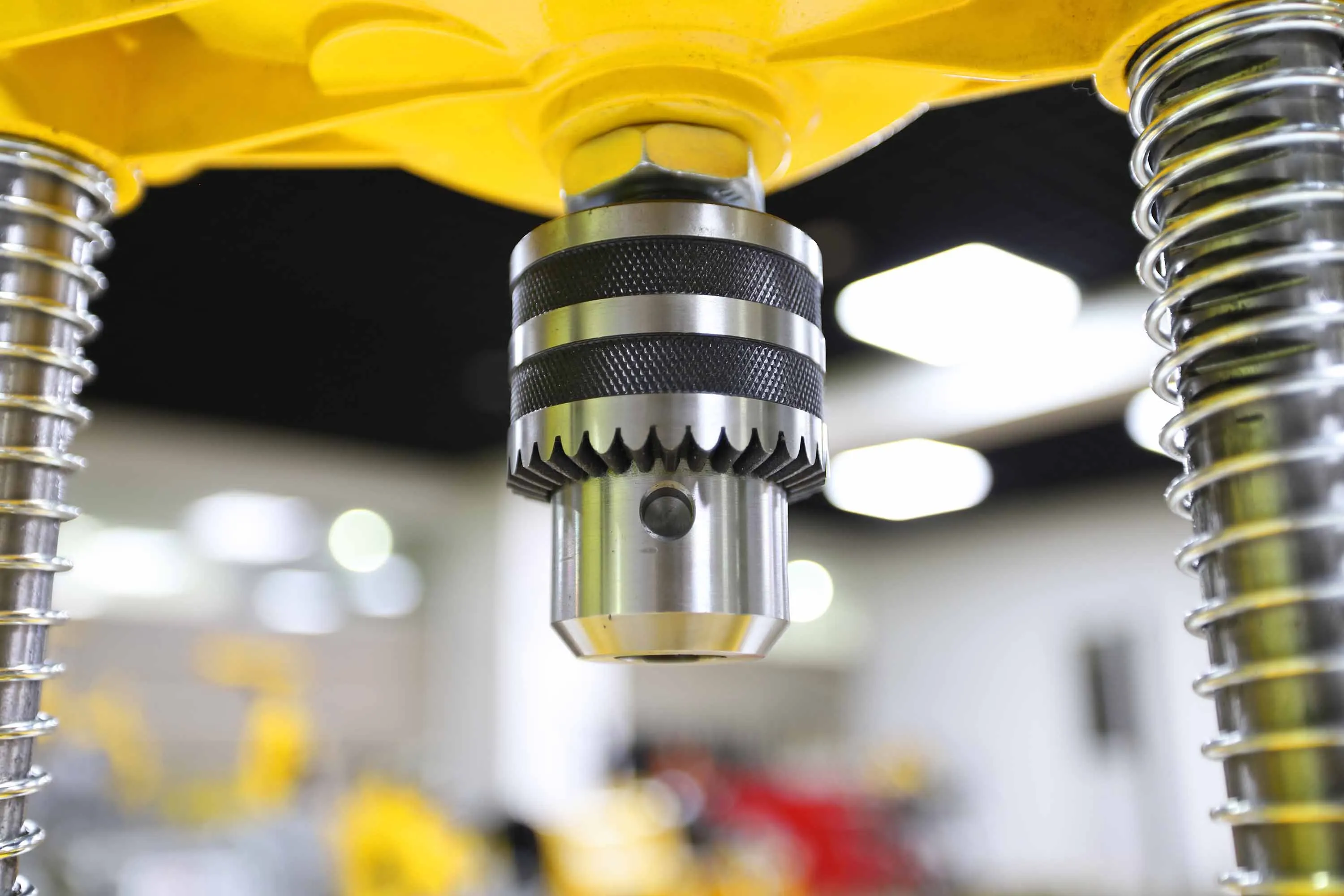

Drill chuck: 1-16 mm
Ordering Information
Catalog.No. | Model No. | Description | Drill Chuck Speed | Power Watts | N.W.: | |||||
310211 | KC114 | Pipe hole cutting machine, 220V,50/60Hz | 240 RPM (no load) | 1500W | 14.5 kgs | |||||
310201 | KC114 | Pipe hole cutting machine, 110V,50/60Hz | 240 RPM (no load) | 1500W | 14.5 kgs | |||||
Accessories: | ||||||||||
30104013 | --- | Handle | --- | 1.5 kgs | ||||||
30101007 | - | Chain assembly | --- | 4 kgs | ||||||
602201 | H401 | 20 kgs | ||||||||
Related Products
Packing&Shipping
Package | Length | Width | Heigth | Gross Weight | Net Weight |
KC114 | 55mm | 30mm | 34mm | 17kgs | 15kgs |
After Sales Service
1. Professional customer service guidance
Pre-sales customer service can answer your professional machine knowledge
2. Full technical support
Professional maintenance and after-sales personnel provide services
3.One year warranty

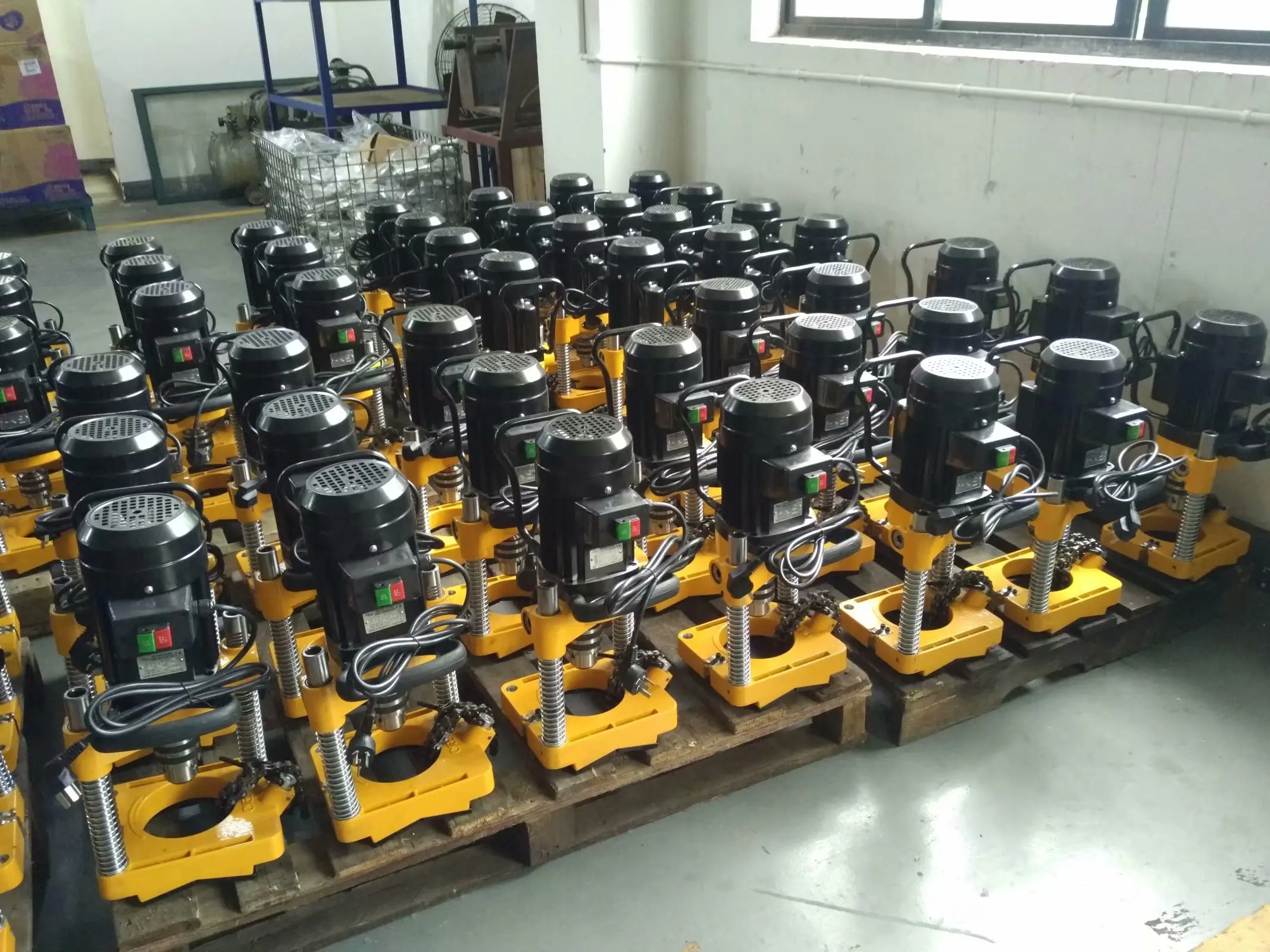

Company Introduction
Hangzhou Hongli Pipe Machinery Co., Ltd. is a subsidiary company of Hangzhou Hongli Group, specializing in designing and
manufacturing pipe tools.
Hangzhou Hongli Group has two companies, Hangzhou Hongli Pipe Machinery Co., Ltd. and Hangzhou Huaxing Machinery Co., Ltd.,
covering a production area of 25,000 square meters with more than 250 staff members including 15 engineers.
Our company was established in 1986. After years of hard work, our company has been one of the leading manufacturers of pipe tools
in China. Our main products include threading machines, core drills, roll groovers, pipe cutters, pipe benders, drain cleaning
machines, pressure testing pumps and hole cutting tools. More than 40,000 sets of threaders are available.
Our company keeps developing new products and improving production technology to ensure quality products. The control of quality
is the first mission for our company to ensure the best products and service.
In the spirit of "good service for clients", we source power tools, hand tools, and automotive tools from partner factories in
China.
We hope to cooperate with all of our old and new clients.
manufacturing pipe tools.
Hangzhou Hongli Group has two companies, Hangzhou Hongli Pipe Machinery Co., Ltd. and Hangzhou Huaxing Machinery Co., Ltd.,
covering a production area of 25,000 square meters with more than 250 staff members including 15 engineers.
Our company was established in 1986. After years of hard work, our company has been one of the leading manufacturers of pipe tools
in China. Our main products include threading machines, core drills, roll groovers, pipe cutters, pipe benders, drain cleaning
machines, pressure testing pumps and hole cutting tools. More than 40,000 sets of threaders are available.
Our company keeps developing new products and improving production technology to ensure quality products. The control of quality
is the first mission for our company to ensure the best products and service.
In the spirit of "good service for clients", we source power tools, hand tools, and automotive tools from partner factories in
China.
We hope to cooperate with all of our old and new clients.
Our Services & Strength
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood cases.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance against BL copy. L/C at sight.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 10% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, we pack our goods in plywood cases.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance against BL copy. L/C at sight.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 10% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
