Trailer Pumps
Products Description
China top brand Trailer Pumps HBT110.26.372RS with High Efficiency
• The HBT110.26.372RS is equipped with a DUETZ diesel engine(Euro 2)and intelligent control system. It’s suitable for
super-high-rise pumping and the pumping height can be up to 300m.
•Energy-Saving: Self-adaptive variable power distribution control technology Keep engine working within the economical fuelconsumption range.
•High-Reliability: Adaptive pumping control technology, the chance of pump block reduced by more than 50%.
•Dual pump dual circuit hydraulic system: Pumping hydraulic system and distribution hydraulic system cooperate with each other and
do not interfere with each other. This design is easy to realize the logic control, and make the best performance of hydraulicsystem.
• Long service life wearing parts.
• The HBT110.26.372RS is equipped with a DUETZ diesel engine(Euro 2)and intelligent control system. It’s suitable for
super-high-rise pumping and the pumping height can be up to 300m.
•Energy-Saving: Self-adaptive variable power distribution control technology Keep engine working within the economical fuelconsumption range.
•High-Reliability: Adaptive pumping control technology, the chance of pump block reduced by more than 50%.
•Dual pump dual circuit hydraulic system: Pumping hydraulic system and distribution hydraulic system cooperate with each other and
do not interfere with each other. This design is easy to realize the logic control, and make the best performance of hydraulicsystem.
• Long service life wearing parts.
Product Paramenters
Model | Unit | HBT110.26.372RS | ||
Pump Unit | Maximum theorical output | m3/h | 160/100 | |
Maximum pressure on concrete | bar | 70/110 | ||
Conc. cylinders (diam. x stroke) | mm | 230x2100 | ||
Concrete hopper capacity | L | 600 | ||
Hydraulic circuit | Open | |||
Boom Section | Maximum vertical reach | m | 39.5 | |
Maximum horizontal distance | m | 35.2 | ||
Minimum unfolding height | m | 8.1 | ||
Section numbers | 5 | |||
Rotating angle | ±270° | |||
End hose lenght | m | 3 | ||
Complete vehicle kerb mass | kg | 41805 | ||
Front axle load | kg | 16000 | ||
Rear axle load | kg | 26000 | ||
Dimension | Overall dimensions(L×W×H) | mm | 13950×2800×3710 | |
Longitudinal distance between outriggers | m | 5.92 | ||
Transversal distance between outriggers | m | For completely extended: 7.10 m; For half extended: 4.8 m | ||
Tail slewing radius | mm | 3930 | ||
Main boom length | m | 11.6 – 45.0 | ||
Main boom angle | ° | -2 - 80 | ||
jib length | m | 9.2, 14.6 | ||
Offset | ° | 5 / 25 / 45 | ||

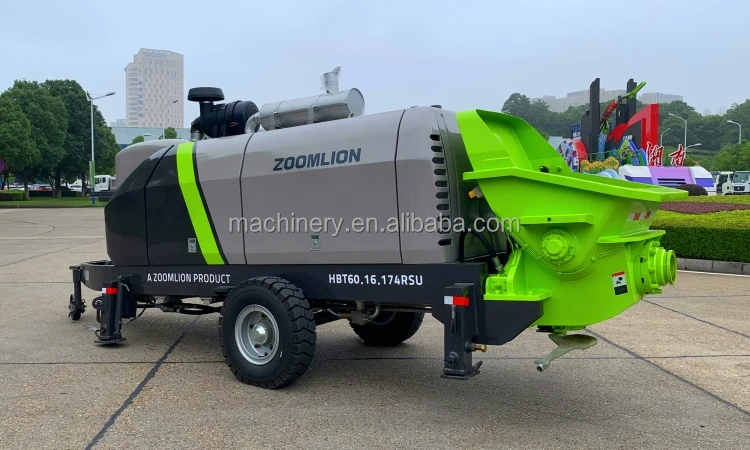

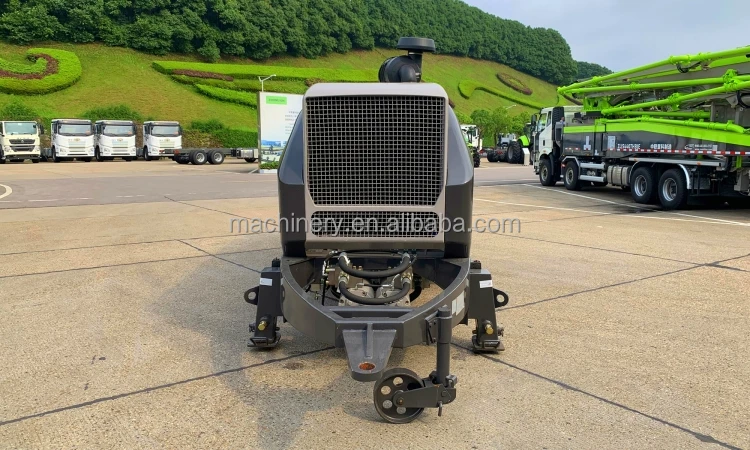

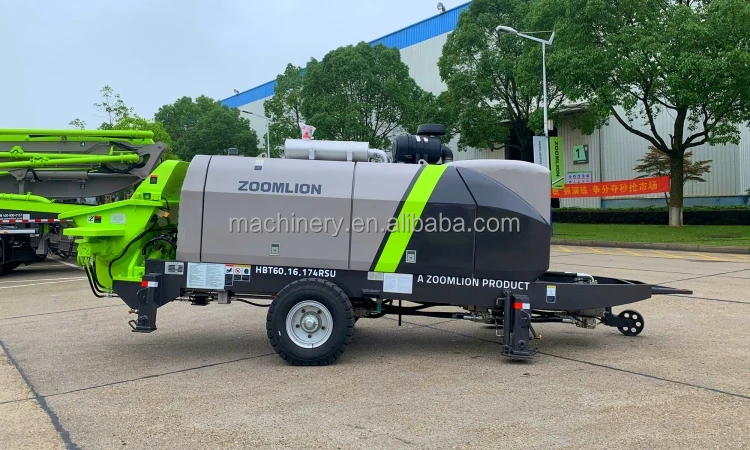

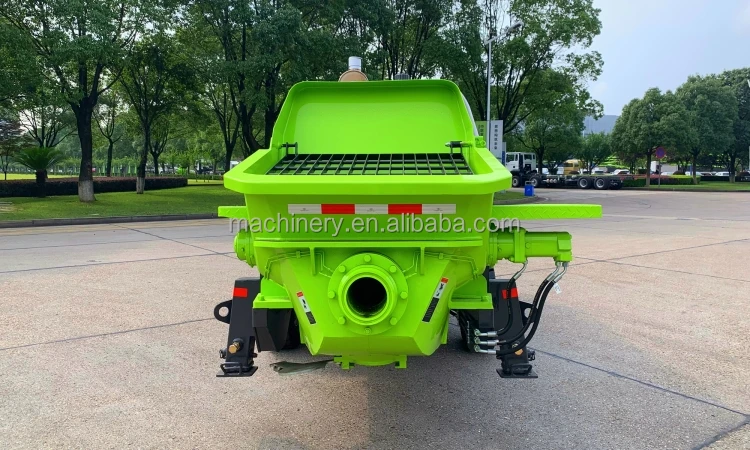

Details Images
