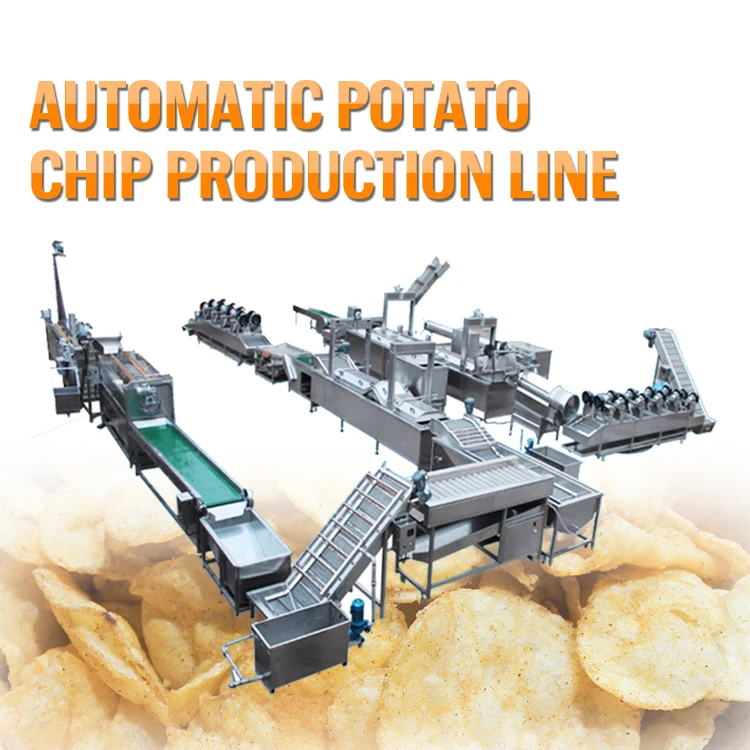

Автоматическая машина для производства и упаковки картофельных
- Категории: Potato chips making machine >>>
- Поставщик: JOHTANK,(SHANDONG),FOOD,MACHINERY,CO.,LTD.
Поделиться:
Описание и отзывы
Характеристики
Factory direct sales
No middlemen to earn the difference
Production process
Production process of potato chip machine:
1.Conveyor hoist machine → 2.Cleaning and peeling machine → 3.Picking machine →
4.Cutting machine → 5.Water bucket elevator → 6.Washing machine → 7.Blanching machine →
8.Vibrating machine to de-water → 9.Electric dryer → 10.Continuous frying machine →
11.Vibrating de-oil machine → 12. Drying machine
⇓
•Crispy Potato Chips → 13.Seasoning machine → 14.Packing machine
•Frozen French Fries→ 13.Fluidized belt freezer → 14.Packing machine
•Crispy Potato Chips → 13.Seasoning machine → 14.Packing machine
•Frozen French Fries→ 13.Fluidized belt freezer → 14.Packing machine
Product Information
No. | Name | Quantity | Dimensions(mm) | ||
1 | elevator | 1set | 1500*800*1500 | ||
2 | sprial washing & peeling machine | 1set | 3000*900*1500 | ||
3 | potato picking & sorting line | 1set | 4000*1000*900 | ||
4 | potato chipper | 1set | 1300*900*1500 | ||
5 | elevator | 1set | 1500*800*1500 | ||
6 | chips picking machine | 1set | 4000*1100*900 | ||
7 | chips washing machine | 1set | 4000*1200*900 | ||
8 | blanching machine | 1set | 5000*1200*950 | ||
9 | elevator | 1set | 1500*800*1500 | ||
10 | blowing line | 1set | 5000*1200*1400 | ||
11 | elevator | 1set | 1500*800*1500 | ||
12 | deep fryer | 1set | 5000*1200*2400 | ||
13 | blowing line | 1set | 5000*1200*1400 | ||
14 | elevator | 1set | 2400*1200*1500 | ||
Products Description

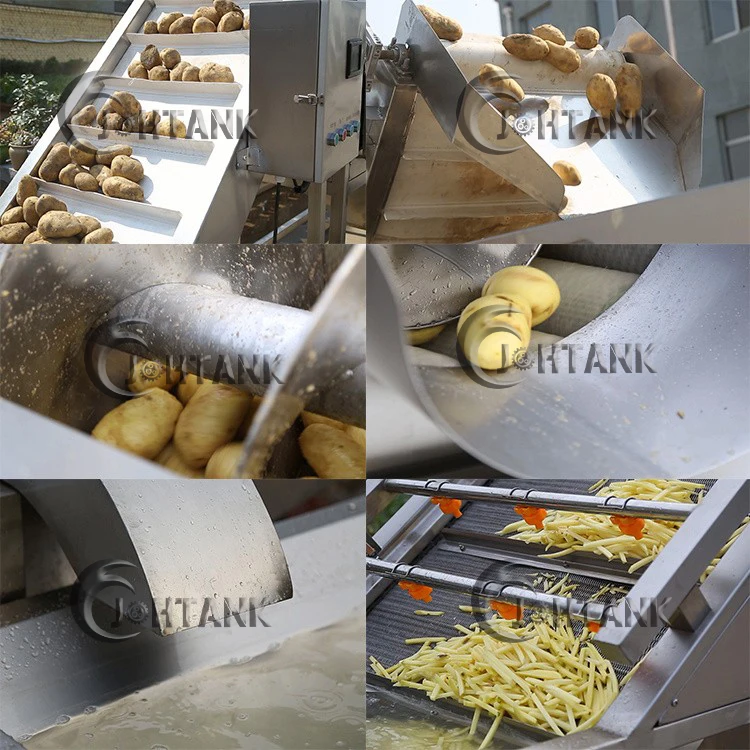

Cleaning & peeling machine
●suitable for kinds of fruit, root vegetable, Shellfish, Seafood, Fish scaling and Animal organs washing, etc;
●High quality ,304 stainless steel and 9 psc roller brush;
●It can dry clean and wet clean, with flexible spray nozzle;
●High quality ,304 stainless steel and 9 psc roller brush;
●It can dry clean and wet clean, with flexible spray nozzle;
●98% peeling rate;
●Customization services, can add washing speed adjustable device, extra water tray, etc;
●Customization services, can add washing speed adjustable device, extra water tray, etc;
●It is currently the most advanced vegetable cutting equipment;
●Suitable for slicing potatoes into strips;
●Suitable for slicing potatoes into strips;
●This equipment is a high speed slicer which can cut flat potato slices and wave potato slices. It has high yield and is specially used for frying potato chips;
●It is currently the most advanced vegetable slicing equipment;
●Suitable for cucumber, eggplant, bitter ground, lotus root, potato, sweet potato, banana, etc;
●Thickness (1mm - 20mm) can be freely adjusted, the pieces are smooth, non-broken;
●Suitable for cucumber, eggplant, bitter ground, lotus root, potato, sweet potato, banana, etc;
●Thickness (1mm - 20mm) can be freely adjusted, the pieces are smooth, non-broken;
●Washing time is 30-60s; Washing process is for washing off the potato starch on the potato chips which can keep it from fall
in the oil and keep long-use life for the frying machine;
in the oil and keep long-use life for the frying machine;

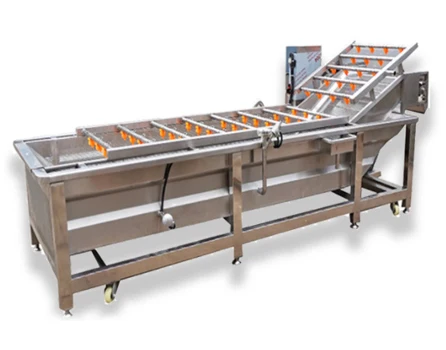

●Fruit and vegetables washing and drying machine processing line, mainly includes;
●Bubble washing machine + brush washing and polishing machine + air drying machine;
●Bubble washing machine + brush washing and polishing machine + air drying machine;
●This machine is widely used for blanching and sterilizing vegetables, fruits, seafood products before quick freezing and
dehydrating, especially suitable for easily damageable products and products in strips or bar-shaped;
dehydrating, especially suitable for easily damageable products and products in strips or bar-shaped;
●Blanching machine can play a role in protecting color blanching, it is necessary equipment during food processing industry;
●Motor is standardly equipped with listed sino-foreign joint venture products, imported motor is optional;
●Screen panelcan choose hard wearing flexible PU material, modular installation, can replace partially for the partial wearing,cost of spare parts is low;
●Steel is of superior manganese steel, integral profile design of beam and complete stress treatment;
●Screen panelcan choose hard wearing flexible PU material, modular installation, can replace partially for the partial wearing,cost of spare parts is low;
●Steel is of superior manganese steel, integral profile design of beam and complete stress treatment;

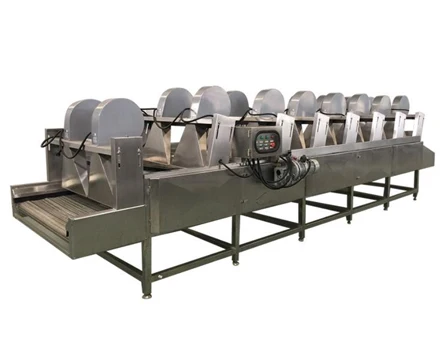

Electric dryer
●With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying;
●With SUS 304 mesh belt, mesh belt width could be 500-1000mm;
●Mesh speed adjustable by gearbox;
●With turnover type or flat type mesh belt, suitable for different products drying;
●Each unit of blowing fan can be controlled separately;
●Suitable for production line, continuously working;
●Mesh speed adjustable by gearbox;
●With turnover type or flat type mesh belt, suitable for different products drying;
●Each unit of blowing fan can be controlled separately;
●Suitable for production line, continuously working;
Continuous frying machine
●Optional heating method: electricity, gas, steam, electromagnetism, etc; ●Frying time can be set, automatic temperature control 0-300°C;
●Double mesh belt and the conveyor speed is adjustable;
●Can be equipped with oil filter machine and oil tank;
●Equipped with mesh lifting system, easy to clean,fire-extinguishing device is optional;
●With oil storage tank and oil pump;
●Double mesh belt and the conveyor speed is adjustable;
●Can be equipped with oil filter machine and oil tank;
●Equipped with mesh lifting system, easy to clean,fire-extinguishing device is optional;
●With oil storage tank and oil pump;
machine
●lt is used to remove some oil by vibrating;
●It is equipped with oil collection board and oil collection box;
●It is equipped with oil collection board and oil collection box;
●Overcome the potato chip oil rate is high, greasy mouth defects. It enhances the flavor of the chips;
●Put the fried chips into the De - oiling machine, then the chips will be ok for one minutes.
Tunnel type quick-freezing machine for Frozen French Fries
●without clotted dollop and accord with the export foodstuff sanitation completely. the product is manufactured with import taintless steel feeding metal band;
●Short freezing time, adopted cross-ventilation, good effect; ●With the multy-way wind of the
product, such as up and down, front and back, left and right.
product, such as up and down, front and back, left and right.
Seasoning machine for crisps
●It is made of stainless steel, with simple and practical structure, welding, surface brightness, can make processed food with seasoning material fully mixed uniformity in a short time. It's widely used for snack food seasoning, feeding, mixing materials,
hanging pulp and so on.
Frozen French fries
Crispy potato chips

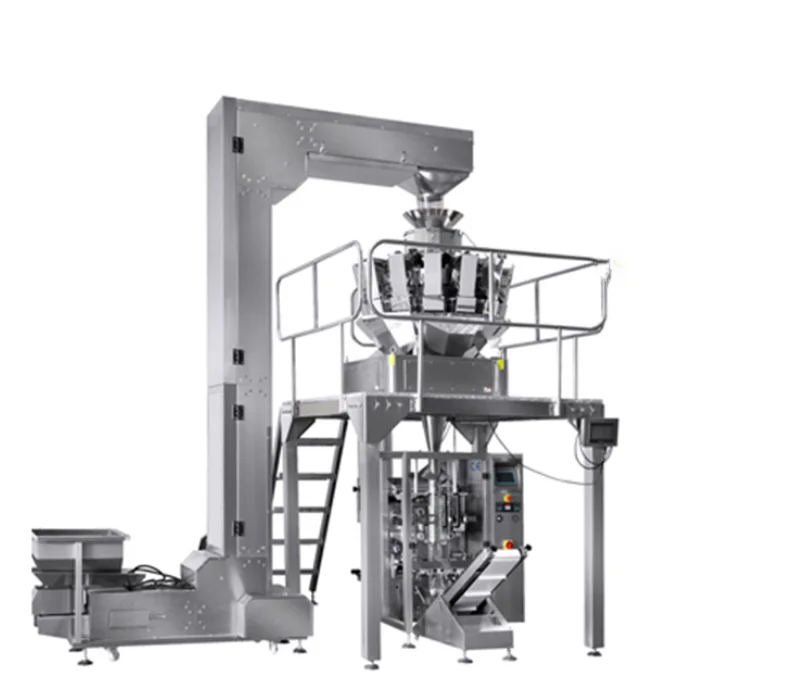

●Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use;
●Use famous brand electric and pneumatic components, stable and long life circle;
●Use superior mechanical components, reduce the wear out loss;
●Use famous brand electric and pneumatic components, stable and long life circle;
●Use superior mechanical components, reduce the wear out loss;
●When packing, gas is filled into the aluminum plastic bag, and the potato chip production line can effectively prevent the chips from breaking, Charging, packing and coding are completed at one time.
Packed frozen fries
Packed potato crisp
Product Details
Customer Visit
FAQ
Q1:Can you provide samples?
A:Provide sample service, with a maximum of 1 sample at a time.
Q2:How to pack and transport?
A:Support shipping in Qingdao Port.
Q3:What coaching services are supported?
A:If the device fails or encounters difficult problems during use,please first solve it by reading the "Common Troubleshooting Method" in the product description.If the equipment encounters a malfunction and cannot be resolved by itself, please contact us and the company will Respond within 2 hours after receiving the failure notification.
Q4: What are the related products?
A:This product is semi-automatic potato chips production line, our company also produces fall-automatic potato chip production line and other food machinery.
Q5:About warranty service.
A:The company implements a one-year warranty for the products.
A: The company implements a one-year warranty for the products.
A:Provide sample service, with a maximum of 1 sample at a time.
Q2:How to pack and transport?
A:Support shipping in Qingdao Port.
Q3:What coaching services are supported?
A:If the device fails or encounters difficult problems during use,please first solve it by reading the "Common Troubleshooting Method" in the product description.If the equipment encounters a malfunction and cannot be resolved by itself, please contact us and the company will Respond within 2 hours after receiving the failure notification.
Q4: What are the related products?
A:This product is semi-automatic potato chips production line, our company also produces fall-automatic potato chip production line and other food machinery.
Q5:About warranty service.
A:The company implements a one-year warranty for the products.
A: The company implements a one-year warranty for the products.
