Product Description

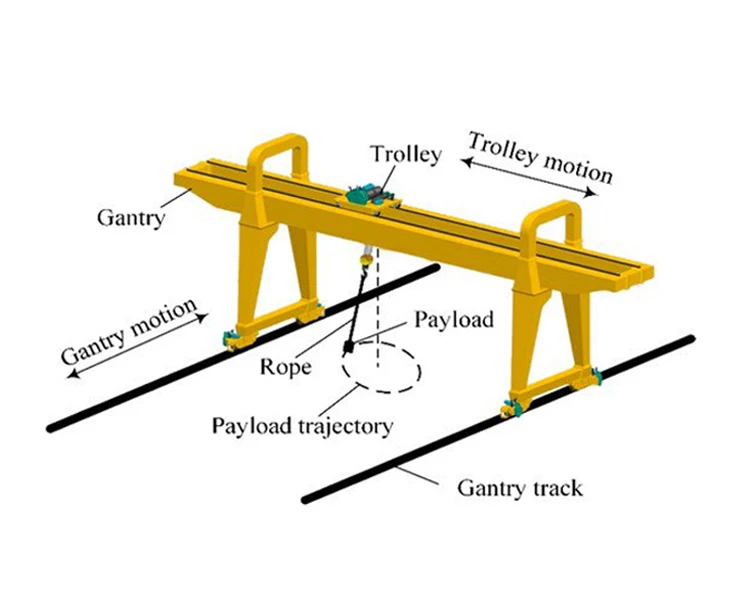

Double Girder Gantry Crane with hooks are widely used to do common lifting and unloading works. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch. The frame adopts box-type welding mechanism. . Power is supplied by cable or slide wire. there are different capacity double beams gantry crane for your choice according to your different use.

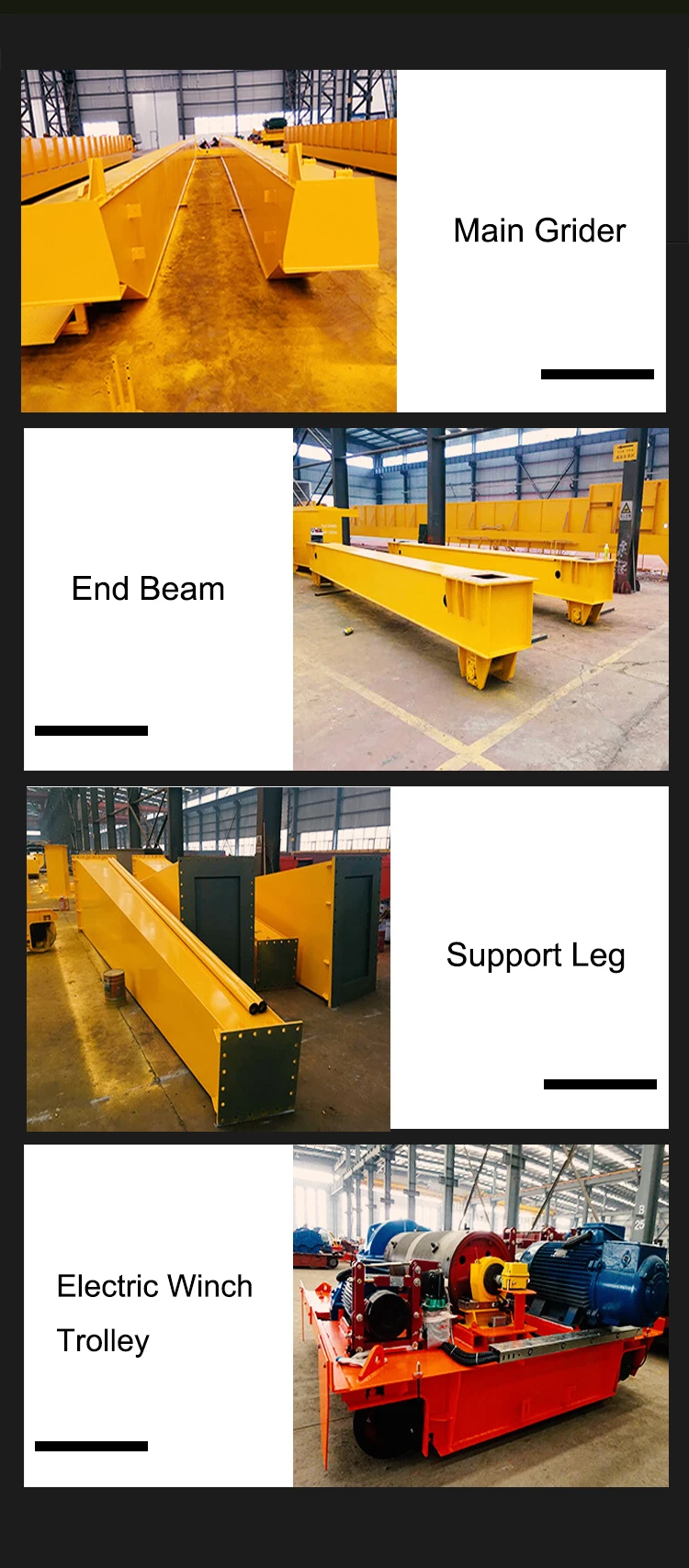

Details Images

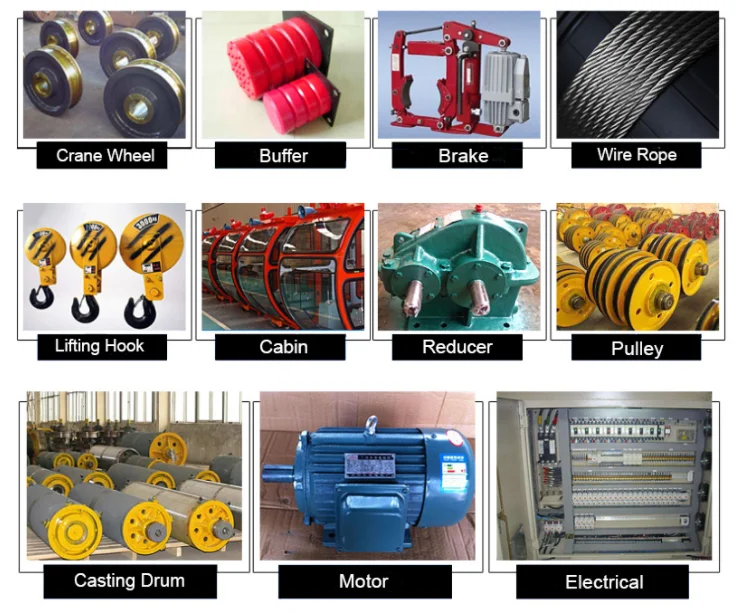

Other Parts




Features Of Double Grider Gantry Crane
1. high working effiency;
2. smooth movement &comfortable operation;
3. convenient maintenance & aesthetic painting;
4. light deadweight, light wheel load and reliable performance;
5. customized: design and manufacture according to your request.

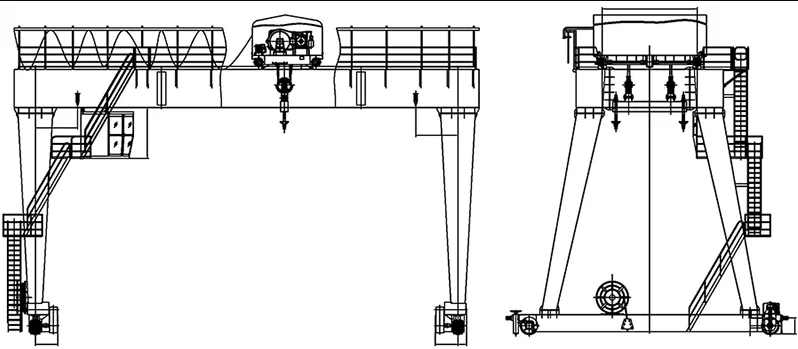

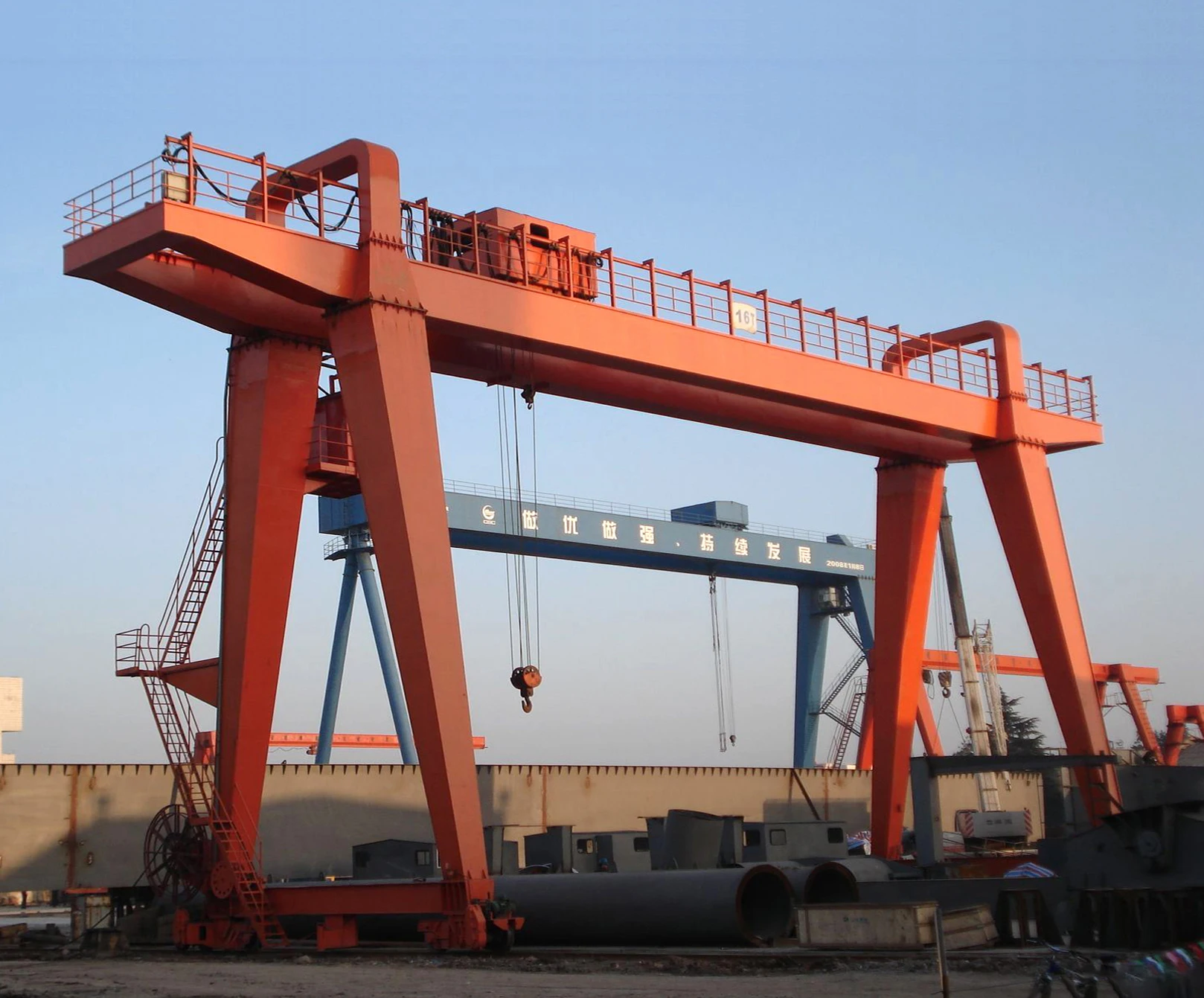

Product View






Specification




Double Grider Gantry Crane Parameter
Capacity(t)
10
32
50
100
250
400
Span(m)
18~35
18~35
18~35
18~35
18~35
18~35
Lifting height(m)
6~18
6~18
6~18
6~18
6~18
6~18
Lifting speed(m/min)
8.5
6
5.9
3.9
2.2
1.5
Trolley speed(m/min)
37.4
37
31.3
33.9
28
10
Crane speed(m/min)
37.7
38
44
32.3
50
18
Work duty
A3-A7
A3-A7
A3-A7
A3-A7
A3-A7
A3-A7
Track type
P43
P50 QU80
QU80
QU100
QU120
QU120

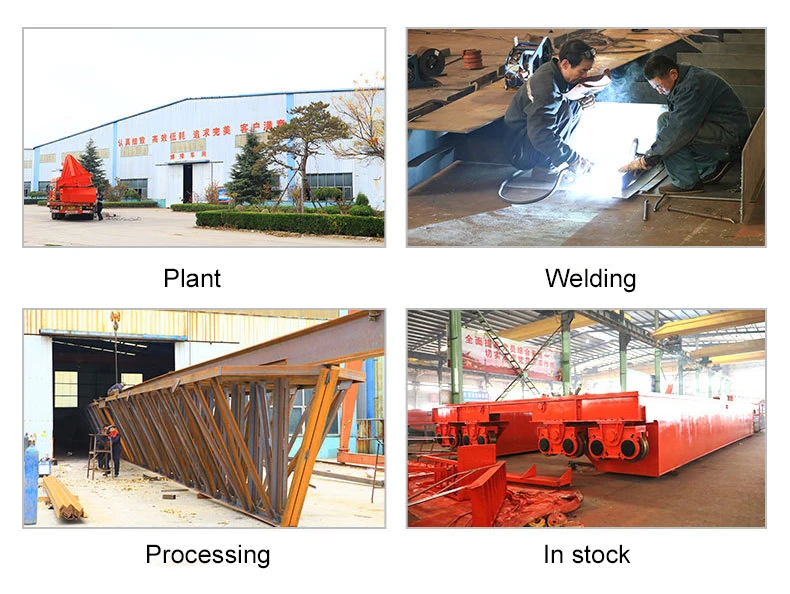

Production Process

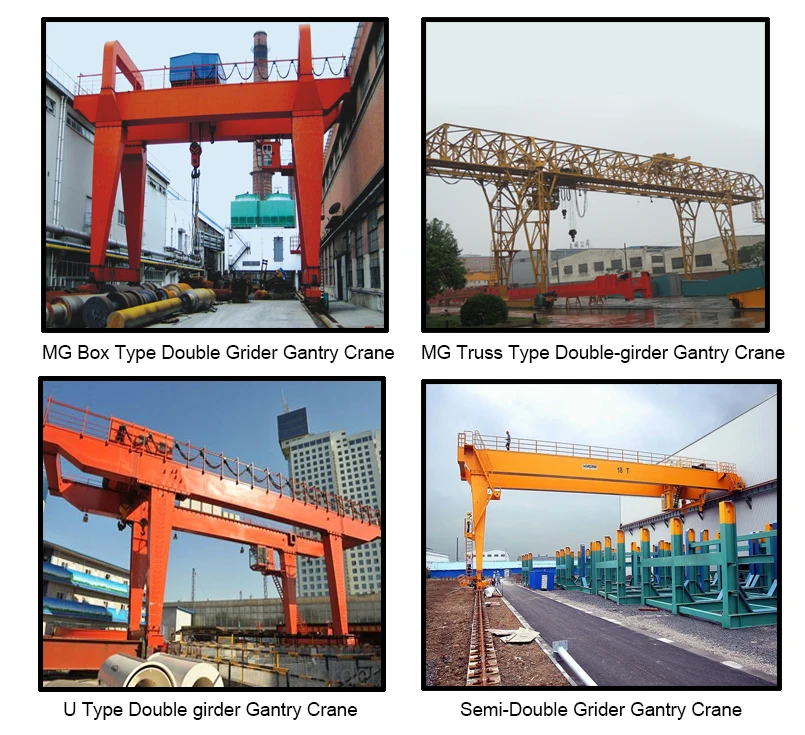

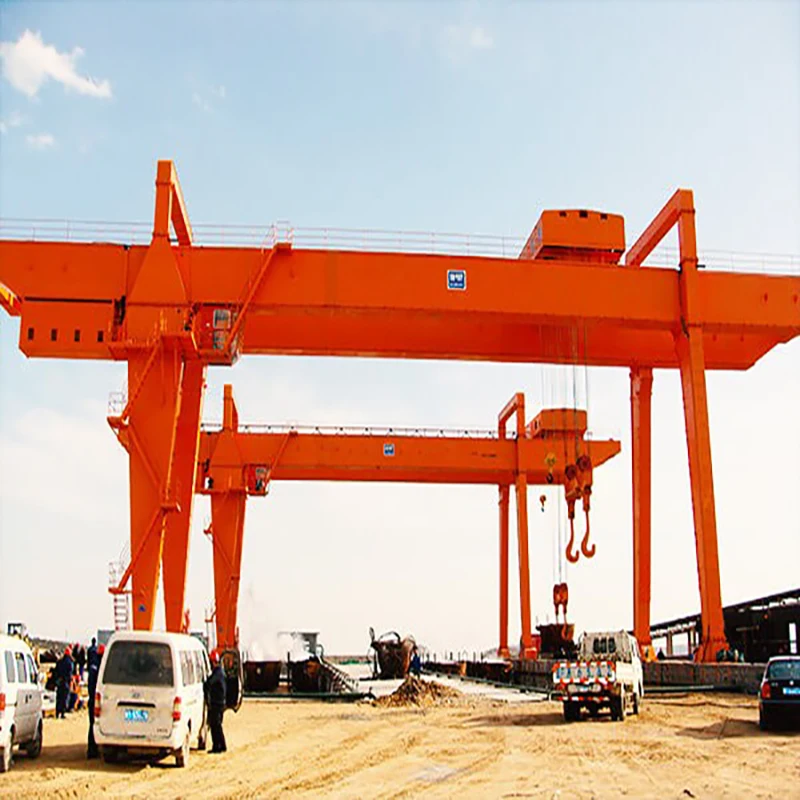

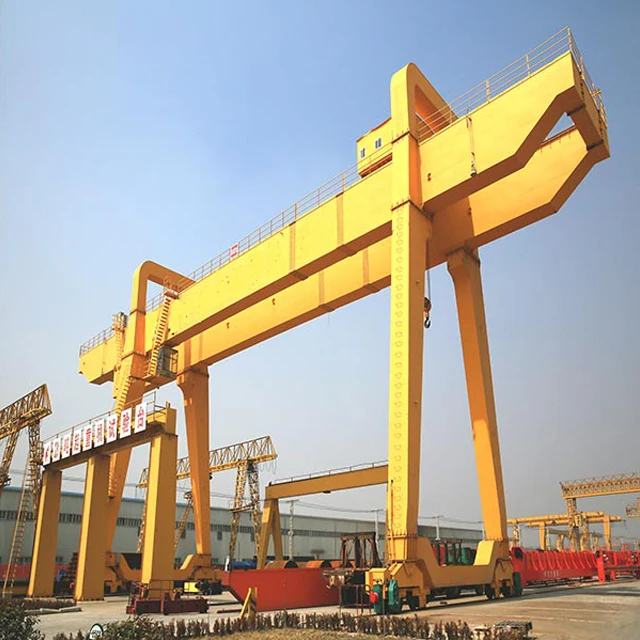

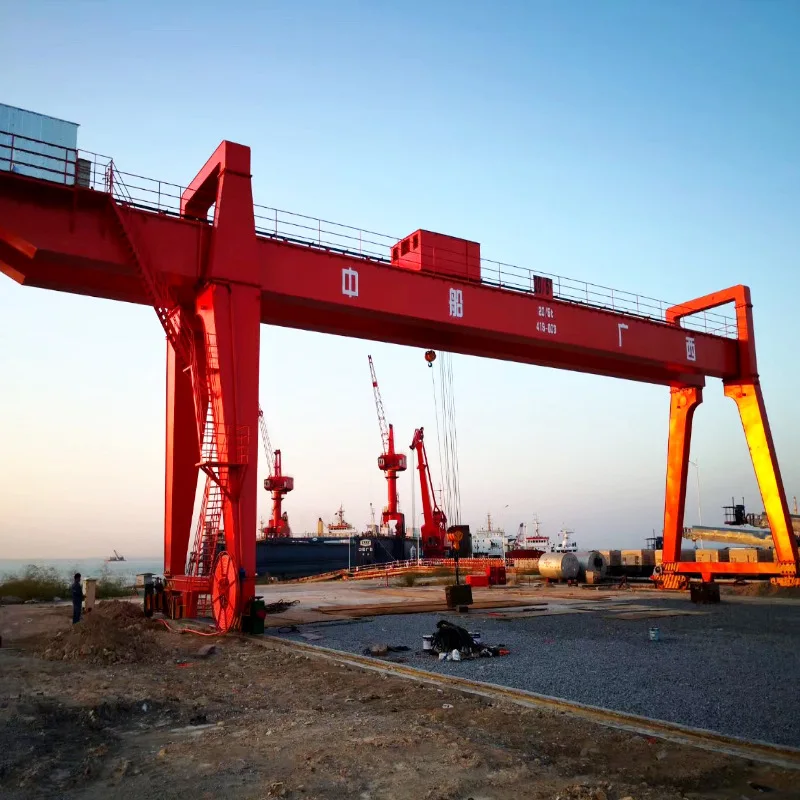

Different Type Of Double Grider Gantry Crane




Exhibition

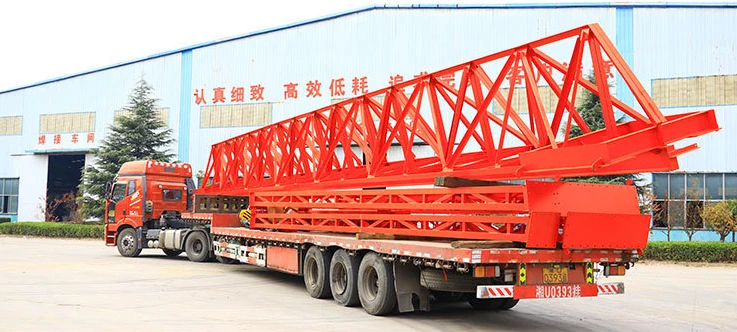

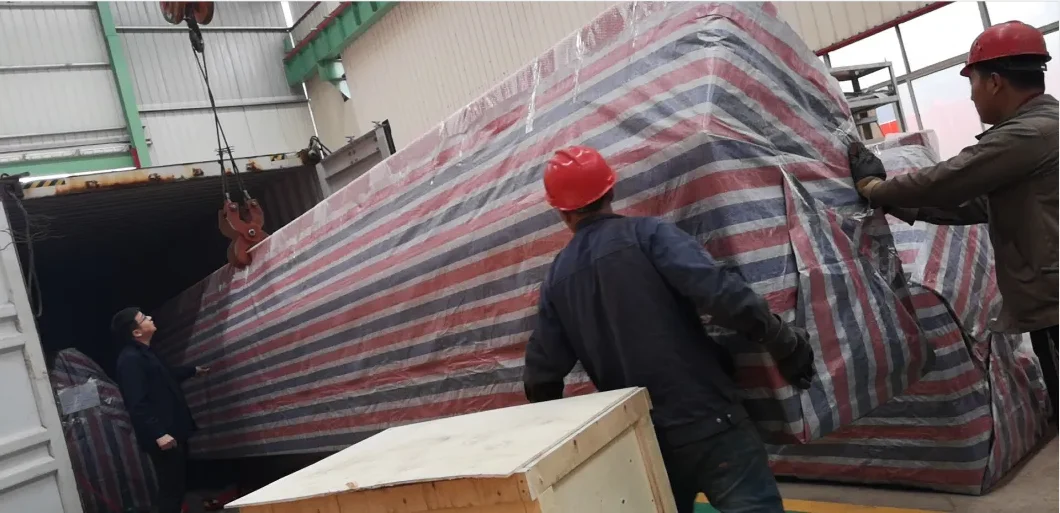

Packing & Delivery

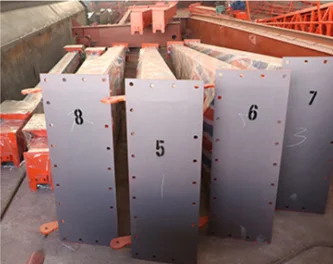

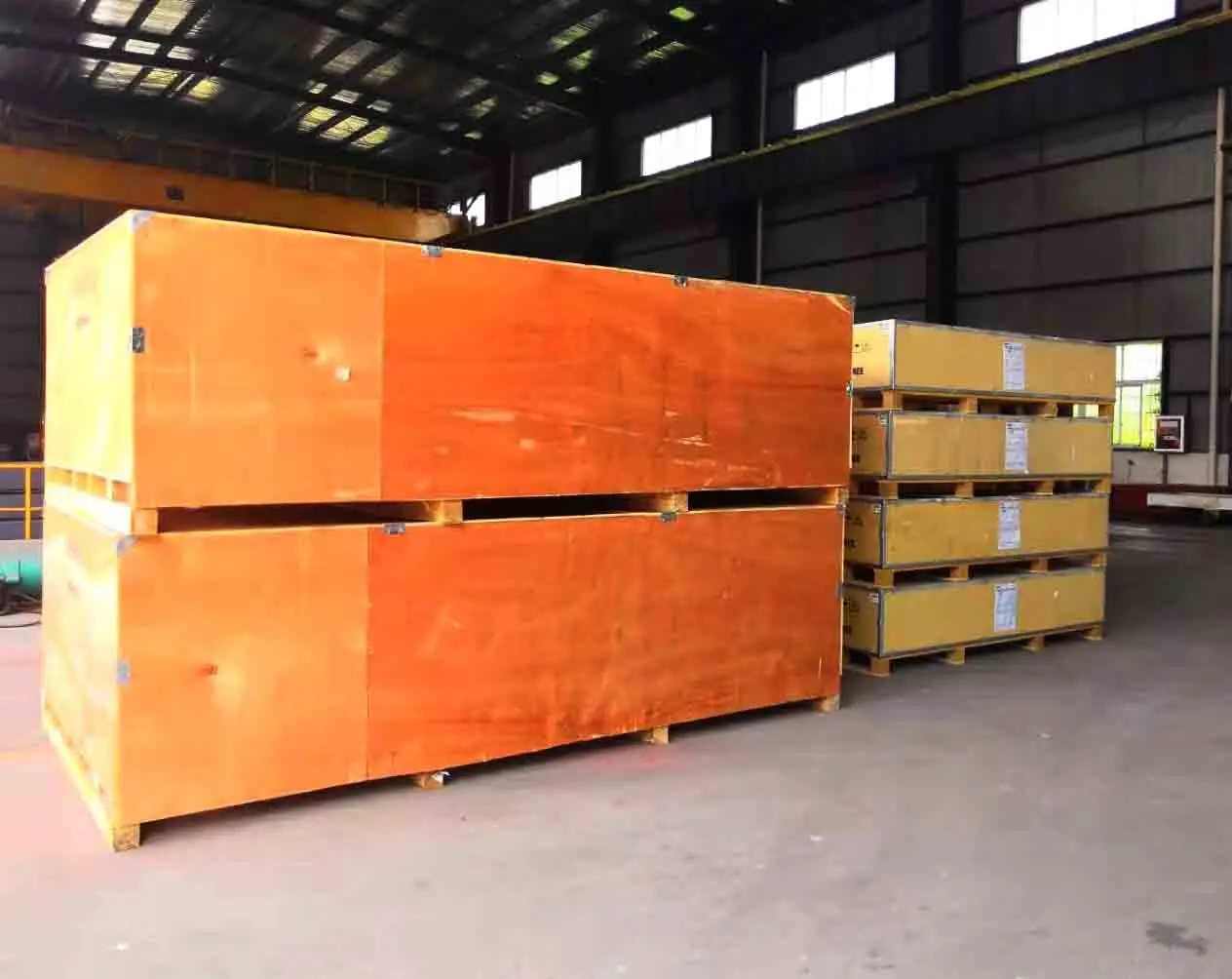

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the
transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.




Company Profile








Zhongye crane (Henan) Co., Ltd. is located in Changyuan City, Henan Province, which is the crane manufacturing base of the People's Republic of China. The base is the largest in the lifting industry, with the highest concentration and the most complete chain. Crane manufacturing center. Zhonghao Company specializes in the import and export of lifting equipment and accessories. As the earliest enterprise to enter this field, Zhongye Company has more than 20 years of industry experience and is a team with comprehensive technology and services and united and enterprising.


FAQ


If you want to inquire about our gantry crane , please confirm with us the details as below.
Then we will quote you a suitable price more quickly

1. Lifting capacity
2. Span ( rail centre to centre )
3. The required lifting height ( from hook to the ground )
4. Crane travelling length
5. What will be lifted by the crane
6. The crane and hoist movement speed (m/min)
7. The rail length and the height.
8. Single speed or double speed for lifting and travelling?
9. Driver cabine control or pendant control?
10. How many hours work per day?
11. Power source: 380V, 50Hz, 3phase or others?
