IP66 GRP взрывозащищенные электрические основная распределительная
- Категории: >>>
- Поставщик: Feice,Explosion,Proof,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Description | Content |
Certification | CCC |
Ex mark | Ex d e ⅡC T6 Gb,Ex d e mb ⅡC T6 Gb,Ex tD A21 IP66 T80℃ |
Intended use | Zone1 and Zone2， Zone21 and Zone22 |
Ambient temperature | -20°C≤Ta≤+40°C |
Degree of protection | IP66 |
Erosion-proof class | WF2 |
Material of enclosure | GRP |
Current | ≤10A |
Input Voltage(V) | 180~264V，50/60Hz |
Place of Origin | Zhejiang, China |
APPLICATIONS:
1、It is widely used in flammable and explosive gas environment such as oil exploitation,refining,chemical industry,offshore oil platform, oil tanker, etc. It is also used in flammable dust places such as military industry, port, grain storage and metal processing;
2、Applicable to Zone 1 and Zone 2 of explosive gas environment;
3、Applicable to IIA, IIB, IIC explosive gas environment;
4、Applicable to areas 21 and 22 of flammable dust environment;
5、Applicable to corrosive gases, moisture, and high protection requirements place;
6、Applicable to the temperature group is T1 ~ T6;
7、Used as command transmission and status monitoring.
2、Applicable to Zone 1 and Zone 2 of explosive gas environment;
3、Applicable to IIA, IIB, IIC explosive gas environment;
4、Applicable to areas 21 and 22 of flammable dust environment;
5、Applicable to corrosive gases, moisture, and high protection requirements place;
6、Applicable to the temperature group is T1 ~ T6;
7、Used as command transmission and status monitoring.
FEATRUES:
1、The outer casing is made of glass fiber unsaturated polyester resin(SMC)with high strength, corrosion resistance and thermal stability.The surface of the product has "Ex" explosion-proof mark.
2、The explosion-proof structure of the increased safety enclosure is equipped with explosion-proof components. It adopts the "building block" type module splicing structure, which is small in size, neat and beautiful, and takes up less space on the installation site;light weight,convenient installation and
2、The explosion-proof structure of the increased safety enclosure is equipped with explosion-proof components. It adopts the "building block" type module splicing structure, which is small in size, neat and beautiful, and takes up less space on the installation site;light weight,convenient installation and
maintenance.

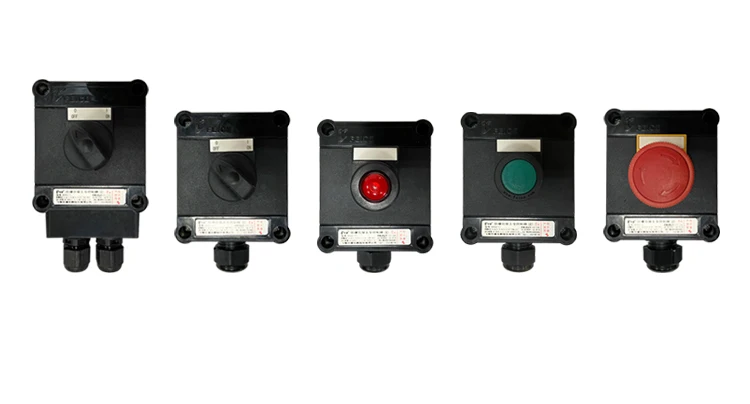

3、The interior can be equipped with special explosion-proof electrical components such as indicators, buttons, meters, switches,etc.according to user requirements.
4、The built-in explosion- proof control button is compact, and the button head has five specifications, such as mushroom type,rubber head type and lock type.
5、The explosion-proof signal lamp is sealed by the light-emitting component and the power supply component. The structure is reasonable and the explosion-proof performance is good.
6、The explosion-proof ammeter can display the overload current value of five times the range. It is also equipped with a red adjustable pointer, which is used to indicate the current value of the normal load. The operator can monitor the operation at any time.
7、The patented protective structure has strong protection ability.and all exposed fasteners of the product are made of stainless steel.
3、The interior can be equipped with special explosion-proof electrical components such as indicators, buttons, meters, switches,etc.according to user requirements.
4、The built-in explosion- proof control button is compact, and the button head has five specifications, such as mushroom type,rubber head type and lock type.
5、The explosion-proof signal lamp is sealed by the light-emitting component and the power supply component. The structure is reasonable and the explosion-proof performance is good.
6、The explosion-proof ammeter can display the overload current value of five times the range. It is also equipped with a red adjustable pointer, which is used to indicate the current value of the normal load. The operator can monitor the operation at any time.
7、The patented protective structure has strong protection ability.and all exposed fasteners of the product are made of stainless steel.
THE COLLECTION OF THIS SERIES:
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Whyshould I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can
provide?
provide?
A3. Yes,we can provide good after-sale and fast delivery.
