Ветеринарный шприцевой

Item

Technical Parameter

Syringe Size

5ml, 10ml, 20ml, 30ml, 50/60ml, auto recogintion

Flow Rate Range

5ml: 0.10ml/h-60.00ml/h

10ml: 0.10ml/h-300.00ml/h

20ml: 0.10ml/h-400.00ml/h

30ml: 0.10ml/h-600.00ml/h

50/60ml: 0.10ml/h-1200.00ml/h

Flow Rate Increment

0.01ml/h

Preset Time

1s-99hr59min59s

Parameter Changed During Injection

Support change of VTBI, flow rate during injection

Accuracy

≤±2%(±1% mechanical accuracy included)

Preset Volume(VTBI)

0.1~9999.99ml & empty

Accumulated Volume

0.00~999.99ml

Purge Rate

5ml: 30-60ml        10ml: 150-300ml     20ml: 200-400ml

30ml: 300-600ml   50/60ml: 600-1200ml

Bolus Rate

5ml: 0.10ml/h-60.00ml/h      10ml: 0.10ml/h-300.00ml/h

20ml: 0.10ml/h-400.00ml/h   30ml: 0.10ml/h-600.00ml/h

50/60ml: 0.10ml/h-1200.00ml/h

KVO

0.10-5.0ml/h adjustable

Occlusion Pressure

8 level adjustable, 20Kpa-140Kpa, dynamically pressure value display.

Alarm

Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error, syringe size error, low battery, battery lost, battery ran out, AC power lost, abnormal injection, communication error.

Syringe Management

Preset 20 syringe brands, can add or edit the brand, accept all brands after calibration.

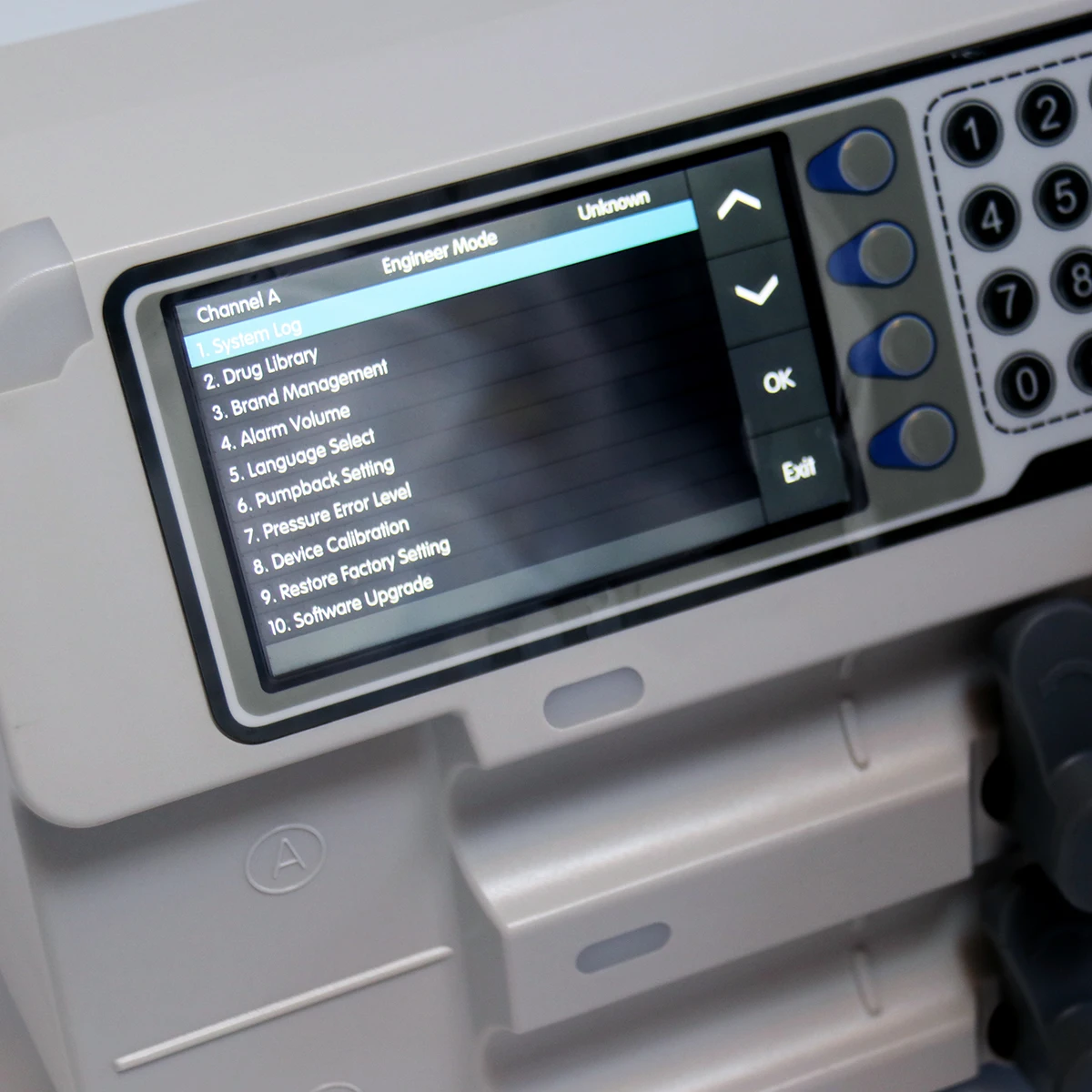

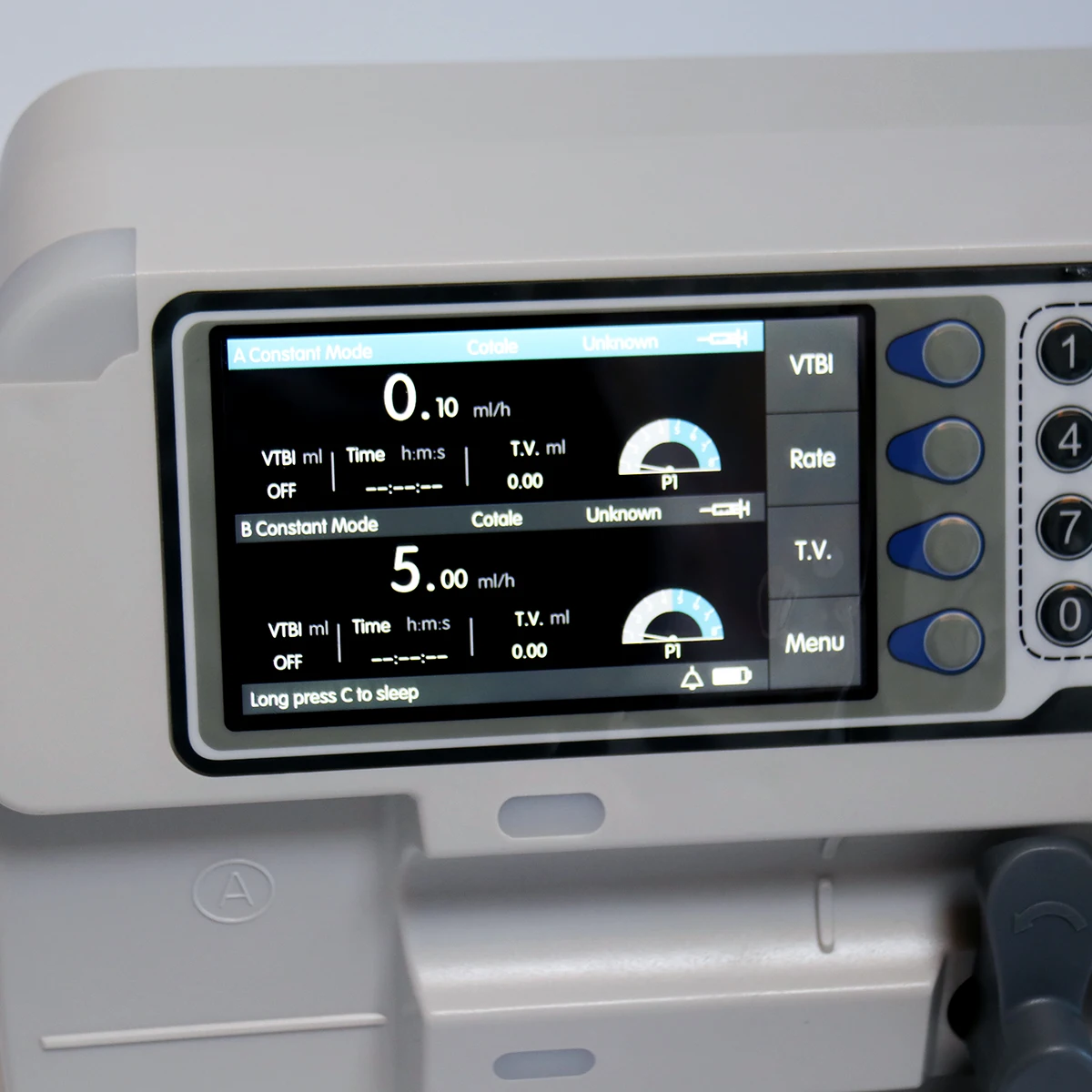

Display

3.5' TFT color LCD, 10 level brightness adjustable.

Power Supply

AC power, AC:100V~240V, 50Hz/60Hz,≤25VA

Communication Port

USB, RJ45 for future use, Ethernet Port

Syringe Size

5ml, 10ml, 20ml, 30ml, 50/60ml, auto recogintion

Battery

Rechargeable Lithium battery, DC11.1V, 3000mAh, operating time: ≥10h@5ml/h

Alarm Voice

Standard Medical Alarm Voice with Mute function, 8 levels adjustable.

Event log

1000 event log, can be transmitted to PC with USB

Software Upgrade

Upgrade the software with USB

Operation Environment

Temperature: +5℃~+40℃, Relative humidity:20%~90%, Atmospheric pressure:70~106Kpa

Classification

Class II, Type CF, IPX4

Dimension

Size: 290mm*150mm*255mm, Weight: 3.5KG

Other Function

Double CPU, Password function, Multi Language, Pressure Release function, 90° rotatable IV pole, 4 soft function key, key lock function, numeric keypad, Pause function etc.

Application

Intravenous injection
