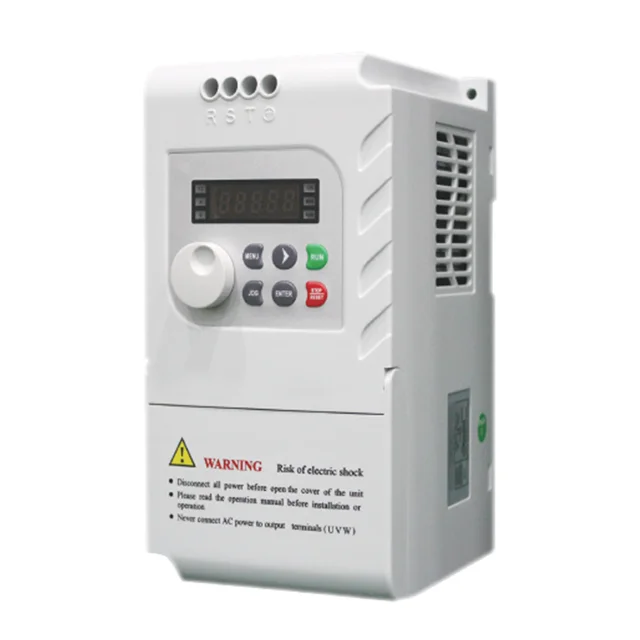

Сиронову M10 0.4to5.5kw RS-485 интерфейс преобразователь частоты тяжелые и легкие ботильоны с двумя видами вертикальной загрузкой

Rated output voltage

0~rated input voltage

Rated output current

According to the model

Output frequency

0.00～600.00Hz

Maximum overload capacity

150% for 1 minute, 200% for 1 second

Rated input voltage

Three-phase/single-phase 220V Three-phase 380V ±10% 50～60Hz±5%

Self-adjusting output voltage

When the AVR function is valid, when the input voltage changes, the output voltage remains basically unchanged

way to control

Open loop vector control (SVC), V/F control, open loop torque control

Speed range

1:100

Output frequency resolution

Digital setting: 0.01Hz; analog setting: maximum frequency value x0.1%

Voltage/frequency characteristics

There are two VF curves to choose from

Torque boost

Automatic torque boost, you can also manually set the low-frequency torque boost

Acceleration and deceleration characteristics

0.1 second ~ 3600 seconds

Frequency setting input

Keyboard, computer, 0~10V, 0~20mA

Input command signal

Operation, forward/reverse rotation, jog, multi-speed, multi-speed acceleration and deceleration time, free stop, step control,
reset, voltage/current signal input switch

Standard function

Automatic fault retry, automatic torque boost, DC braking, restart after instantaneous power failure, frequency upper and lower
limit limits, deviation frequency, frequency gain, carrier frequency adjustment, adjustable acceleration and deceleration mode,
frequency meter and ammeter output, multi-speed, PID control,      RS-485 interface, Modbus communication protocol

Protective function

Overvoltage, undervoltage, phase loss, current, current limit, overheating, electronic thermal overload relay, overvoltage stall,
data protection

External output signal

Fault relay number, 0~10V, 0~20mA voltage and current signal
