Functions of machine
This Automatic Steel wire rebar Stirrup bender use FATEK or Simens control system with touchscreen, could automatically accomplish processing of feeding, straighten, bending and cutting on rebars.
Max bending diameter of rebar is 12mm,widely used in construction industry and rebar manufacturing enterprise;
Automatic Steel wire bar bending machine/iron rebar Stirrup bender
Product Description
Automatic Steel wire bar bending machine/iron rebar Stirrup bender
1, combine with horizontal and vertical straightening wheels, drive by Big 18.1kw Vector brand servo motor, make sure best accuracy when straightening rebar
2, bending spindle could rotating and telescope in high speed, could cut rebars very quick to get high bending precision.
3, large storage capacity can save many processing graphics,
4, FATEK PLC control system, WECON touchscreen, VECTOR servo motor.
5, straightening, measure length, bending, shear at same time, processing in high efficiency.
Automatic Steel wire bar bending machine/iron rebar Stirrup bender
Parameter
TECHNICAL DATA | ||
Production capacity
| Single wire | Φ4 – 12 [mm] |
Double wire | Φ5 – 10 [mm] | |
Max. bending angle | ±180° [double direction] | |
Max. bending speed | 1100 [°/sec] | |
Max. pulling speed | 2000 [mm/sec] | |
Mandrel diameter | Φ25 – Φ32 [mm] | |
Stirrup side length | 70--1800[mm] | |
Length tolerance | ± 1 [mm] | |
Bending tolerance | ± 1° | |
Average air-compressed consumption | 6 [l/min] | |
Average electric power consumption | 6 [Kw/h] | |
Labeled electric power | 32.35 [Kw] | |
Voltage | 380 [v] - 50 [Hz] - 3[phase] | |
Overall machine net weight | 2733 [Kg] | |
Overall dimension(main machine) | 3040× 1400 × 2250 [mm] [L*W*H]
| |
Overall dimension(with package) | 3300*1920*2200[mm] [L*W*H]
| |
Automatic S

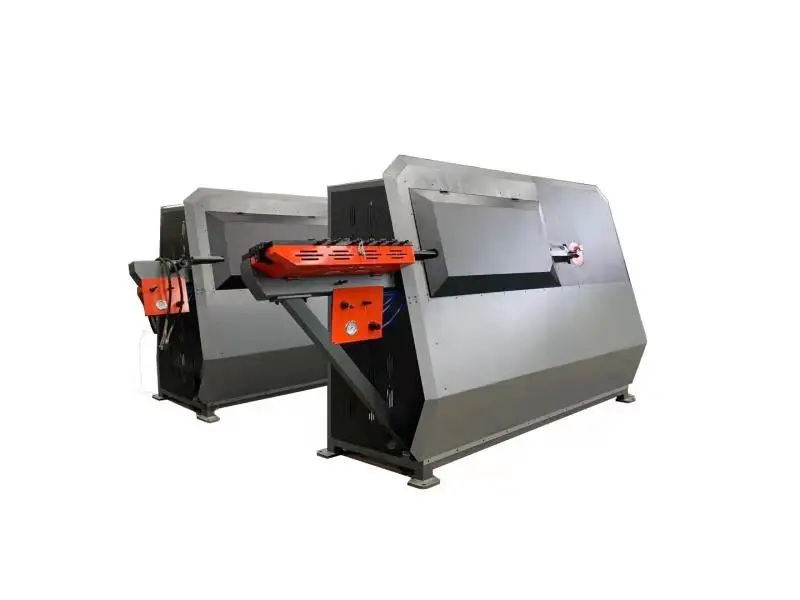

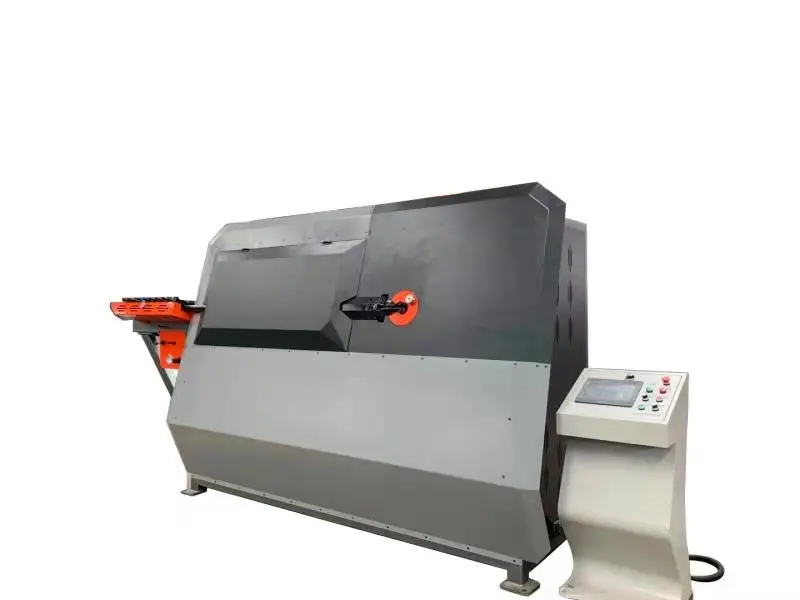

Detailed Drawing
Automatic Steel wire bar bending machine/iron rebar Stirrup bender

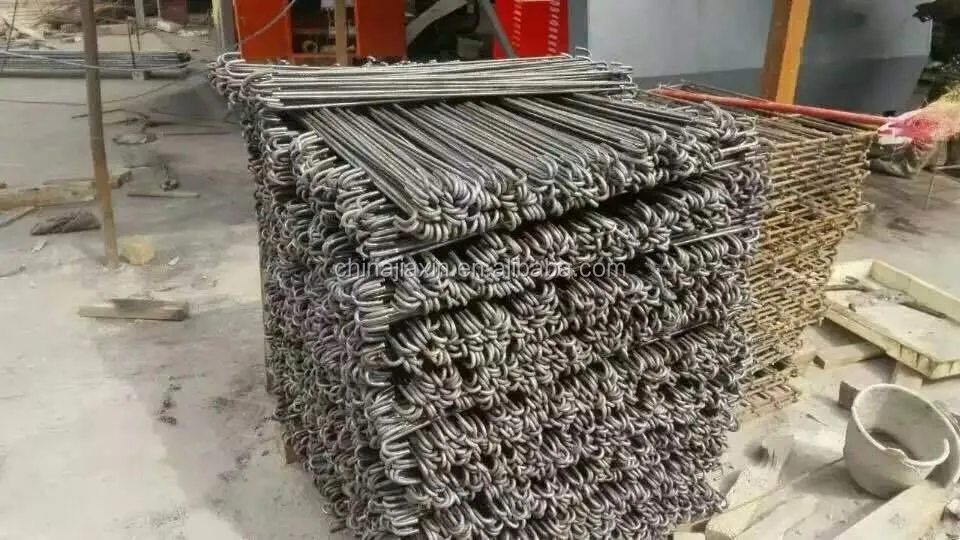

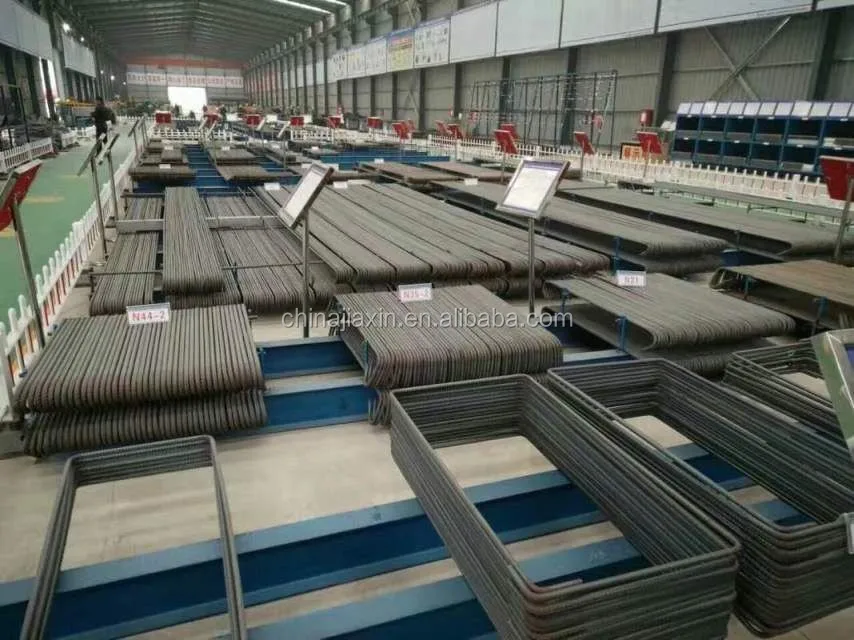

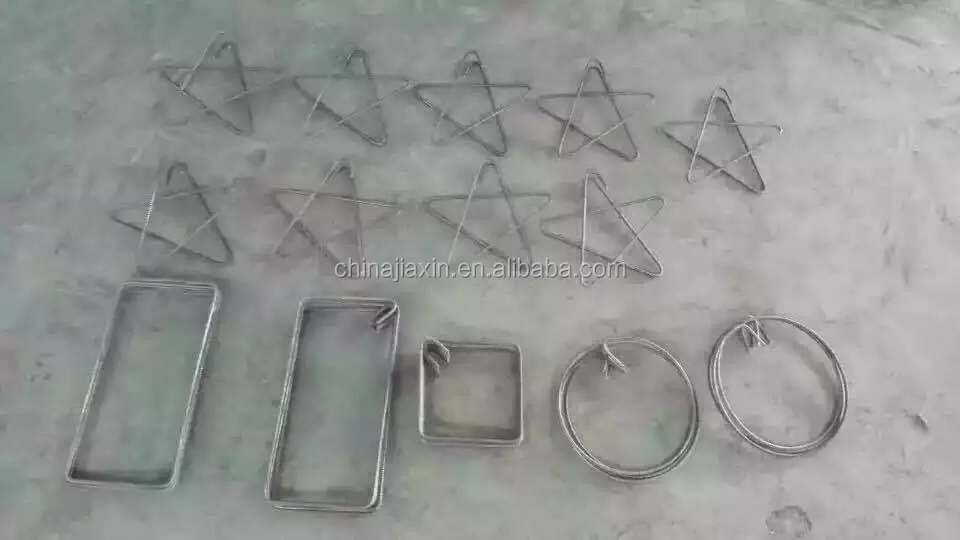

Samples show

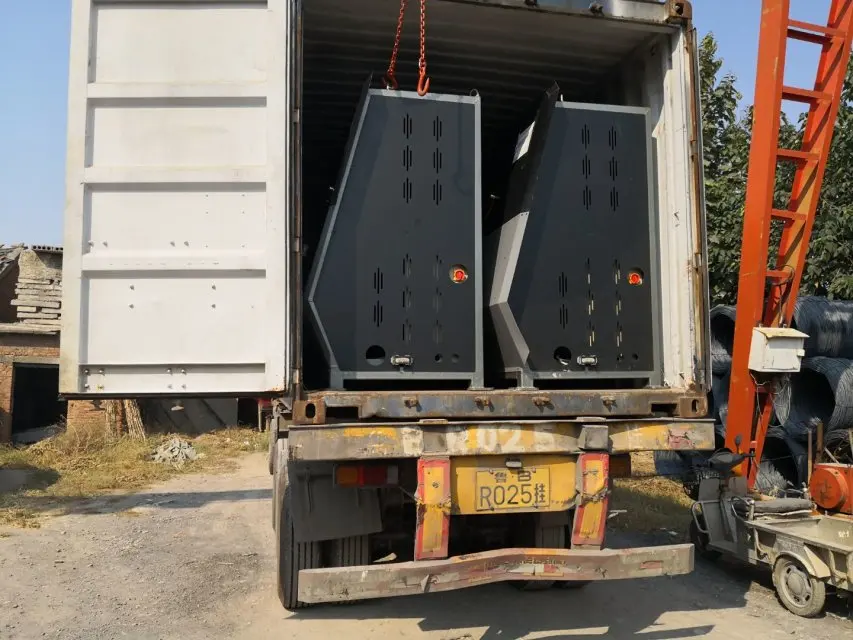

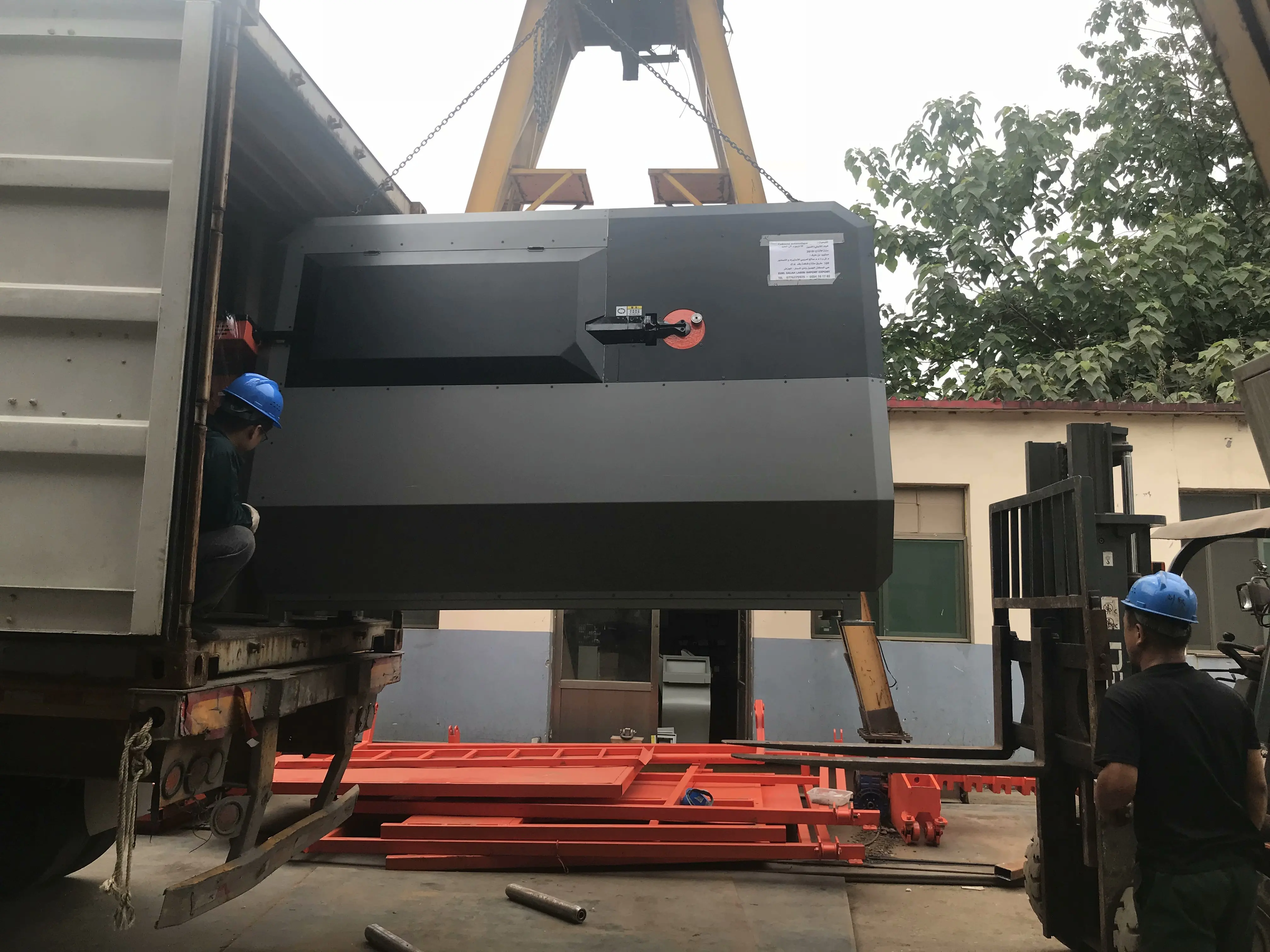

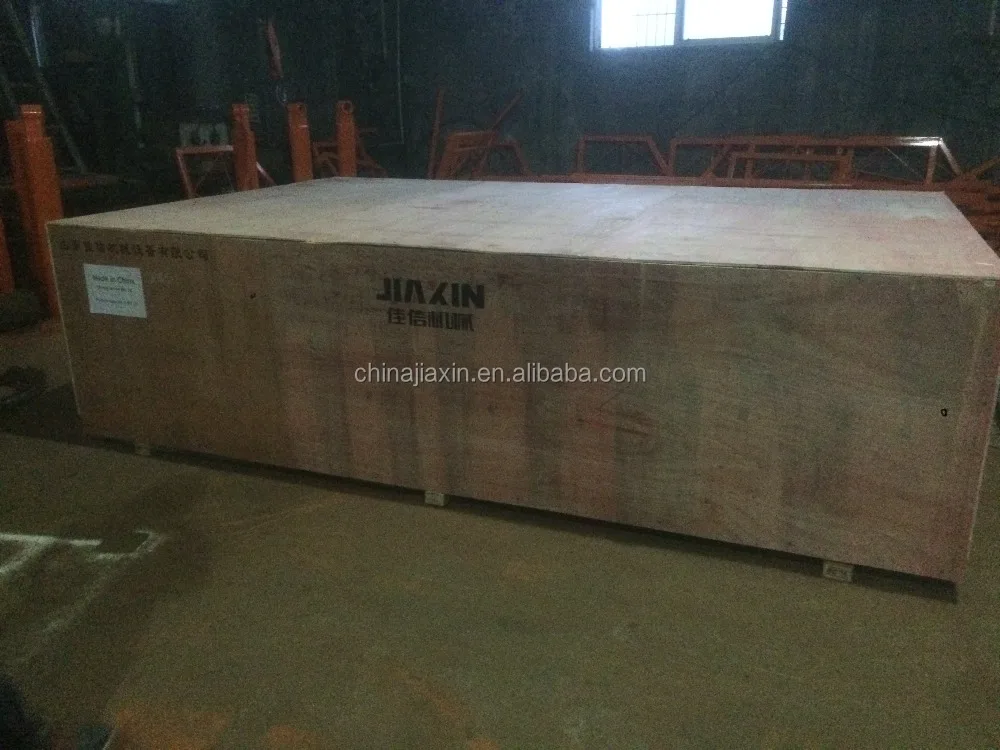

Packaging & Shipping
Automatic Steel wire bar bending machine/iron rebar Stirrup bender

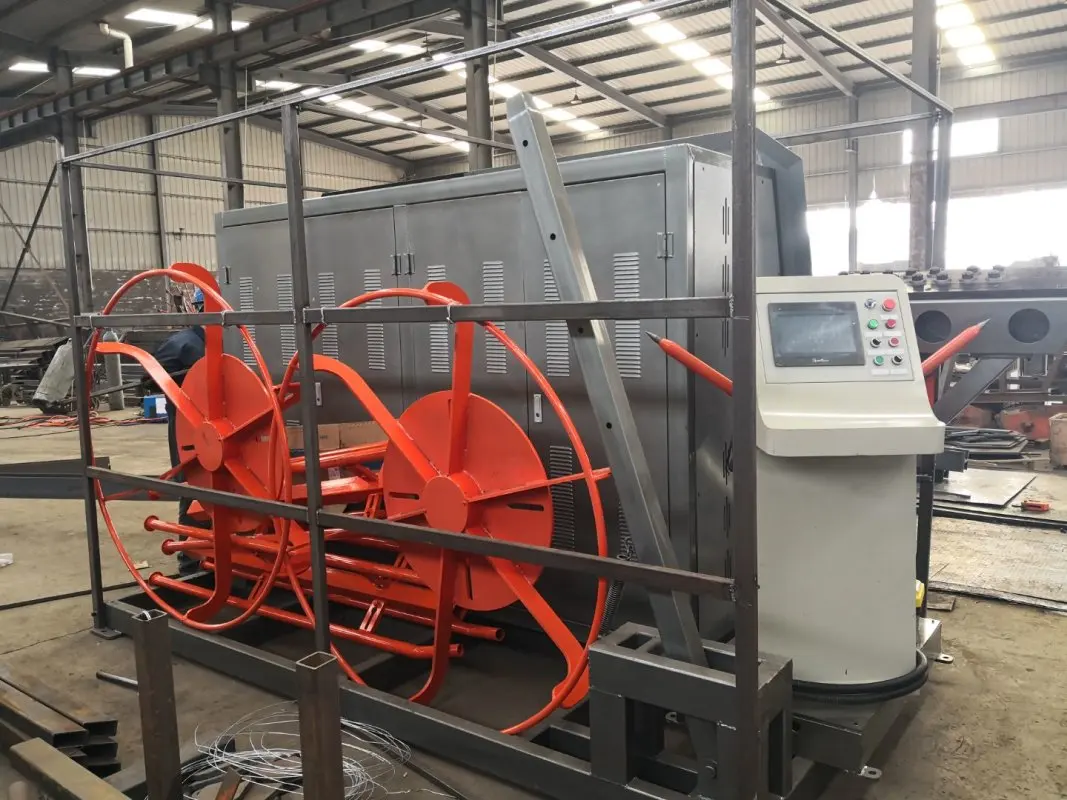

Applications
Automatic Steel wire bar bending machine/iron rebar Stirrup bender
If you want to know more about this bending machine, please leave me a message.
