Insulating glass production line double glazing making machine
Products Description

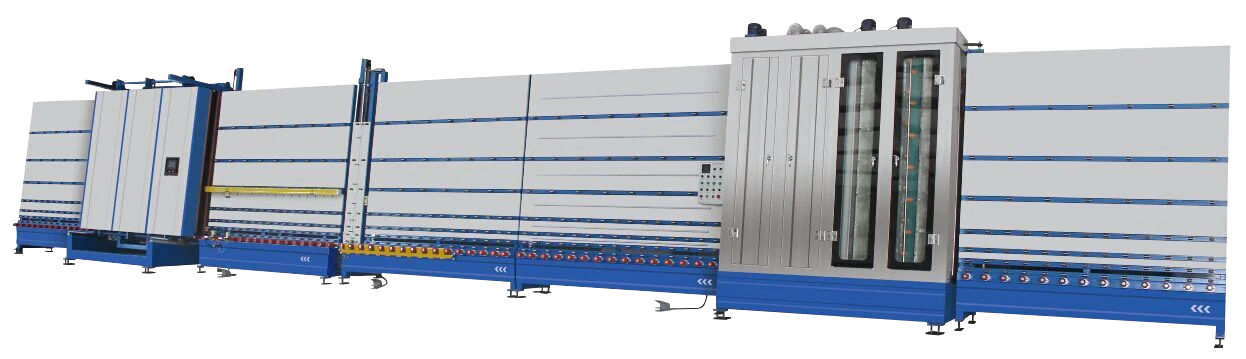

Insulating glass production line is the standard machines for insulating glass producing, which composed of high speed glass cleaning machine and automatic glass assemble machine. And other optional machines available, such as glass cutting machine, glass polishing machine, glass lifter, automatic sealant machine, spacer bending machine, sealant spreading machine, air filling machine etc. Our engineer will help you design and choose required and right facilities as to your actual requirements.
Product Paramenters
Product name | Insulating Glass Production line | |||||
Model | CAIG1825 | CAIG2030 | CAIG2535 | |||
Power supply | 380V 50Hz 3P (or customized) | |||||
Total power | 18KW | 22KW | 27KW | |||
Max glass sheet | 1800x2500mm | 2000x3000mm | 2500×3500mm | |||
Min glass sheet | 300×450mm | |||||
Original glass thickness | 3~19mm | |||||
IG glass sheet thickness | 12-48mm | |||||
Insulation thickness | 6-24mm | |||||
Washing speed | 0-12m/min | |||||
Assemble speed | 8-48m/min | |||||
Dimension (L×W×H) | 16000x2500x2680 | 19000x2500x2880 | 22000×2500×3380 | |||
Net weight | 6200kg | 7200kg | 8000kg | |||
Note: various model with other processing scale customized available. | ||||||

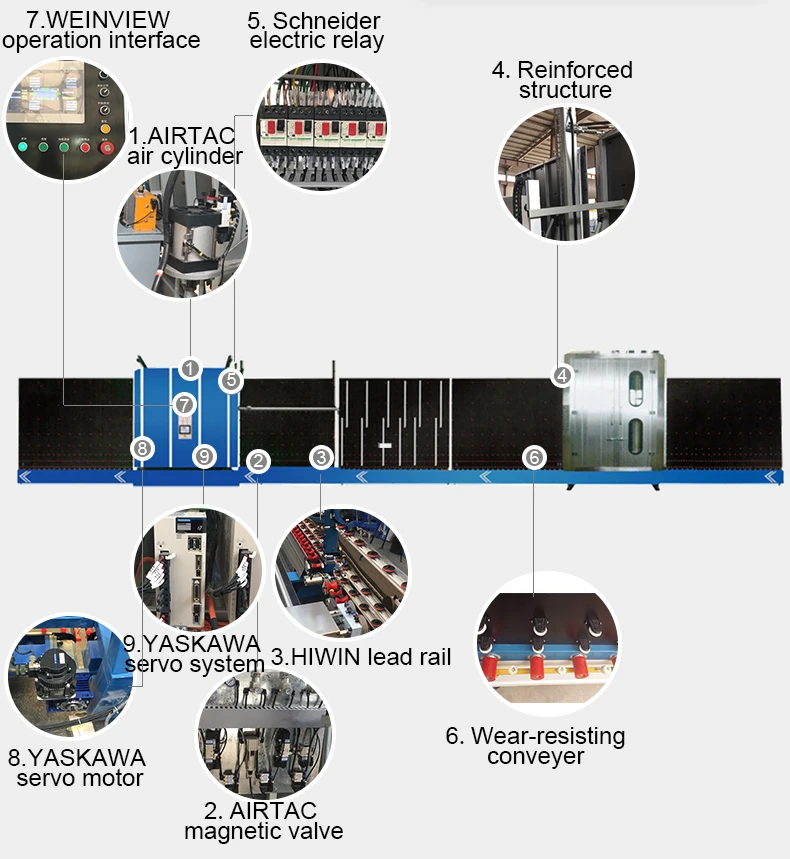

Details Images
Product Features
1,Europe design concept, easy and intelligent operation;
2,World famous brands of key components, ensure stable operation and long service life;
3,Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4,Large glass processing scale, various models and customization available;
5,Big output capacity, 1,000pcs output in one working day;
6,Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;
7,Automatic argon air gas filling while glass sheet assembling process;
8,PLC controlling system, touching screen operation;
2,World famous brands of key components, ensure stable operation and long service life;
3,Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4,Large glass processing scale, various models and customization available;
5,Big output capacity, 1,000pcs output in one working day;
6,Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;
7,Automatic argon air gas filling while glass sheet assembling process;
8,PLC controlling system, touching screen operation;
Product packaging
payment method

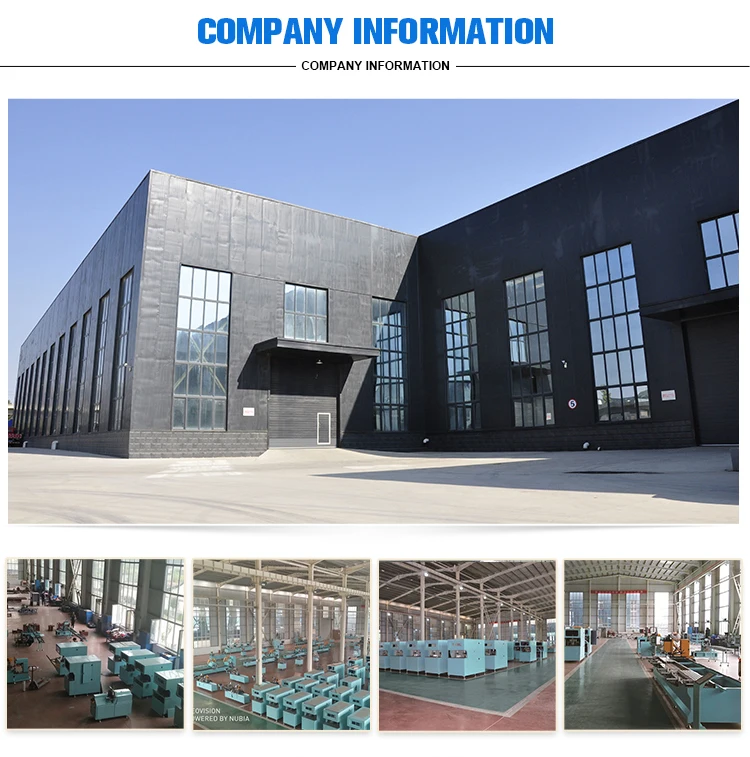

Company Profile
Customer Photos
