Product Description

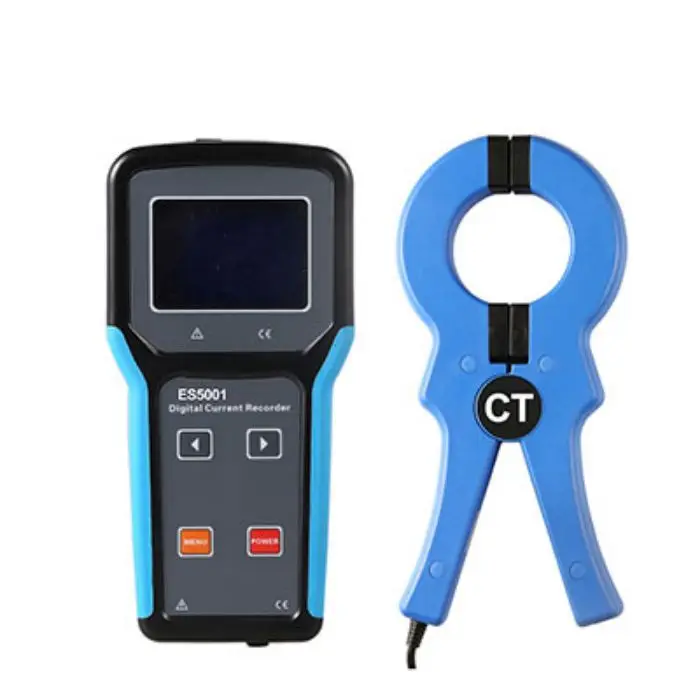

ES5001 high-precision clamp ammeter is also known as current recorder, clamp current recorder, SD card current recorder, etc. It’s meticulous design is mainly to facilitate the monitoring and recording of the current status of the high-precision measurement field. High-capacity TF card storage ensures high-precision, high stability, and high reliability without interruption，composed of host, current clamp, communication line, current monitoring software, memory card, etc. It is widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields.
ES5001 high-precision clamp-shaped ammeter has functions such as real-time clock, large-screen display, and USB data export, making it easy to use. At the same time, it has a large storage space of TF card, can store 9999 sets of data, and has an automatic storage interval setting function, which is set from 1 to 60 minutes.
ES5001 high-precision clamp ammeter monitoring software has online real-time monitoring and history query function, with historical data reading, review, save, analysis, processing, sorting, reporting, printing and other functions.


Main Feature

1、High precision ---- resolution 0.1mA、 accuracy 0.5%
2、Powerful recording function ---- 4G SD card 、 9999 groups data storage
3、Clock function
4、Large capacity rechargeable battery
5、Separate design readings are convenient


Technical Data


Range
0.0mA-1000A
Jaw size
Φ50mm
Resolution
0.1mA
Accuracy
±0.5%FS
Function
AC current measurement record, online monitoring record, line maintenance, fault finding
Power
DC6V Nickel-metal hydride rechargeable battery 1.2V×5
Test method
Clamp CT, mean current detection
Display mode
LCD：128dots×64dots
Frequency
50/60Hz
Host size
W/H/T: 100mm×204mm×35mm
Current clamp size
W/H/T: 101mm×214mm×27mm
Weight
Host：409g（including battery） charger：83.5g
Current clamp：260g
LCD size
Display area：62mm×44mm
Sampling rate
2 times/sec
Storage medium
TF card
Data storage
9999 groups（Losing power or replacing the battery will not lose data）
time settings
Set the recording interval within 1 to 60 minutes, 0 minutes means not automatically stored
Record time
Continuous operation for 2 days in power saving mode
Real-time clock
Have
Clock setting function
Have
Data interface
Standard protocol, USB transmission
Line voltage
Line test below AC600V
Overflow display
Over-range overflow function: "OL" symbol display
battery voltage
When the battery voltage drops to 5.2V, the battery voltage is low and the symbol is displayed, reminding you to charge. The
measured data is also accurate.
rated power
15mA in power saving mode, up to 25mA
Lead length
Standard 2 meters
Working temperature and humidity
-10℃～40℃；below 80%rh
Storage temperature and humidity
-10℃～60℃；below 70%rh
Insulation resistance
20MΩ or more,1000V
Suitable for Safety Regulations
IEC1010-1、IEC1010-2-032、 pollution grade 2、CAT Ⅲ(600V) IEC61326(EMC standard)

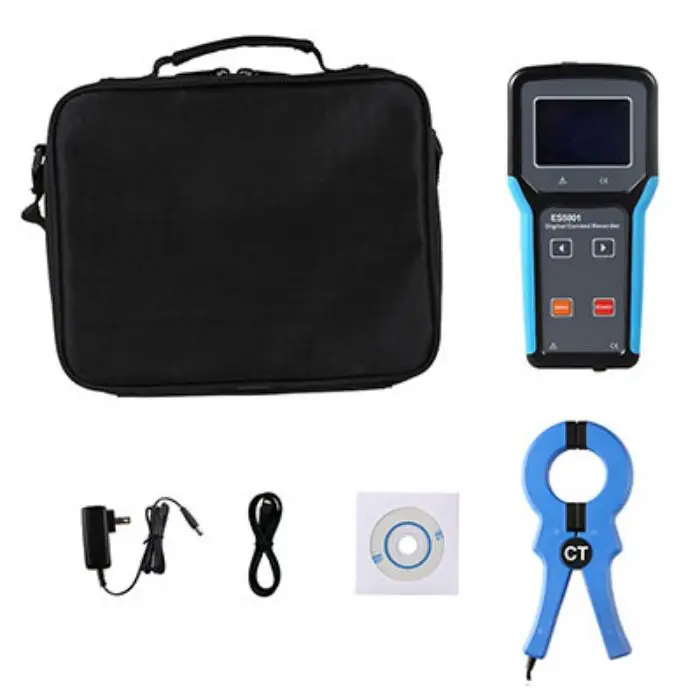

Standard Kit Includes


Recorder host
1PC
Current clamp
1PC
USB communication line
1PC
2G TF card
1PC
Monitoring Software CD
1PC
Instrument box
1PC
Nickel-metal hydride rechargeable battery 1.2V
5 Section
charger
1PC
Manual, certificate
1SET


FAQ


If you want to know more details, welcome to contact us.
Lin Gao
Zibo Senyuan Electric Co., Ltd.
Email:senyuan@zbsywm.com
Mobile/WhatsApp: ( 0086) 13869301972


Q: Is there an OEM service?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.


Q: Which payment methods are supported?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.


Q: Do you support after sales service?
A: Most products we provide warranty of 12months, some with the longer warranty of 24months.
