ZR042 90 градусов коническая Планетарная коробка передач низкая обратная связь Высокая точность компактная структура редуктор с одним выходом
- Категории: >>>
- Поставщик: Taiqi,Electromechanical,Equipment,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview
Model | PAB042, PAB060, PAB090, PAB115 PAB142, PAB180, PAB200 |
Ratio | 1:3 ~ 1:100 |
Backlash | 1arcmin ~ 9arcmin |
Matching motor | Stepper motor, servo motor, BLDC motor |
Efficiency | 94%~97% |
MOQ | 1pc |
Our PAB is the ideal combination of precision planetary gearbox and efficient bearing technology. Its beautiful appearance and compact structure will make you want to learn more about it. PAB planetary reducer has been developed specially for delivering the maximum performance at high speeds. The innovative helical teeth safeguard low-noise operations and provide homogeneous synchronism with high efficiency. This high precision planetary gearbox minimizes vibrations, and therefore increases the quality of your workpiece surfaces even under the highest bearing loads. The perfectly sealed with lift time lubrication and any mounting direction makes PAB planetary gearbox rotate more smoothly and been operated more conveniently.
There are three kinds of output shaft for PAB planetary gearbox: solid output shaft with no keyway, output shaft with keyway and hole output. The diversity of output types make PAB planetary reducer suitable for a wide range of drive solutions
The square input flange of PAB planetary gearbox makes it connect fast with the motor output shaft and shortening the positioning time of starting and stopping,this will increase your application flexibility.
As a professional planetary gearbox manufacturer, we offer OEM and dimension customized service, so our planetary gearboxes can match with any brands of servo motors, stepper motors and brushless DC motors and are indentical with the planetary gearboxes of competitors.
There are three kinds of output shaft for PAB planetary gearbox: solid output shaft with no keyway, output shaft with keyway and hole output. The diversity of output types make PAB planetary reducer suitable for a wide range of drive solutions
The square input flange of PAB planetary gearbox makes it connect fast with the motor output shaft and shortening the positioning time of starting and stopping,this will increase your application flexibility.
As a professional planetary gearbox manufacturer, we offer OEM and dimension customized service, so our planetary gearboxes can match with any brands of servo motors, stepper motors and brushless DC motors and are indentical with the planetary gearboxes of competitors.
Model Selection
Technical Parameters

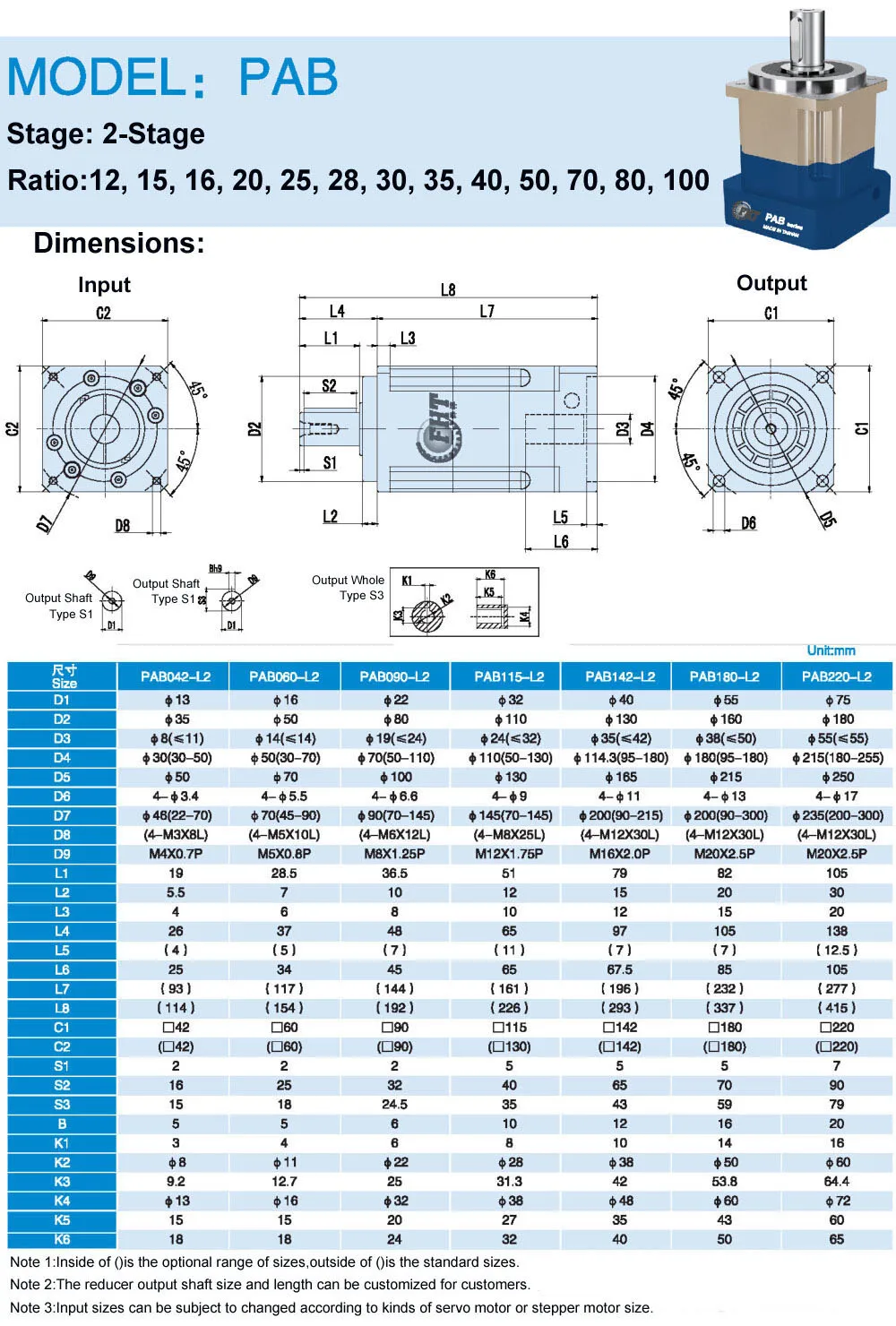

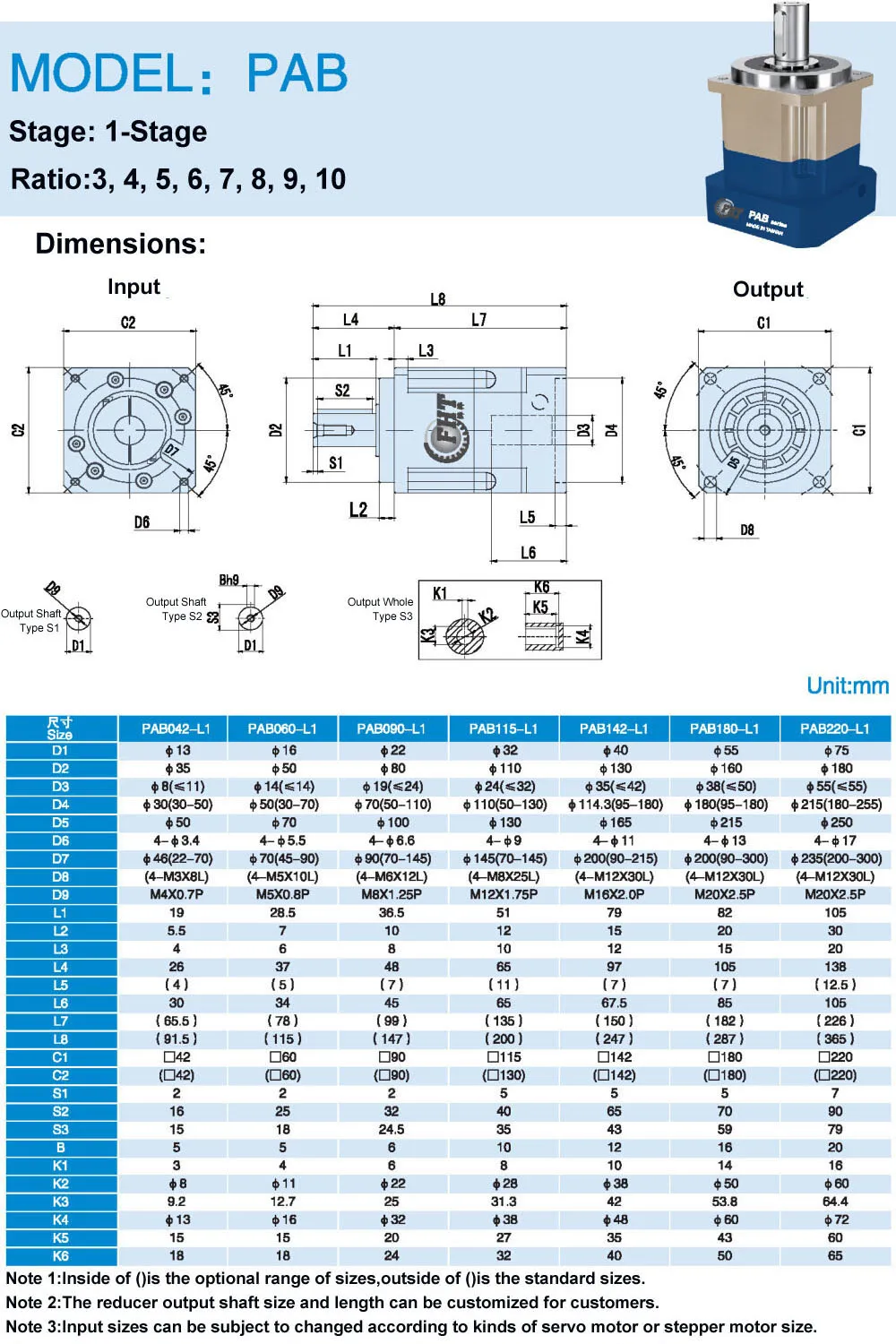

Dimensions
Real Figures
SIMILAR PRODUCTS
Why Choose Us
Our Services & Strength
1. Economical alternatives of German Alpha, Neugart, Japan Shimpo, Harmonic Drive, Taiwan Apex, etc.
2. Delivery time could be negotiated if you are urgent.
3. OEM service is acceptable.
4. Comprehensive after-sales service and free technical support.
5. High quality at reasonable prices.
1. Economical alternatives of German Alpha, Neugart, Japan Shimpo, Harmonic Drive, Taiwan Apex, etc.
2. Delivery time could be negotiated if you are urgent.
3. OEM service is acceptable.
4. Comprehensive after-sales service and free technical support.
5. High quality at reasonable prices.
EXHIBITION
