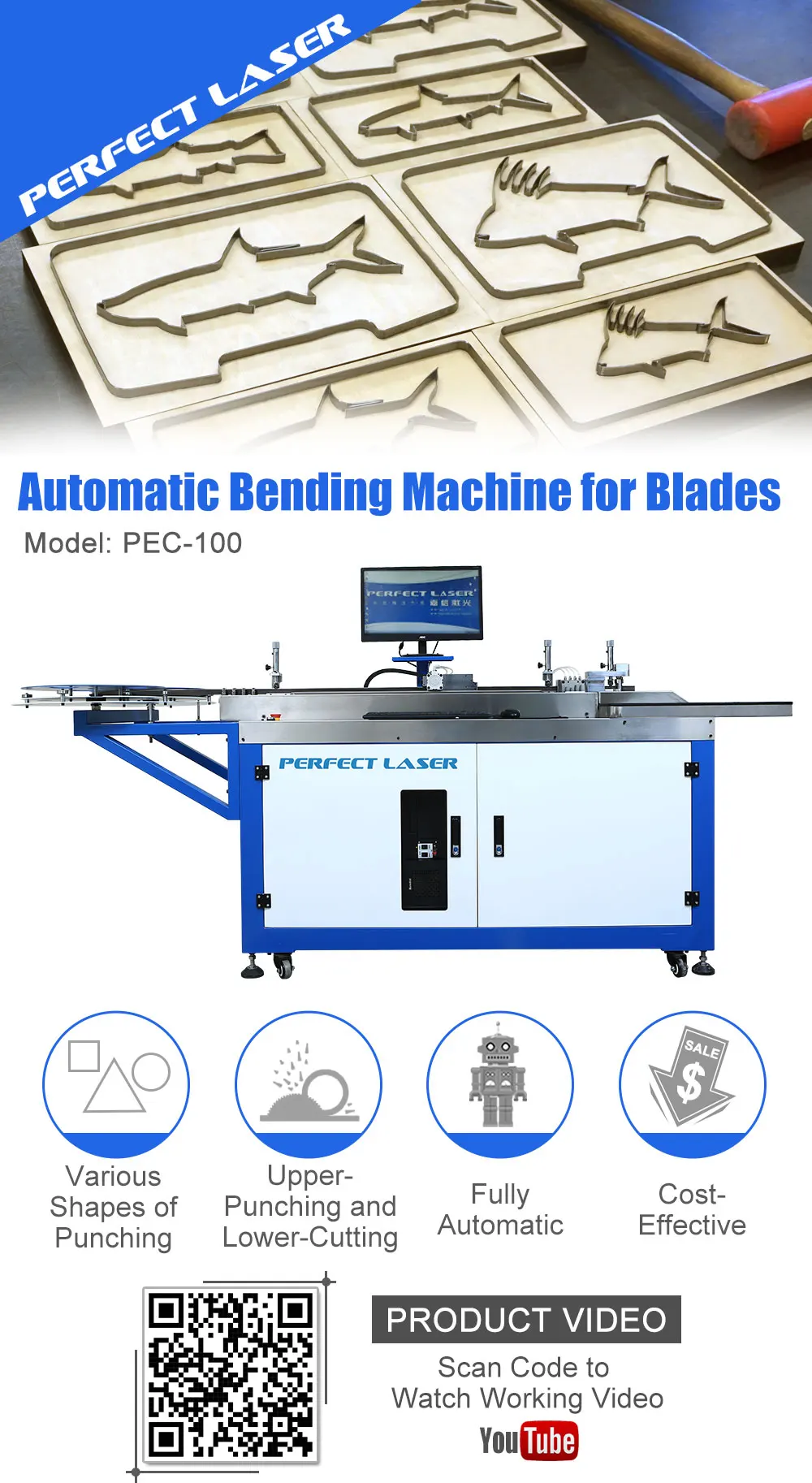

Perfect Laser Auto Steel Rule Blade Bender Machine For Blister Dies
(Model: PEC-100)
Contact: Cindy Yu Skype: perfectlaser010 wechat/whatsapp: +86 136 5989 7768
Product Description
The PEC-100 blade auto bender machine for blades works with die board cutting machine, for bending the blade embedded in the die board.
This blade auto bender machine mainly consists of a feeding shaft, a bending shaft and a cutting shaft.
The feeding shaft feeds the blade forward and backward where the bending shaft then bends the blade clockwise or counterclockwise, lastly the cutting shaft punches out the blade in shape of bridge, straight cut, eagle mouth or blade cut. This whole process is controlled by a computer.
The launching of blade auto bender machine has made significant contributions to the printing, packaging, food, cartons, stickers and many other industries.
This blade auto bender machine mainly consists of a feeding shaft, a bending shaft and a cutting shaft.
The feeding shaft feeds the blade forward and backward where the bending shaft then bends the blade clockwise or counterclockwise, lastly the cutting shaft punches out the blade in shape of bridge, straight cut, eagle mouth or blade cut. This whole process is controlled by a computer.
The launching of blade auto bender machine has made significant contributions to the printing, packaging, food, cartons, stickers and many other industries.
blade auto bender machine Product Feature:
1. Unique professional design helps achieve powerful bending editing functions. A variety of operations such as bending, bridge and eagle mouth can be finished on only one automatic bending machine for blades, which greatly reduces labor costs and improves working efficiency.
2. The auto blade bending machine adopts one-time cutting after bending. The scissor is made of HSS, which improves the cutting speed and accuracy. Precision eagle mouth cutting function can achieve seamless operation.
3. The steel rule auto bender won’t curl the edge of the blade for its processing method of upper-punching and lower-cutting, which overcomes the shortcomings of traditional only one-knife cutting that cannot be applied to the sticker industry due to the edge curling.
4. This automatic bending machine for blades is equipped with two blade plates, which makes it easier to place two different specifications of blades.
5. This auto blade bending machine adopts Japan’s high-performance servo motor and imported mold-steel bending mold with fast speed and high precision, which is suitable for making complex graphics, such as: meticulous box mold, cartoon mold and doll mold.
1. Unique professional design helps achieve powerful bending editing functions. A variety of operations such as bending, bridge and eagle mouth can be finished on only one automatic bending machine for blades, which greatly reduces labor costs and improves working efficiency.
2. The auto blade bending machine adopts one-time cutting after bending. The scissor is made of HSS, which improves the cutting speed and accuracy. Precision eagle mouth cutting function can achieve seamless operation.
3. The steel rule auto bender won’t curl the edge of the blade for its processing method of upper-punching and lower-cutting, which overcomes the shortcomings of traditional only one-knife cutting that cannot be applied to the sticker industry due to the edge curling.
4. This automatic bending machine for blades is equipped with two blade plates, which makes it easier to place two different specifications of blades.
5. This auto blade bending machine adopts Japan’s high-performance servo motor and imported mold-steel bending mold with fast speed and high precision, which is suitable for making complex graphics, such as: meticulous box mold, cartoon mold and doll mold.
Technical Data
Name | blade auto bender machine |
Model | PEC-100 |
Maximum Bending Angle | 110° |
Feeding Accuracy | 0.3mm |
Motor | Japan imported servo motor, 400W x 2 pcs Bridae -750W×1 pc |
Rail Screw | Famous TPI brand (Made in Taiwan) |
Blade Size | Thickness :0.71mm/ 1 07mm (0.45mm 7 0.53mm optional) Height 23.8mm (conventional) can up to 30mm |
Air Compressor Pressure | 0.5-0.8MPA |
Total Power | 15kw |
Voltage | AC220V Single Phase |
Z-axis travel | 120mm |
Volume | 4.6*2.3*1.8m |
Power | 1.5KW |
Dimension | 2800x730x1310mm |
Related Products
Detailed Images

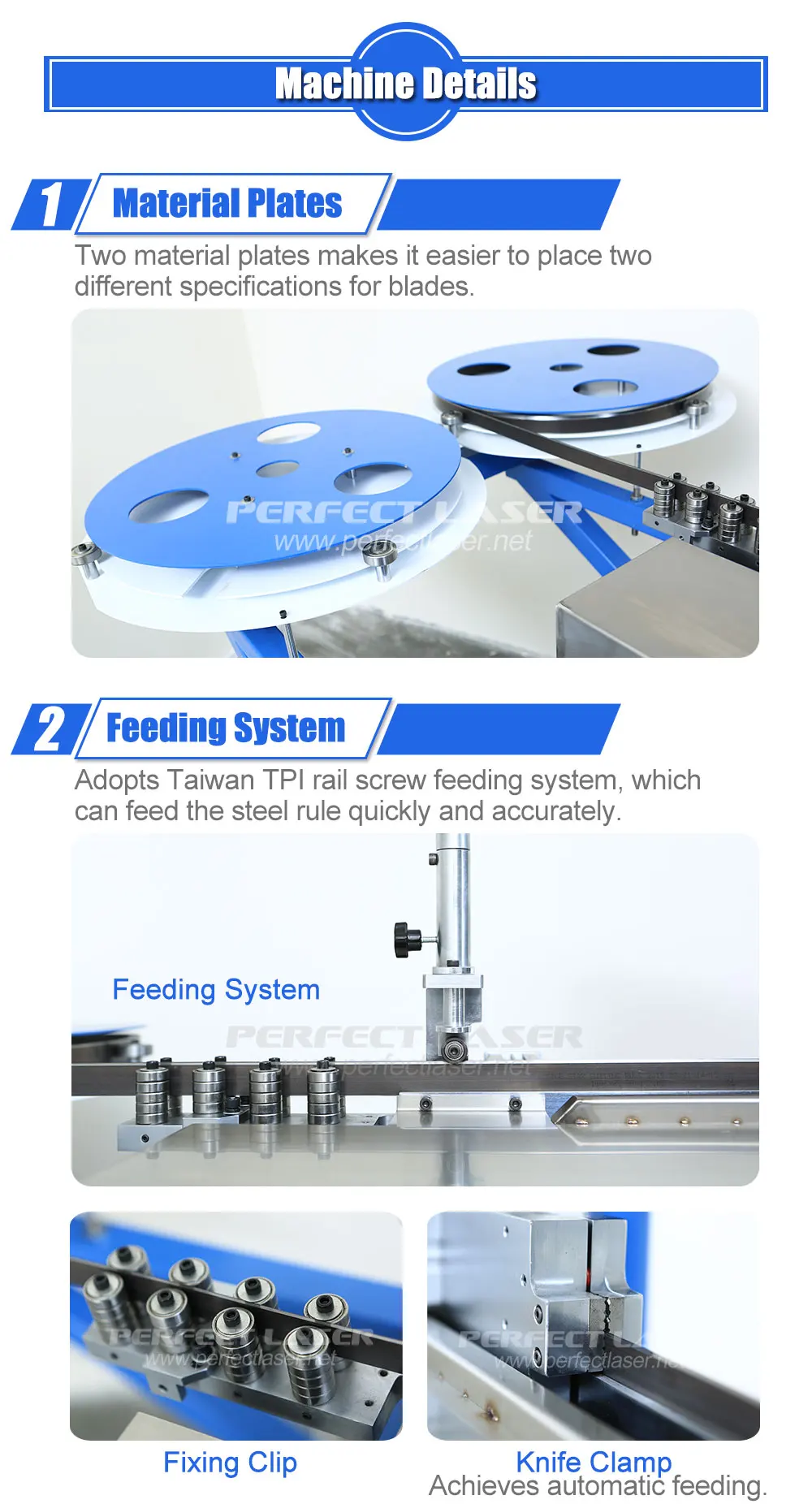

1,Material Plates
2,Feedign System

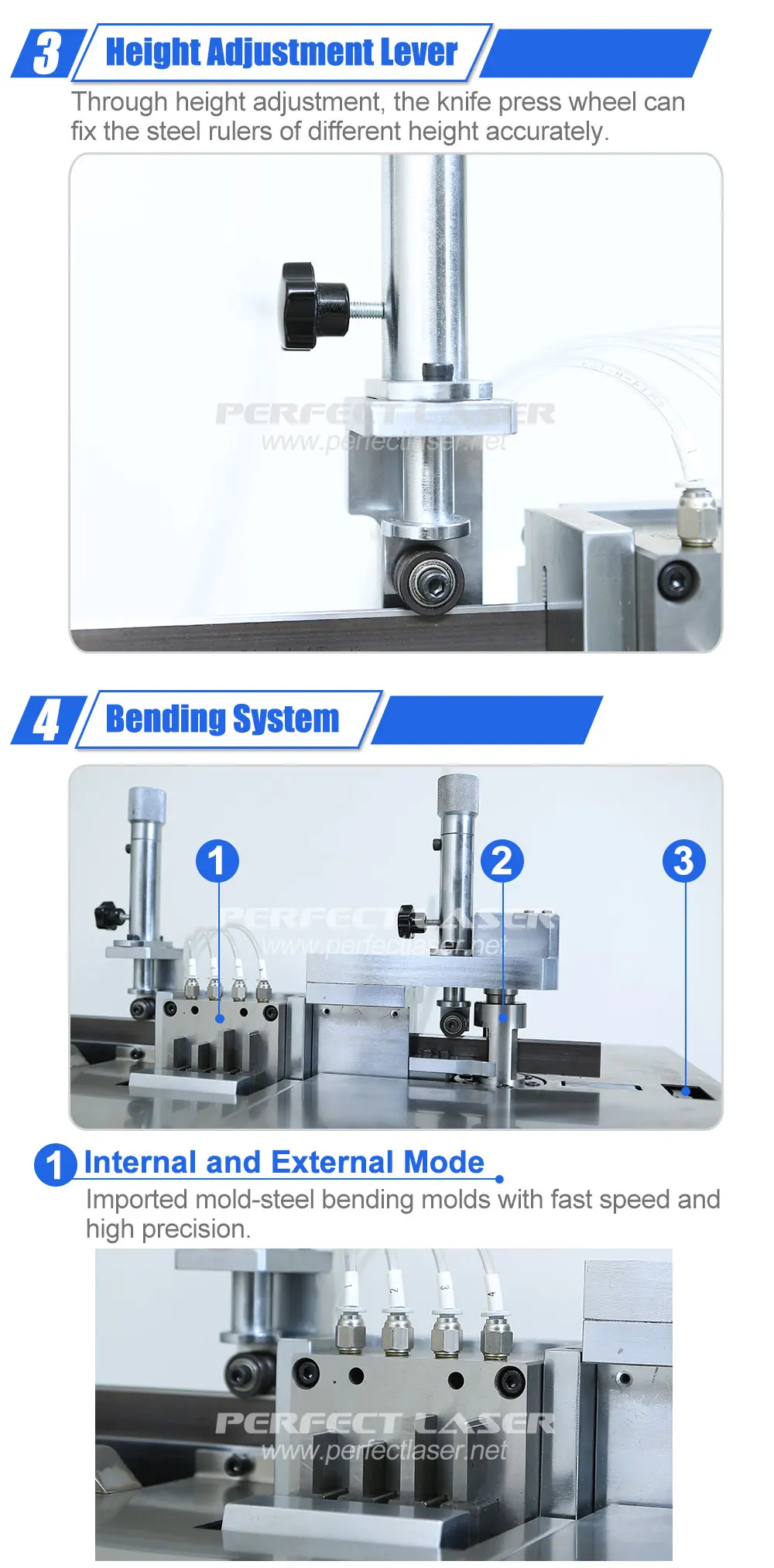

3,Height Adjustment Lever

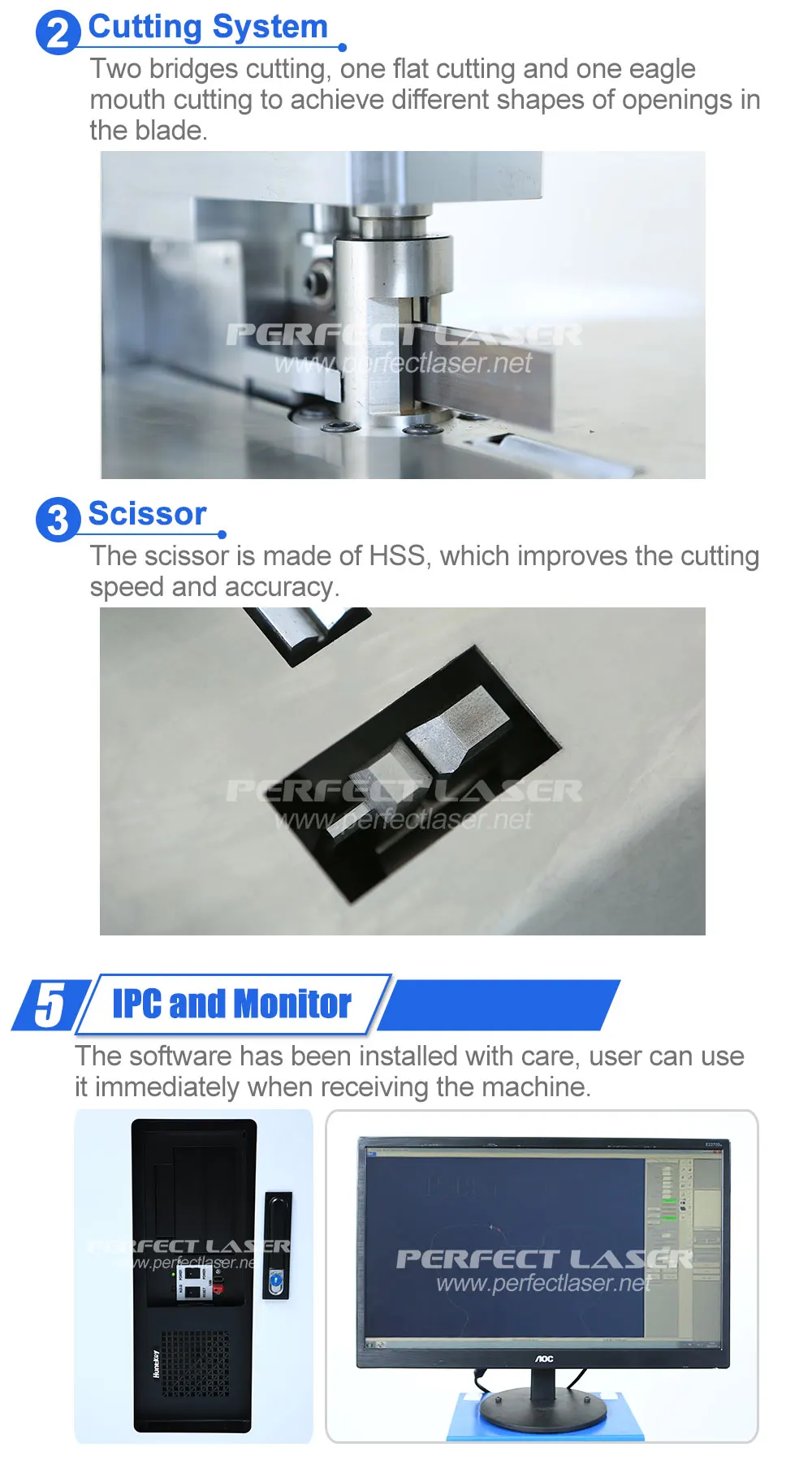

4,Bending System ( Internal and External Mode + cutting system + Scissor )
5,IPC and Monitor

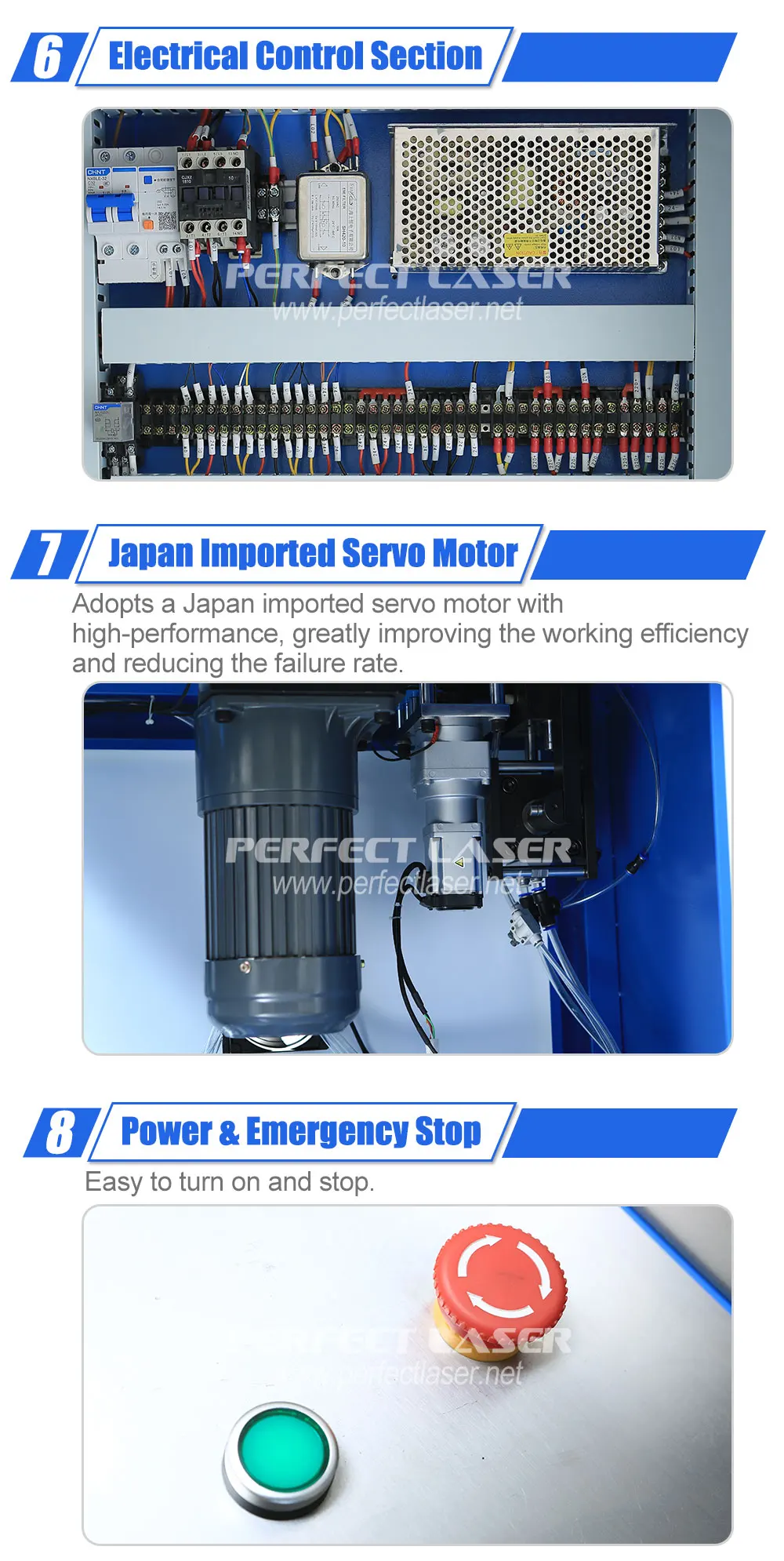

6,Eletrical Control Section
7,Japan Imported Servo Motor
8,Power & Emergency Stop
4,Bending System ( Internal and External Mode + cutting system + Scissor )
5,IPC and Monitor
6,Eletrical Control Section
7,Japan Imported Servo Motor
8,Power & Emergency Stop

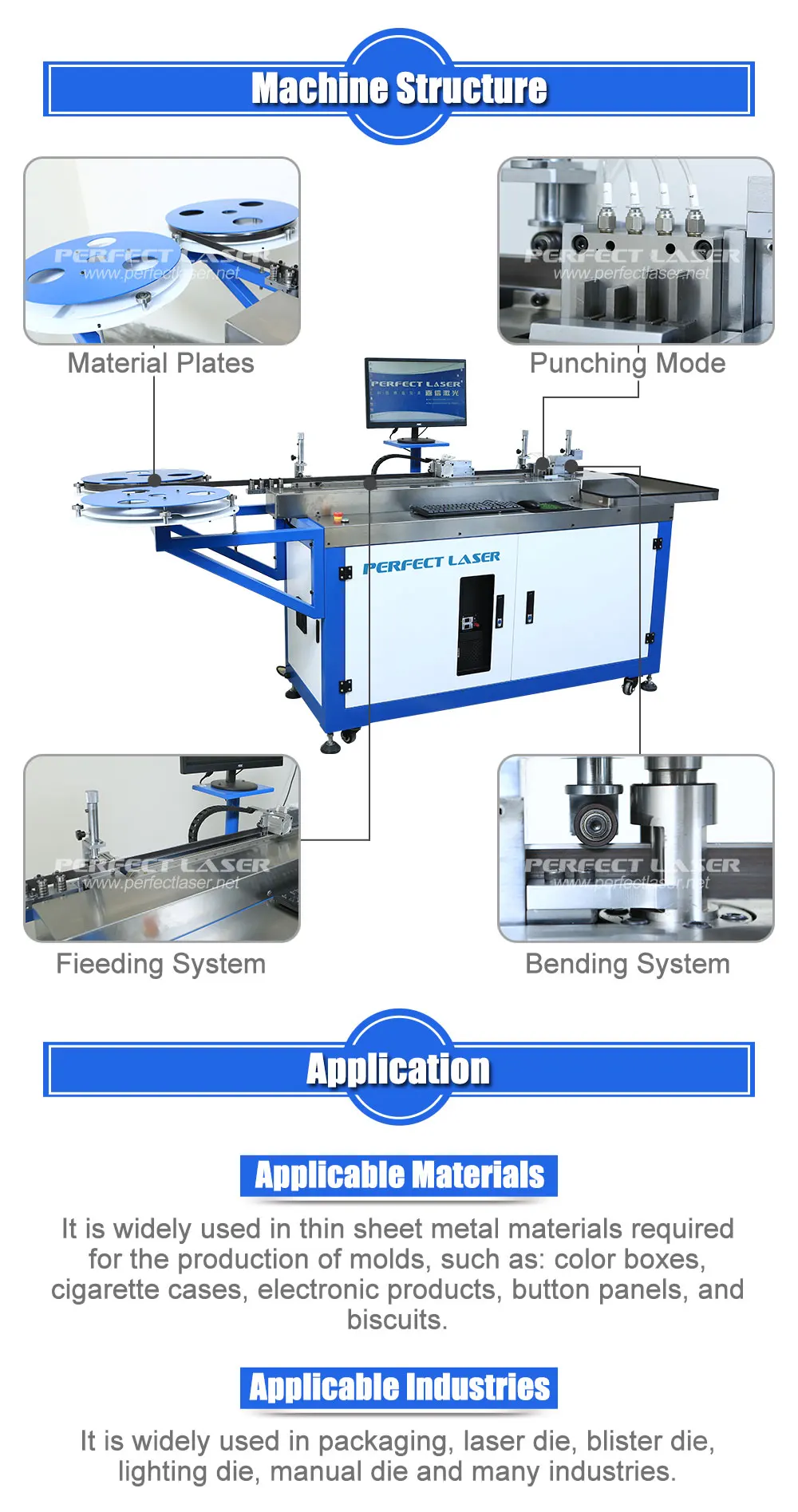

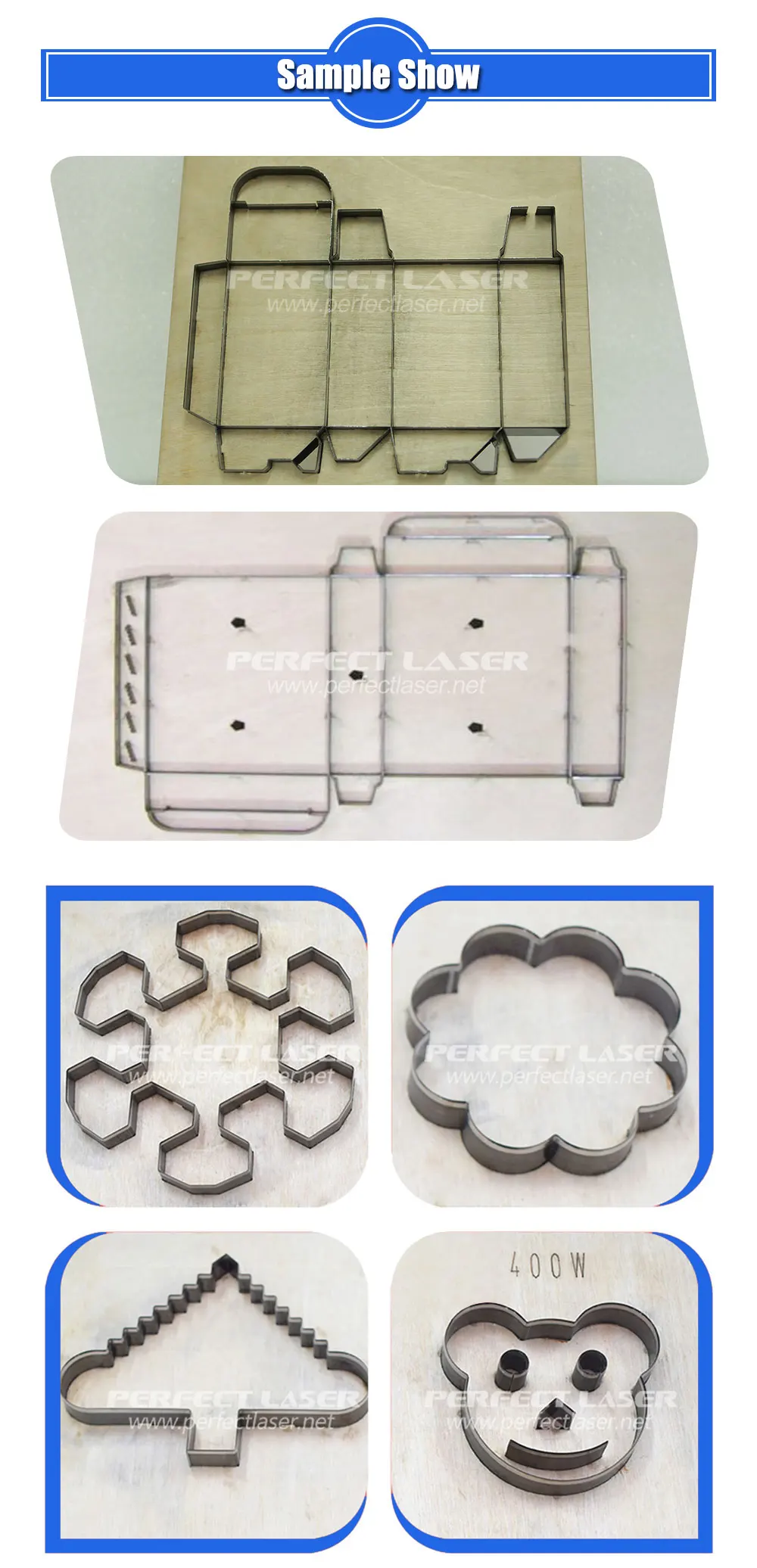

Application
1.Applicable materials:
This blade auto bender machine is widely used in thin sheet metal materials required for the production of molds, such as: color boxes, cigarette cases, electronic products, button panels, and biscuits.
2.Applicable industries:
This blade auto bender machine is widely used in packaging, laser die, blister die, lighting die, manual die and many other industries.
Tags:automatic bending machine for blades,steel rule auto bender, auto blade bending machine
This blade auto bender machine is widely used in thin sheet metal materials required for the production of molds, such as: color boxes, cigarette cases, electronic products, button panels, and biscuits.
2.Applicable industries:
This blade auto bender machine is widely used in packaging, laser die, blister die, lighting die, manual die and many other industries.
Tags:automatic bending machine for blades,steel rule auto bender, auto blade bending machine
Marketing Compaign
Generally CNC steel rule bender is multi funtion, which is after our QC Department continual 96 hours testing and our
engineer double adjustments. After everything is be in best statu and can directly put into application, we will send it out.
engineer double adjustments. After everything is be in best statu and can directly put into application, we will send it out.
Company Production
Perfect Laser is 20 years industrial laser equipment manufacturer, our machine has been exported to more than 180 countries and
regions. Due to our machines' reliable quality and affordable price, we have been certified by European CE, ISO9001:2000
quality system.
regions. Due to our machines' reliable quality and affordable price, we have been certified by European CE, ISO9001:2000
quality system.
Contact Me
Any interest? Welcome to contact me at once!
Perfect Laser Co.,Ltd. (China)
Contact: Cindy/ Sales Department
MP : 0086-13659897768
Tel: 0086-27-86791986
Fax: 0086-27-8677 5865
Email: sales10@perfectlaser.net
Whatsapp: 0086-13659897768
Skype: perfectlaser010
WeChat: 13659897768
QQ: 2414539053
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Hubei, China(430200).
