YUHONG DN350 DN450 нержавеющая сталь SS316 CF8M тройной эксцентриковый двойной фланцевый твердый клапан-бабочка цена с ручным
- Категории: Butterfly Valves >>>
- Поставщик: Shandong,Yuhong,Valve,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

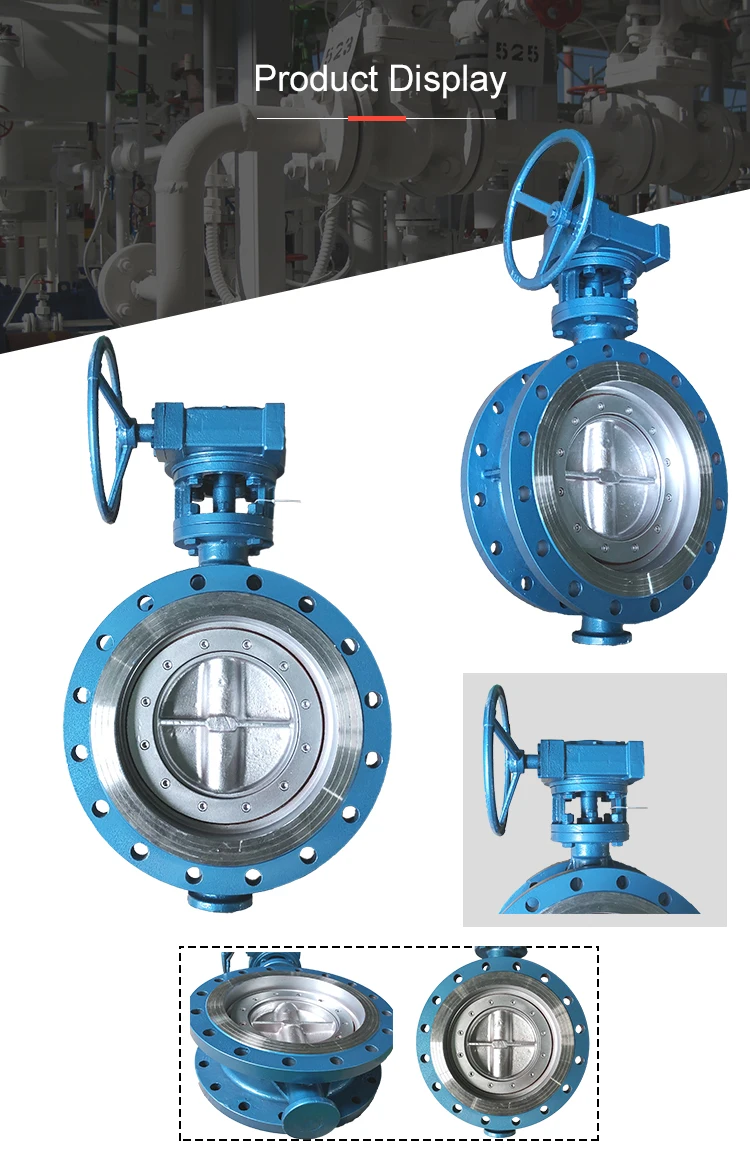

Details Images
Item | YUHONG Stainless Steel Triple Eccentric Double Flange Hard-seal Butterfly Valve With Hand Wheel |
Size Range | 2" ~ 36"，DN50~DN900 |
Medium | Water, Air, Steam, Gas, Oil, etc |
Temperature | PTFE: -40℃~+150℃; X: -10℃~+60℃; NBR: -20℃~80℃: EPDM: -20℃~120℃ |
Pressure | 1MPa, 1.6MPa |
Port Thread | Flange |
Material | Body: Cast Iron、WCB、SS304, SS316、SS316L |
Seal: X、NBR、EPDM、PTFE、FPM | |
Butterfly plate: Cast Iron、WCB、SS304、SS316、SS316L | |
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |

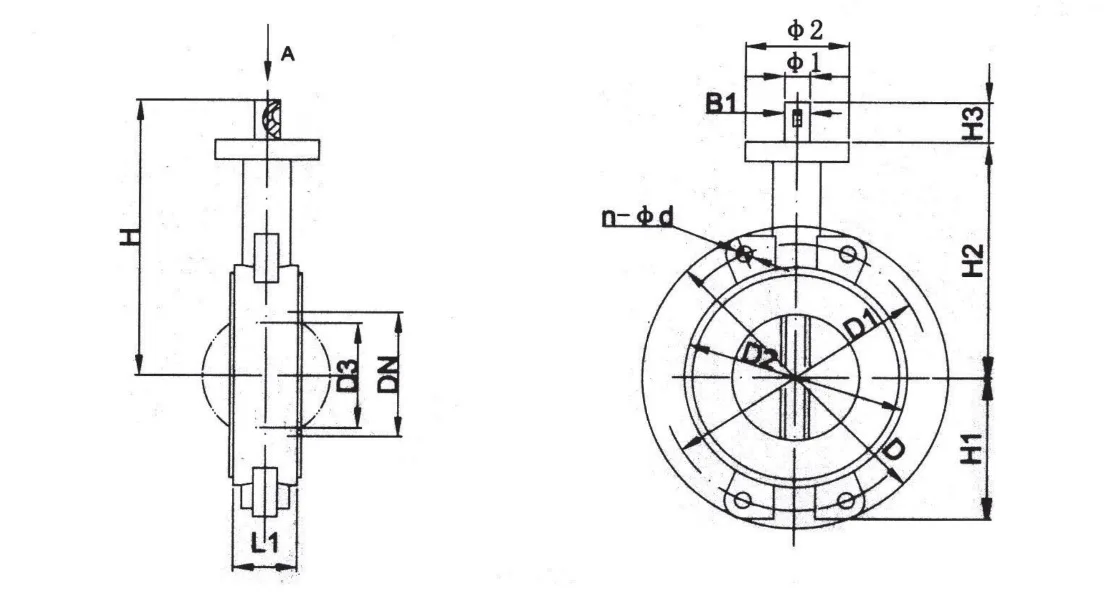

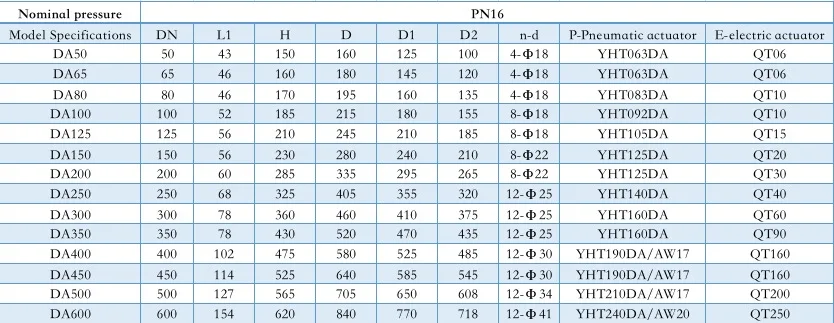

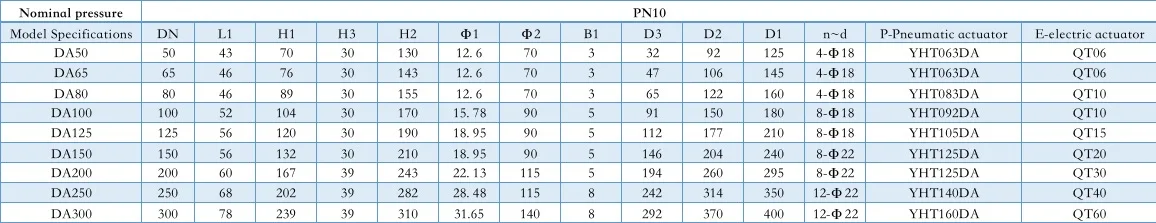

Body Size：
Note: (1) For the dimensions of electric actuator (pneumatic head or cylinder) and electric actuator (electric head), please refer to the actuator data separately. The above are the design dimensions, which may cause errors with reality.
(2) If special items in technical parameters are selected or you have special requirements, please ask us for a separate dimension sheet.
(3) The type of pneumatic head in the table is general configuration. If the air supply and working conditions of users are good, the actuator configuration can be optimized and the cost can be reduced. If the working conditions are poor, the actuator specification should be increased.

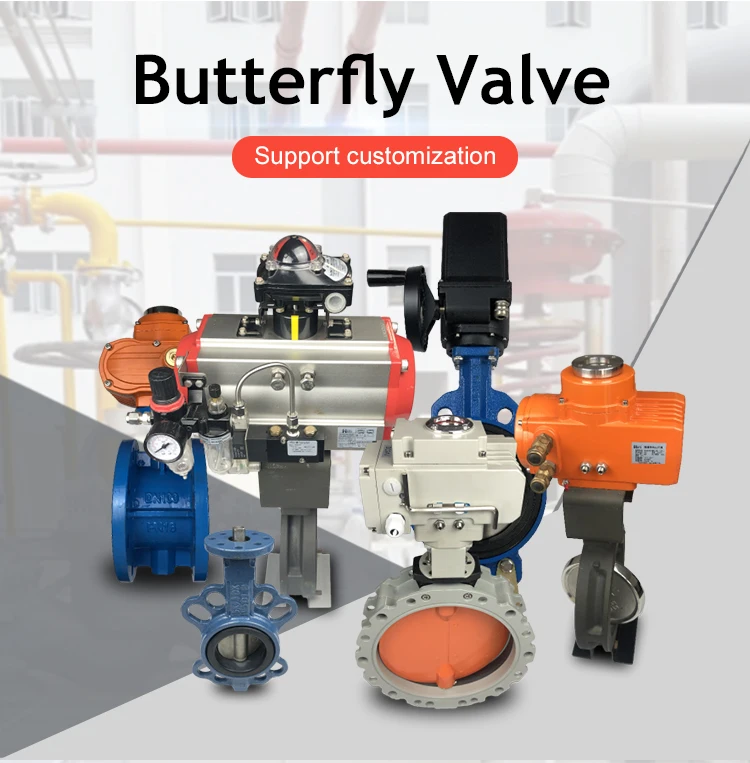

< If you want a Pneumatic or Motorized Butterfly Valve， just contact us, ALL can be customized! >
Why Choose Us
FAQ
Q1. Is the sample order acceptable?
A: Yes, feel free to contact us.
Q2. What is your MOQ?
A: 1 PCS.
Q3. What is the delivery time?
A: It is about 10 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
A: Yes, some stock can be shipped out within 5 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We
will re-make it for re-fund them to customers once we confirm it is our responsibilities.
A: Yes, feel free to contact us.
Q2. What is your MOQ?
A: 1 PCS.
Q3. What is the delivery time?
A: It is about 10 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
A: Yes, some stock can be shipped out within 5 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We
will re-make it for re-fund them to customers once we confirm it is our responsibilities.
