Идентификация отпечатков пальцев, анализ отпечатков пальцев
US $520.00-$730.00
8 дюймов с функцией распознавания лиц температуры устройство поддерживает последнюю версию ПО Канада здоровья QR
- Категории: Fingerprint Scanner >>>
- Поставщик: Shenzhen,Zhengyuantai,Technology,Co,.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Key features of the certificate
* Digital and/or paper format
* with QR code
* free of charge
* in national language and English
* safe and secure
* valid in all EU countrie
* with QR code
* free of charge
* in national language and English
* safe and secure
* valid in all EU countrie

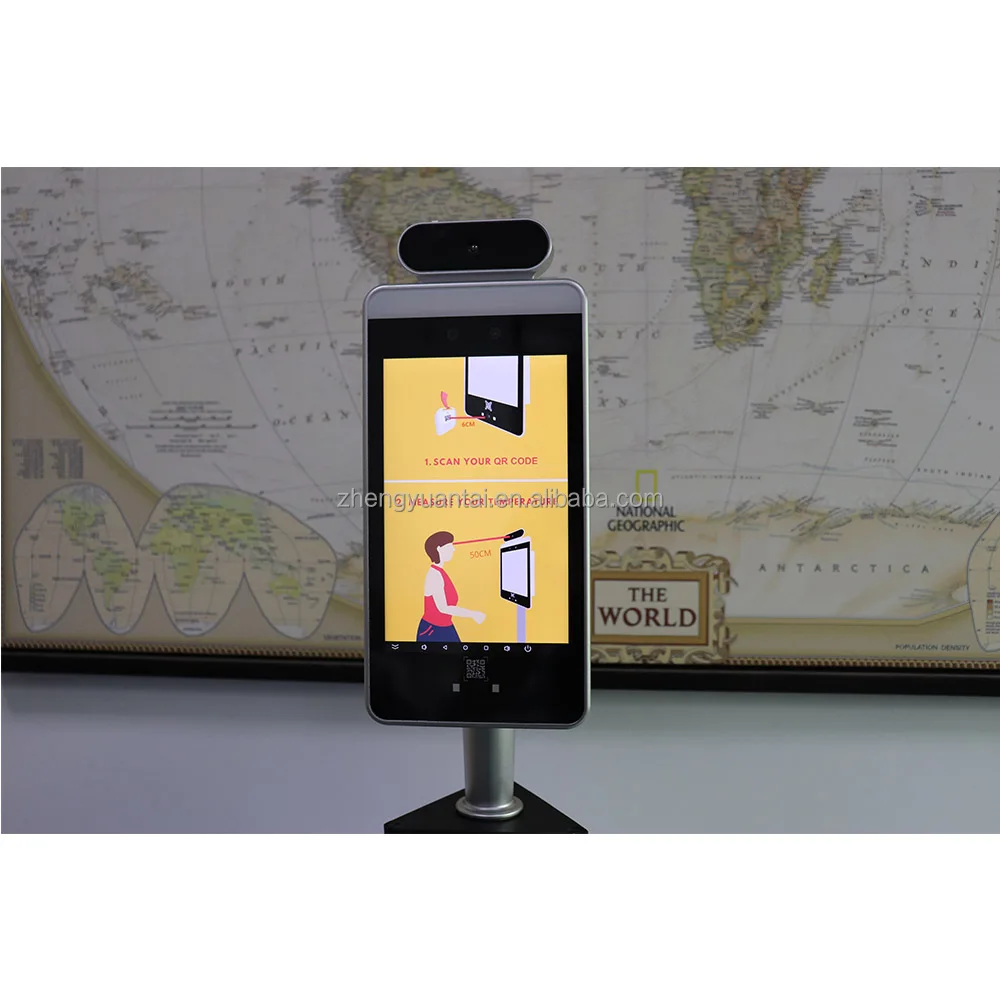

8"Face Recognition Access Control Tablet for EU certificate
1) 8-inch IPS full-view LCD display
2) Industrial-grade appearance, waterproof and dustproof design, which is stable and reliable Support 3W face database. 3)The 1: 1comparison recognition rate is more than 99.7%, the 1: N comparison recognition rate is more than 96.7%
4) the live detection accuracy rate is 98.3%@1% false rejection rate. Face recognition pass speed is less than 1 second.
2) Industrial-grade appearance, waterproof and dustproof design, which is stable and reliable Support 3W face database. 3)The 1: 1comparison recognition rate is more than 99.7%, the 1: N comparison recognition rate is more than 96.7%
4) the live detection accuracy rate is 98.3%@1% false rejection rate. Face recognition pass speed is less than 1 second.
5) It supports accurate face recognition and comparison while wearing a mask
6)Using industrial binocular wide dynamic camera, night infrared and LED dual fill light
7)Standard Rockchip RK3288 quad-core processor, optional Rockchip RK3399 hexa-core processor
8)It supports human body temperature detection, temperature display, 1-meter ultra-long body temperature detection
9)support and automatic alarm for body temperature abnormality, second-level detection speed, real-time export of attendancetemperature data
10)It supports various peripherals such as ID card reader, fingerprint reader, IC card reader, QR code reader, etc.
11)It supports system level, APP offline level, APP + background network level multiple API docking, complete documentation.
7)Standard Rockchip RK3288 quad-core processor, optional Rockchip RK3399 hexa-core processor
8)It supports human body temperature detection, temperature display, 1-meter ultra-long body temperature detection
9)support and automatic alarm for body temperature abnormality, second-level detection speed, real-time export of attendancetemperature data
10)It supports various peripherals such as ID card reader, fingerprint reader, IC card reader, QR code reader, etc.
11)It supports system level, APP offline level, APP + background network level multiple API docking, complete documentation.
Design
The FS800 thermal tablet supports adopts Melexis /Heimann sensor with high temperature accuracy detection.Both touch and non touch available

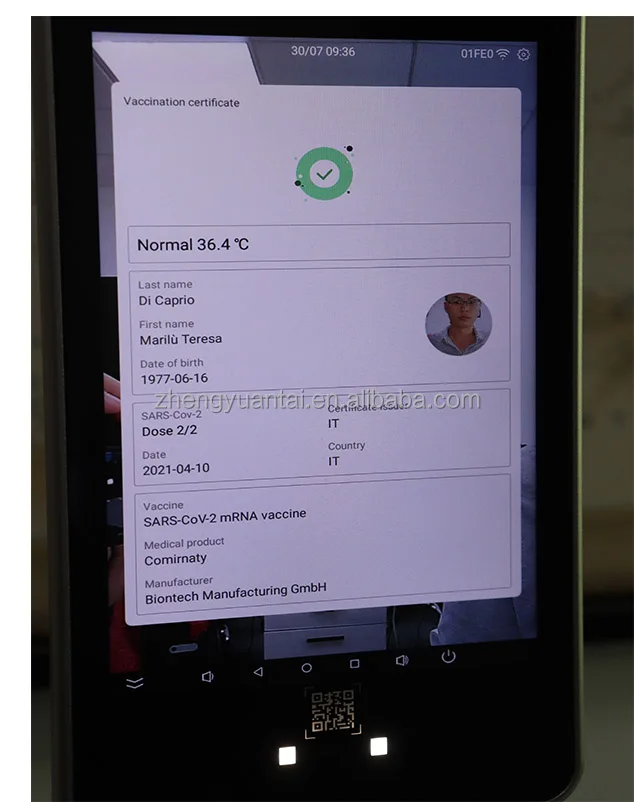

Scan EU Certificate QR Code
No datasheet is saved for personal information security.
Temperature measurement.
The system can suucessfully detect QR code quality.
Connector
Relay Pin 1: COM Pin 2: NO
Wigan Input
Wigan Input
Pin 1: 12V Pin 2:GND Pin 3: WG-D1 Pin 4: WG-D0
Wigan Output Pin 1: 232-RX Pin 2: 232-TX Pin 3:WG-D0
Pin 4:WG-D1 Pin 5:GND
Wigan Output Pin 1: 232-RX Pin 2: 232-TX Pin 3:WG-D0
Pin 4:WG-D1 Pin 5:GND
Melexis
We get supported by Melexis.
Accuracy:≤±0.5°
Accuracy:≤±0.5°
Hand Sanitizer Dispenser (Optional)
-Gel/Foam/Spray support
-Each spray volume:0.8ml
-Powered by 6V,1A DC input or
battery(4x1.5V)
-Each spray volume:0.8ml
-Powered by 6V,1A DC input or
battery(4x1.5V)
Various tyle available
There are various style available,desktop stand,freestanding stand.
Camera | Resolution | 200Wpixel | |
Type | Binocular wide dynamic camera | ||
Focus distance | 30-50cm suggested | ||
White balance | automatically | ||
Tablet | Size | 8.0 inch IPS lcd panel | |
Resolution | 800×1280 | ||
CPU | RK3288 quad-core | ||
RAM | EMMC 8G | ||
Supports Ethernet and WIFI | |||
Supports 2.5W / 4R speakers | |||
Fill light | LED and IR dual fill light | ||
Connector | Reset | X1 | |
Ethernet | X1 | ||
USB2.0 | X1 | ||
12V DC | X1 | ||
Relay | X1 | ||
Wigan input | X1 | ||
Wigan output | X1 | ||
Features | Face Detection | Supported | |
Face library support | Up to 30,000 | ||
1: N face recognition | Support | ||
1: 1 face comparison | Support | ||
Stranger detection | Support | ||
Identify distance configuration | Support | ||
UI interface configuration | Support | ||
Remote device upgrade | Support | ||
Device interface | Interfaces include device, management,personnel/photo, management, record query, etc. | ||
Deployment method | Support public cloud deployment,privatized deployment, LAN use, stand-alone use | ||
Tempeature detection | Body temperature detection | Support | |
Temperature detection distance | 0.5-1M | ||
Temperature measurement accuracy | ≤ ±0.1℃ | ||
Temperature measurement range | 10℃~42℃ | ||
Visitors' temperature is normal | Support | ||
Alarm for over temperature | Support (body temperature alarm value can be set up) | ||
Other information | Protection class | IP64 | |
Power | DC12V（±10%） | ||
Working temperature | ﹣10℃~60℃ | ||
Storage temperature | -20℃~60℃ | ||
Power consumption | 13.5W（Max） | ||
Installation method | Gate bracket installation | ||
Weight | 1.45kg | ||
Model Number FS800,CE,FCC certificated.
The terminal is CE,FCC certificated
Automatic gate
The tablet is widely used with automatic door/gate in metro station,airport
Office
With face recognition,it's a great product used in access control industry.
School
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Frequently asked questions.
1)What is the Sensor Accuracy ?
A. +/- 0.3 degrees Celsius.
2)What is the required Sensing Distance?
A. ≤0.5 metre is recommended.
3)What is the Temperature Detection Speed?
A. < 1 Second
4)Do I require an App or software to run this Device?
A. We include a simple App with the device, where basic parameters can be adjusted (Thresholds, alarm volume etc).
5)How does the alert system work?
A. If a temperature is above the defined threshold (can be defined by administrator) a visual alert is display on screen, also an audible alert is activated (Volume can be adjusted by administrator)
6)How can the device be mounted?
A.The tablet an be wall mounted and there are freestanding,desktop stand available as well.
7)How is face recognition working?
A. Firstly you must upload related staffs face photo(without facial mask) into system for registration.Once successfully uploaded,the tablet can proceed face recognition.For security,the tablet can’t proceed face recognition with a mask.
8)How many languages does it support？
A.Our tablet is Android 7.1 based.The APP supports English,Chinese,Korean,Spanish,Portuguese,Japanese,French,German,Italien,Russian
9)Can tablet be remotely controlled?
A.We developed a APP on tablet based on Android OS,meanwhile also a software on Windows.
B.After installing software and building a LAN(local area network) between PC and Tablet,then PC can control tablet remotely and share all data of tablet.
A. +/- 0.3 degrees Celsius.
2)What is the required Sensing Distance?
A. ≤0.5 metre is recommended.
3)What is the Temperature Detection Speed?
A. < 1 Second
4)Do I require an App or software to run this Device?
A. We include a simple App with the device, where basic parameters can be adjusted (Thresholds, alarm volume etc).
5)How does the alert system work?
A. If a temperature is above the defined threshold (can be defined by administrator) a visual alert is display on screen, also an audible alert is activated (Volume can be adjusted by administrator)
6)How can the device be mounted?
A.The tablet an be wall mounted and there are freestanding,desktop stand available as well.
7)How is face recognition working?
A. Firstly you must upload related staffs face photo(without facial mask) into system for registration.Once successfully uploaded,the tablet can proceed face recognition.For security,the tablet can’t proceed face recognition with a mask.
8)How many languages does it support？
A.Our tablet is Android 7.1 based.The APP supports English,Chinese,Korean,Spanish,Portuguese,Japanese,French,German,Italien,Russian
9)Can tablet be remotely controlled?
A.We developed a APP on tablet based on Android OS,meanwhile also a software on Windows.
B.After installing software and building a LAN(local area network) between PC and Tablet,then PC can control tablet remotely and share all data of tablet.
10)Does it support multi language?
The tablet supports English,Japanese,French,Spanish,German,Italien,Portuguese,Russian,Korean,Thailand,Arabic,
Operation
2.1 The device has a 12V 2A adaptor and it automatically turns on when power cable is
connected.
2.2 Wait for a while and the app will launch and take about 30 seconds to be available.
2.3 To use a stable device, connect the power to the device and wait about 3 minutes.
2.4 The camera recognizes people by standing in front of the camera in line with the lines displayed on the screen.30-50cm issuggested as best distance.
2.5 When “Mask Recognition”is turned off,the devices detects person’s temperature.
When “Mask Recognition”is turned on,the device can recognize whether people wears a mask or not.If doesn’t,it reminds people.
connected.
2.2 Wait for a while and the app will launch and take about 30 seconds to be available.
2.3 To use a stable device, connect the power to the device and wait about 3 minutes.
2.4 The camera recognizes people by standing in front of the camera in line with the lines displayed on the screen.30-50cm issuggested as best distance.
2.5 When “Mask Recognition”is turned off,the devices detects person’s temperature.
When “Mask Recognition”is turned on,the device can recognize whether people wears a mask or not.If doesn’t,it reminds people.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
High Production Capacity
Our production capacity reaches 4000 pcs monthly
Aging Room
Company Profile
About US
SHENZHEN ZYT TECHNOLOGY CO,.LTD is a chinese leading industrial display manufacturer.We
started our business 11 years ago,specialized in designing and producting open frame monitor,digital signage,aluminum embedded
panel pc.We had perfect production facilities,in 2016,we built our open cell assembled line for large size LCD and brightness customization.In 2017,our metalwork factory was built,that helps produce and deliver cargo super fast.
With our efforts,our products are welcome in US,Europe.Competitive price,reliable quality and swift delivery are our soul.We havea strict quality management system in accordance with ISO9001 requirments.All products passes CE,ROHS,FCC and CCC.
Each model is carefully created to deliver a perfect design,performance and durability.
started our business 11 years ago,specialized in designing and producting open frame monitor,digital signage,aluminum embedded
panel pc.We had perfect production facilities,in 2016,we built our open cell assembled line for large size LCD and brightness customization.In 2017,our metalwork factory was built,that helps produce and deliver cargo super fast.
With our efforts,our products are welcome in US,Europe.Competitive price,reliable quality and swift delivery are our soul.We havea strict quality management system in accordance with ISO9001 requirments.All products passes CE,ROHS,FCC and CCC.
Each model is carefully created to deliver a perfect design,performance and durability.
Certifications
CCC
CE
FCC
Manufacturing Technique
By Air
We provide a door to door service by shipping cargo by UPS.DHL,FedEx,TNT.Cargo will be well packed and put in a wooden box if necessary.
By sea
The cargo are well packed with wooden pallet for sea shipment.We support FOB SZ,FOB HK,CIF,DDP incoterms.Normally it takes 4 weeks from China to Europe and US.
