The integrated refrigeration Brief Introduction

The integrated refrigeration unit is composed of a condenser, an evaporator, a compressor, and insulation clapboard assembly of separate the condenser and the evaporator. Its overall characteristics are small size, stability, fast and efficient cooling, low cost and no need for professional installation. Specific details please see below:
1. The internal and external machine systems, piping, refrigerants, circuits, etc. were all been assembled and qualified by stable running test before shipment.
2. No need for specialized installation and commissioning at the project site to avoid unstable operation of the machine due to installation and construction factors such as environmental conditions, on-site installation techniques, and personal operations.
3. It can be modularized and flexibly combined, such as a 90-cubic cold storage, which can be divided into three 30-cubic all-in-one machines.

Product Description

Side-embedded integrated condensing unit （R404A）
Model			LY--YTCN10EL
Power Supply			220V/60Hz
Evaporation temperature（℃）			-40～-5℃
Compressor Model			C-RHN75E6A
Maximum operating current			5A
Pressure control type			Diaphragm pressure control
Condensing fan	Power	120
Condensing fan		Qty	1
Evaporation fan	Power	80
Evaporation fan		Qty	1

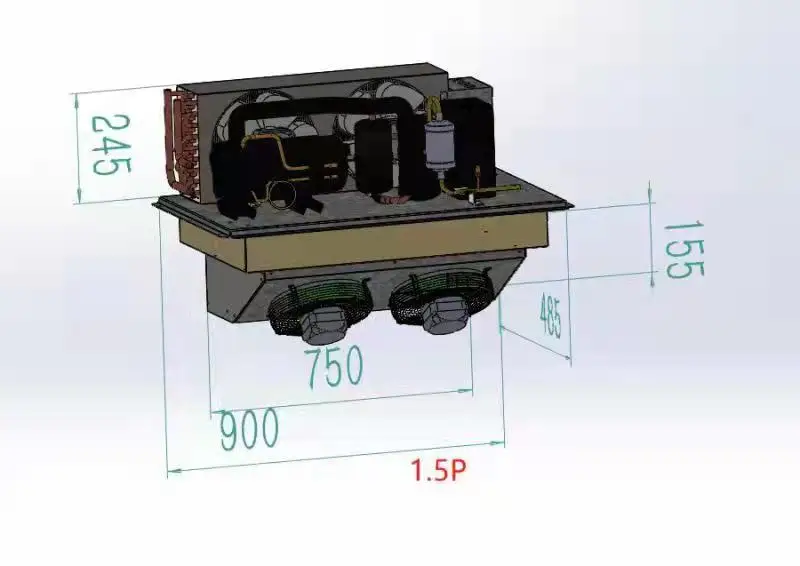

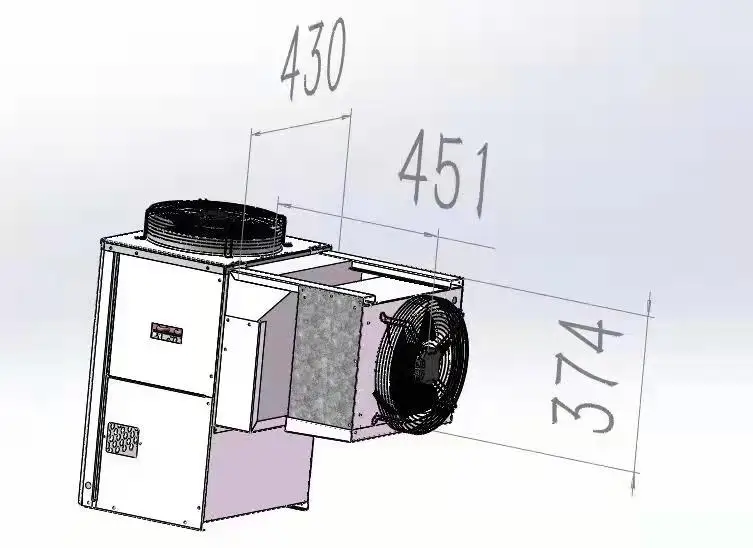

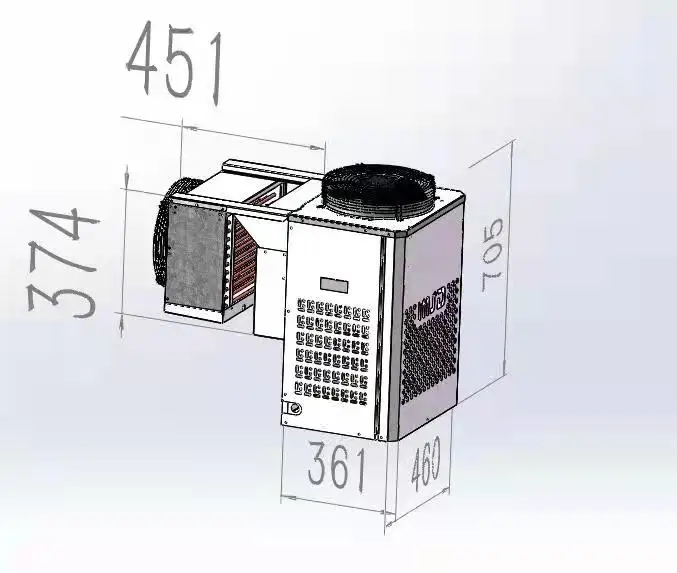

Dimension（mm）	Length * Width * Height	600710710
Cooling Capacity （W）			Low temperature working conditions: Ambient temperature 32℃, rotation speed 60Hz
Evaporation temperature	-5℃	2135
		-15℃	1430
		-25℃	975
		-35℃	655
Rated Power			780
Features			1. w horizontal low-temperature compressor with Sanyo brand, thermal expansion valve with Danfoss brand, integrated control panel, built-in cabinet temperature and defrosting temperature probe and LCD panel. 2. Multiple defrosting modes, timing and automatic. 3.The whole machine has multiple protections, automatic detection and reset. 4. Easy embedded installation, it can run after power on.

Our Advantage:

1. Our company's chief technical employees have been engaged in the refrigeration industry for more than 20 years;
2. We have established a long-term cooperation with Panasonic, and designed a stable and reliable refrigeration equipment unit;
3. Our delivery time is shorter than the average of industry：5-7working days;
4. Our cold storage operation is stable, the customer after-sales complaint rate is nearly zero in recent 5 years.
5. We have cooperative after-sales service centers in several major foreign countries.

Product Details
