Поделиться:

Цена:0,24 $ - 0,26 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description






Specification


Electrical Data
Model
LR4-72HBD-420M
LR4-72HBD-425M
LR4-72HBD-430M
LR4-72HBD-435M
Peak Power Watt- Pmax (W)
420
425
430
435
Maximum Power Voltage- Vmpp (V)
40.8
41.0
41.2
41.4
Maximum Power Current- Impp (A)
10.30
10.37
10.44
10.51
Open Circuit Voltage- Voc (V)
49.2
49.4
49.6
49.8
Short Circuit Current- Isc (A)
10.96
11.02
11.09
11.16
Module Efficiency (%)
18.7
19.0
19.2
19.4
Power Output Tolerance (W)
0 ~ +3
STC
Irradiance 1000W/m², Cell temperature 25℃, Air Mass AM1.5
Operational Temperature
-40~+85℃
Maximum System Voltage
1500V DC(IEC/UL)
Max Series Fuse Rating
20A
Temperature Coefficient of Pmax
-0.37%/℃
Temperature Coefficient of Voc
-0.30%/℃
Temperature Coefficient of Isc
0.06%/℃






Product Detail

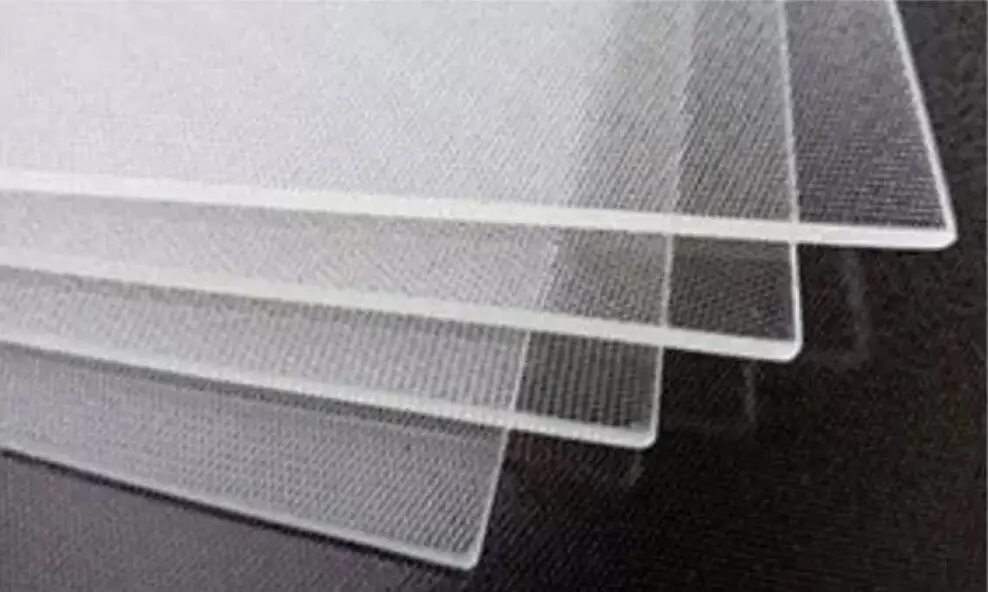

Glass
12% Ultra Clear Tempered Glass.
30% Lower Reflection

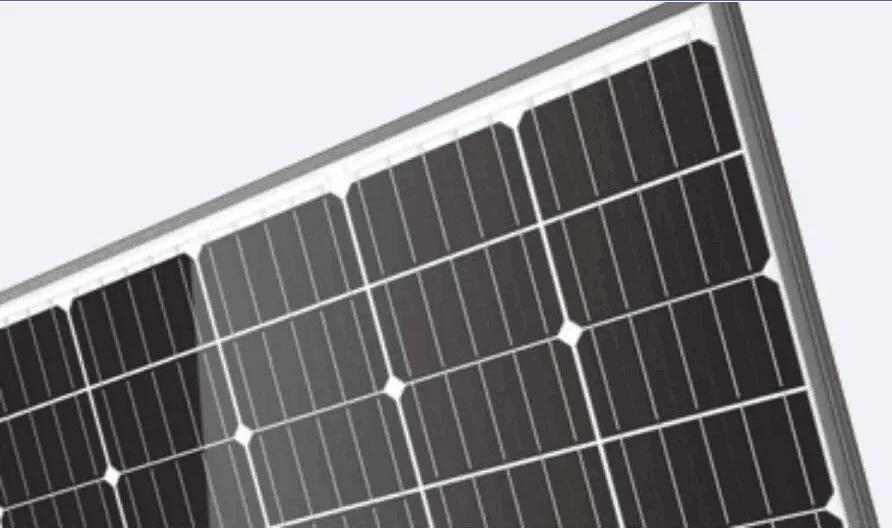

Mono Half Cell
22% Higher Efficiency,5BB Cells
93 Fingers PV Cells, Anti-Pid

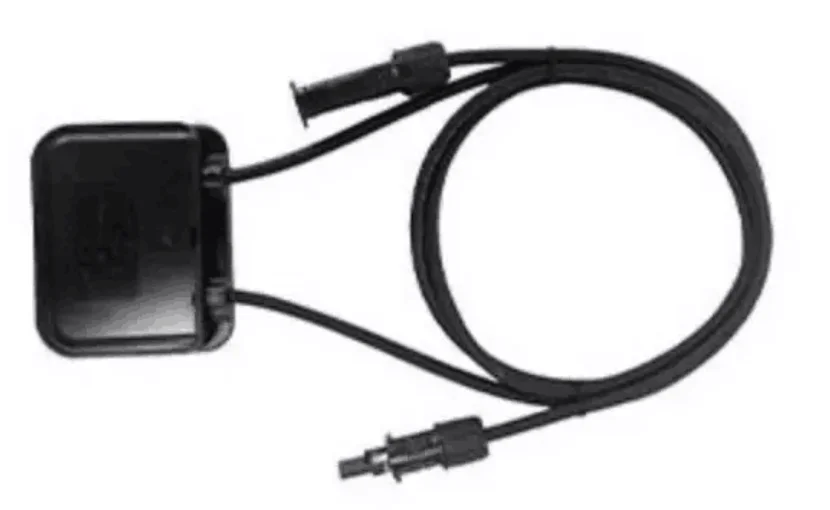

Junction box
IP68 I68,three diodes
Innovative Full-Glue-Filled

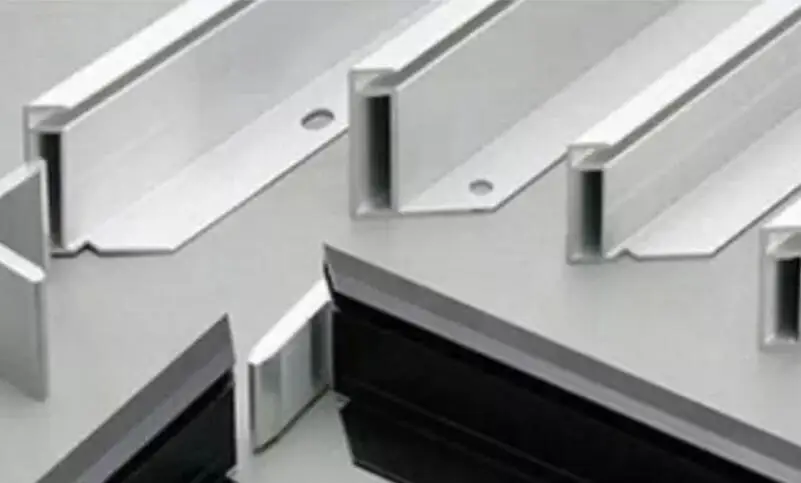

Frame
120N Tensile Strength Frame
110% Seal-lip Design Glue Injection
(Black/Silver Optional)

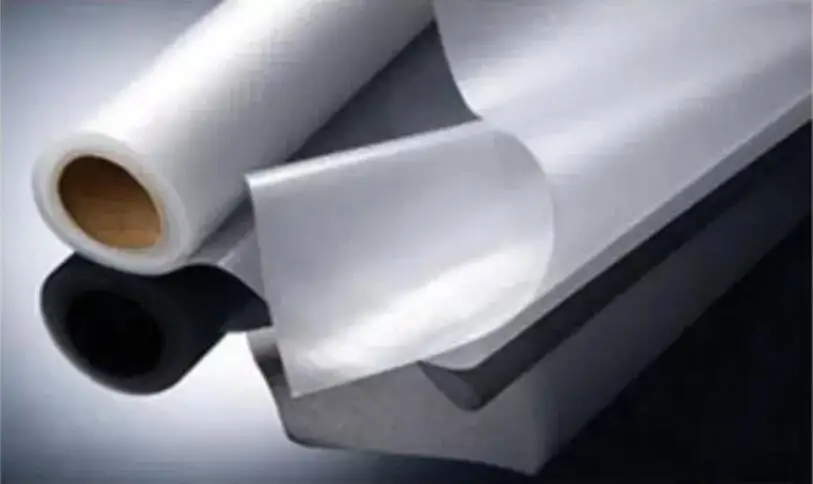

EAV
>90% Higher Transmittance EVA,Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer
Durability.

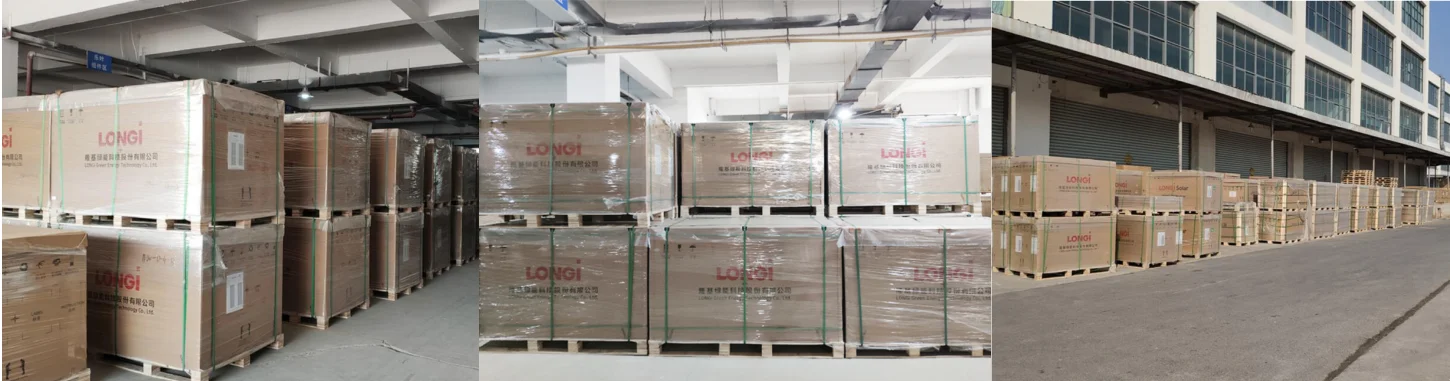

Packing & Delivery






Shipping Methods
Arrive AT
Delivery From
By Sea
Sea Port You Want
Any port in China
By Air
Sea Port You Want
Any port of China
By Railway
Your door
Any railway station
By Express
Your door
Ningbo City

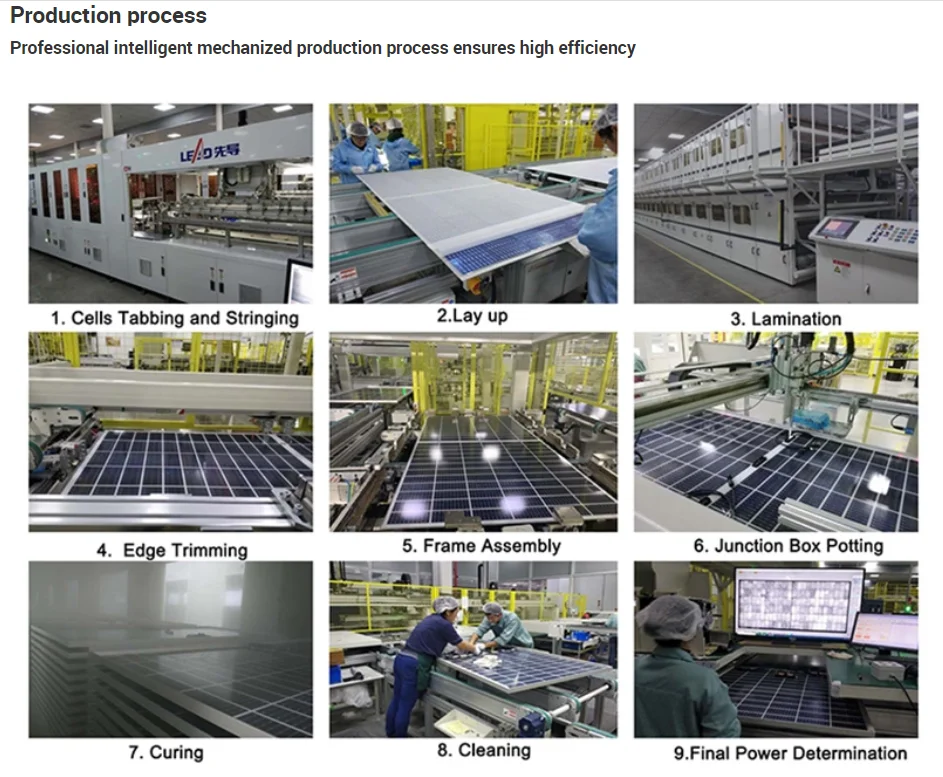

Product Line

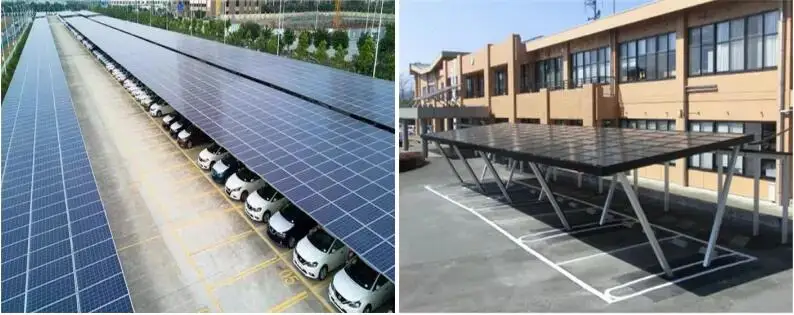

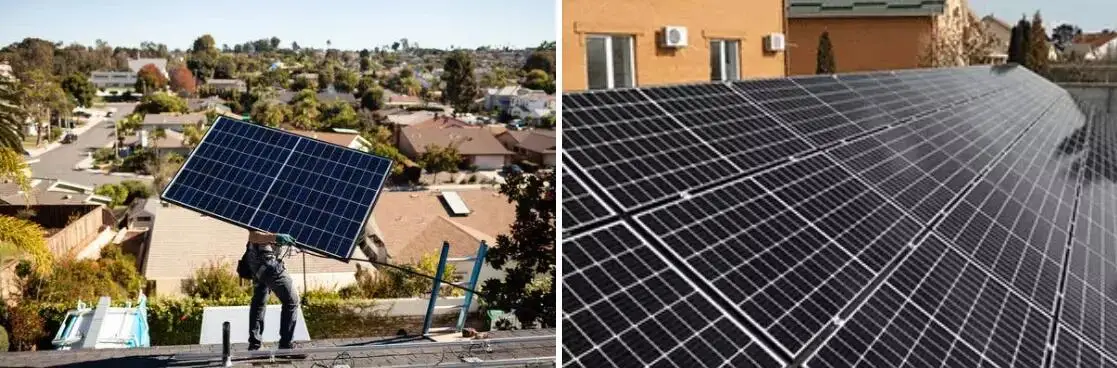

Payment And Project Show







Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,00 USD, we can accept L/C at sight
West Union

Amount lower than 5000USD
West Union
Delivery Time
7~10days after receiving payment for one container


We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment
protection for your covered amount








Exhibition




2017.9.20~9.22 Osaka Exhibition




2019.5.15-5.17 Germany Exhibition


Our Company


EITAI
Eitai (Xiamen) New Energy Technology Co., Ltd was established in 2015,which is located in Fujian Province,China.EITAI is a high-tech, low pollution and green environmental protection enterprise.

EITAI is specialized in research, manufacturing and sales of high quality photovoltaic solar modules and PV system solutions. We produce solar panels ranging from 5w to 380w of both mono and poly silicon, folding solar panels, solar power light kit, etc. By 2018, EITAI has achieved 500MW annual capacity and has been honored with PID, INMETRO, CE, TUV, ISO, IEC 61215, CEC,ISO9001,ISO14001,ISO18001,CQC Ammonia test. Salt mist test, IEC 61730,etc.

We adhere to excellence and intend to be one of the best suppliers of solar solutions.
