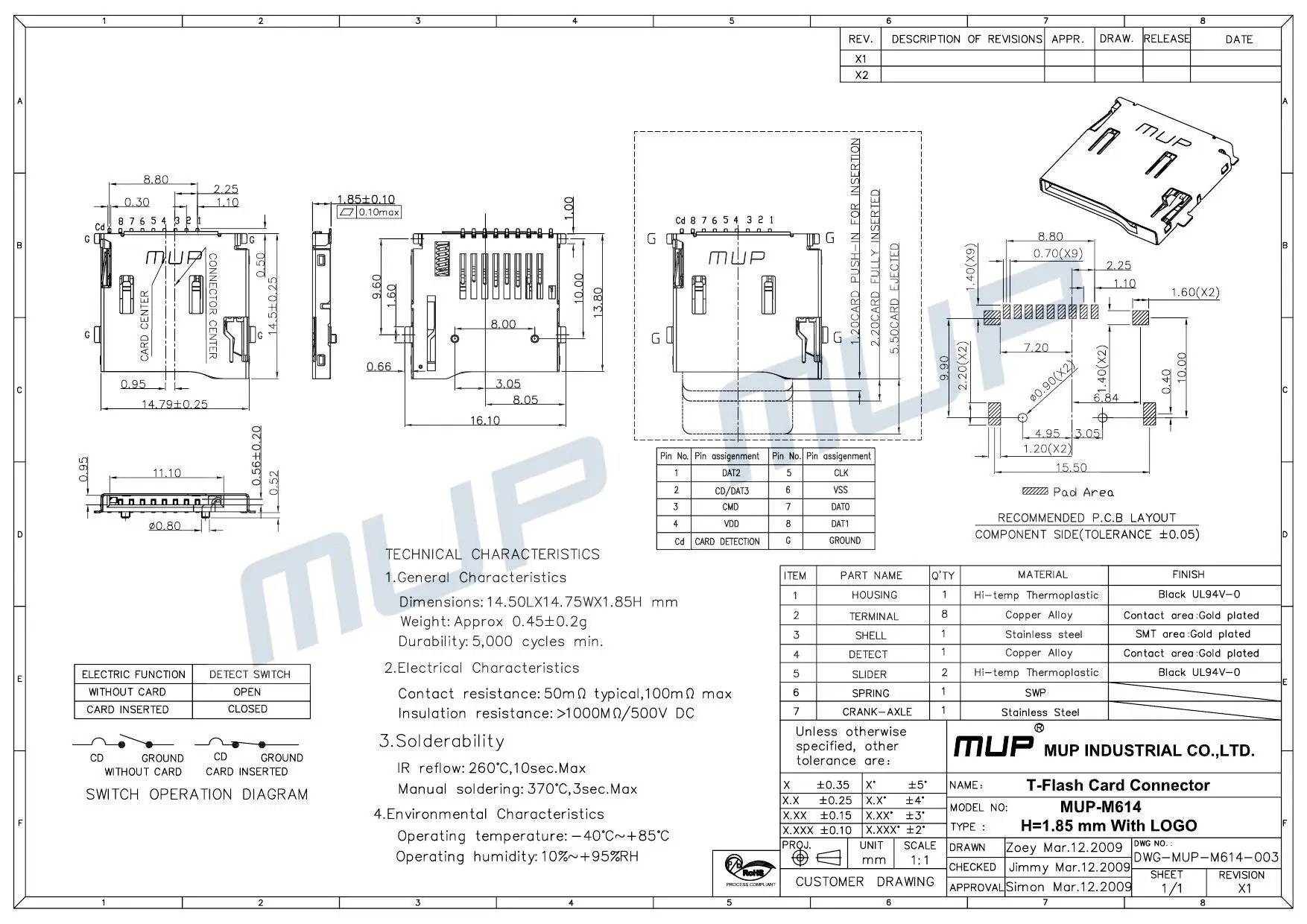

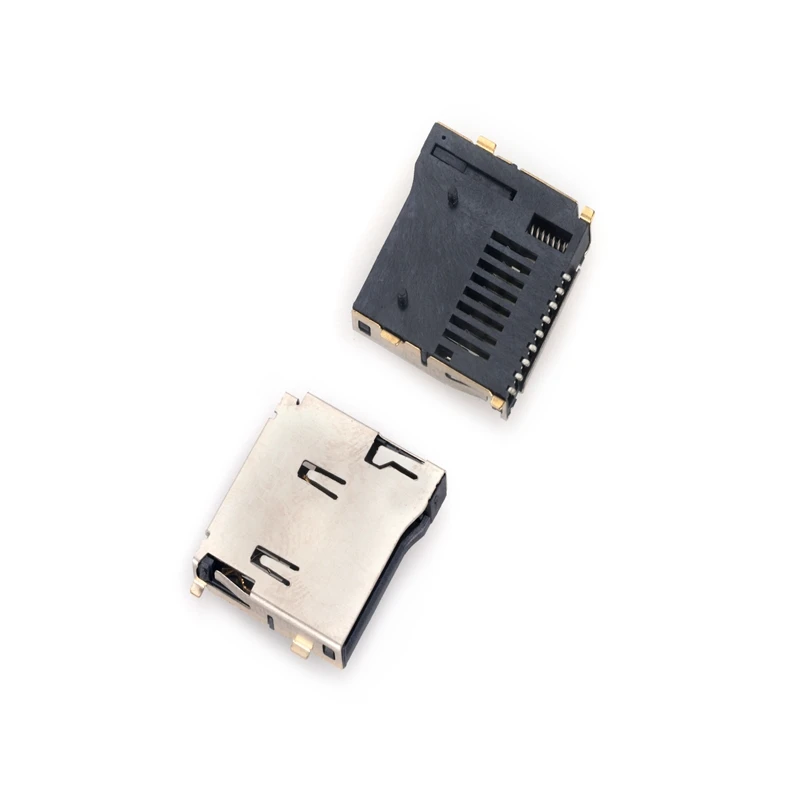

MUP M614 8PIN T-F push push  memory card reader connector   Micro Sim Smt H1.85 8p Card Socket Connector for Molex repalcement





1. Product Details













2. Product Description



1).General characteristics

   Dimensions:14.50L*14.75W* 1.85Hmm

   Weight:0.5g

   Contact principle:Friction technology

   Operating position:shaft up/down/horizontal

   Mounting system:SMT(post  optional)

   Durability:5,000 cycles min



2).Mechanical characteristics

   Insulation material:Thermoplastic



3).Electrical characteristics

   Number of contacts:6pins

   Contact resistance:50MΩ typical,1000 MΩ max

   Insulation resistance:>1000 MΩ/500V DC

   Switch type:Blade

   Operation:Normally open



4).Solderability

   Wave:not applicable

   Vaporphase:215^oC30sec Max

   IR reflow:230^oC,15sec Max

   Manual soldering:360^oC,3sec.Max



5).Environmental characteristics

  Operating temperature-40^oC +85^oC

  Operating humidity:10%≈+95%RH

  Storage temperature:-40^oC +85^oC

  Storage humidity:10%≈95%RH

  Thermal shock: -40^oC≈+85^oC,5cycles

  Damp Heat:40^oC,90%RH,10days

  Salt-mist:35^oC,5%Nacl,24H
