l Main Structure

Electric dialysis chair PY-YD-510 integrates many functions, such as sitting, lying, tilting and reclining. Various positions can be easily realized by adjusting the buttons to meet users' different requirements.







l Main Product Features

Ø Multi-position adjustment, using high-performance imported silent push rod motor, easily adjust the backrest and leg rest. Manually adjust footrest.

Ø The buttons of hand control are simple, intuitive and easy to operate.

Ø International brand silent 24V dc push rod motor, work stably, safe and reliable.

Ø Long - term continuous working system.

Ø 10 years of life design, reduce the cost of maintenance and replacement.

Ø Ultra-low energy consumption, using less than 0.12 degrees per day.

Ø The chair cushion is made of high-density sponge, the elasticity is moderate, sitting and lying for a long time will not cause postural strain; PVC leather is durable, luxurious and comfortable.

Ø Retractable, foldable footrest provide patients comfort during dialysis.

Ø Adjustable armrest is designed to provide the best dialysis position for patients.





l Specification

Model	PY-YD-510
Total Length	2000 mm±20mm
Total Width including armrests	920 mm±20mm
Seat Width	600 mm±20mm
Backrest lenght	870 mm±20mm
Seat lenght	530mm±20mm
Legrest lenght	550mm±20mm
Seat height	Cushion to floor:550mm±20mm
Armrest Dimension	L600*W170*D75mm±20mm
Height of armrest and seat	Armrest to cushion: 180-245mm(adjustable)±20mm
Chassis Dimension	1080mm×700mm±20mm
Castor	4xφ10cm swivel castors with separate brakes
Pillow	400 mm×230 mm×80 mm±20mm
Safe Maximum Load	240 KGS
Weight	65KGS±3KGS
Backrest Adjustment	(-12° ~ 75°)±5°
Legrest Adjustment	(-45° ~ 12°)±5°
Leather	PVC leather
Cushion	Sponge
Frame	Q235 steel
Power Supply	AC110V-240V  50/60Hz
Input Power	140W~180W
Motor	3
Storage environment	Temperature: -20℃~60℃,relative humidity: 10%~85%
Operation environment	Temperature: 0℃~35℃,relative humidity: 10%~85%

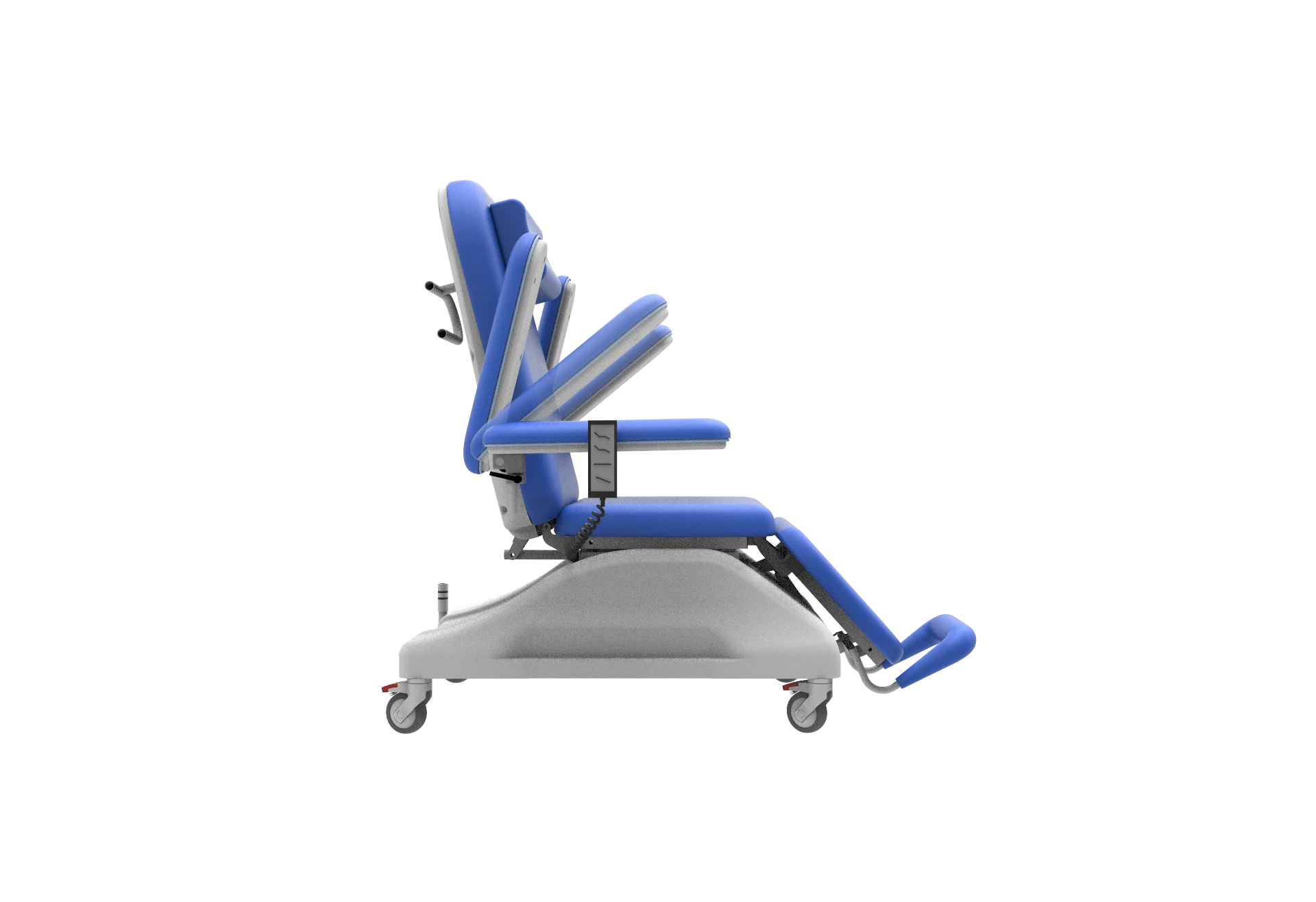

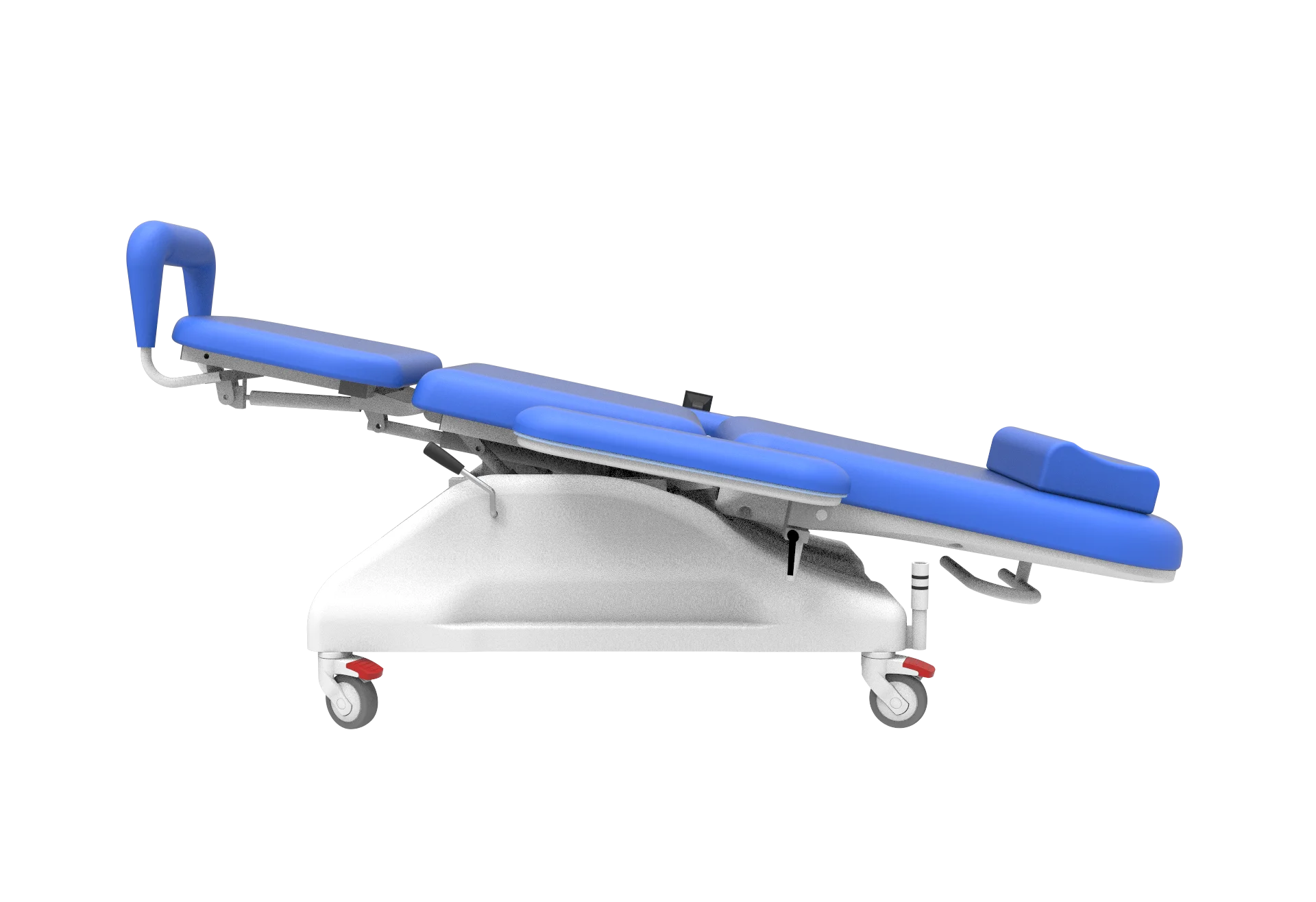

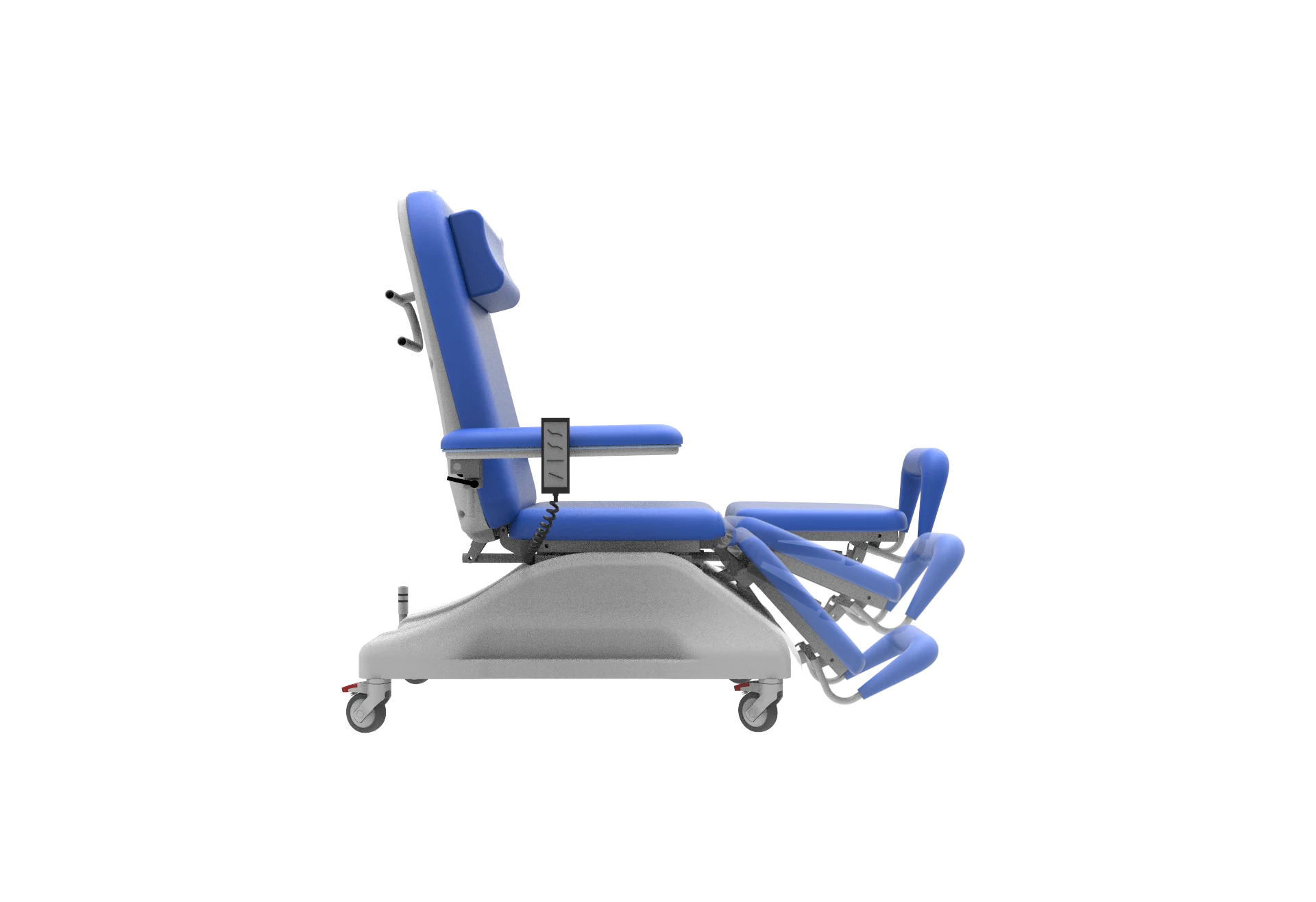

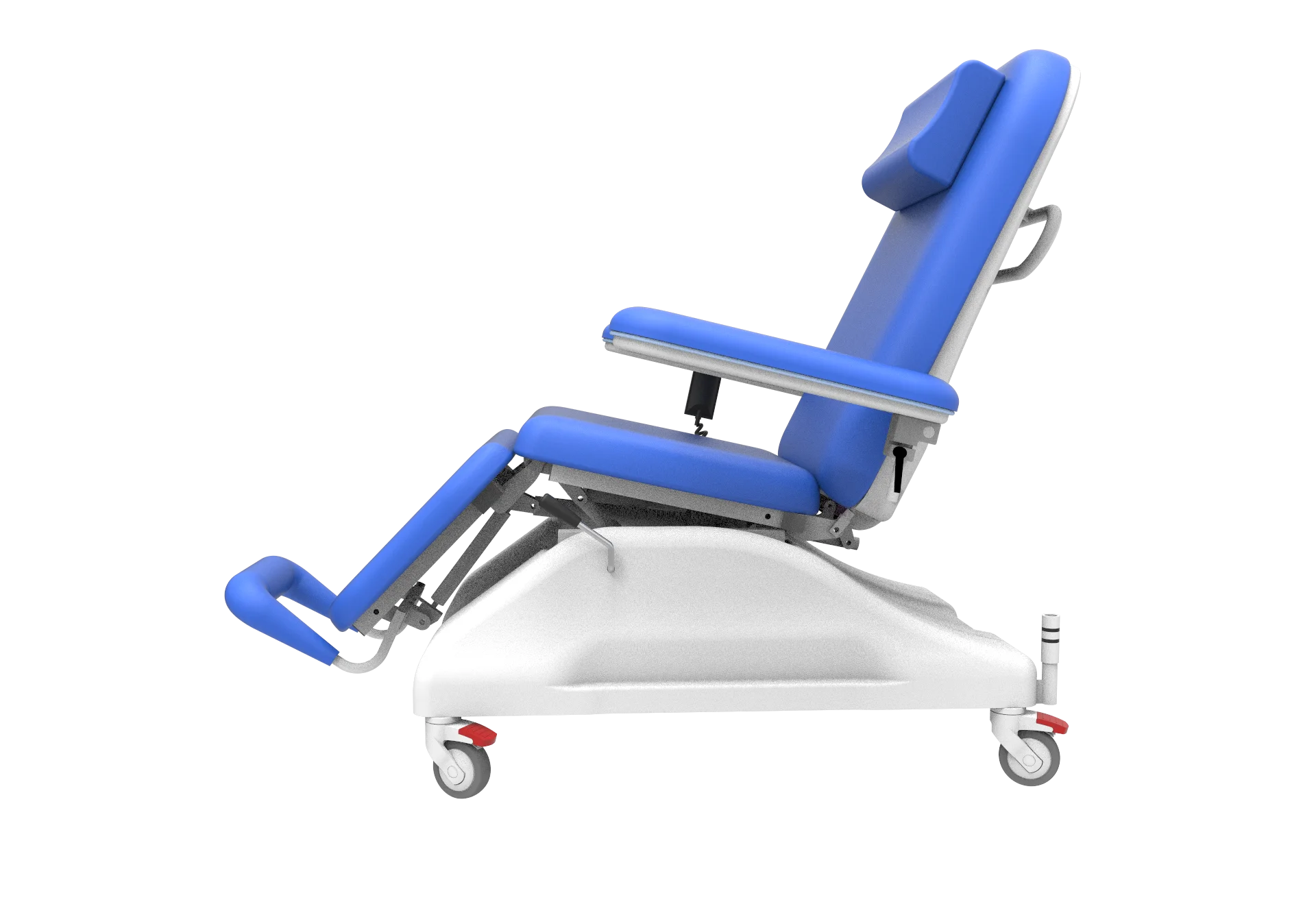

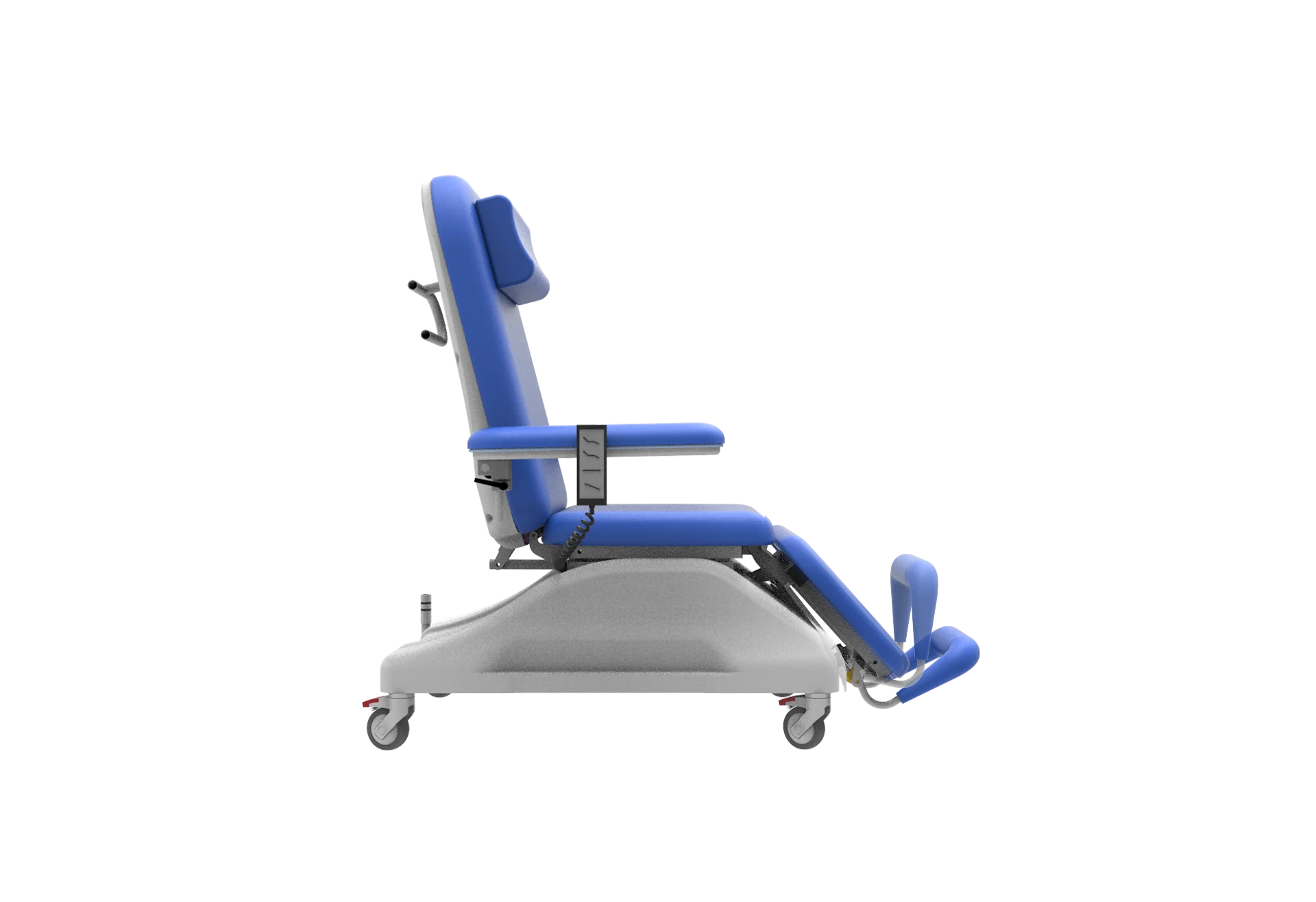

Product pictures
