Совершенно новый тестер кабеля Ethernet TC500 сертификатор CAT3 CAT5e
- Категории: Other Telecommunications Products >>>
- Поставщик: Shanghai,Govo,Telecom,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Ethernet Cabling tester DEVISER TC500 Ethernet Cable Certifier CAT3 CAT5e CAT6
Product Description
Designed for Ethernet systems, TC500 cable tester measures the speed and performance on CAT3, CAT5e and CAT6 cables according to ANSI/ TIA/EIA-568-B and ISO/IEC 11801 to ensure the cable qualification.
Main Features

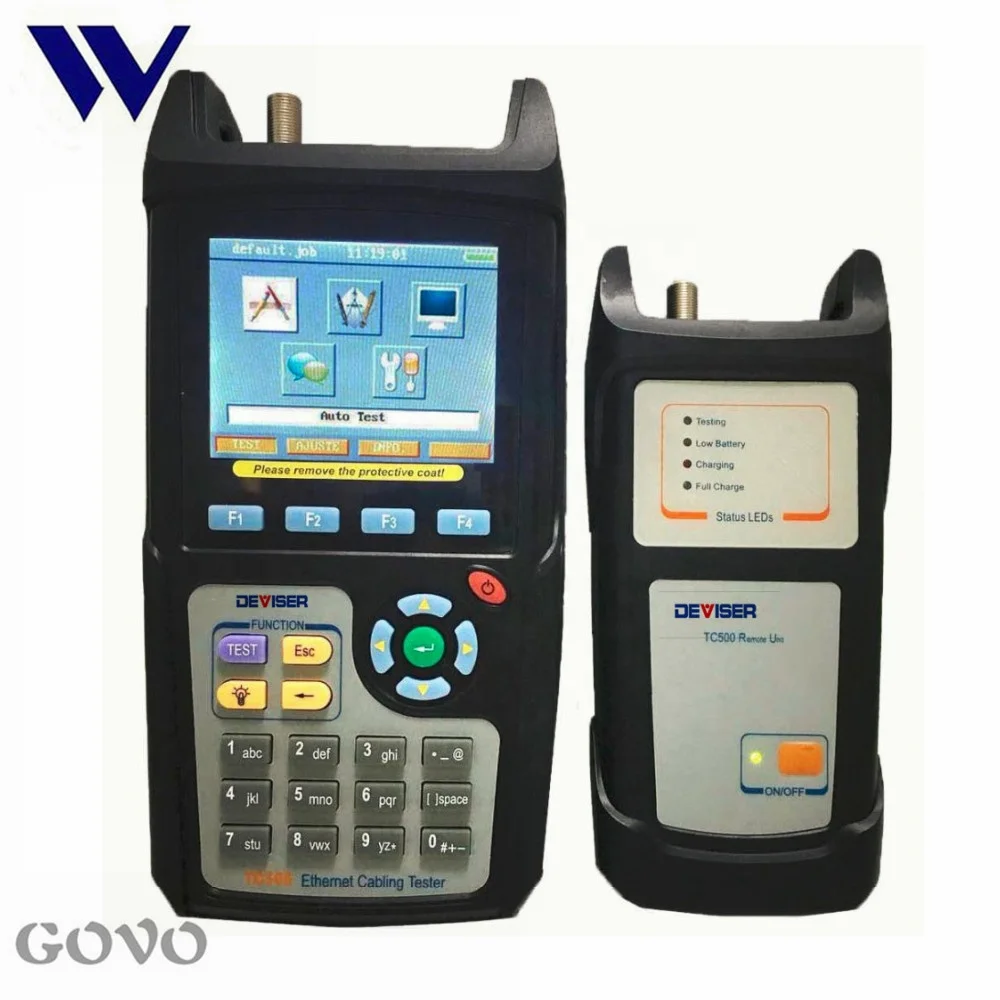

- Contains a main unit and a remote unit.
- Multi connector: one RJ45 connector for UTP/STP data cable testing, one F connector for coax testing, one RJ11 connector for telephone cable testing and two banana jacks for 2-wires testing
- Support International standard ISO/IEC 11801 and American standard TIA/EIA-568-B
- Tone generator.
- Two additional functions: Ping and BER Test
- Store at least 100 results
- Toolbox software to analyze the results on PC
Auto Test Items
* Wire map
* Length
* Propagation delay
* Delay skew
* D. C. loop resistance
* Insertion loss (attenuation)
* NEXT (near-end crosstalk)
* PS NEXT (power-sum NEXT)
* Return loss
* ACR (attenuation to crosstalk ratio at the near end)
* PS ACR (power-sum ACR-N)
* ELFEXT (equal level far-end crosstalk)
* PS ELFEXT (power-sum ELFEXT)
Manual Test Items
* Single Auto test item
* BER Test, up to 1000BASE-T
* TONE
Network Test
* Ping
Specifications
Items | Range | Resolution |
Accuracy
|
Length | 0 m ~ 176 m (UTP) 0 m ~ 200 m (Coax) | 0.1 m | ±1.5 m |
Propagation Delay | 0 ns ~ 850 ns | 1 ns | ±7 ns |
Delay Skew | 0 ns ~ 100 ns | 1 ns | ±15 ns |
DC Resistance | 0 Ω ~ 100 Ω | 1 Ω | ±2 Ω |
RF Frequency | 1 MHz ~ 250 MHz | NEXT, Return Loss, ELFEXT: 1 to 31.25 MHz: 150 kHz 31.25 MHz ~ 100 MHz: 250 kHz 100 MHz ~ 250 MHz: 500 kHz Insertion Loss: 1 to 250 MHz: 1 MHz | |
RF Items | NEXT: 0 ~ 70 dB Insertion Loss: 0 ~ 40 dB | 0.1 dB | ±2 dB (Insertion Loss) |
Other :
Testing interface | RJ45; RJ11; F; Banana Jacks |
Other interface | USB |
Power Supply | Main unit: 7.4 V / 2.4 AH Lithium battery Remote unit: 7.4 V / 1.1 AH Lithium battery |
Working Time | 3.5 hours |
Charging Time | 5 hours |
Dimension | Main unit: 222 mm x 108 mm x 57 mm; Remote unit: 184 mm x 83 mm x 44 mm |
Weight | Main unit: 0.8 kg; Remote unit: 0.4 kg |

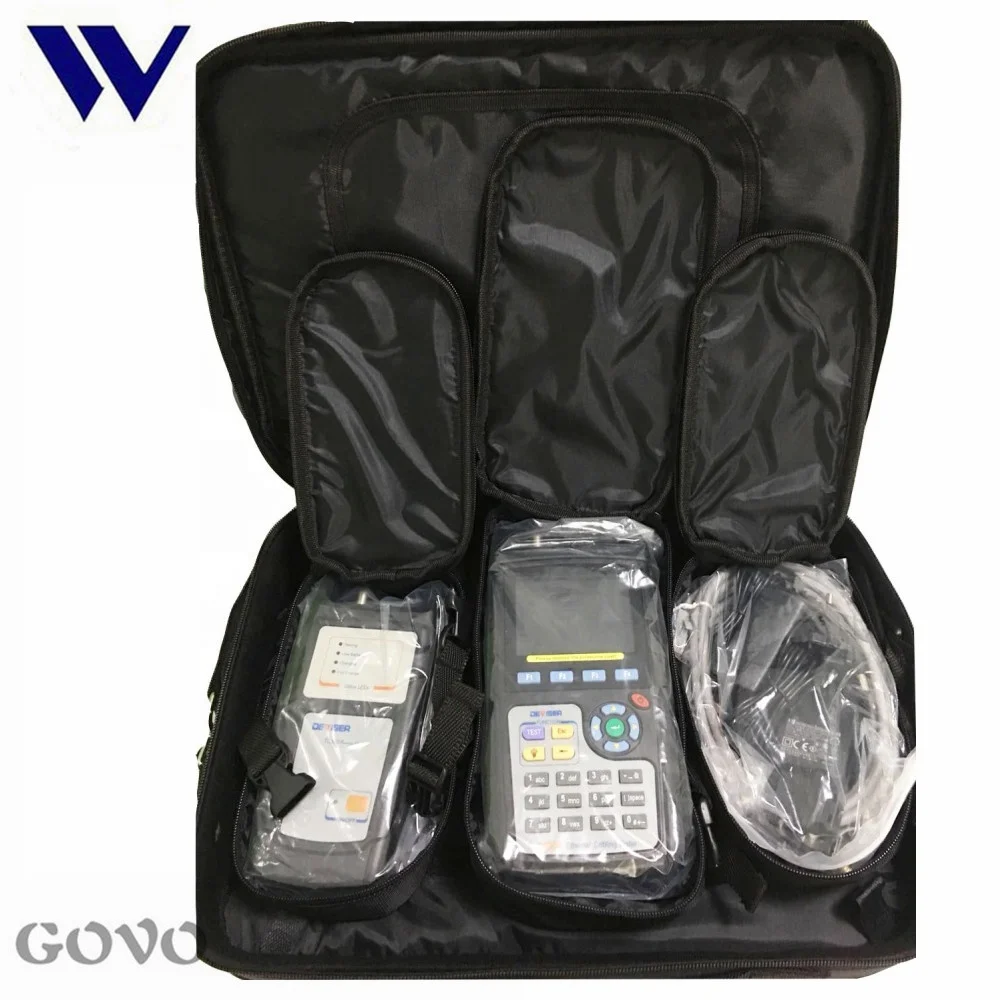

Standard Package
1. TC500 cable testers (main unit and remote unit)
2, CAT6 patch cable
3. RJ45 M-F connectors
4 . Power adapter
5. Calibration certificate
6. CD
7. Carrying bag
Our Services
- Shipping Policy
1.The items will be delivered within around 5~7 work days upon receipt of payment.(up to the quantity ordered) or as per the dated agreed by two parties.
2.The items will be dispatched via international express FEDEX, UPS, DHL, TNT etc (door to door delivery) or via air cargo (door to airport delivery).
3.If the items are not received more than 5~7 days after delivery, please contact us.
- Payment Policy
We accept payment via T/T (wire transfer), and credit card (supported by alibaba trade assurance order)
- Warranty Policy
1.Some Items are covered by 1 Year Return To Base Warranty
2.Please make sure to check carefully when your item arrives and if you find it is not what you ordered or it is damaged please contact us immediately.we assure that problem will be resolved quickly as satisfaction is guaranteed.
3.In the unlikely event that change of mind and a return is request,you can return it back within 14 days since when you receive it.
4. All returns must include all original items undamaged,in re-saleable condition and original packing.
5. We will refund you when we receive the return package. (Shipping and handling fees are not refundable.) And the Buyer is responsible for shipping costs incurred shipping products back.

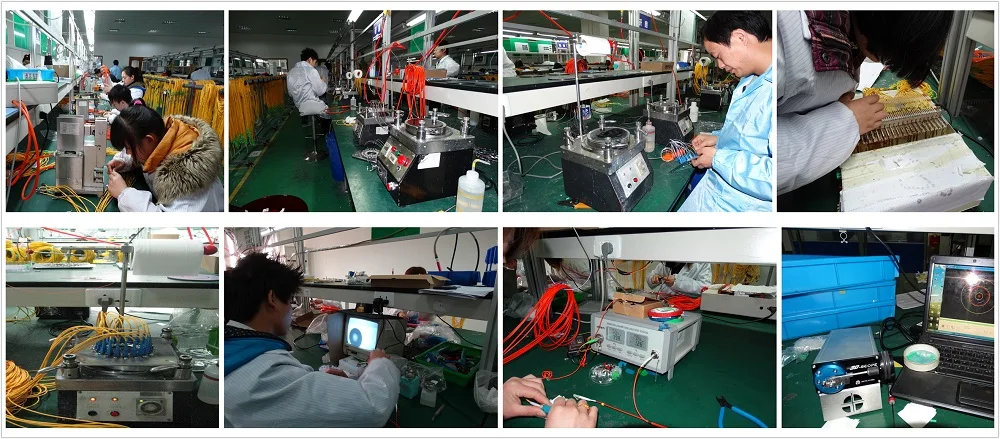

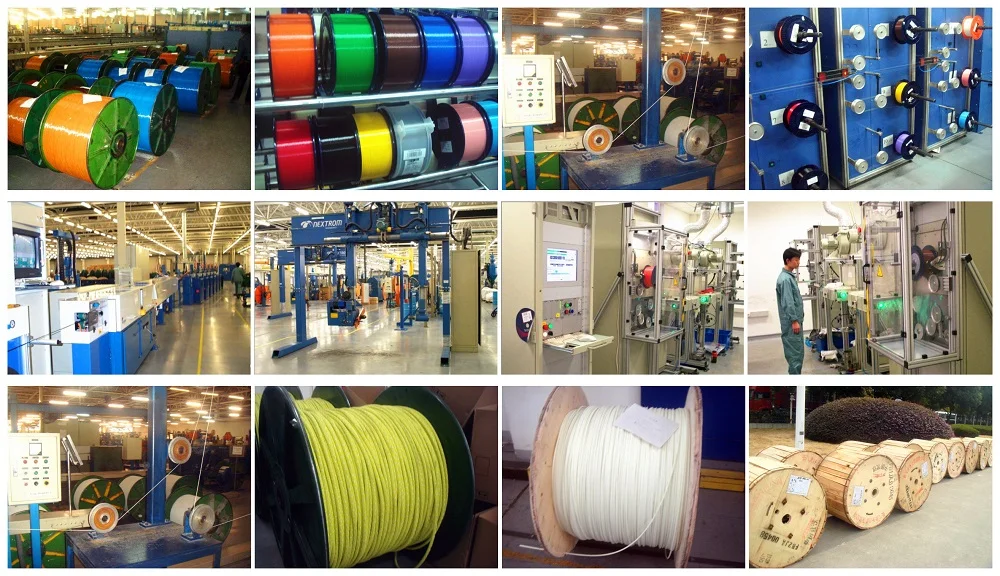

Factory View
Fiber Optic Cable,Patchcord/Pigtail, Breakout Pigtail, Fiber Optic Splitter
