BW250 Mud pump for water well drilling work portable mud borehole

Описание и отзывы

Характеристики



BW250 Mud pump for water well drilling work borehole drilling rig



Feature

1. The BW-250/6 mud pump is mainly used to transport flushing fluid into the borehole in geological core drilling, and can also be used for soft foundation grouting, mine drainage and liquid transportation, etc.;

2. With four different flow rates and pressures, cylinder liners of different diameters can be replaced, the flow rate adjustment range is large, the parameter design is reasonable, and it can be matched with the XY-4 and XY-4 vertical shaft core drilling rigs;

3. The wearing parts such as piston and tie rod seal have long service life and reliable performance;

4. The three-stage design of box body, middle connection and pump head has good detachability and is convenient for maintenance and relocation.





Specification

Model	BW-250
Pump speed	200 r/min
Flow	250 L/min
Pressure	2.5 MPa
Power	15 kW

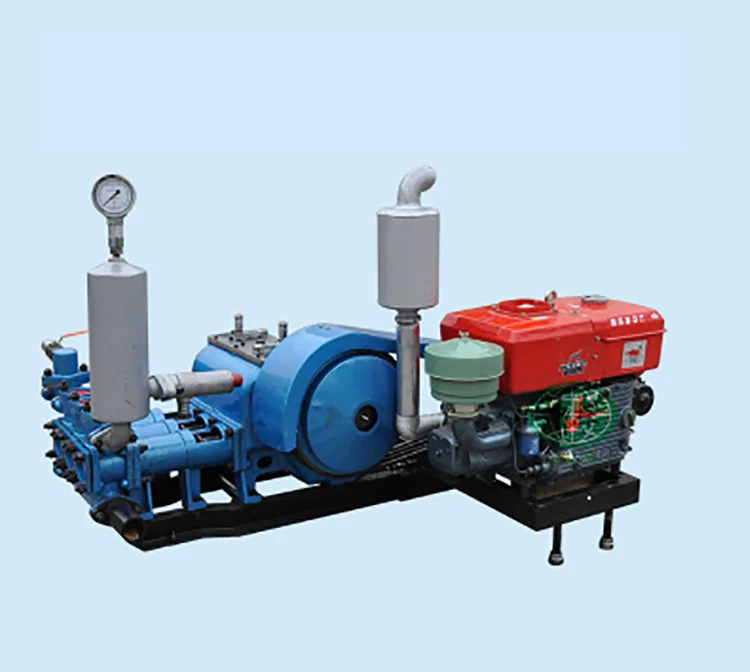

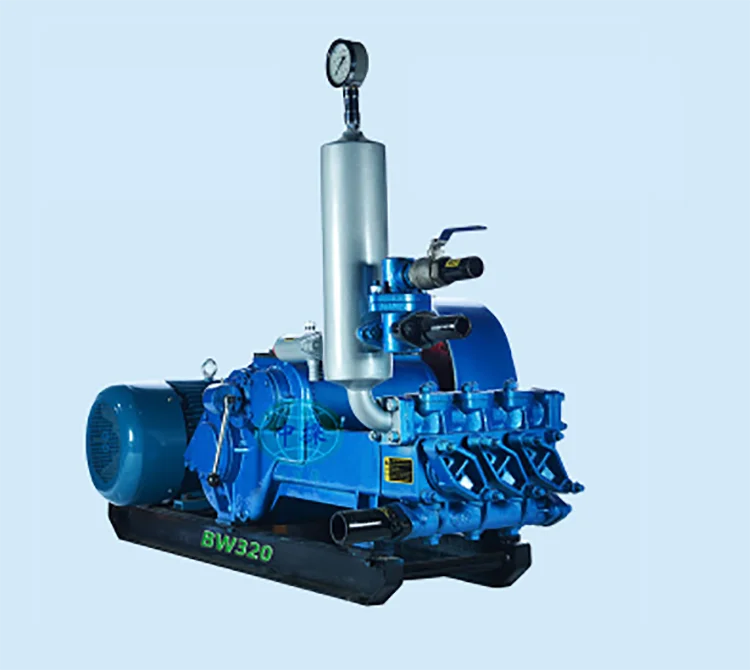

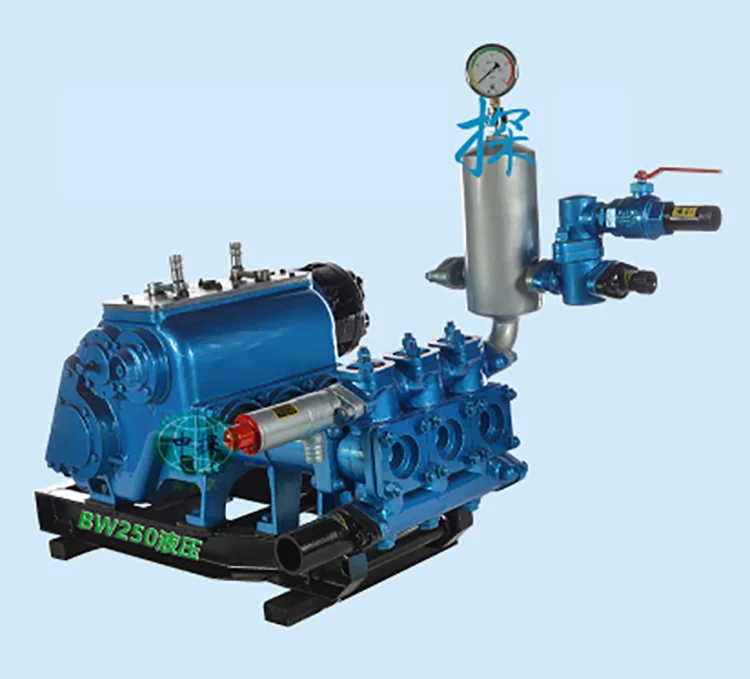

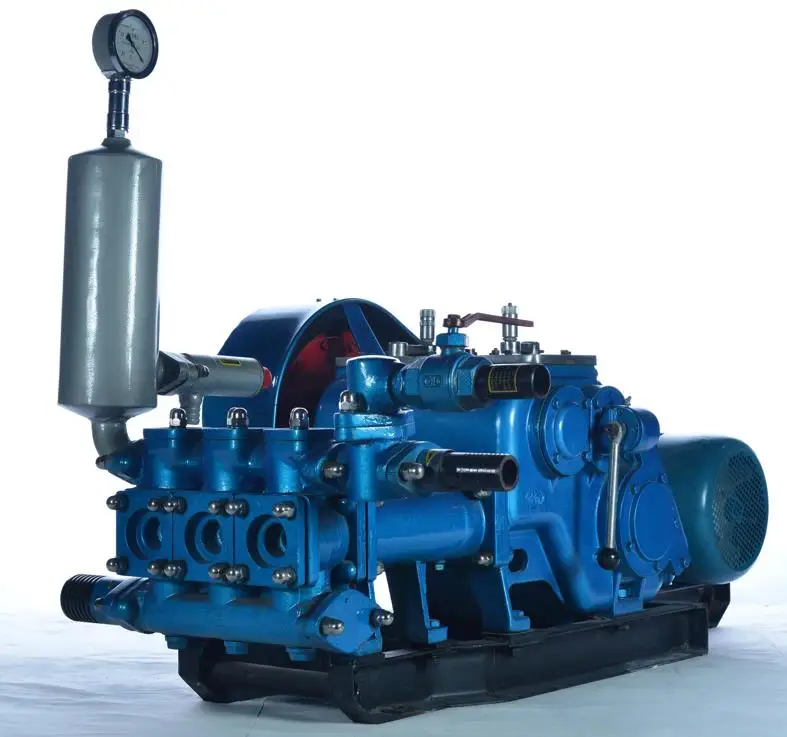

Product picture
